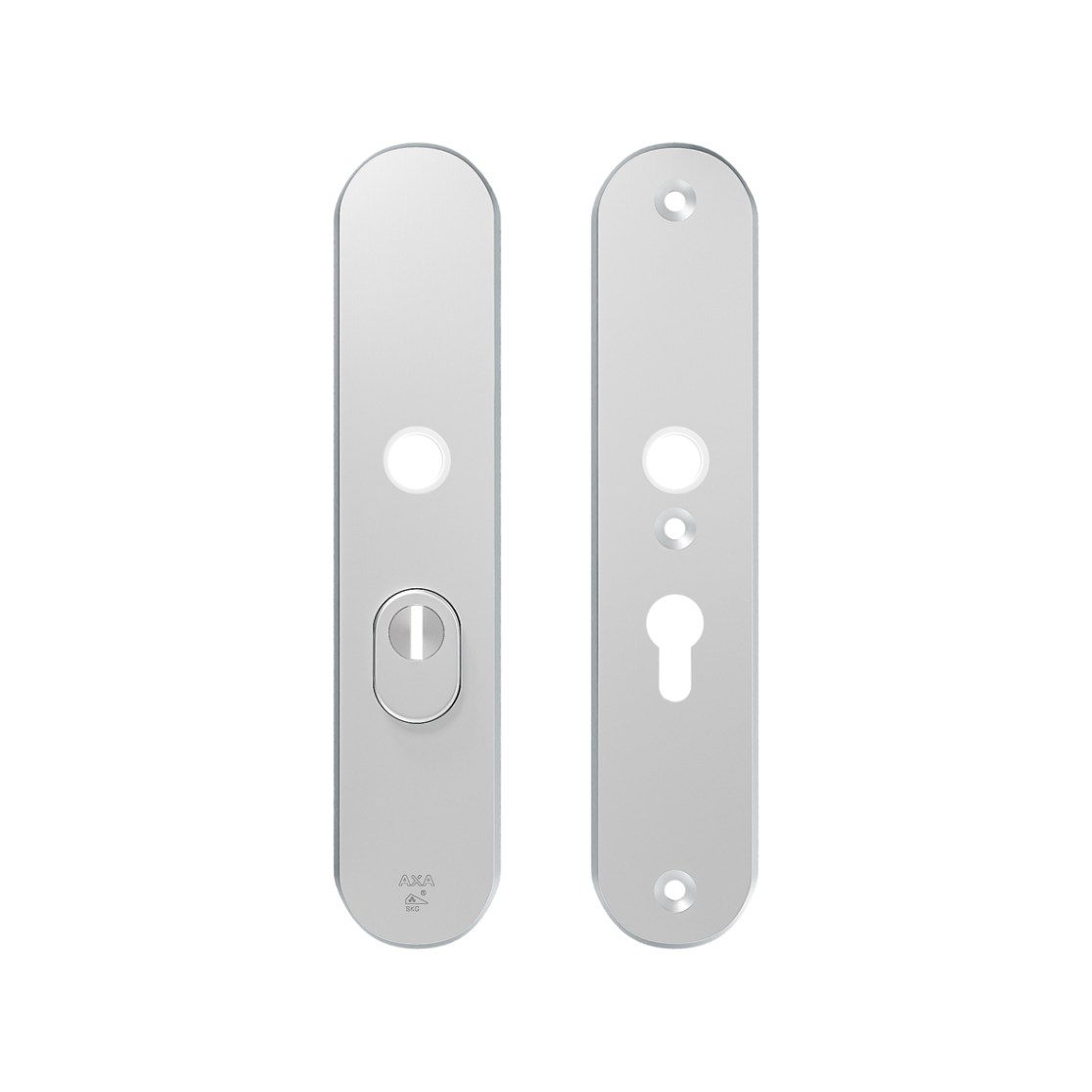

Security backplates Edge Plus PC55 core protection
6667-10-91/55
Reliable and stylish Edge Plus burglar-resistant security fittings.
- sturdy and reliable
- with Self-aligning Cylinder Core Protection (SCP)
- possible to use on all doors with a thickness from 38 to 40 mm
- extended handle spindles and bolts are available for thicker doors
- a seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
- larger shield size usually completely covers the imprint of the old shield
- complies with the Police Hallmark for Safe Living and SKG3
- complete with attachment materials
Reliable and stylish Edge Plus burglar-resistant security fittings.
- sturdy and reliable
- with Self-aligning Cylinder Core Protection (SCP)
- possible to use on all doors with a thickness from 38 to 40 mm
- extended handle spindles and bolts are available for thicker doors
- a seal prevents damage to the paintwork when dismounting and keeps water and draught out effectively
- larger shield size usually completely covers the imprint of the old shield
- complies with the Police Hallmark for Safe Living and SKG3
- complete with attachment materials
Specifications
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 50 mm bolt: 3 pieces
Commercial information
Type Edge Plus PC55 core protection
Use for back doors
Safety information
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False
Cradle to Cradle certification bronze
Technical information
Product Length 252 mm
Product Width 52 mm
Thickness outside 12 mm
Thickness inside 8.5 mm
Direction of rotation outward and inward-opening
Shape right
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Anodised F1, natural
Assembly information
Including Mounting Material True
Assembly time 15 min
Recommended Mounting Materials
- M6 x 50 mm bolt: 3 pieces
- M6 x 50 mm bolt: 3 pieces
Logistic information
Product Weight 721 gr
Pieces per small package 1 piece
EAN small package 8713249285832
Weight small package 0.747 kg
Dimensions small package 257 x 30 x 55 mm
Pieces per bulk package 12 piece
EAN bulk package 8713249285849
Weight bulk package 9.1 kg
Dimensions bulk package 290 x 200 x 120 mm
Downloads
Main Image SKG Certificate Environmental Product Declaration (EPD)Technical drawings
