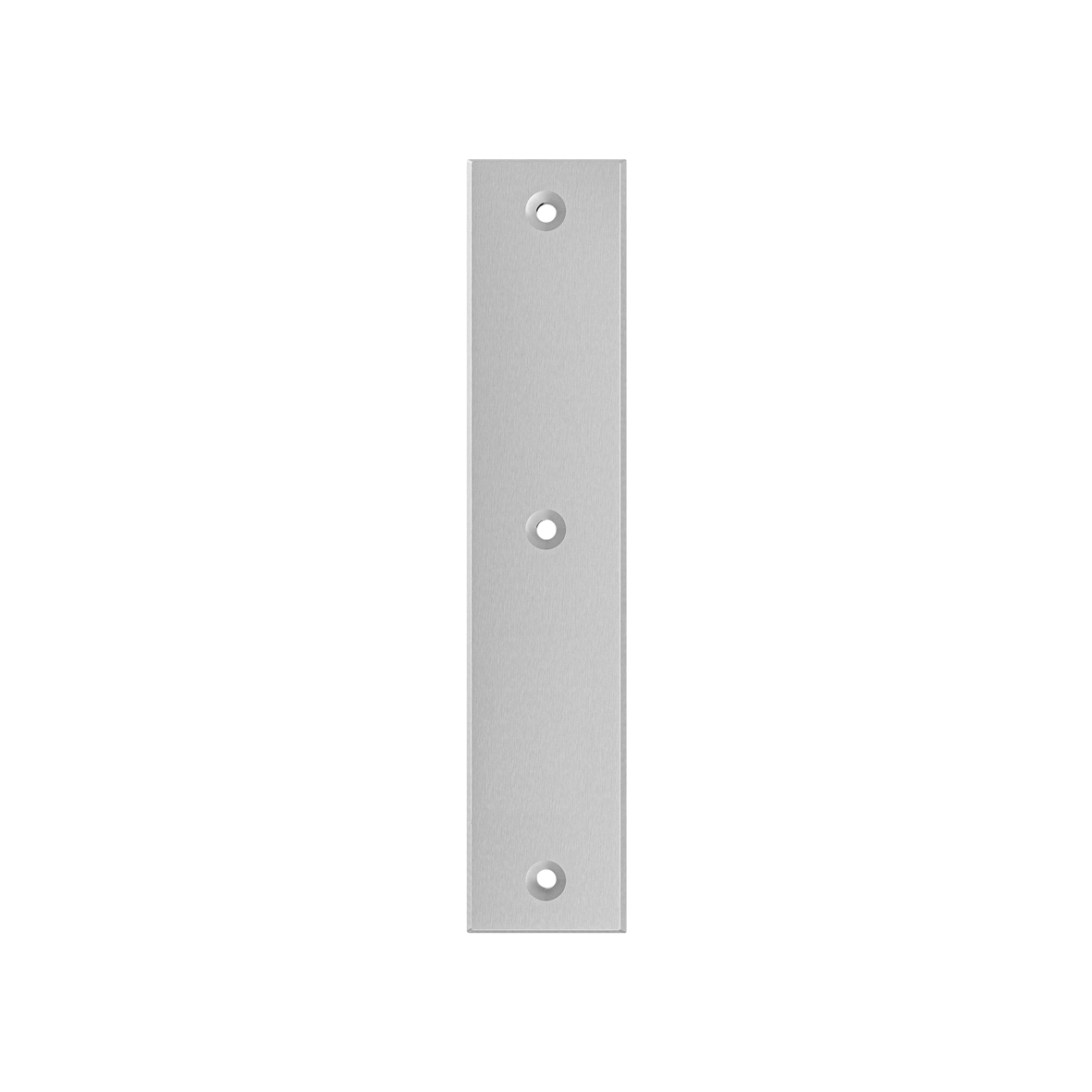

Security backplate Edge inside blind

6663-80-91
arrow_selector
close

SKG 3

bronze

Police Hallmark

Reliable and stylish Edge burglar-resistant security interior backplates.

  • sturdy and reliable
  • a seal prevents damage to the paintwork when dismounting
  • larger shield size usually completely covers the imprint of the old shield
Specifications Downloads Technical drawings Alternative products Similar products
Commercial information
expand_more
Type Edge inside blind
Use for exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE certificate of conformity False
Cradle to Cradle sustainability label bronze
Technical information
expand_more
Product Length 252 mm
Product Width 52 mm
Thickness Security backplate/rosette inside 8,5 mm
Direction of rotation outward and inward-opening
Shape right
Material Aluminum
Finish Anodised F1, natural
Assembly information
expand_more
Including Mounting Material False
Assembly time 5 min
Logistic information
expand_more
Product Weight 290 gr
Pieces per small package 3 piece
EAN small package 8713249287362
Weight small package 0.91 kg
Dimensions small package 257 x 30 x 55 mm
Pieces per bulk package 36 piece
EAN bulk package 8713249287379
Weight bulk package 11.04 kg
Dimensions bulk package 290 x 200 x 120 mm

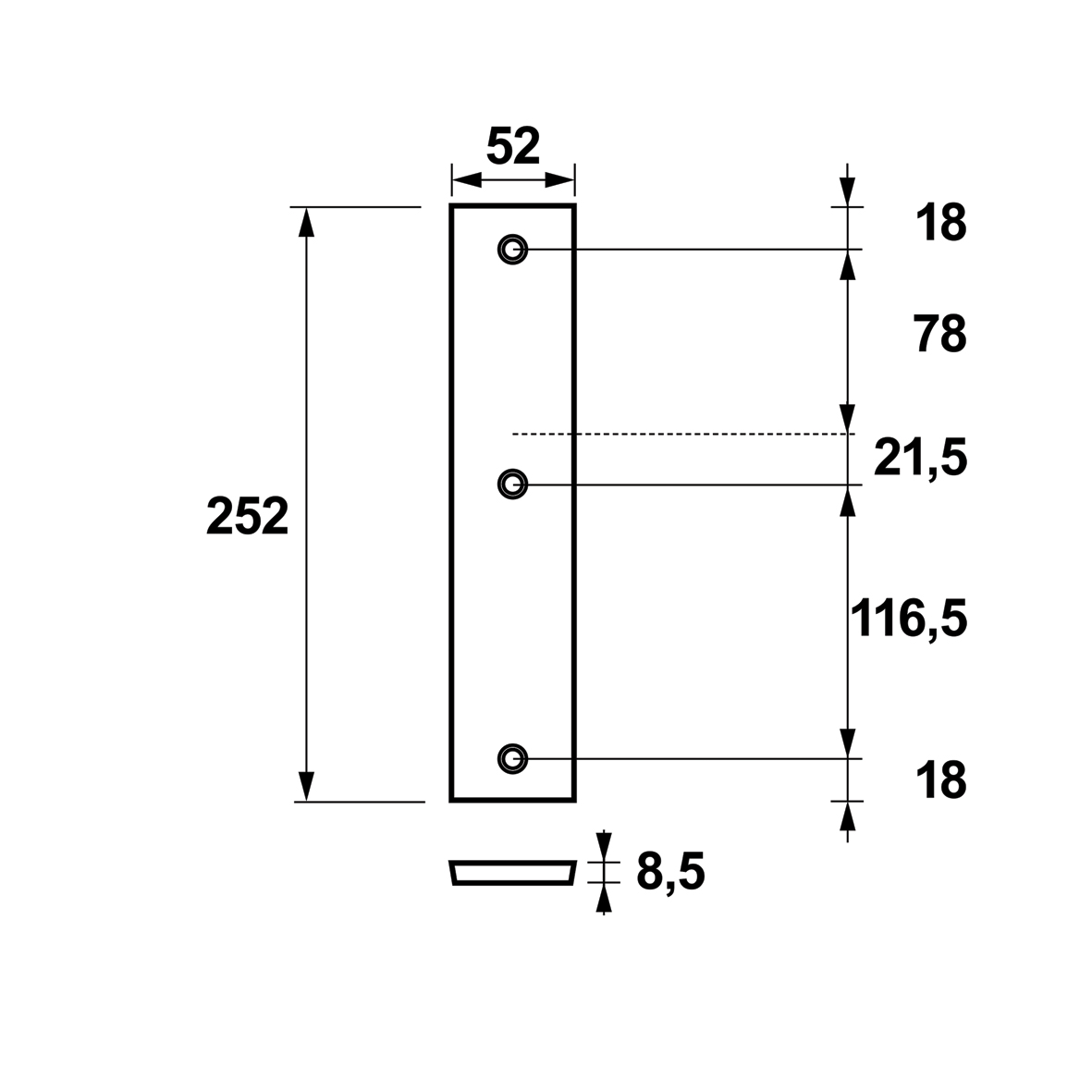

Technical drawings
Security backplate Edge inside blind
66638091
