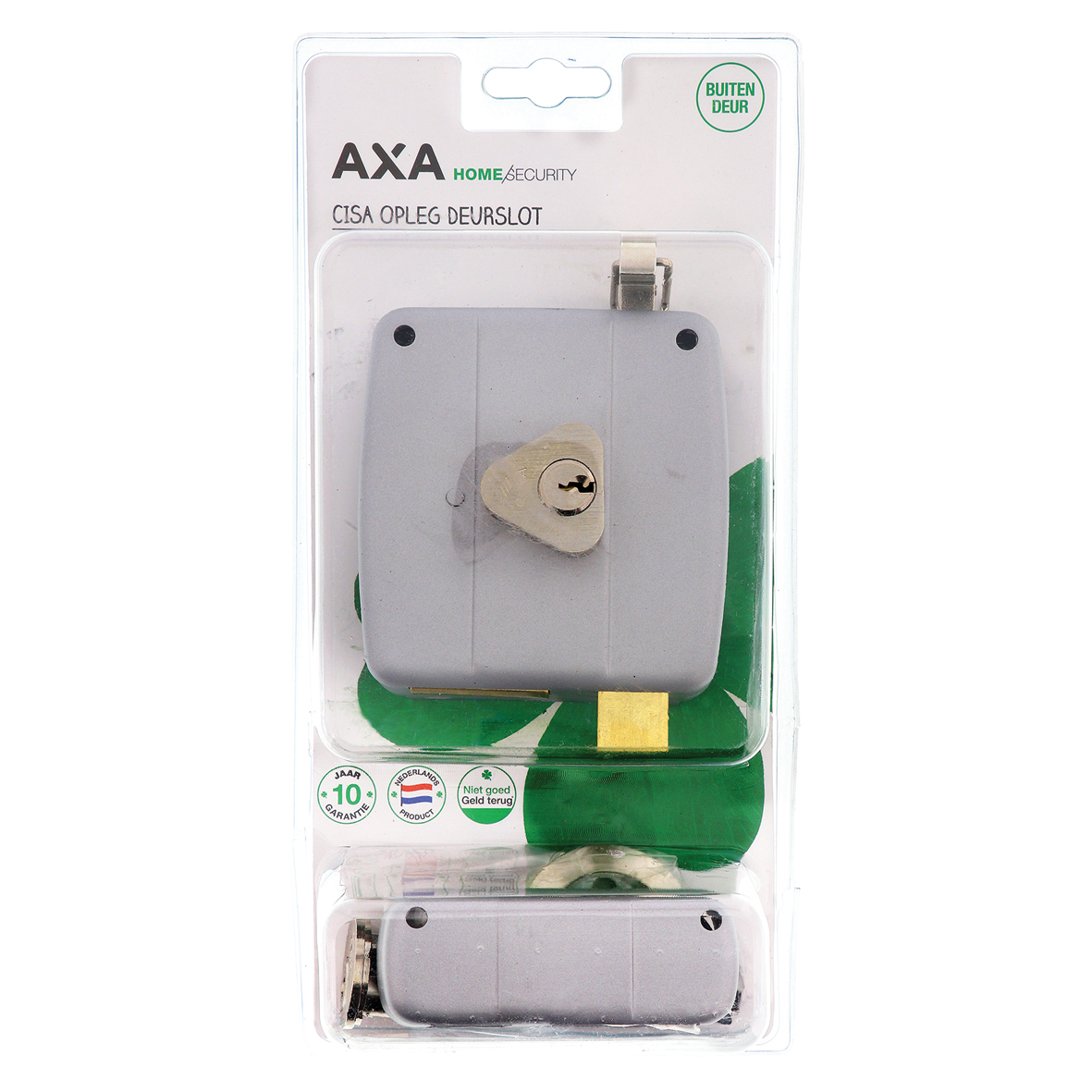

Rim door lock AXA-Cisa 7494 DIN right

7494-52-90/BL
arrow_selector
close

Rim door lock for exterior doors.

  • loose cylinder outside
  • sturdy housing
  • for inward-opening doors
  • possible to use on all doors with a thickness from 38 to 85 mm
  • complete with attachment material
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 50 mm screw: 4 pieces
- 4.0 x 20 mm screw: 4 pieces
Commercial information
expand_more
Type AXA-Cisa 7494 DIN right
Use for exterior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Width 100 mm
Product Height 95 mm
Thickness 27 mm
Direction of rotation right inward-opening
Direction of rotation DIN DIN right inward-opening (2)
Bolt catcher surface-mounted striker
Backset 50 mm
Material Steel
Finish Silver
Assembly information
expand_more
Including Mounting Material True
Assembly time 30 min
Recommended Mounting Materials
- 4.0 x 50 mm screw: 4 pieces
- 4.0 x 20 mm screw: 4 pieces
Logistic information
expand_more
Product Weight 968 gr
Pieces per small package 1 piece
EAN small package 8713249253510
Weight small package 0.97 kg
Dimensions small package 275 x 134 x 65 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249253527
Weight bulk package 5.81 kg
Dimensions bulk package 395 X 325 X 190 mm

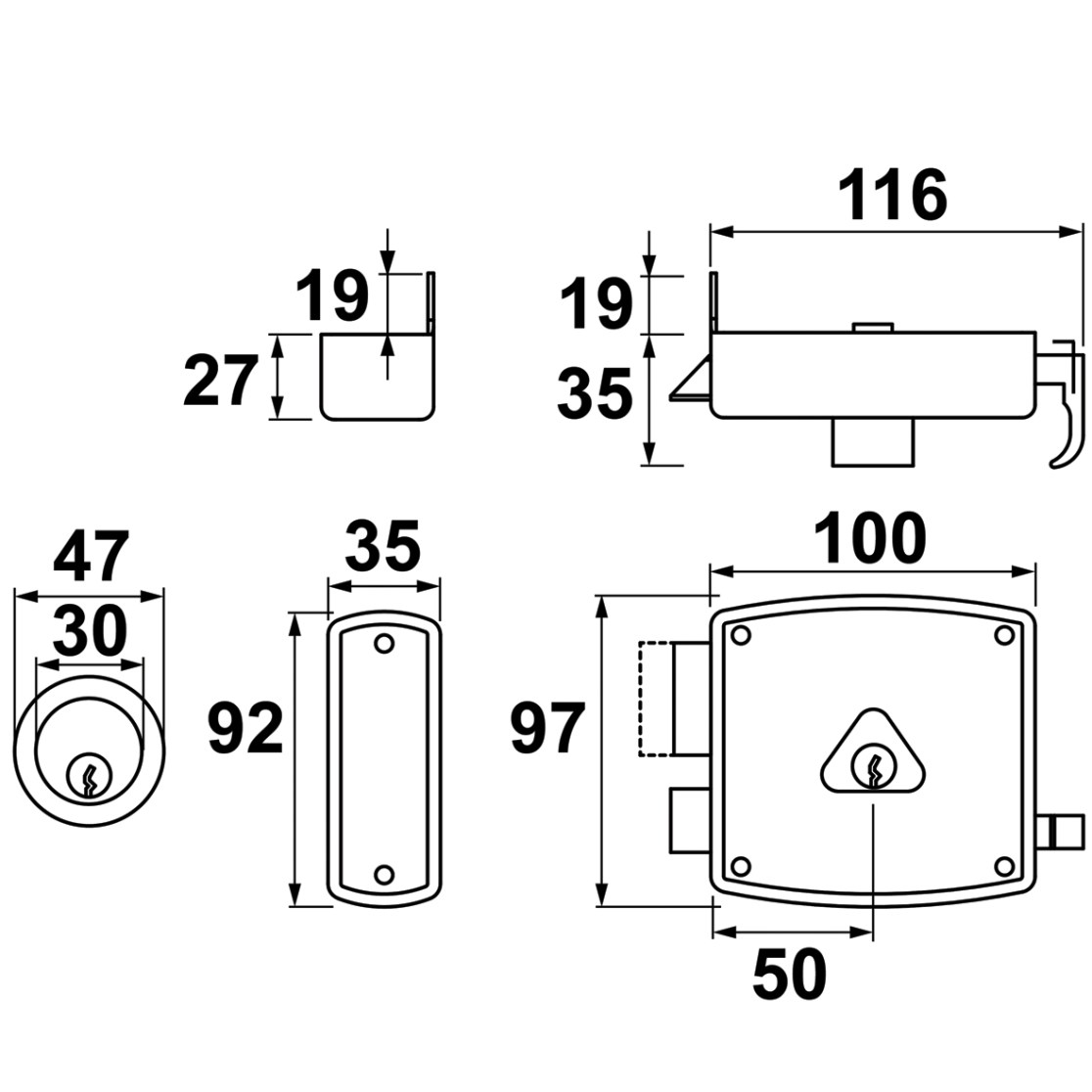

Technical drawings

Alternative products

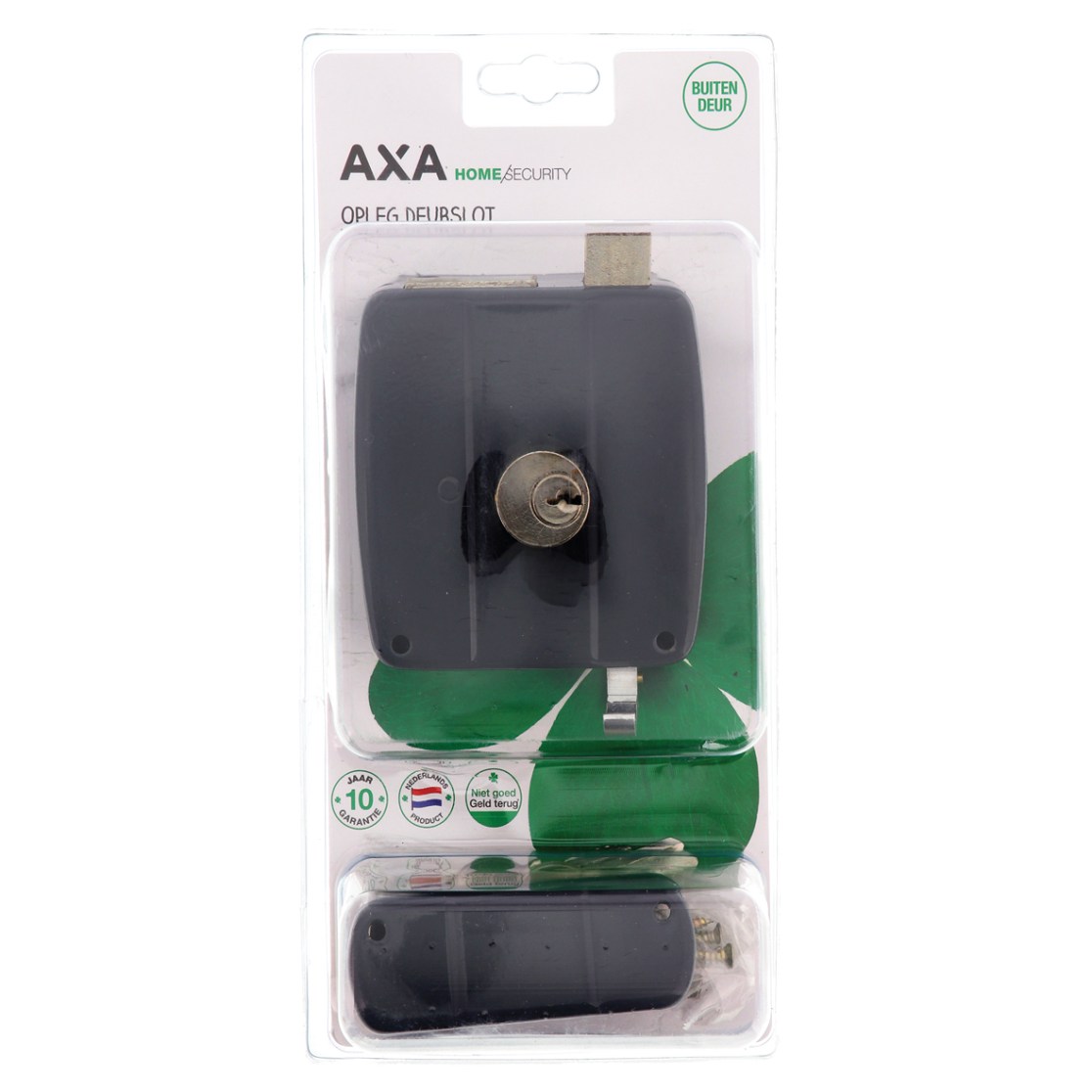

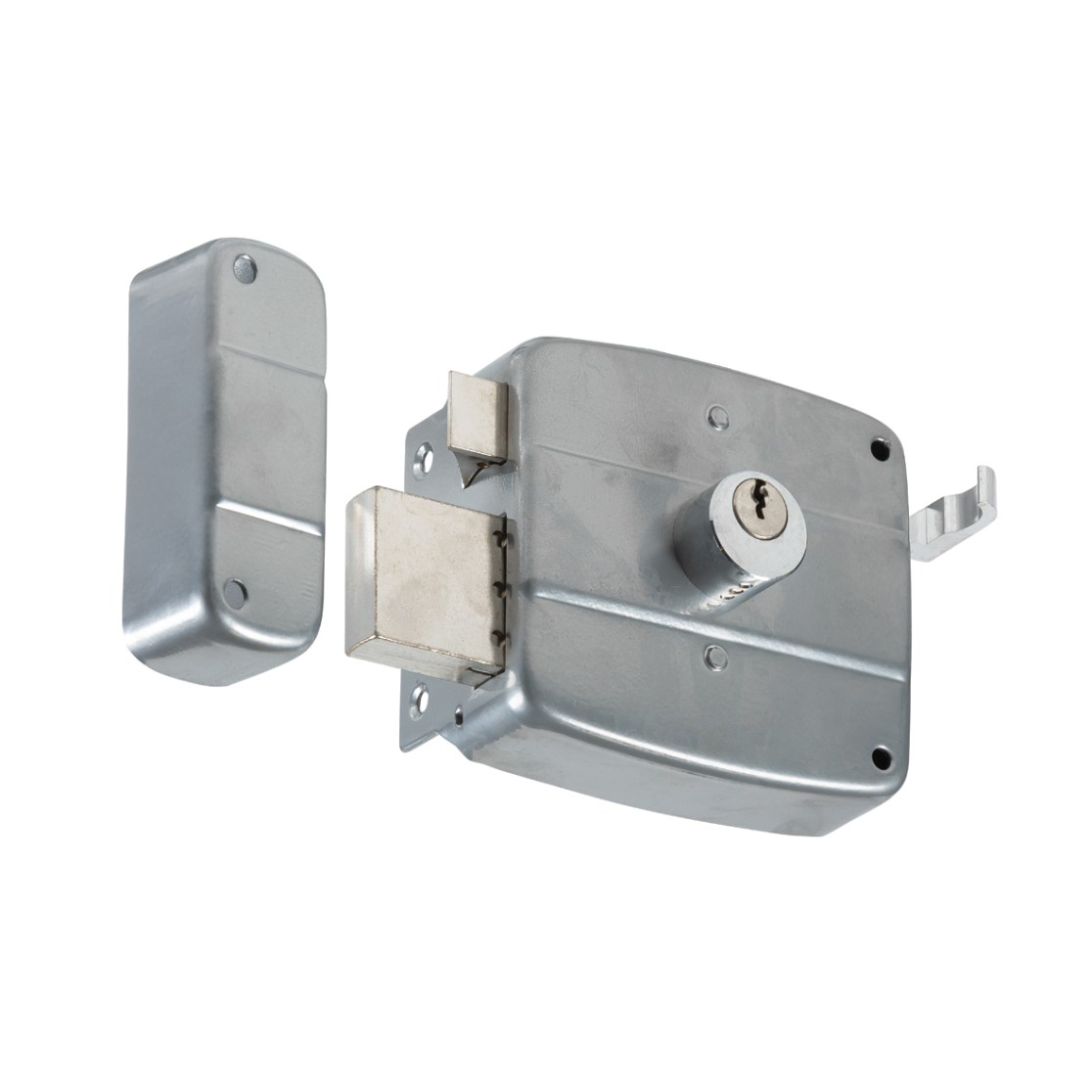

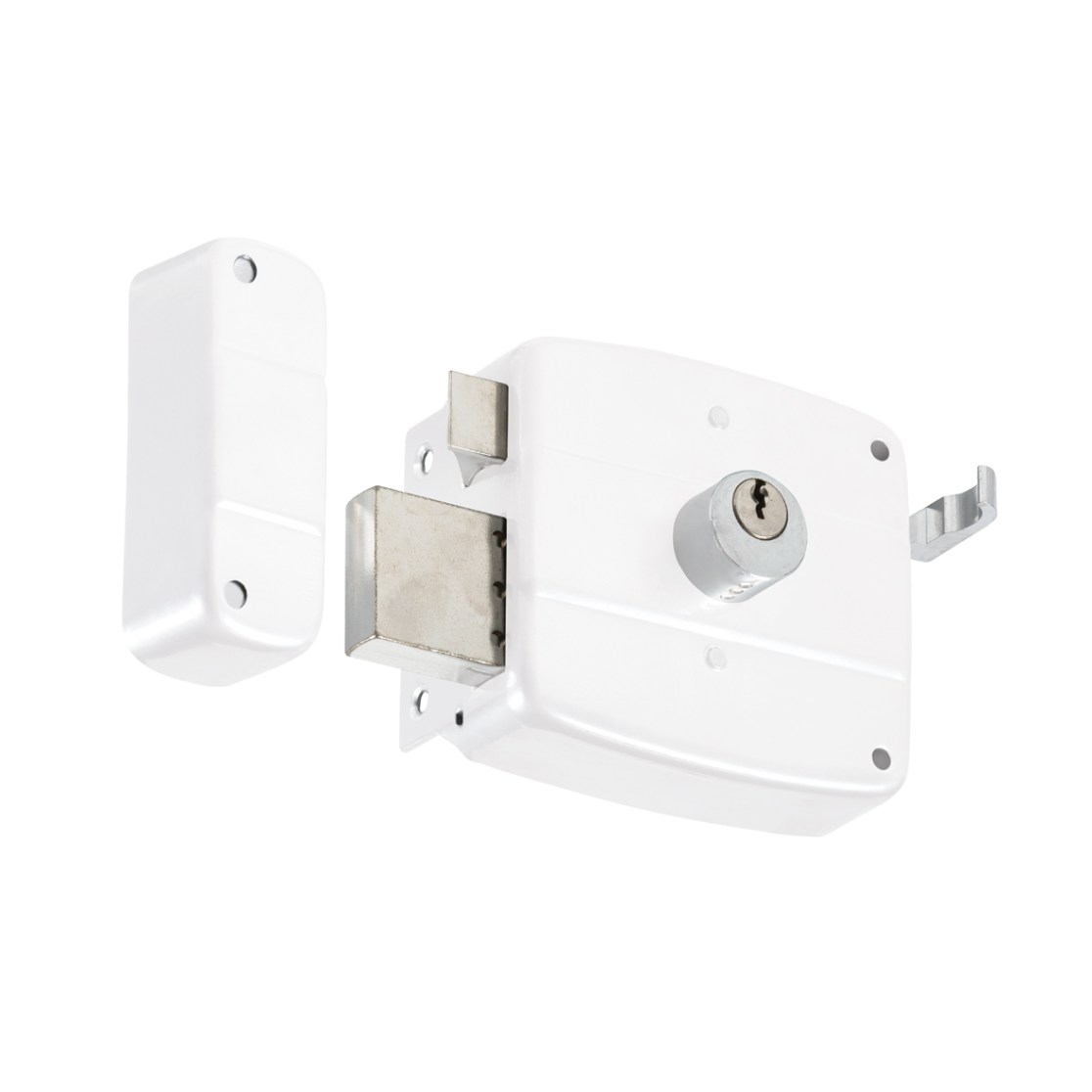

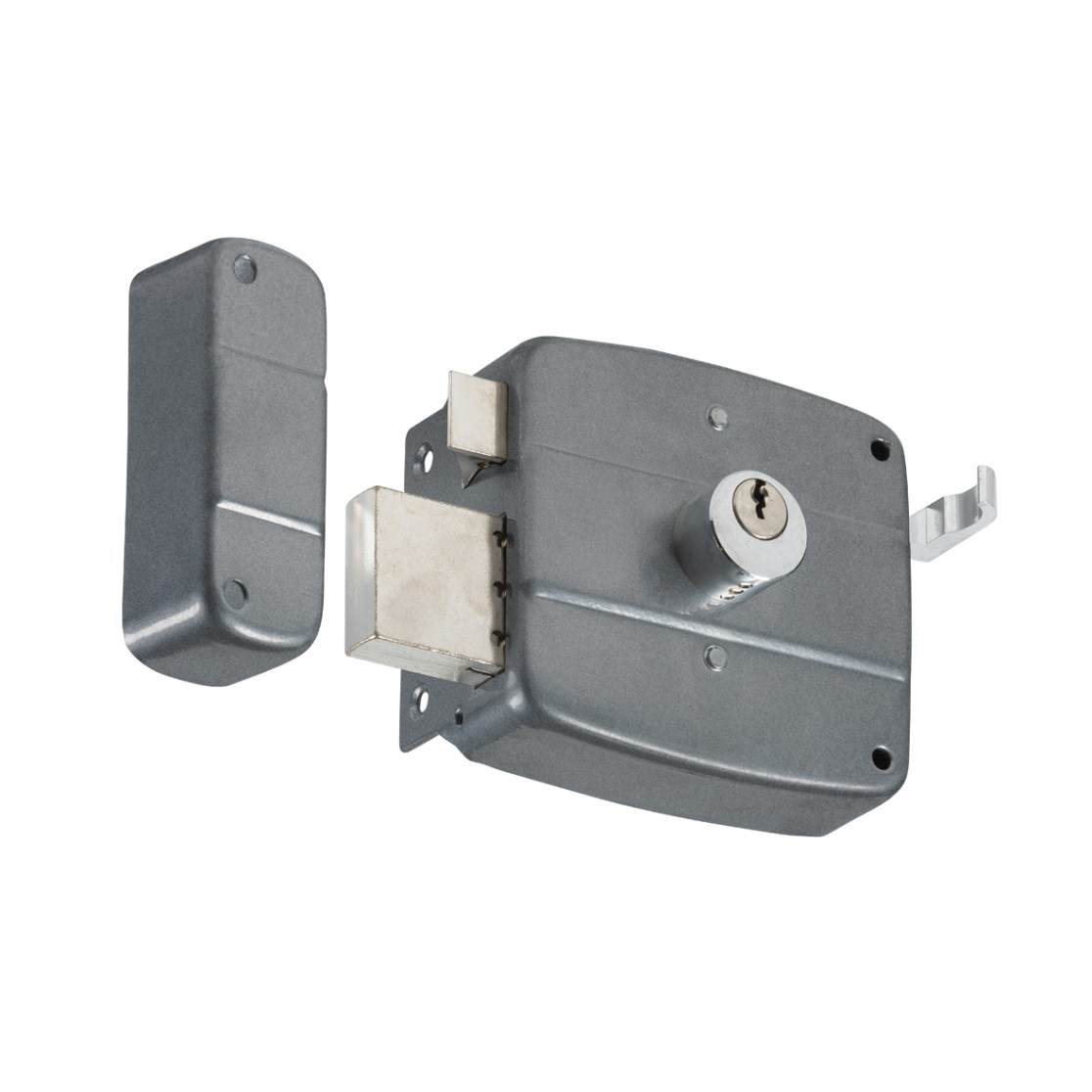

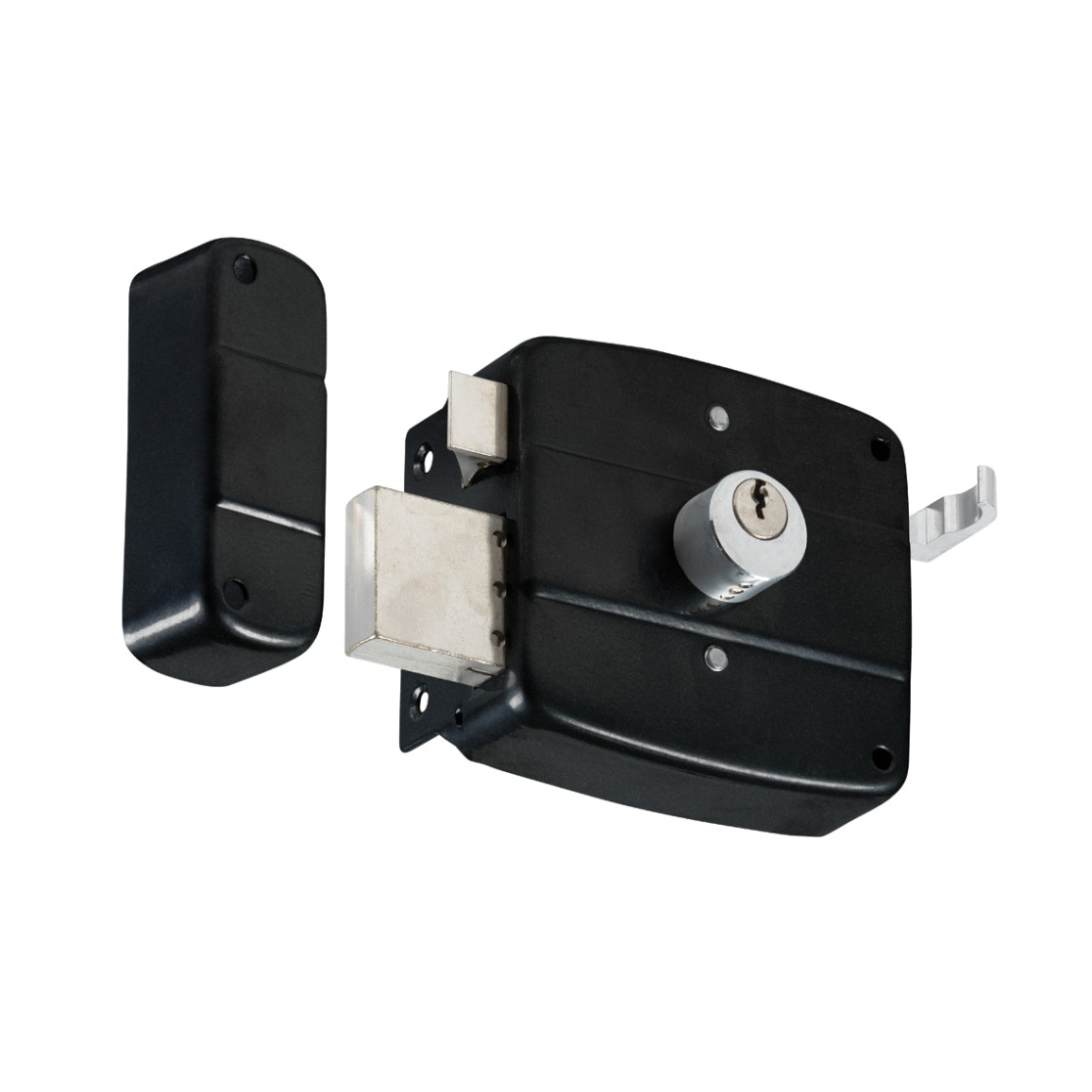

Similar products
