Rim door lock 7490

7490-52-54
arrow_selector
close

Rim door lock for exterior doors.

  • sturdy housing
  • for inward-opening doors
  • complete with attachment material
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 50 mm screw: 4 pieces
- 4.0 x 20 mm screw: 4 pieces
- M6 x 80 mm bolt: 2 pieces
Commercial information
expand_more
Type 7490
Use for exterior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Width 100 mm
Product Height 95 mm
Thickness 27 mm

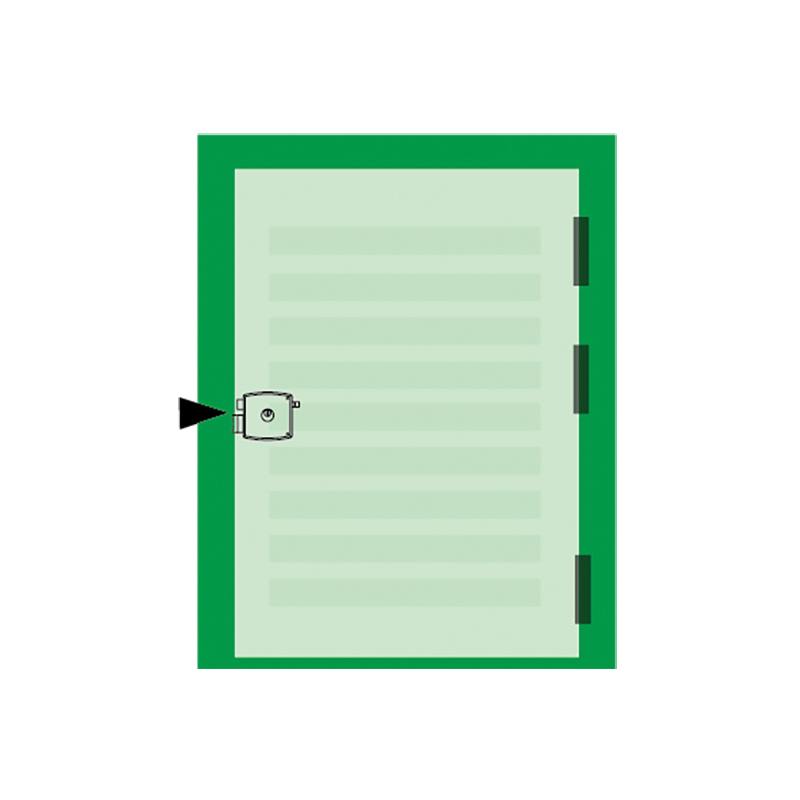

Direction of rotation right inward-opening
Direction of rotation DIN DIN right inward-opening (2)
Bolt catcher surface-mounted striker
Suitable for door thickness 35 - 70 mm
Backset 50 mm
Number of Keys 3
Material Steel
Finish White lacquered
Assembly information
expand_more
Including Mounting Material True
Assembly time 30 min
Recommended Mounting Materials
- 4.0 x 50 mm screw: 4 pieces
- 4.0 x 20 mm screw: 4 pieces
- M6 x 80 mm bolt: 2 pieces
Logistic information
expand_more
Product Weight 827 gr
Pieces per small package 1 piece
EAN small package 8713249297613
Weight small package 0.87 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 4 piece
EAN bulk package 8713249297620
Weight bulk package 3.64 kg
Dimensions bulk package 200 x 150 x 120 mm

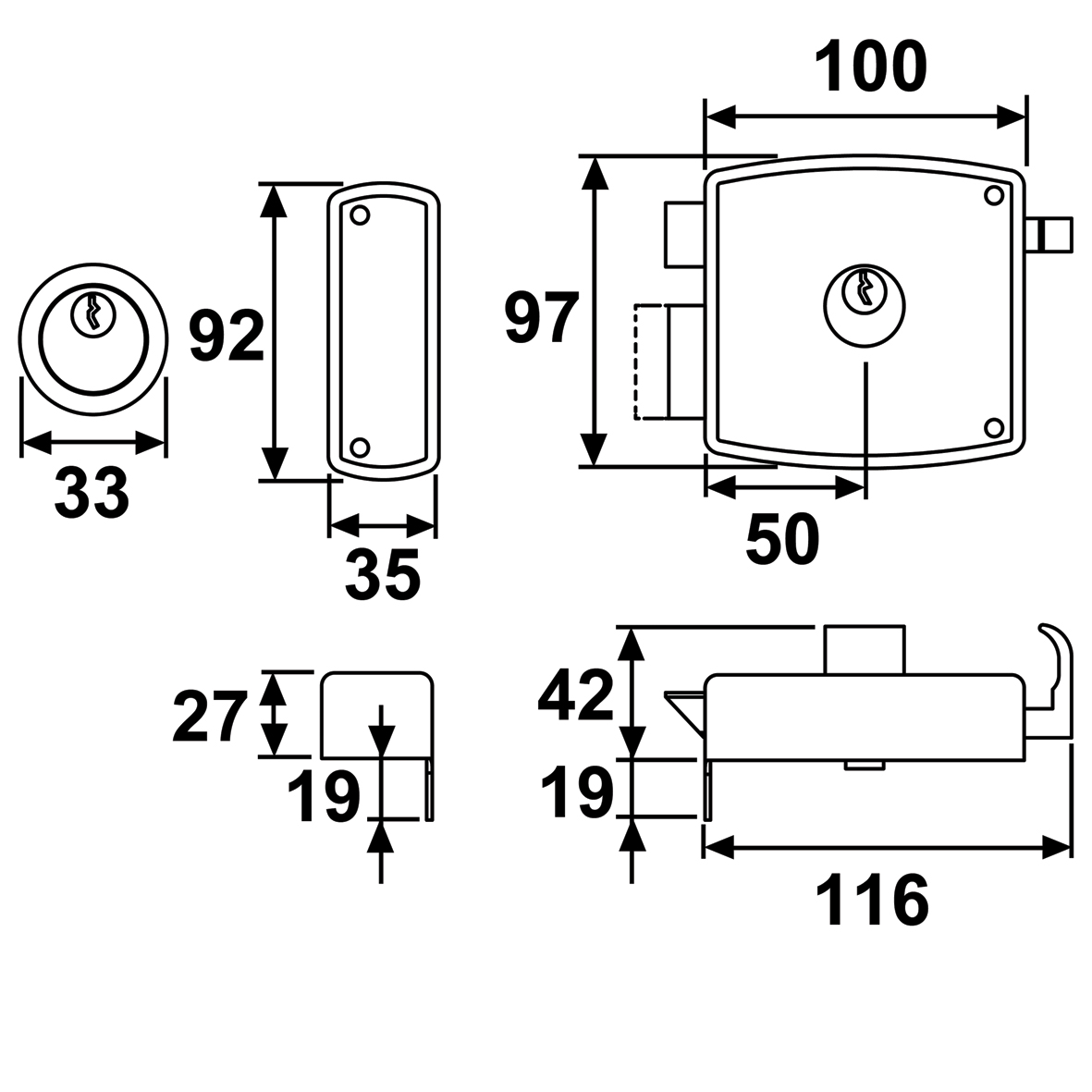

Technical drawings
Rim door lock 7490
74905254
