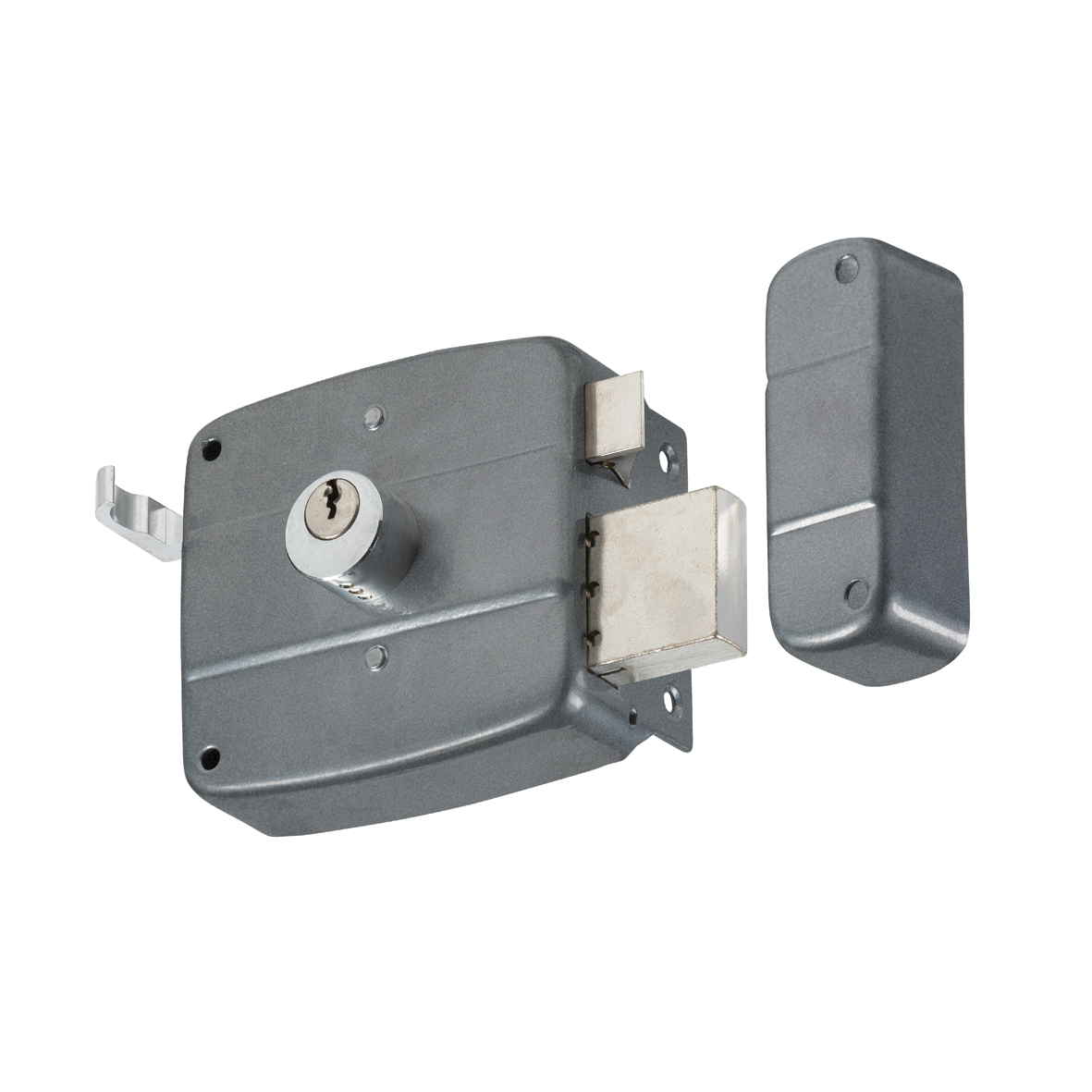

Rim door lock 7490

7490-51-49/BL
arrow_selector
close

Rim door lock for exterior doors.

  • sturdy housing
  • for inward-opening doors
  • complete with attachment material
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 50 mm screw: 4 pieces
- 4.0 x 20 mm screw: 4 pieces
- M6 x 80 mm bolt: 2 pieces
Commercial information
expand_more
Type 7490
Use for exterior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Width 100 mm
Product Height 95 mm
Thickness 27 mm

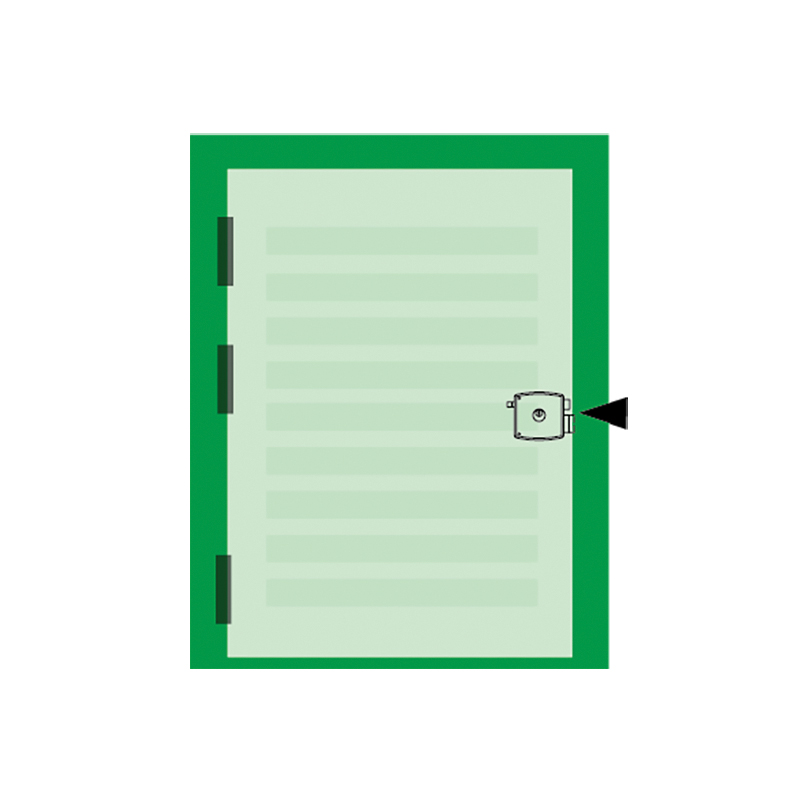

Direction of rotation left inward-opening
Direction of rotation DIN DIN left inward-opening (1)
Bolt catcher surface-mounted striker
Suitable for door thickness 35 - 70 mm
Backset 50 mm
Number of Keys 3
Material Steel
Finish Anthracite lacquered
Assembly information
expand_more
Including Mounting Material True
Assembly time 30 min
Recommended Mounting Materials
- 4.0 x 50 mm screw: 4 pieces
- 4.0 x 20 mm screw: 4 pieces
- M6 x 80 mm bolt: 2 pieces
Logistic information
expand_more
Product Weight 943 gr
Pieces per small package 1 piece
EAN small package 8713249249223
Weight small package 0.785 kg
Dimensions small package 275 x 134 x 65 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249249230
Weight bulk package 5.04 kg
Dimensions bulk package 395 X 325 X 190 mm

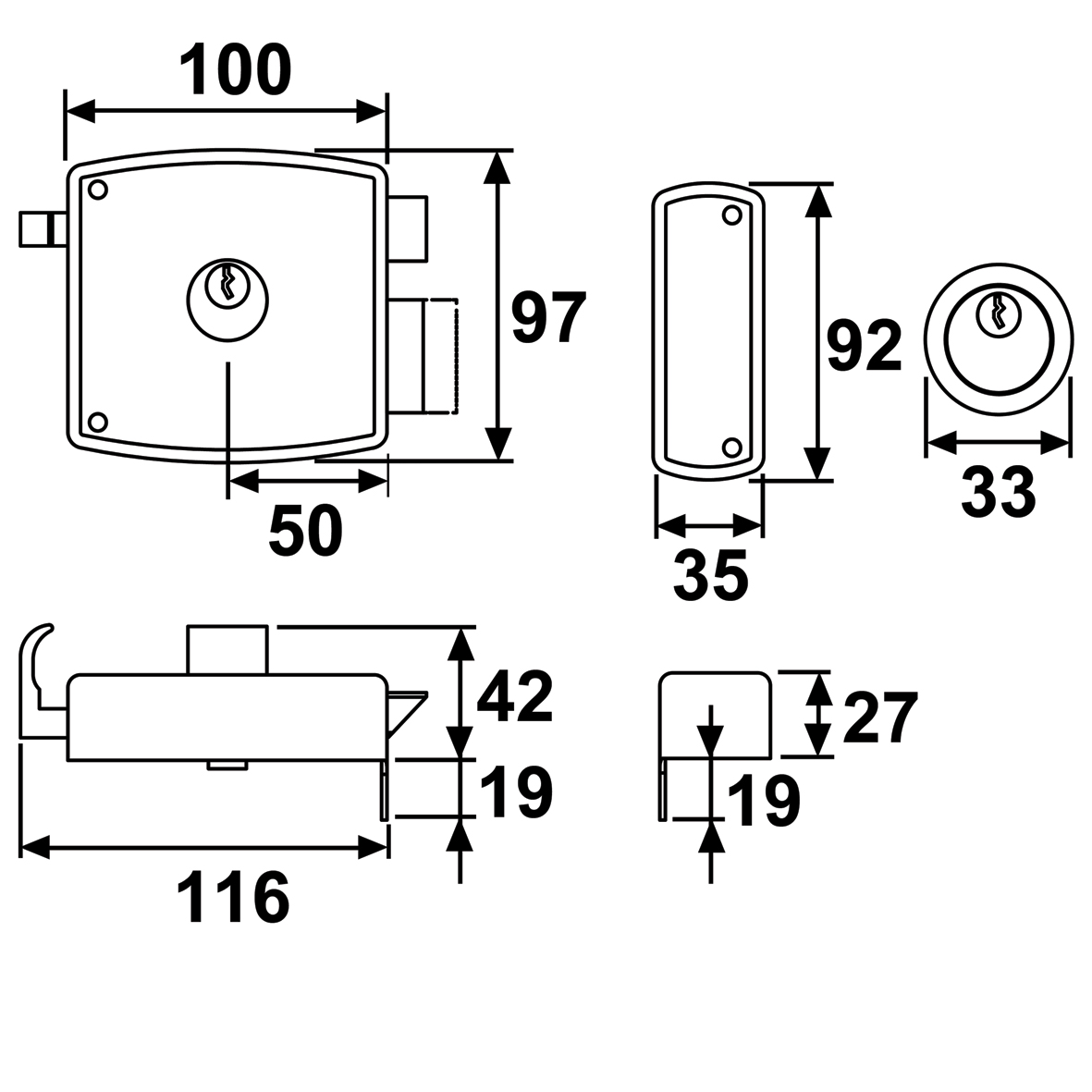

Technical drawings
Rim door lock 7490
74905149BL
