Rim door lock 50420.50.2
7CS-5042-050295Rim door lock for exterior doors.
- sturdy housing
- for inward-opening doors
- with hold-open device
- loose outdoor cylinder
- complete with attachment material
Rim door lock for exterior doors.
- sturdy housing
- for inward-opening doors
- with hold-open device
- loose outdoor cylinder
- complete with attachment material
Specifications
Recommended Mounting Materials
- 4.0 x 20 mm screw: 4 pieces
- 3.5 x 50 mm screw: 6 pieces
- M6 x 80 mm bolt: 2 pieces
- 4.0 x 20 mm screw: 4 pieces
- 3.5 x 50 mm screw: 6 pieces
- M6 x 80 mm bolt: 2 pieces
Commercial information
Type 50420.50.2
Use for exterior doors
Safety information
SKG No
Police Hallmark False
CE Applicable False

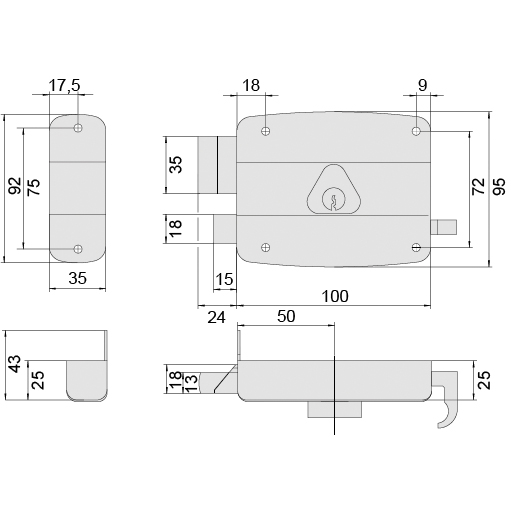

Technical information
Product Width 100 mm
Product Height 95 mm
Thickness 25 mm

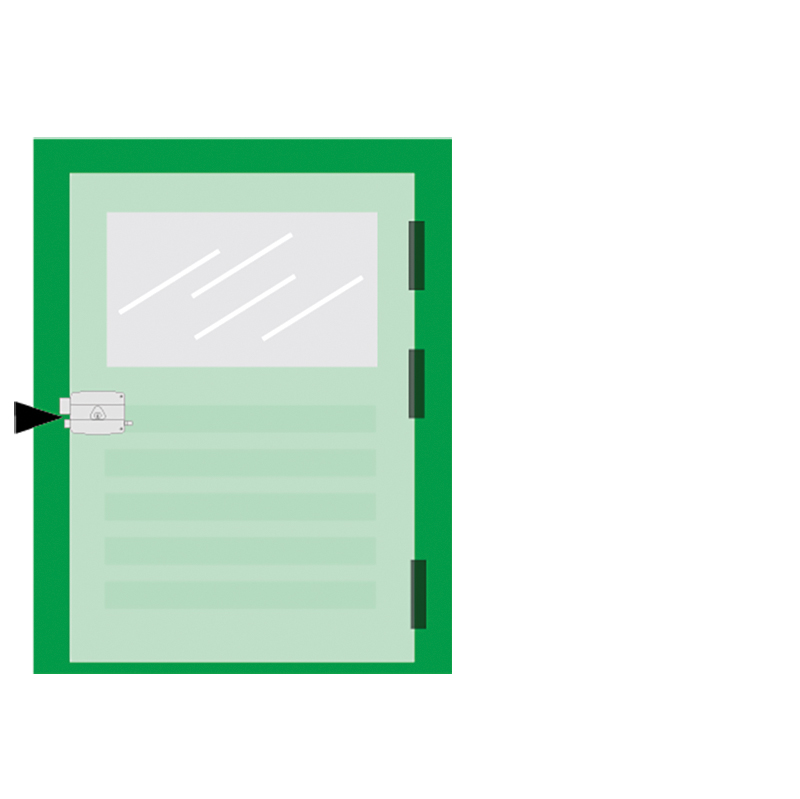

Direction of rotation right inward-opening
Direction of rotation DIN DIN right inward-opening (2)
Bolt catcher surface-mounted striker
Backset 50 mm
Material Steel
Finish Silver
Assembly information
Including Mounting Material True
Assembly time 30 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 4 pieces
- 3.5 x 50 mm screw: 6 pieces
- M6 x 80 mm bolt: 2 pieces
- 4.0 x 20 mm screw: 4 pieces
- 3.5 x 50 mm screw: 6 pieces
- M6 x 80 mm bolt: 2 pieces
Logistic information
Product Weight 960 gr
Pieces per small package 1 piece
EAN small package 8015346182459
Dimensions small package 175 x 105 x 65 mm
Pieces per bulk package 10 piece
EAN bulk package 8015346190935
Downloads
Main Image Environmental Product Declaration (EPD)Technical drawings
