Rim door lock 50321.60.1

7CS-5032-1601
arrow_selector
close

Rim door lock for exterior doors.

  • sturdy housing
  • for inward-opening doors
  • wth hold-open device
  • fixed outdoor cylinder
  • complete with attachment material
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 4 pieces
- 3.5 x 40 mm screw: 4 pieces
- M5 x 80 mm bolt: 2 pieces
Commercial information
expand_more
Type 50321.60.1
Use for exterior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Width 120 mm
Product Height 96 mm
Thickness 25 mm
Direction of rotation left inward-opening
Direction of rotation DIN DIN left inward-opening (1)
Bolt catcher surface-mounted striker
Suitable for door thickness 38 - 42 mm
Backset 60 mm
Material Steel
Finish Silver
Assembly information
expand_more
Including Mounting Material True
Assembly time 30 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 4 pieces
- 3.5 x 40 mm screw: 4 pieces
- M5 x 80 mm bolt: 2 pieces
Logistic information
expand_more
Product Weight 1050 gr
Pieces per small package 1 piece
EAN small package 8015345089476
Dimensions small package 180 x 118 x 112 mm

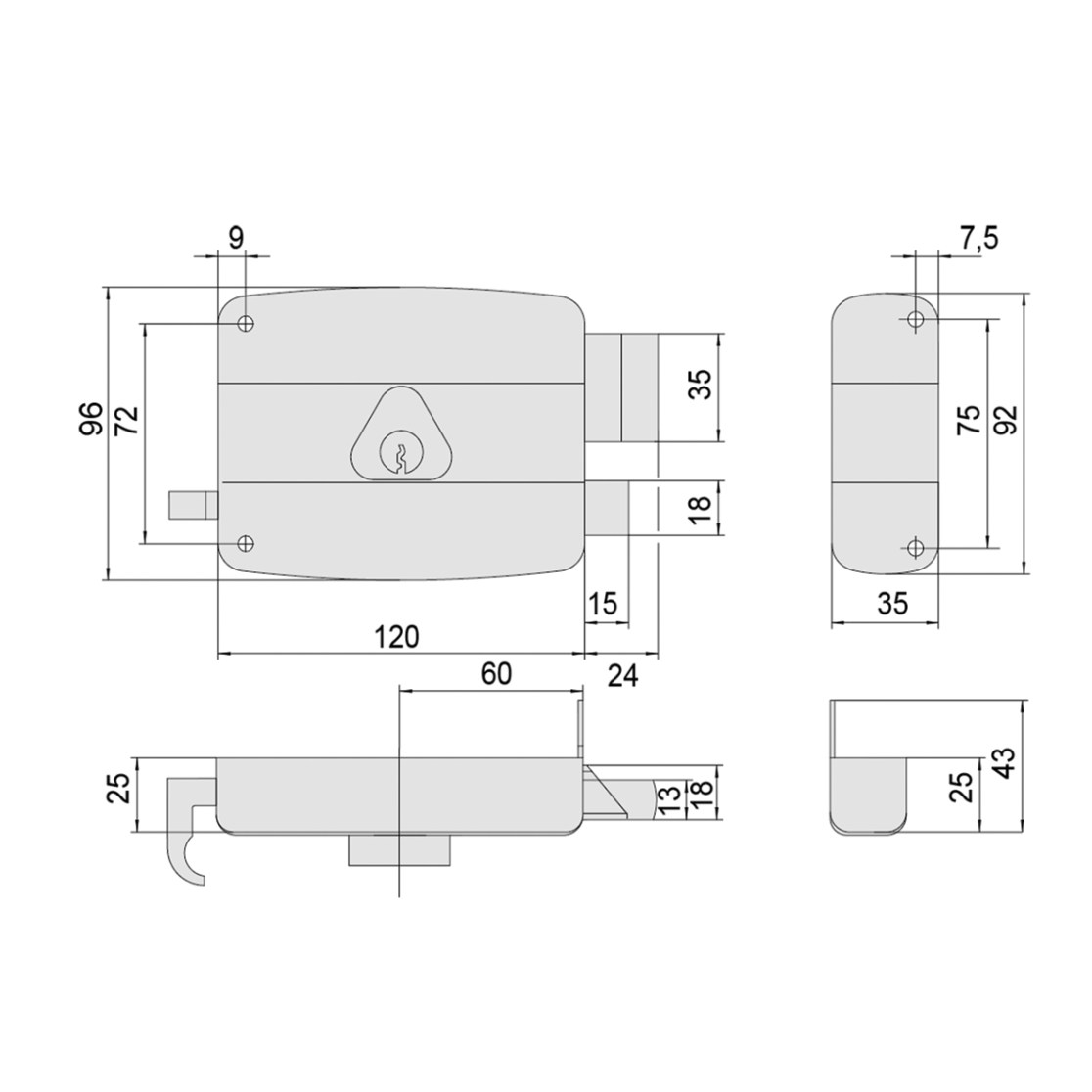

Technical drawings
Rim door lock 50321.60.1
7CS50321601
