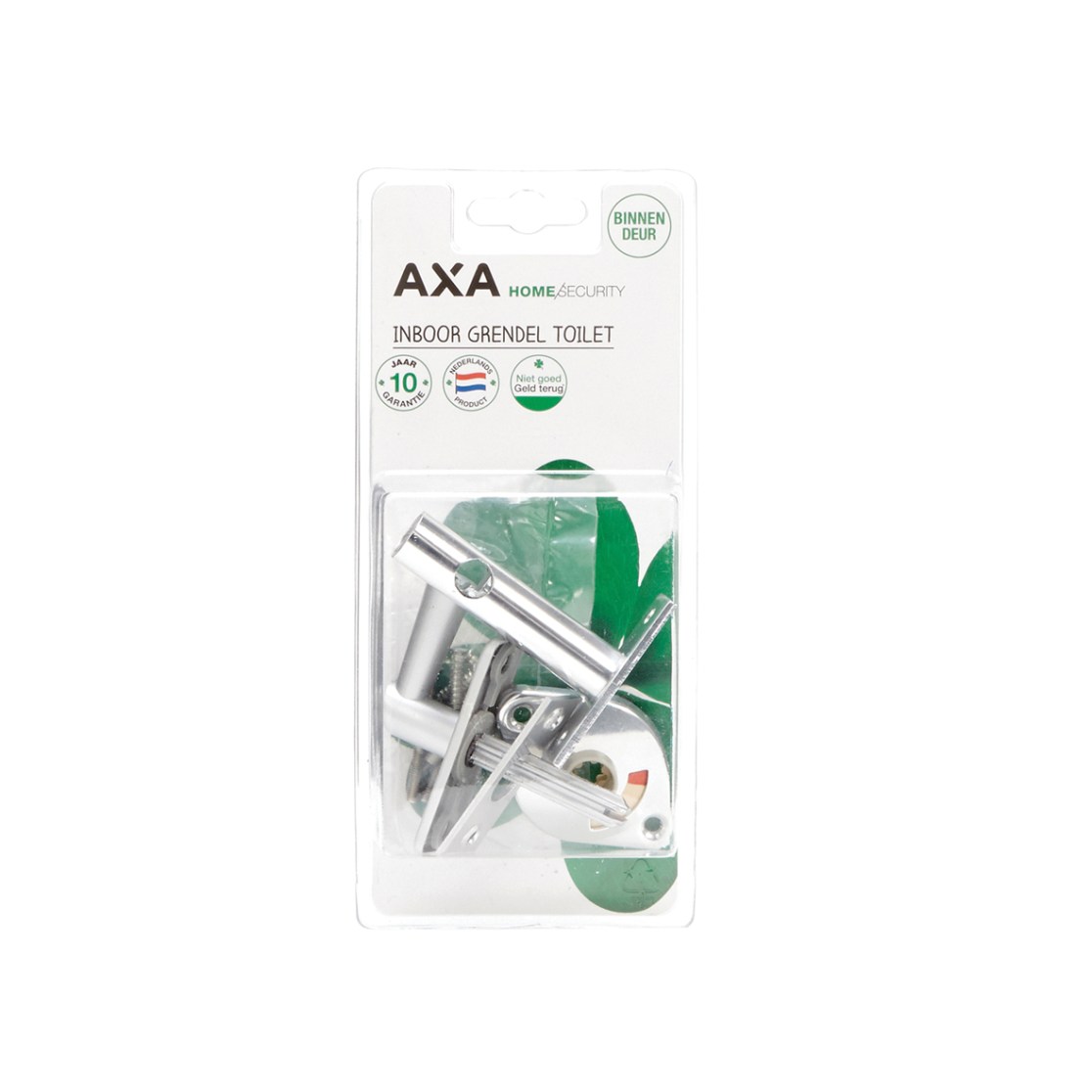

Mortise bolt toilet DM50

7324-50-91/BL
arrow_selector
close

Handy mortise bolt.

  • smooth-running
  • complete with attachment material
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 6 pieces
Commercial information
expand_more
Type DM50
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 70 mm
Product Width 45 mm
Product Height 65 mm
Diameter 18 mm
Backset 50 mm
Material Synthetic
Finish Lacquered F1, natural
Material 2 Steel
Finish 2 Galvanized
Assembly information
expand_more
Including Mounting Material True
Recommended Mounting Materials
- 4.0 x 20 mm screw: 6 pieces
Logistic information
expand_more
Product Weight 154 gr
Pieces per small package 1 piece
EAN small package 8713249228273
Weight small package 0.154 kg
Dimensions small package 215 x 95 x 48 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249243207
Weight bulk package 1.43 kg
Dimensions bulk package 290 x 200 x 120 mm

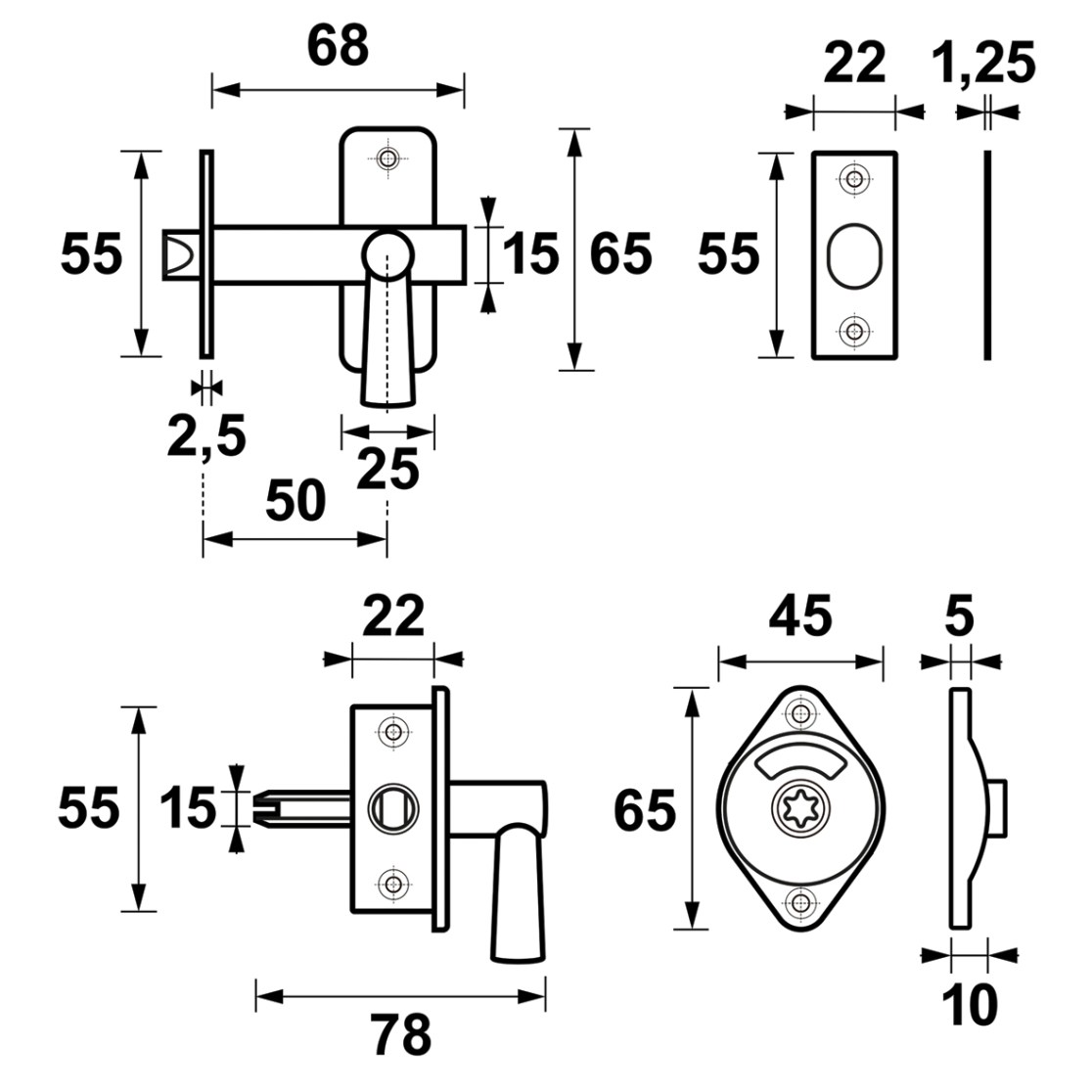

Technical drawings

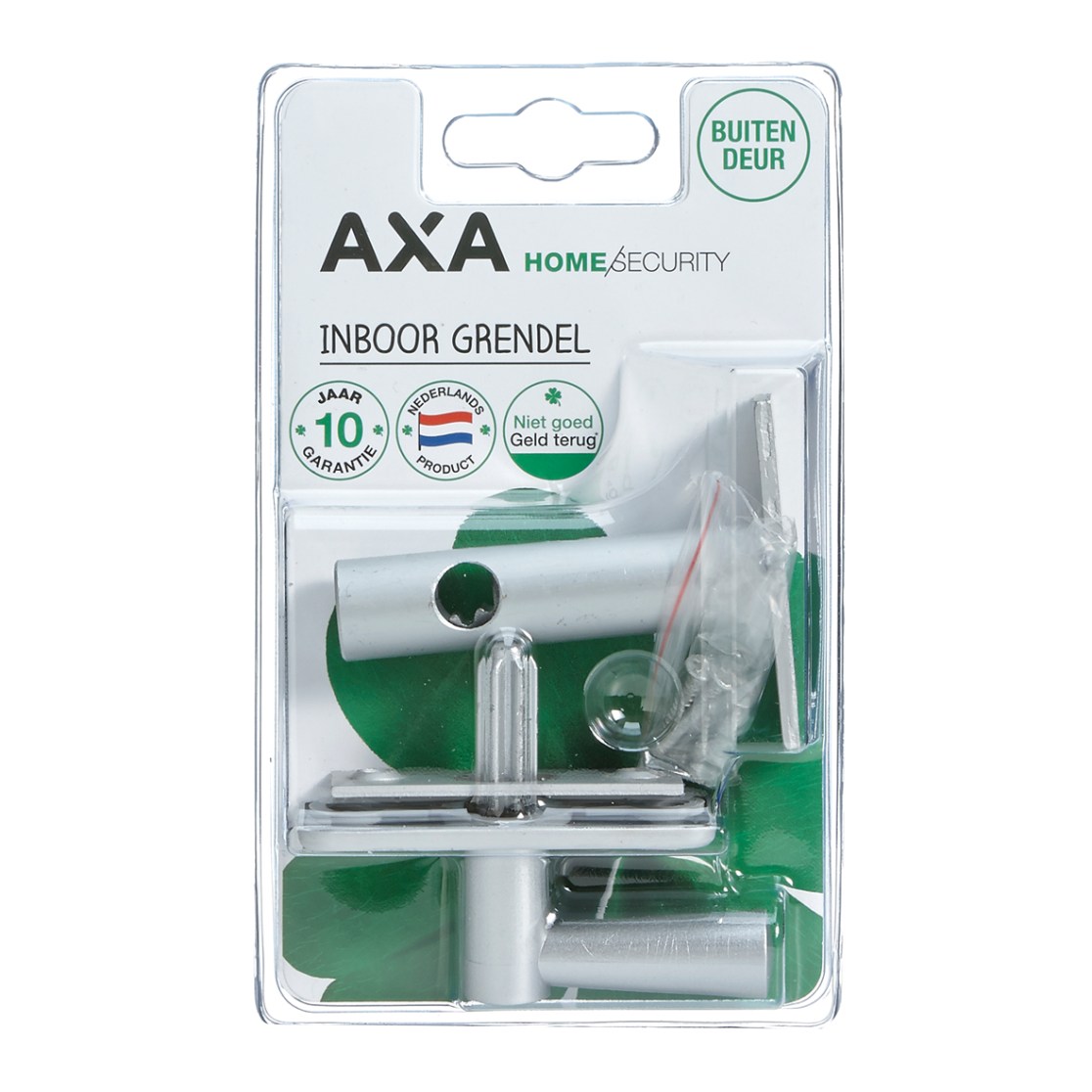

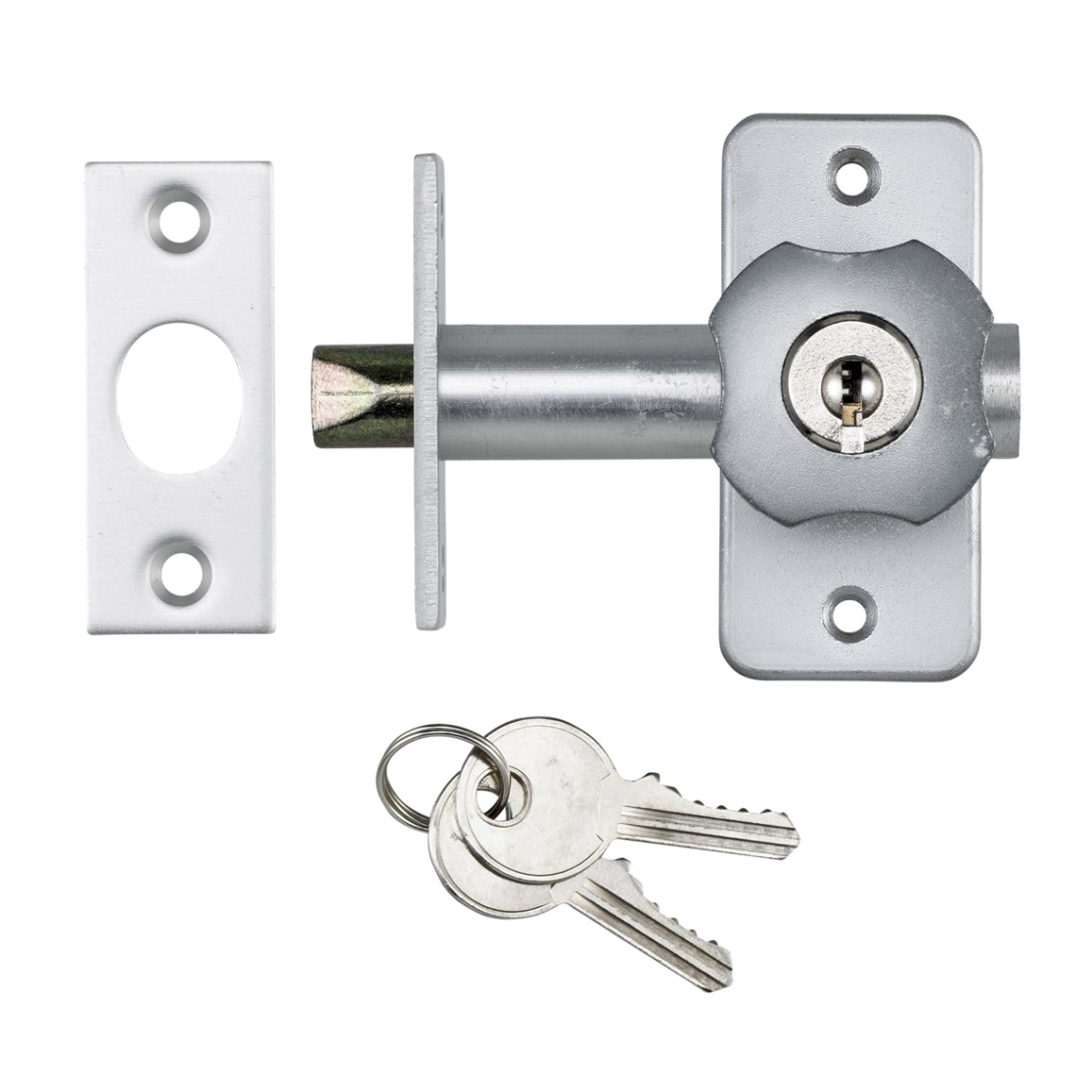

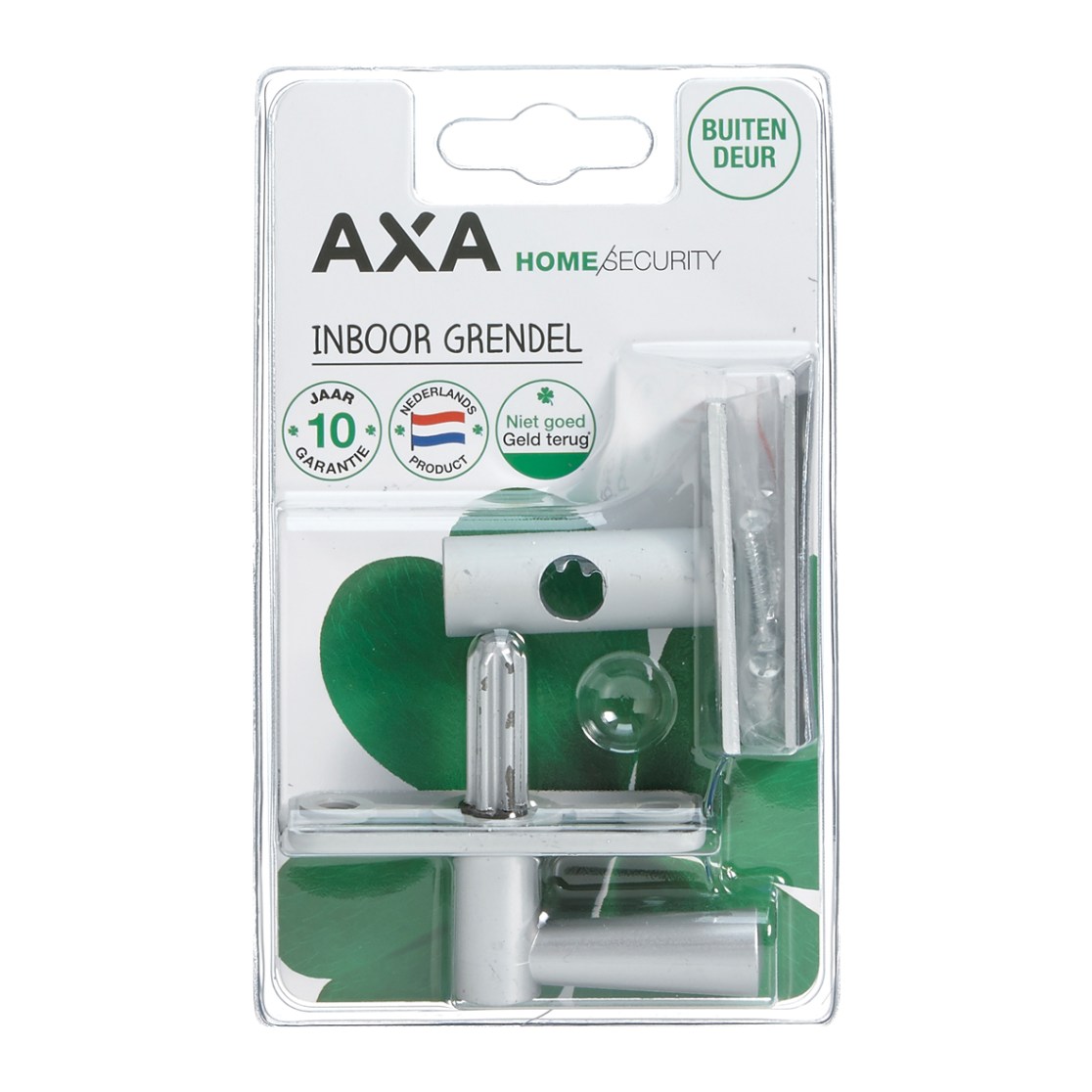

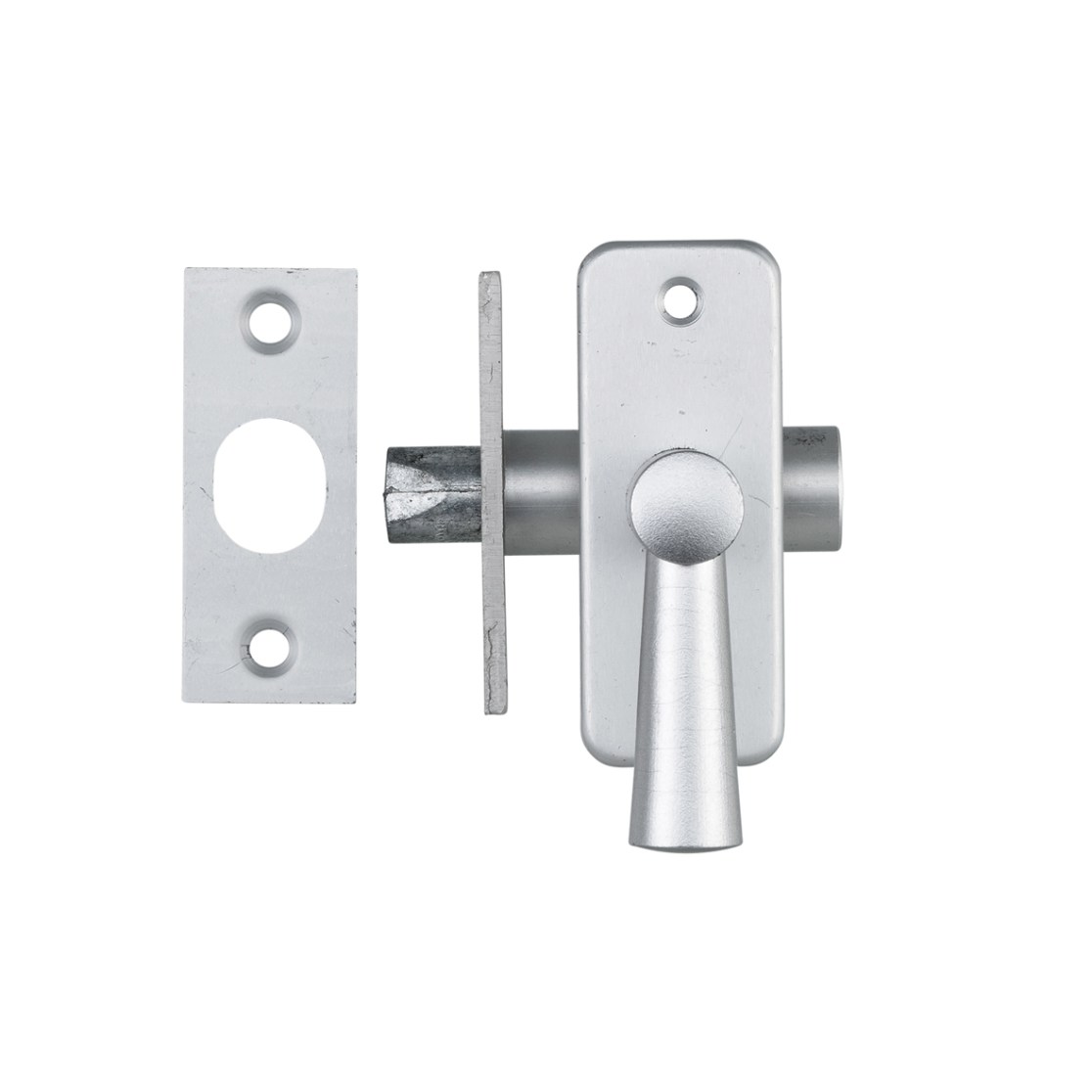

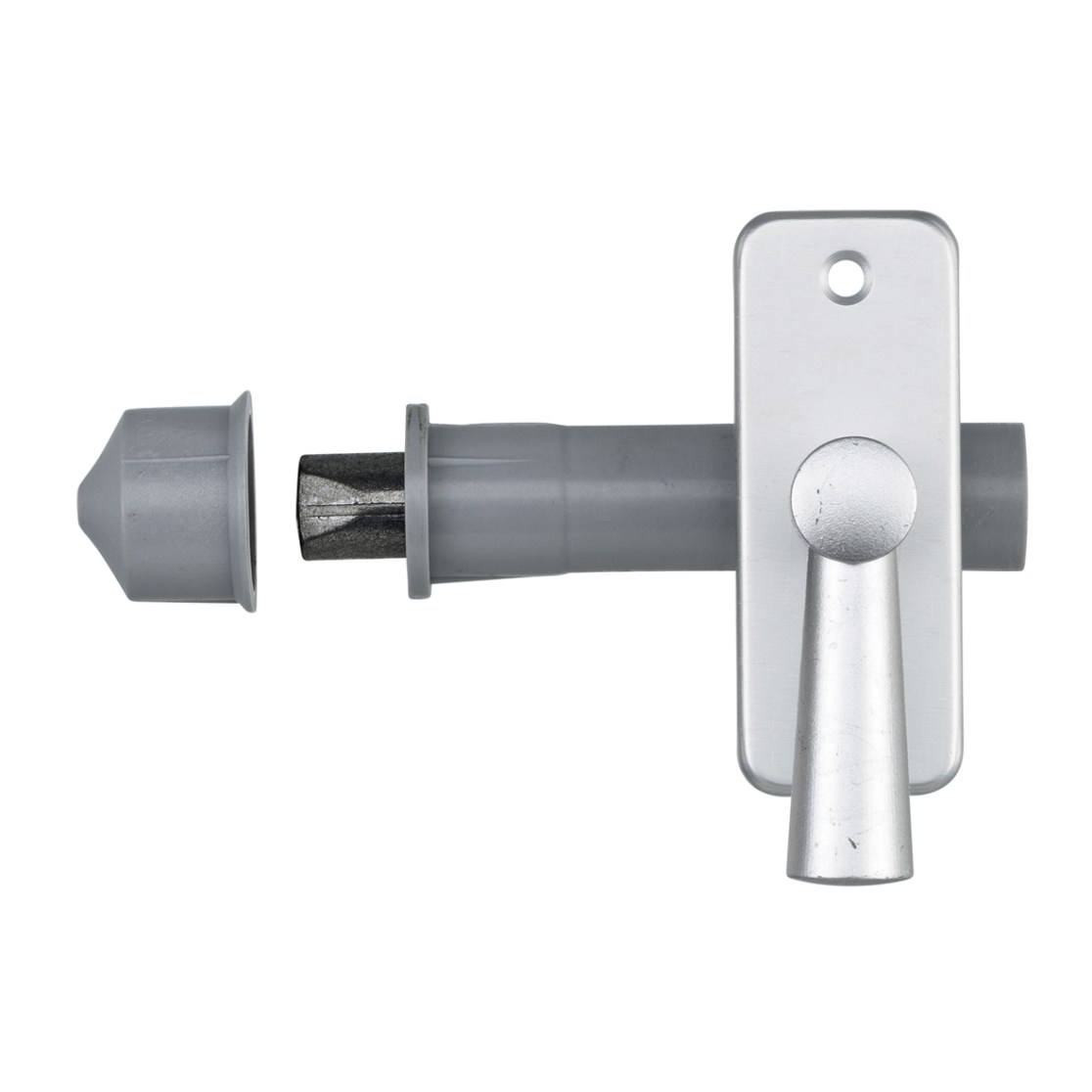

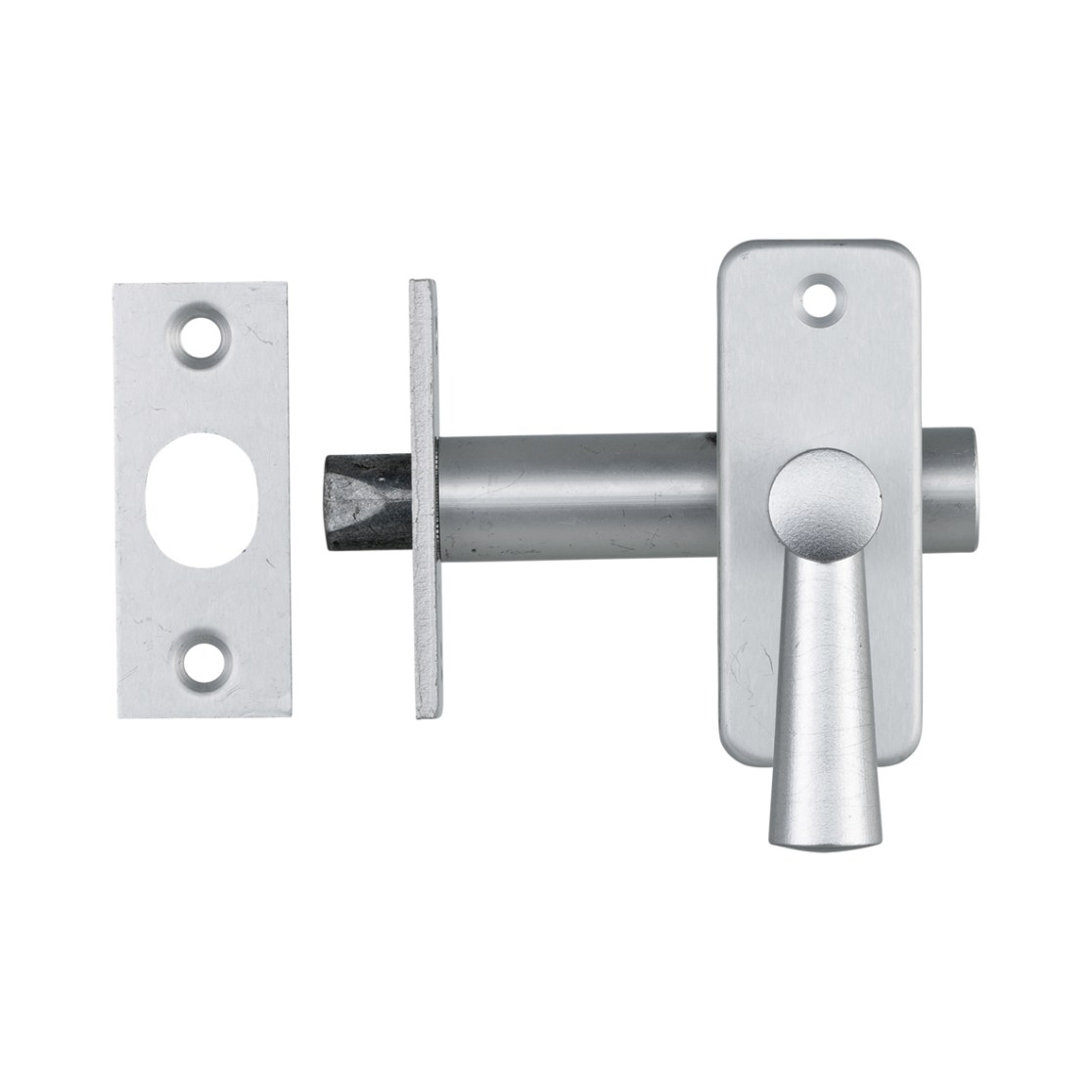

Alternative products
