Mortise bolt DM50 + striking plate

7320-50-91/BL
arrow_selector
close

Handy mortise bolt.

  • smooth-running
  • complete with attachment material
Specifications Downloads Technical drawings Associated products Alternative products Similar products
Commercial information
expand_more
Type DM50 + striking plate
Use for exterior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE certificate of conformity False
Technical information
expand_more
Product Length 70 mm
Product Width 25 mm
Product Height 65 mm
Diameter 18 mm
Backset 50 mm
Material Synthetic
Finish Lacquered F1, natural
Material 2 Aluminum
Finish 2 Anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Recommended Mounting Materials
- 3.5 x 20 mm screw: 4 pieces
Logistic information
expand_more
Product Weight 128 gr
Pieces per small package 1 piece
EAN small package 8713249228211
Weight small package 0.13 kg
Dimensions small package 155 x 95 x 32 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249228228
Weight bulk package 1.16 kg
Dimensions bulk package 200 x 150 x 120 mm

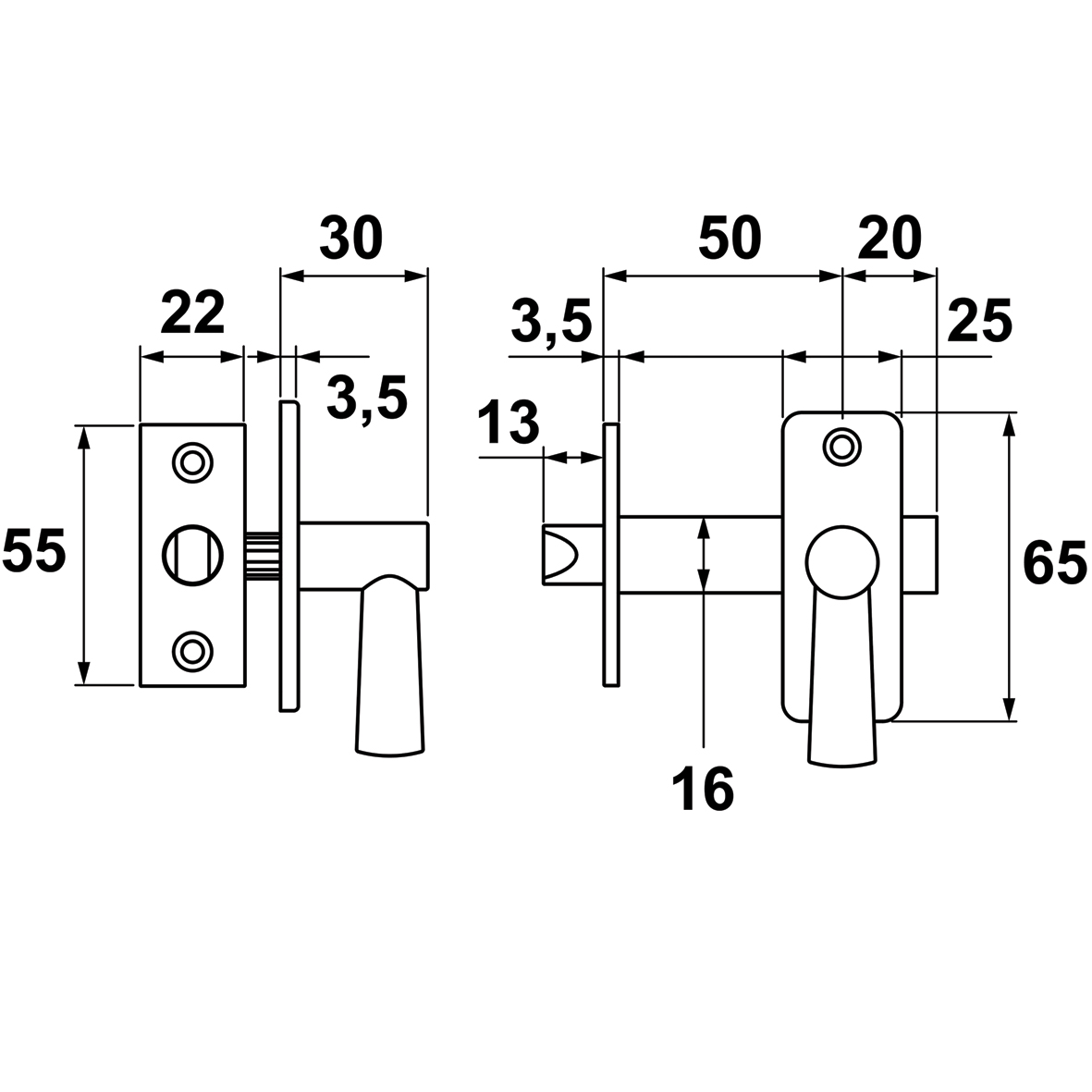

Technical drawings
Mortise bolt DM50 + striking plate
73205091BL
