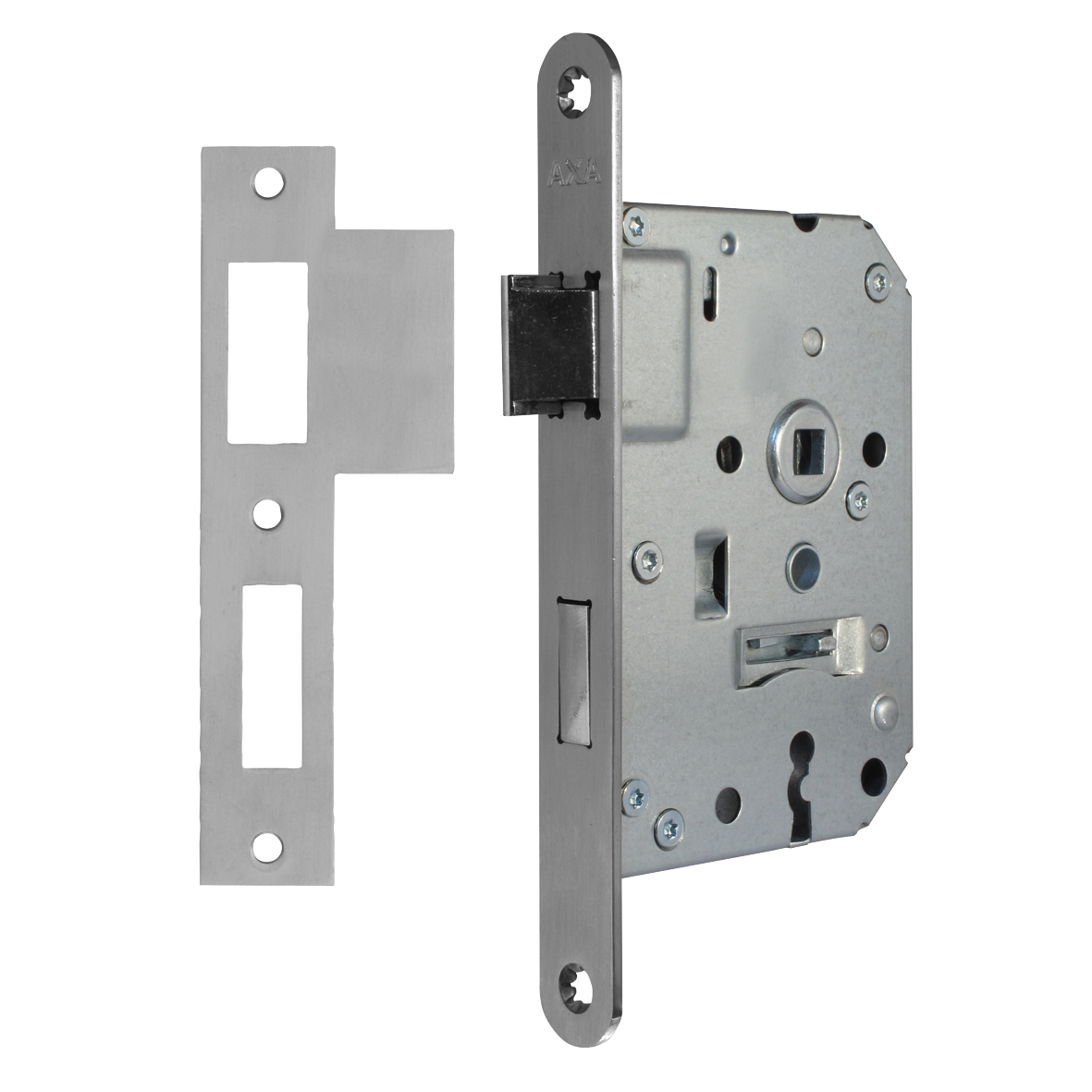

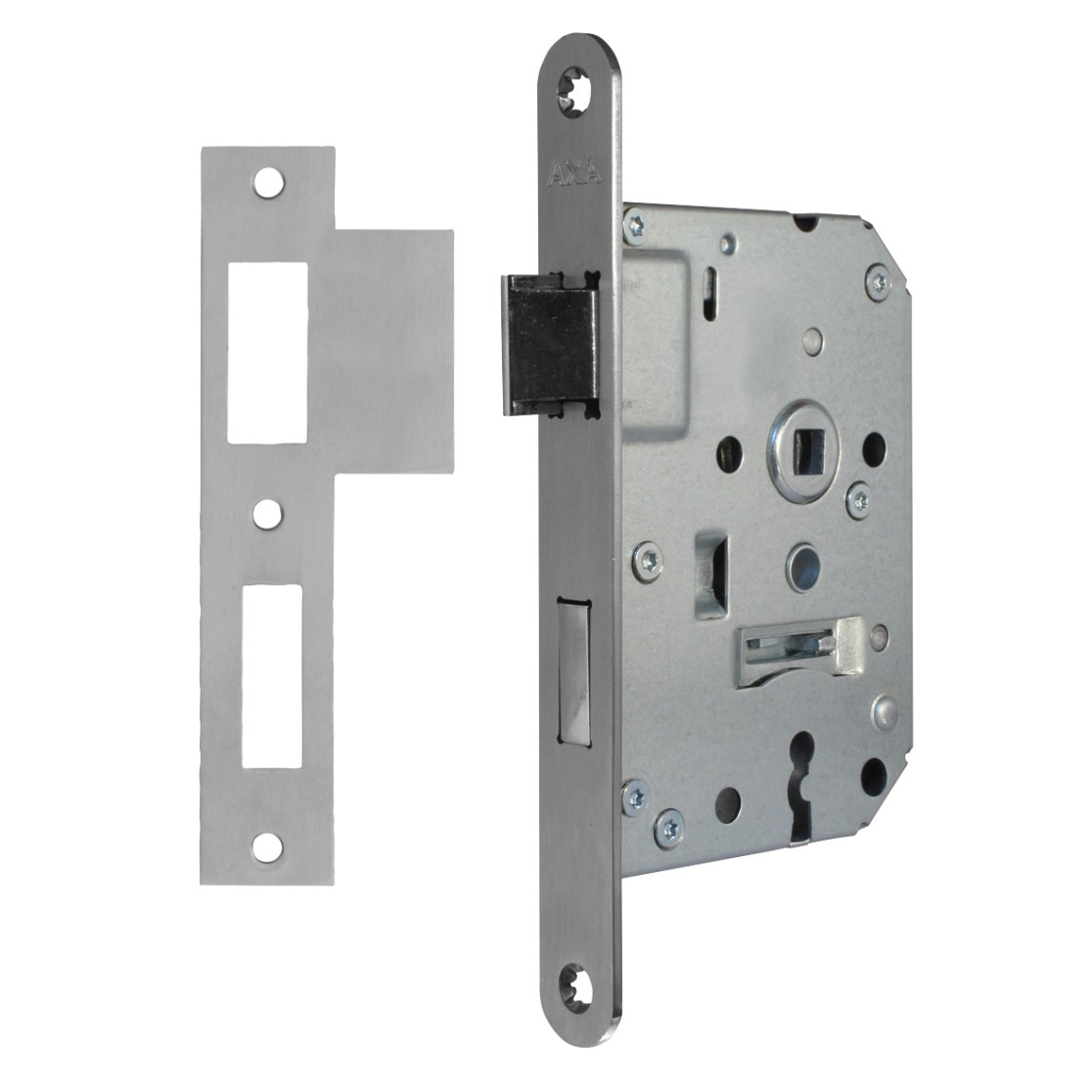

Mortice lock 7135 SL55
7135-50-81/55BLUniversal mortice lock for interior doors.
- with stainless steel faceplate
- with keyhole
- quick reversible nickel-plated brass latch
- sturdy spindle mechanism
- inclusive striking plate, attachment materials and keys
+
2
Universal mortice lock for interior doors.
- with stainless steel faceplate
- with keyhole
- quick reversible nickel-plated brass latch
- sturdy spindle mechanism
- inclusive striking plate, attachment materials and keys
Specifications
Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Commercial information
Type 7135 SL55
Use for interior doors
Safety information
SKG No
Police Hallmark False
CE Applicable False

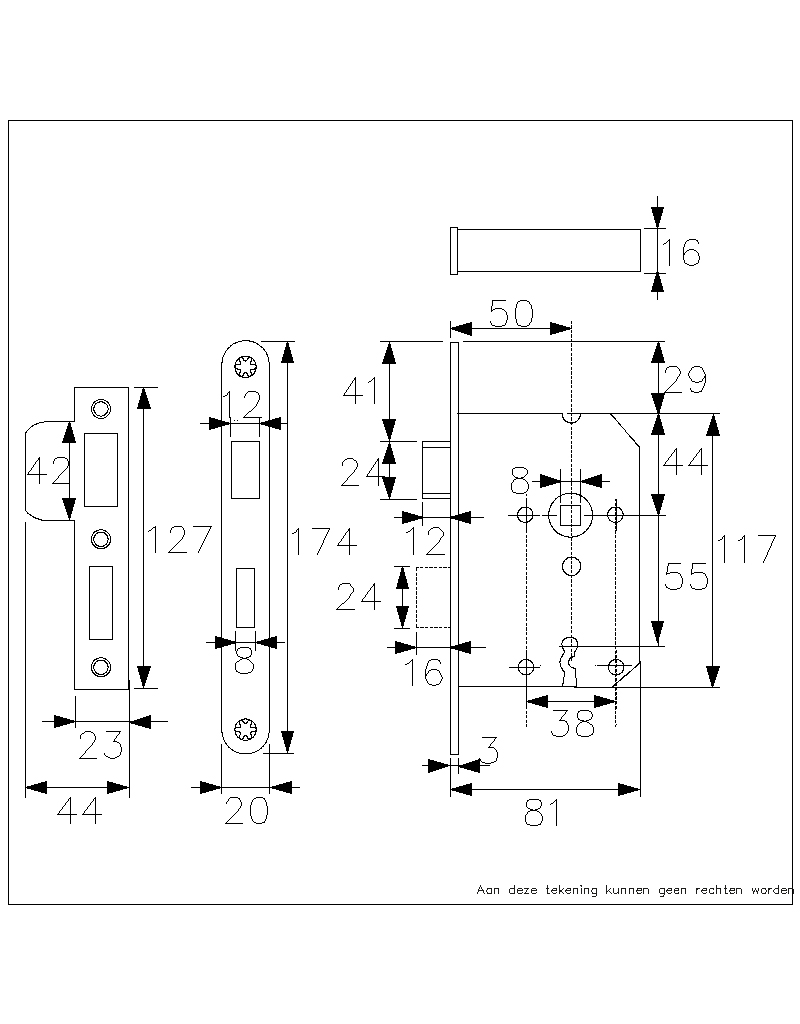

Technical information
Product Length 174 mm
Product Width 20 mm
Thickness 16 mm
Mounting depth 81 mm
Corner shape round corner
Direction of rotation DIN all directions
Bolt type dead bolt
Bolt catcher striking plate
Heart to heart size type handle hole - lever key (SL)
Backset 50 mm
Number of Keys 2
Material Stainless steel
Finish Brushed
Material 2 Steel
Finish 2 Galvanized
Assembly information
Including Mounting Material True
Assembly time 30 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
- 4.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Logistic information
Product Weight 492 gr
Pieces per small package 1 piece
EAN small package 8713249222226
Weight small package 0.49 kg
Dimensions small package 275 x 134 x 30 mm
Pieces per bulk package 5 piece
EAN bulk package 8713249223827
Weight bulk package 2.65 kg
Dimensions bulk package 290 x 200 x 120 mm
