Letterplate+draft flap Curve Plus

6203-20-18
arrow_selector
close

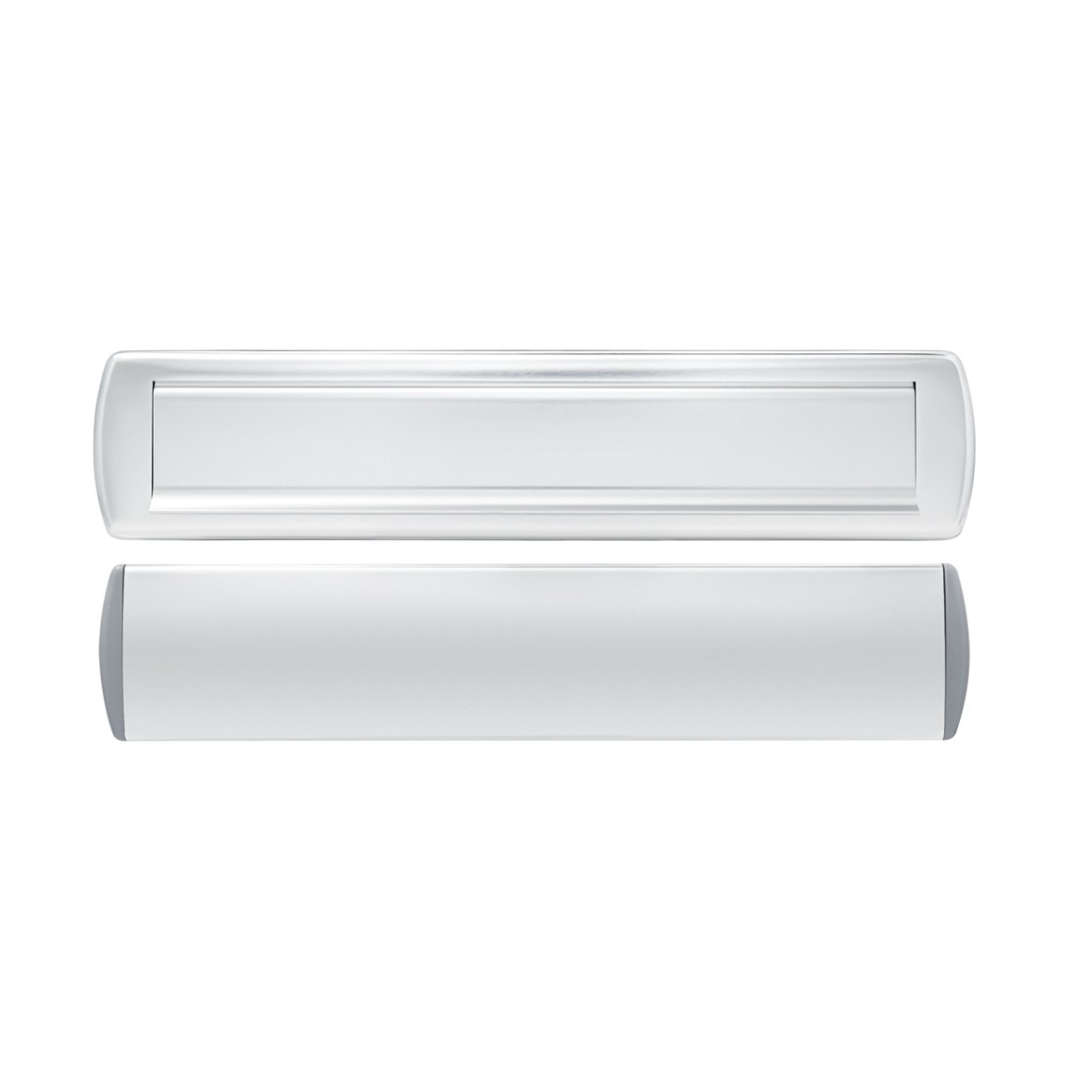

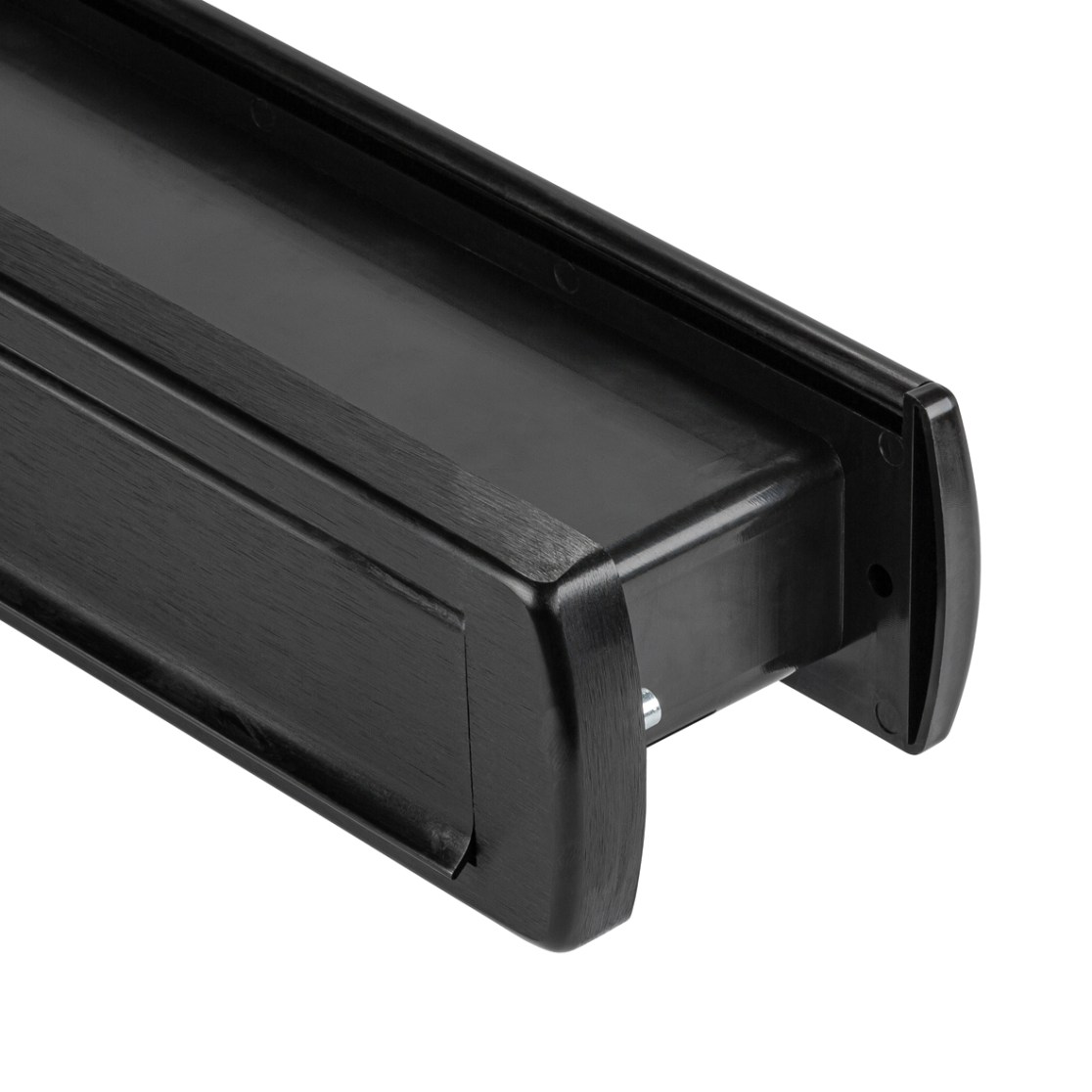

Clean-lined letter plate with a large opening.

  • with connecting shaft through the door, prevents post loss
  • for doors, 67 to 102 mm thick
  • stylish appearance
  • draft and water resistant
  • flame-extinguishing
  • generous opening
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- M5 x 80 mm bolt: 2 pieces
- M5 x 100 mm bolt: 2 pieces
- M5 ring: 2 pieces
Commercial information
expand_more
Type Curve Plus
Use for front doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Width 340 mm
Product Height 74 mm
Thickness 103 mm
Suitable for door thickness 67 - 102 mm
Material Aluminum
Finish Polished anodised F8, black
Material 2 Synthetic
Finish 2 Black
Assembly information
expand_more
Including Mounting Material True
Assembly time 10 min
Recommended Mounting Materials
- M5 x 80 mm bolt: 2 pieces
- M5 x 100 mm bolt: 2 pieces
- M5 ring: 2 pieces
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 8713249339399
Dimensions small package 350 x 110 x 78 mm
Pieces per bulk package 16 piece
EAN bulk package 8713249339405

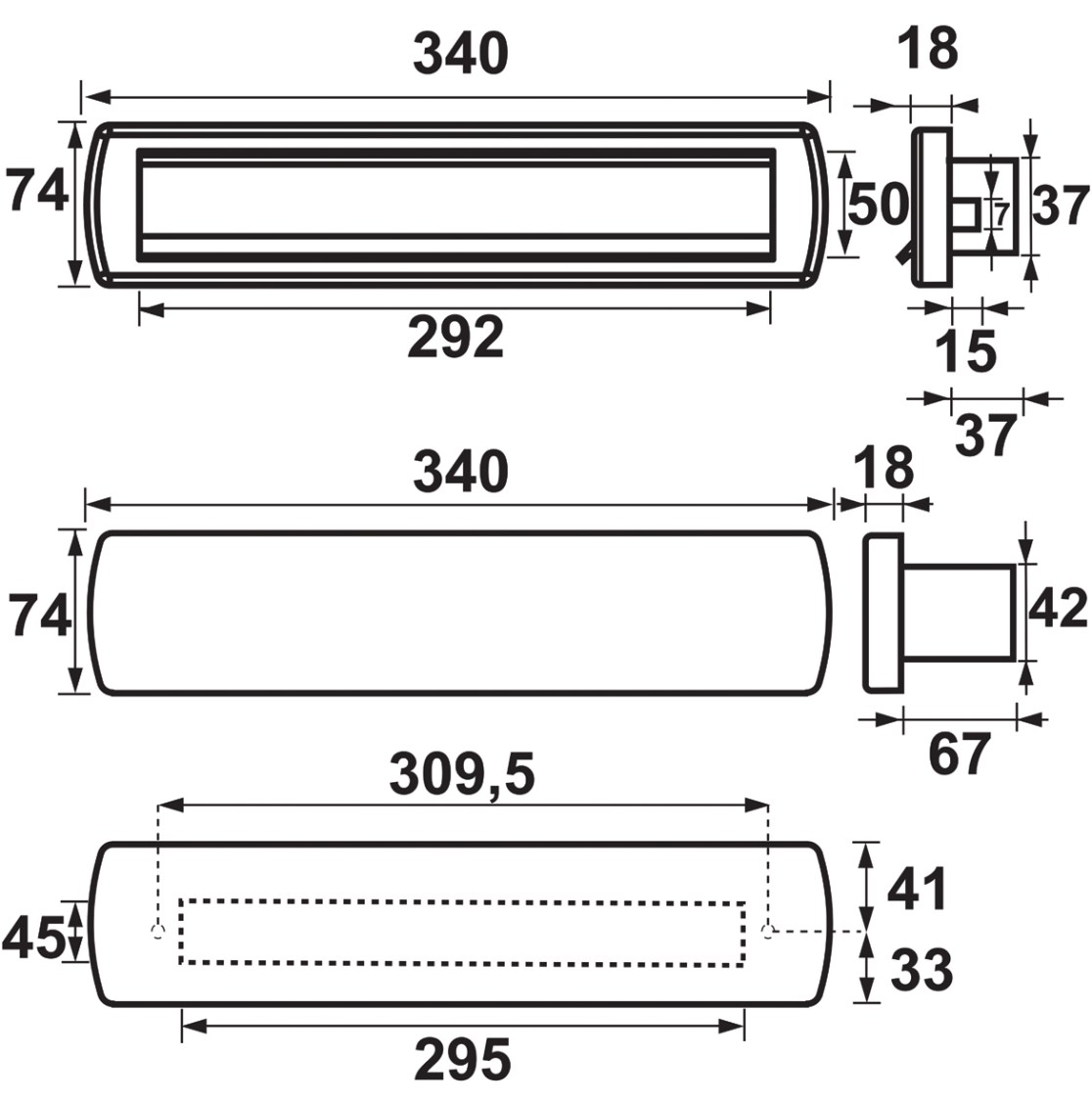

Technical drawings
