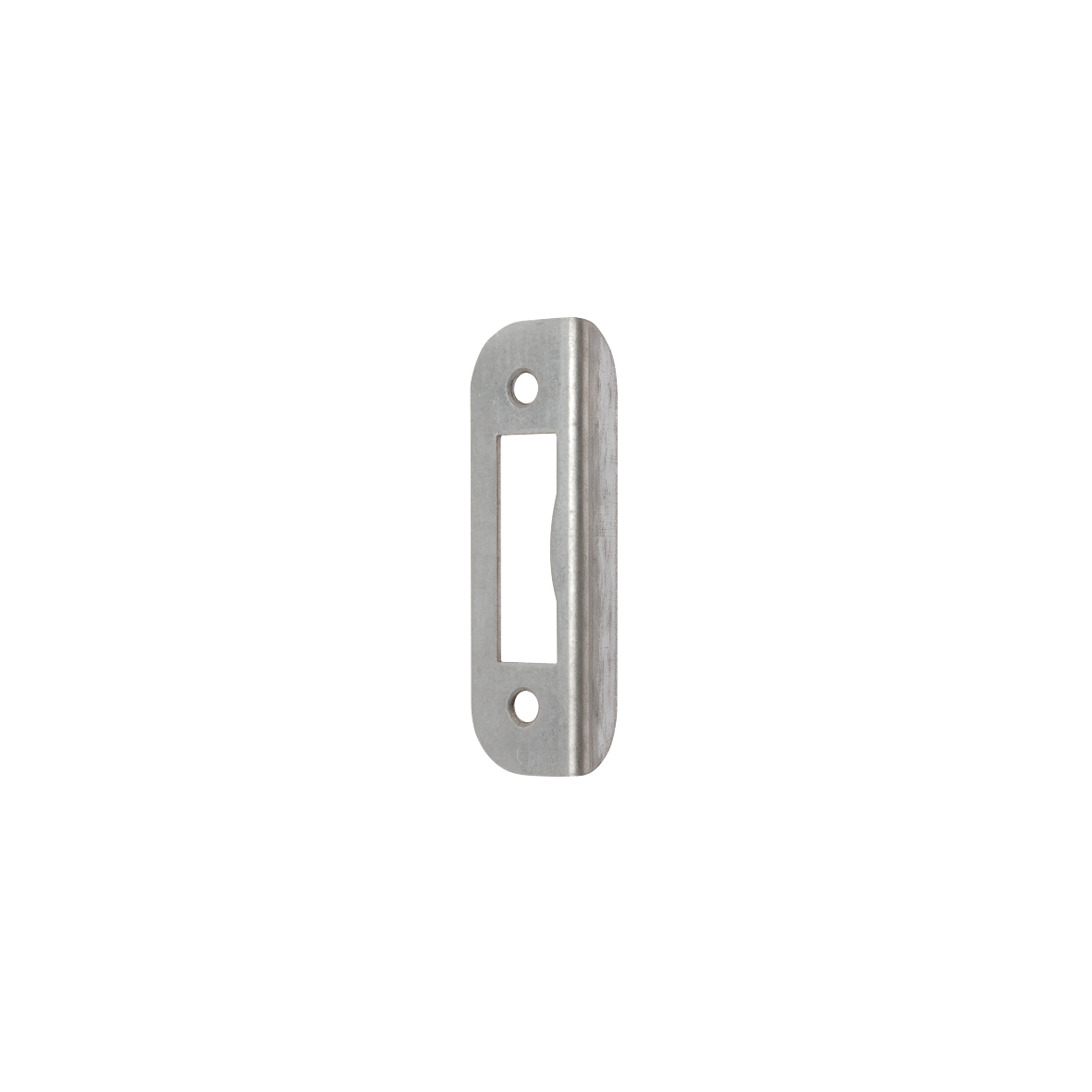

Latch hookstriking plate 7155
7155-75-81Latch hookstriking plates.
universally usable
Latch hookstriking plates.
universally usable
Specifications
Recommended Mounting Materials
- 3.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Commercial information
Type 7155
Use for interior doors
Safety information
SKG No
Police Hallmark False
CE Applicable False
Technical information
Product Length 80 mm
Product Width 23 mm
Thickness 1.2 mm
Corner shape round corner
Direction of rotation outward and inward-opening
Direction of rotation DIN all directions
Material Stainless steel
Finish Brushed
Assembly information
Including Mounting Material True
Assembly time 10 min
Recommended Mounting Materials
- 3.0 x 20 mm screw: 2 pieces
- 3.0 x 20 mm screw: 2 pieces
Logistic information
Product Weight 22 gr
Pieces per small package 10 piece
EAN small package 8713249275178
Weight small package 0.22 kg
Pieces per bulk package 200 piece
EAN bulk package 8713249275185
Weight bulk package 4.6 kg
Dimensions bulk package 386 x 188 x 114 mm
Downloads

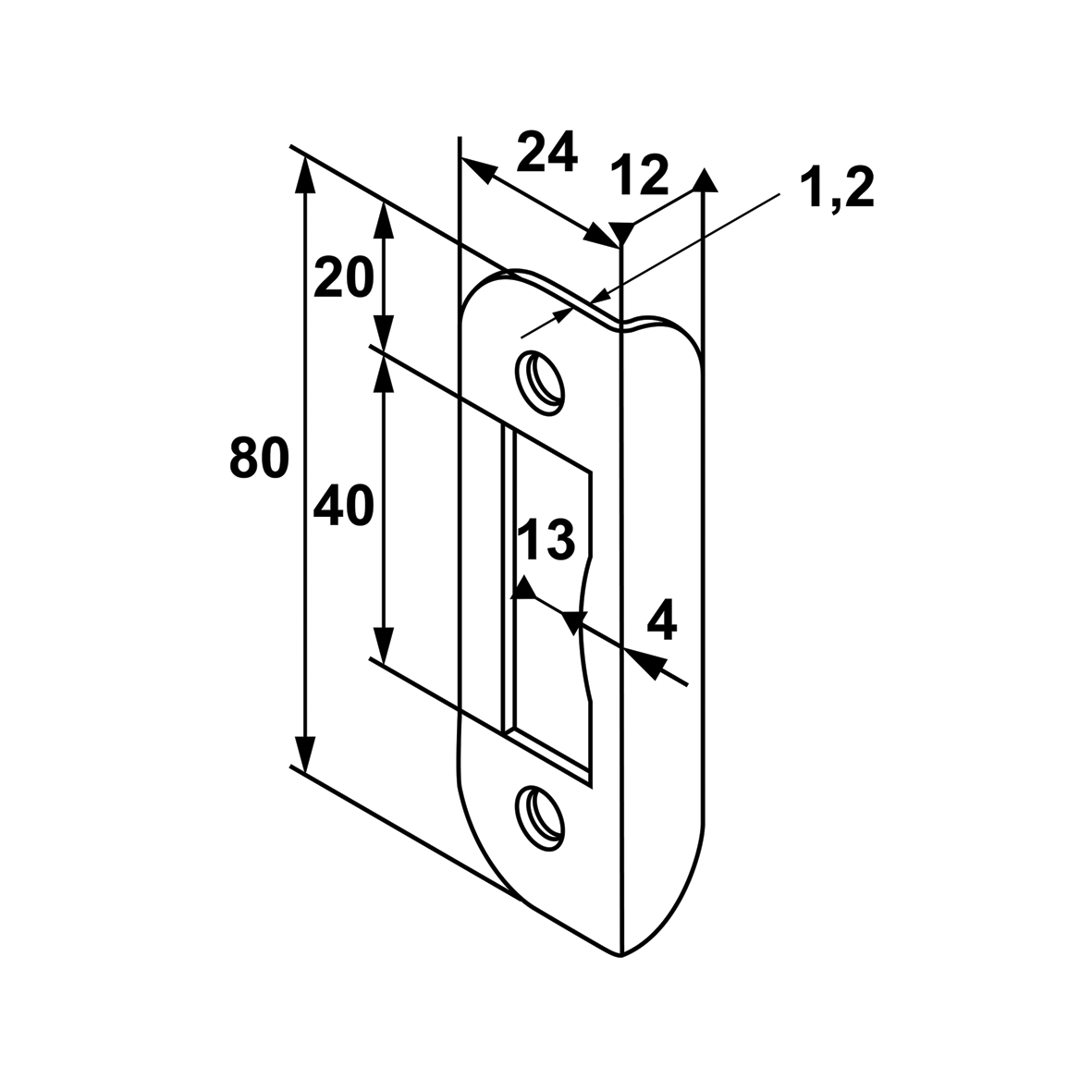

Main Image Environmental Product Declaration (EPD)Technical drawings
