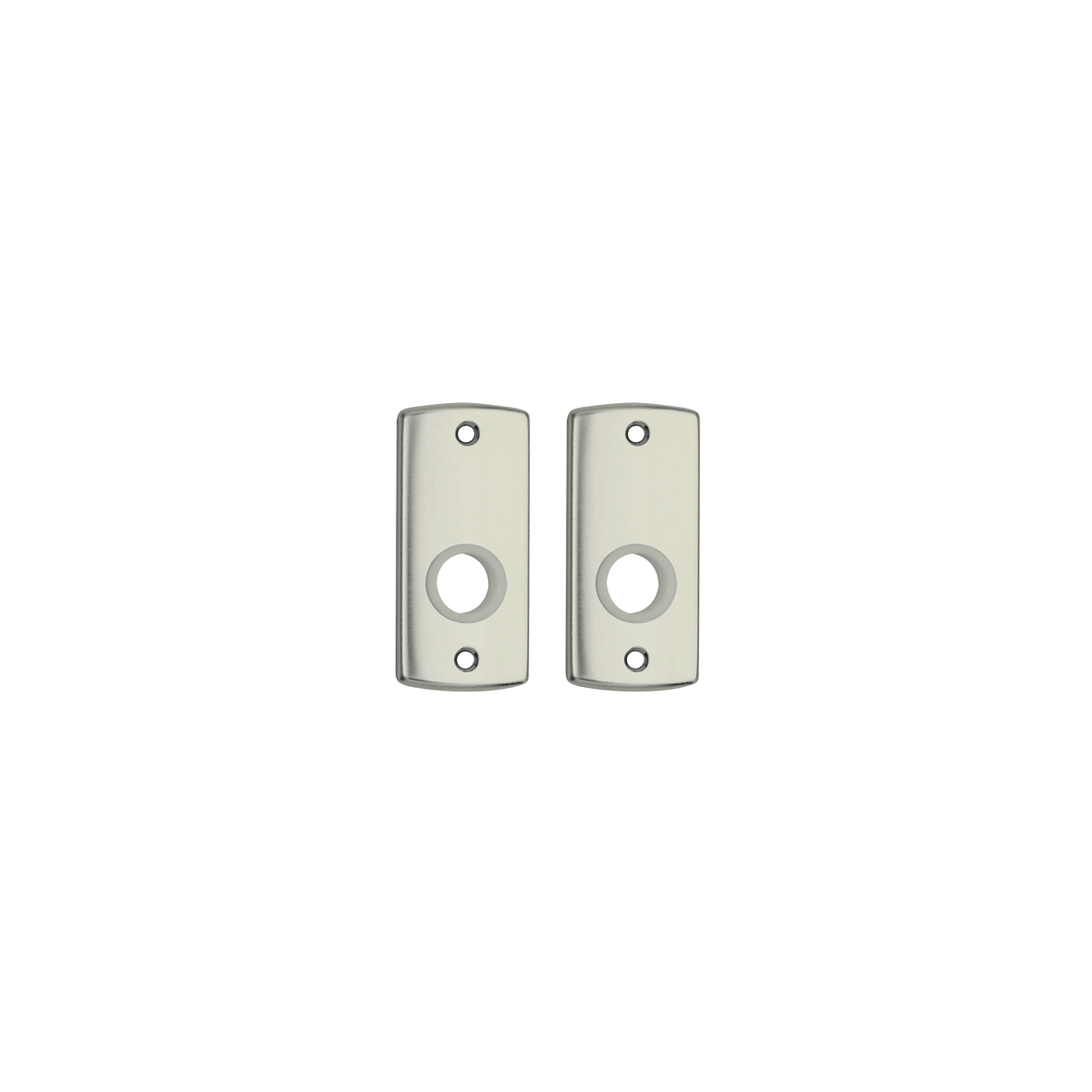

Interior door rosettes Curve handle hole

6350-90-92/E
arrow_selector
close

Standard interior door fittings in Curve model.

can be excellently combined with the AXA Security fittings for exterior doors
Specifications Downloads Technical drawings Associated products Alternative products Similar products
Commercial information
expand_more
Type Curve handle hole
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 90 mm
Product Width 41 mm
Thickness 6 mm
Material Aluminum
Finish Anodised F2, champagne
Assembly information
expand_more
Including Mounting Material False
Assembly time 10 min
Recommended Mounting Materials
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bush: 2 pieces
Logistic information
expand_more
Product Weight 35 gr
Pieces per small package 10 piece
EAN small package 8713249085739
Weight small package 0.38 kg
Dimensions small package 140 x 94 x 57 mm mm
Pieces per bulk package 40 piece
EAN bulk package 8713249085746
Weight bulk package 1.64 kg
Dimensions bulk package 200 x 150 x 120 mm

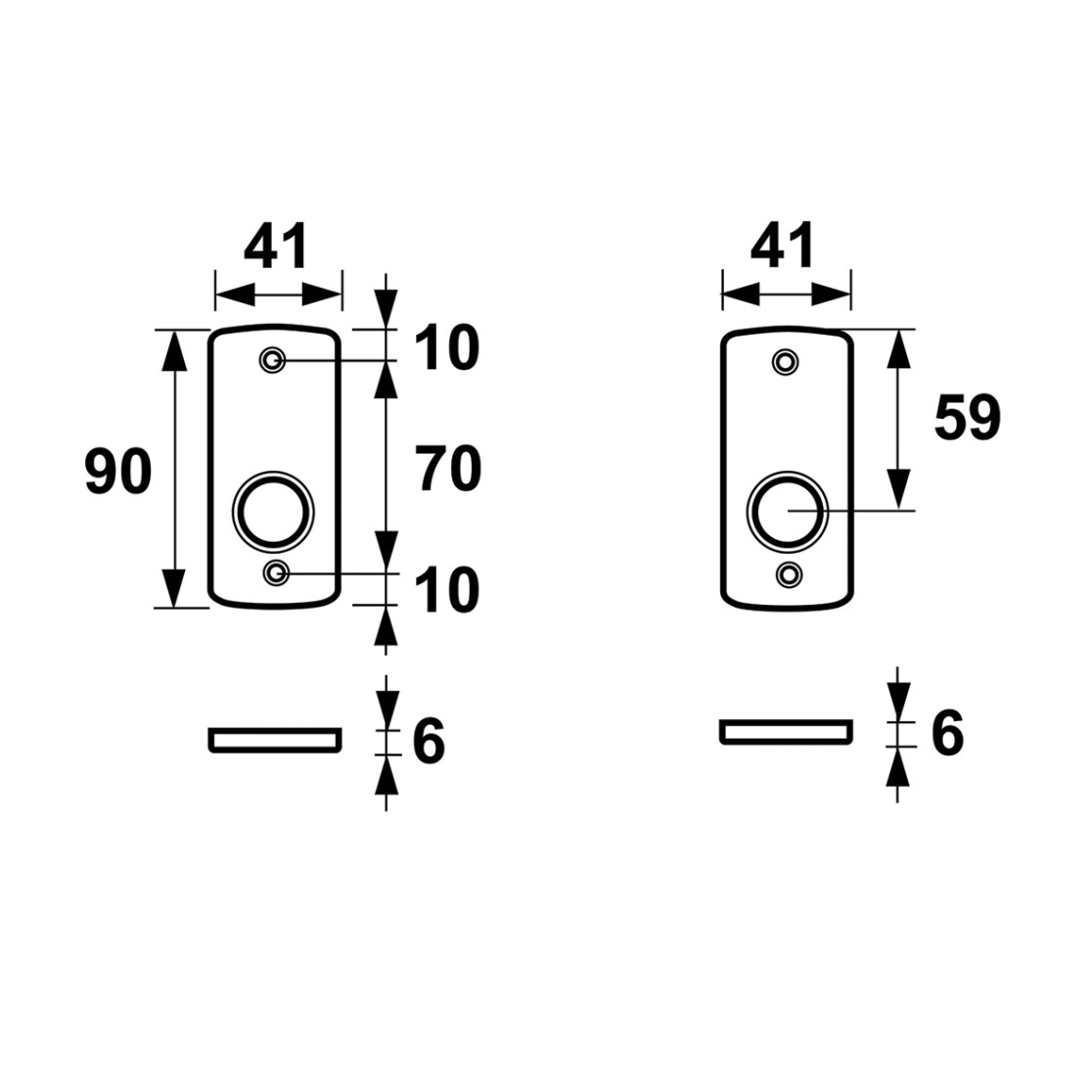

Technical drawings
Interior door rosettes Curve handle hole
63509092E
