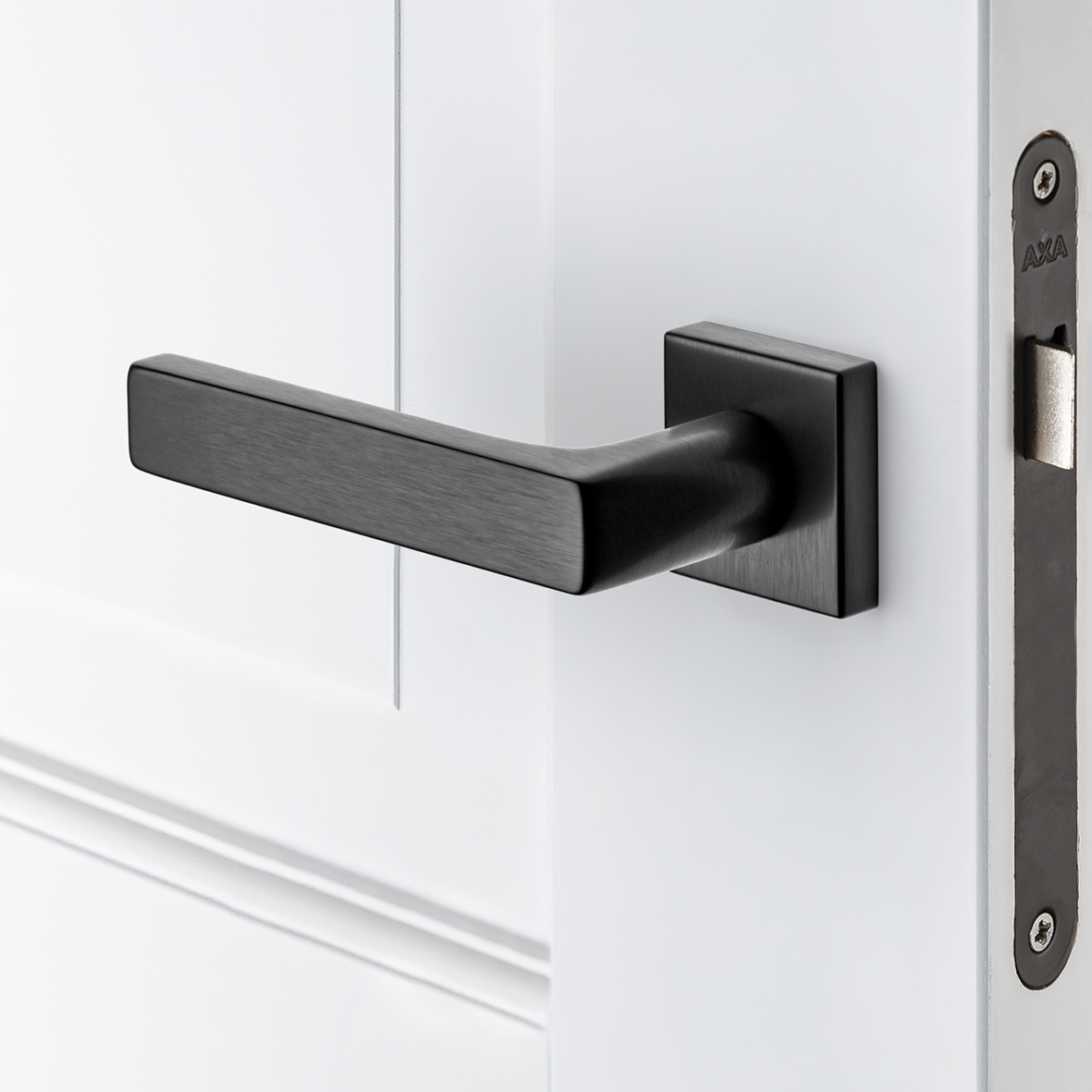

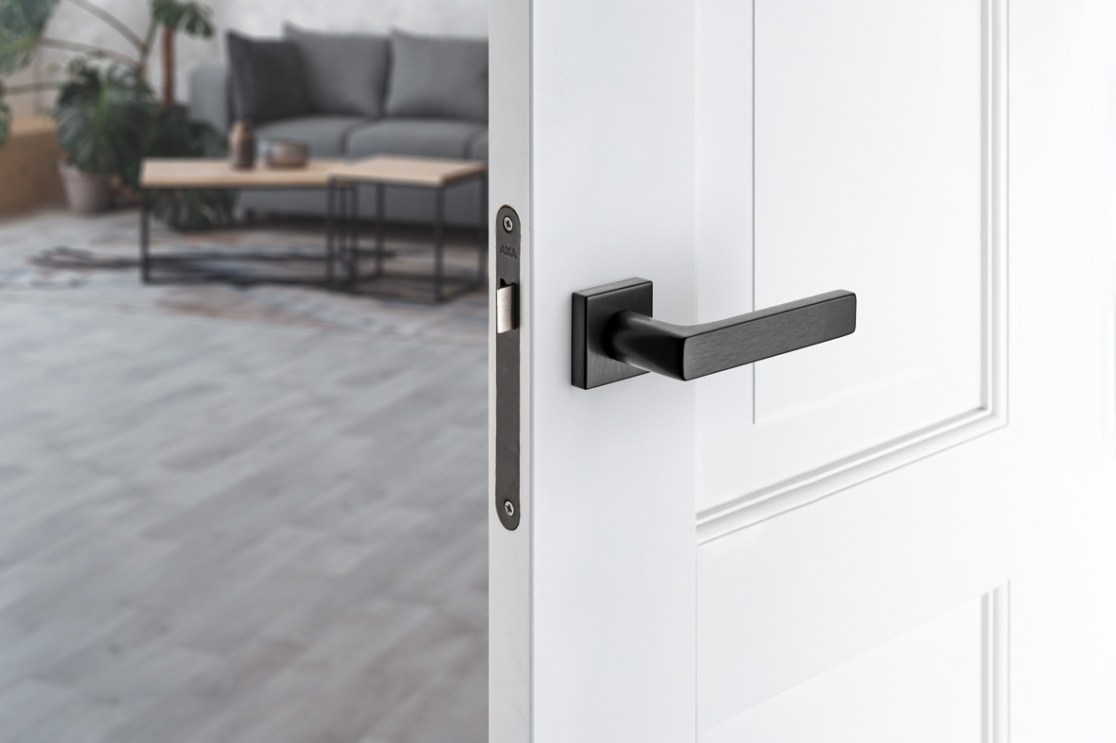

Interior door fitting Klik rosettes square handle Riga V
6245-10-18/EStylish interior door fitting, no visible attachment points, finely polished and less sensitive to scratching.
- stylish appearance, finely polished, less sensitive to scratches
- no visible attachment points, because the back plate is clicked over a plastic base plate
- integrated plastic handle bearings
- spring-supported handle, prevents dropping handles due to limp lock spring
- can be excellently combined with the AXA Security fittings for exterior doors
Stylish interior door fitting, no visible attachment points, finely polished and less sensitive to scratching.
- stylish appearance, finely polished, less sensitive to scratches
- no visible attachment points, because the back plate is clicked over a plastic base plate
- integrated plastic handle bearings
- spring-supported handle, prevents dropping handles due to limp lock spring
- can be excellently combined with the AXA Security fittings for exterior doors
Specifications
Recommended Mounting Materials
- M4 x 45 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- M6 x 9 mm grub screw: 2 piece
- M4 x 45 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- M6 x 9 mm grub screw: 2 piece
Commercial information
Type Klik rosettes square handle Riga V
Use for interior doors
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False

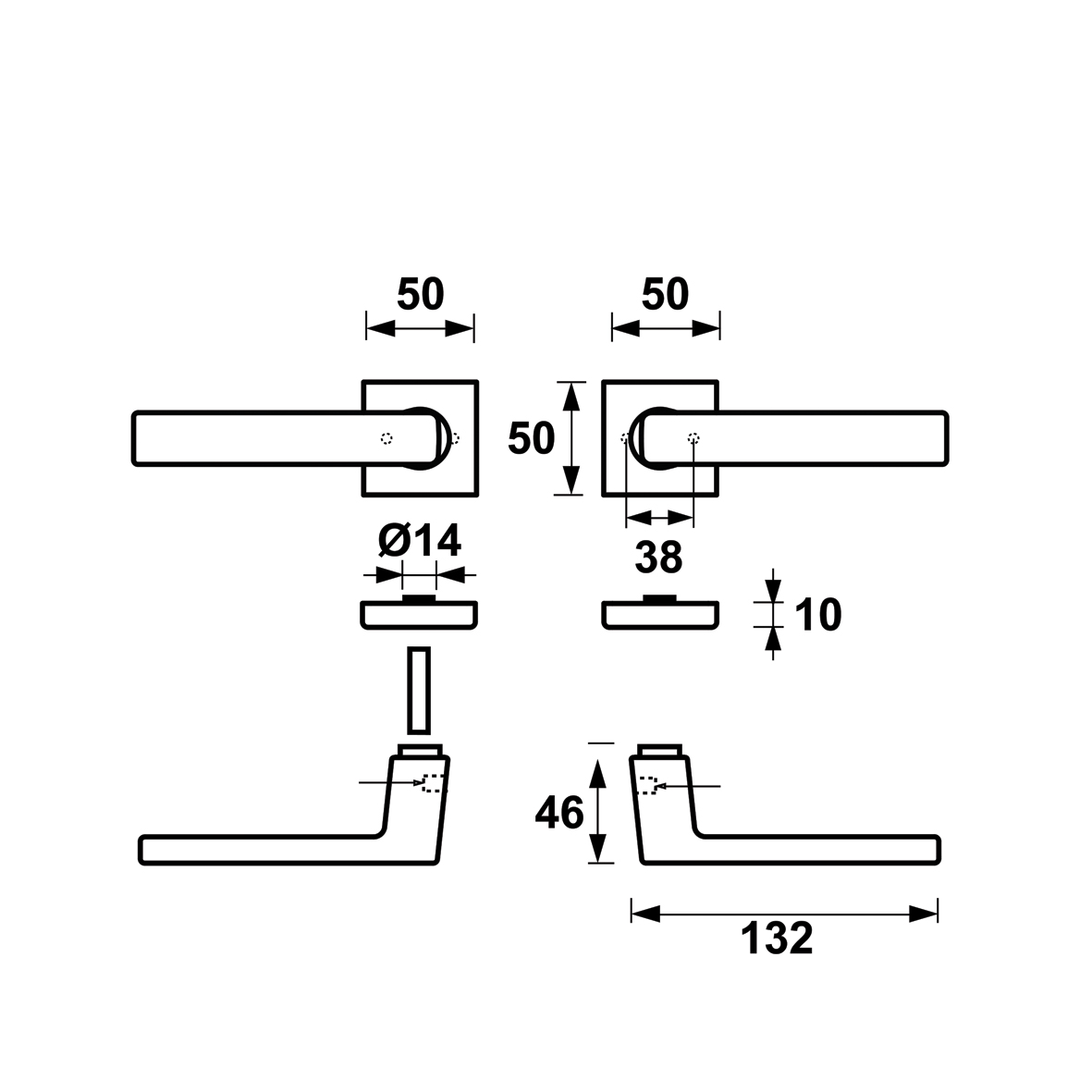

Technical information
Product Length 50 mm
Product Width 50 mm
Thickness 10 mm
Shape square
Suitable for door thickness 36 - 44 mm
Handle type Riga V
Handle length 132 mm
Handle depth 46 mm
Handle assembly grub screw fix
Spring supported handle True
Material Aluminum
Finish Polished anodised F8, black
Assembly information
Including Mounting Material True
Assembly time 10 min
Recommended Mounting Materials
- M4 x 45 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- M6 x 9 mm grub screw: 2 piece
- M4 x 45 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- M6 x 9 mm grub screw: 2 piece
Logistic information
Pieces per small package 1 piece
EAN small package 8713249345079
Dimensions small package 160 x 130 x 25 mm
Pieces per bulk package 20 piece
EAN bulk package 8713249345086
Dimensions bulk package 370 x 160 x 170 mm
