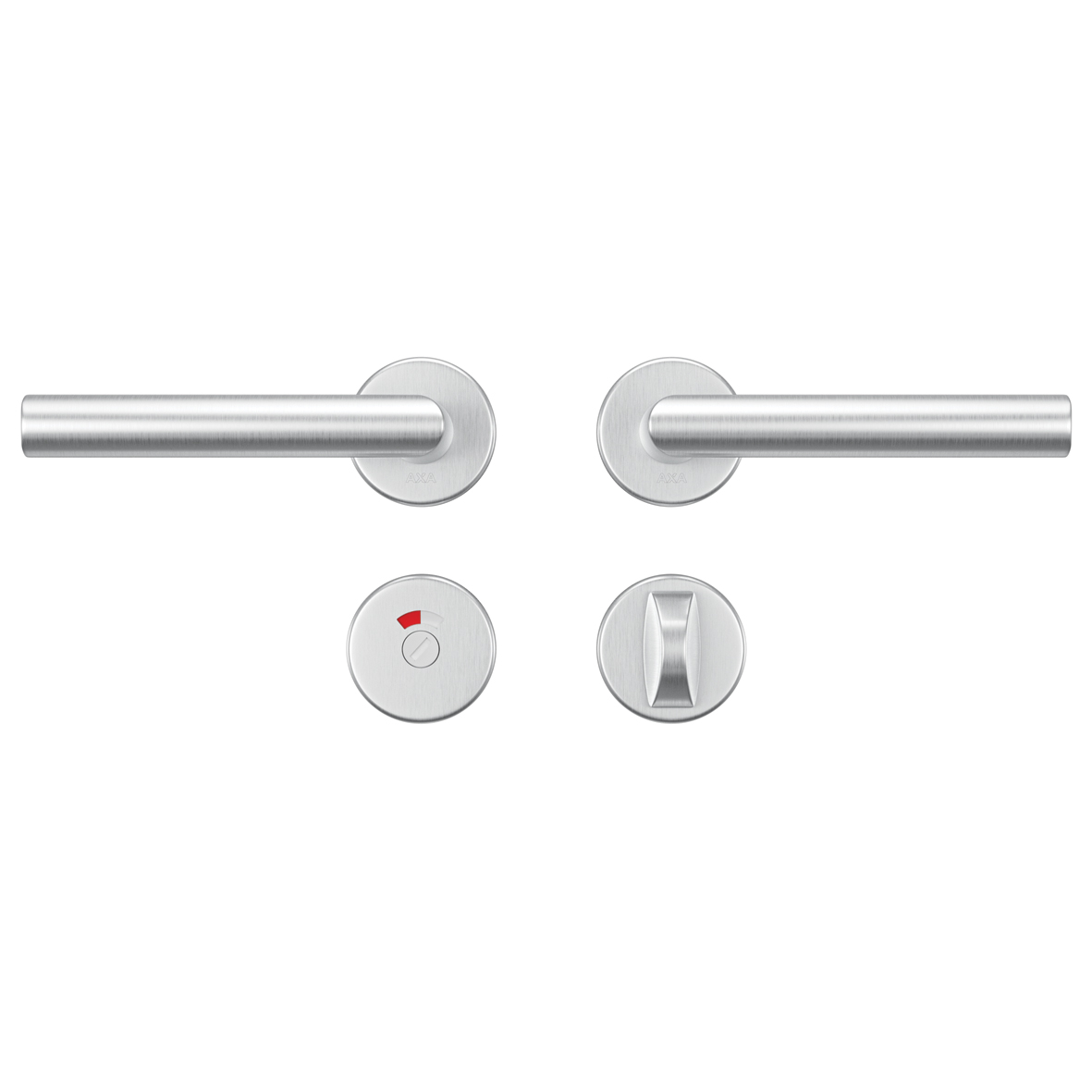

Interior door fitting Klik rosettes round+toilet handle Milan V
6235-40-11/EStylish interior door fitting, no visible attachment points, finely polished and less sensitive to scratching.
- stylish appearance, finely polished, less sensitive to scratches
- no visible attachment points, because the back plate is clicked over a plastic base plate
- integrated plastic handle bearings
- spring-supported handle, prevents dropping handles due to limp lock spring
- can be excellently combined with the AXA Security fittings for exterior doors
Stylish interior door fitting, no visible attachment points, finely polished and less sensitive to scratching.
- stylish appearance, finely polished, less sensitive to scratches
- no visible attachment points, because the back plate is clicked over a plastic base plate
- integrated plastic handle bearings
- spring-supported handle, prevents dropping handles due to limp lock spring
- can be excellently combined with the AXA Security fittings for exterior doors
Specifications
Recommended Mounting Materials
- M4 x 45 mm patent bolt: 4 pieces
- M4 x 20 mm bus: 4 pieces
- M6 x 9 mm grub screw: 2 piece
- M4 x 45 mm patent bolt: 4 pieces
- M4 x 20 mm bus: 4 pieces
- M6 x 9 mm grub screw: 2 piece
Commercial information
Type Klik rosettes round+toilet handle Milan V
Use for interior doors
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False

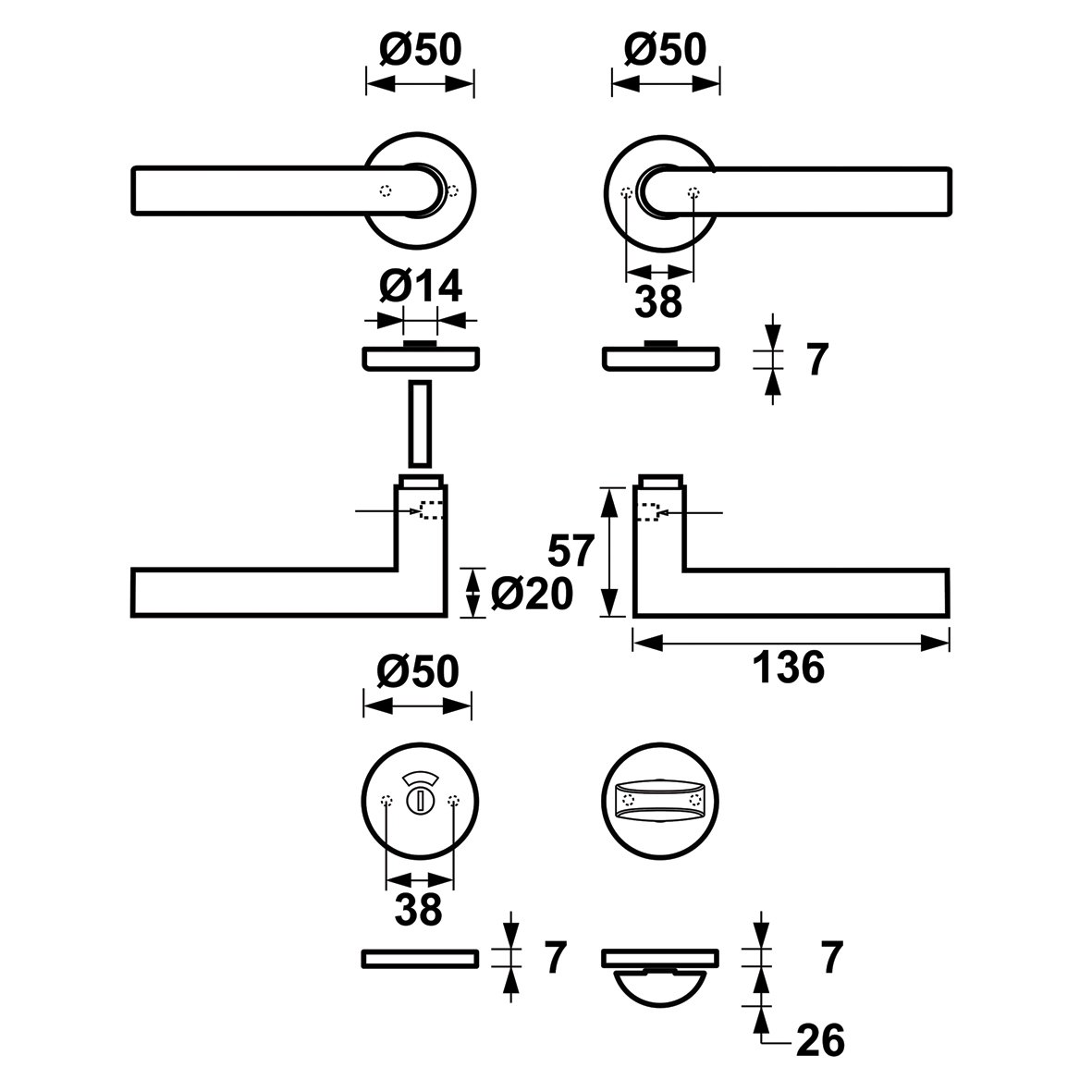

Technical information
Thickness 9 mm
Shape round
Suitable for door thickness 36 - 44 mm
Handle type Milan V
Handle length 136 mm
Handle depth 57 mm
Diameter handle 20 mm
Handle assembly grub screw fix
Spring supported handle True
Diameter rosette 50 mm
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
Including Mounting Material True
Assembly time 10 min
Recommended Mounting Materials
- M4 x 45 mm patent bolt: 4 pieces
- M4 x 20 mm bus: 4 pieces
- M6 x 9 mm grub screw: 2 piece
- M4 x 45 mm patent bolt: 4 pieces
- M4 x 20 mm bus: 4 pieces
- M6 x 9 mm grub screw: 2 piece
Logistic information
Pieces per small package 1 piece
EAN small package 8713249344898
Dimensions small package 160 x 130 x 25 mm
Pieces per bulk package 25 piece
EAN bulk package 8713249344904
Dimensions bulk package 382 x 310 x 180 mm
