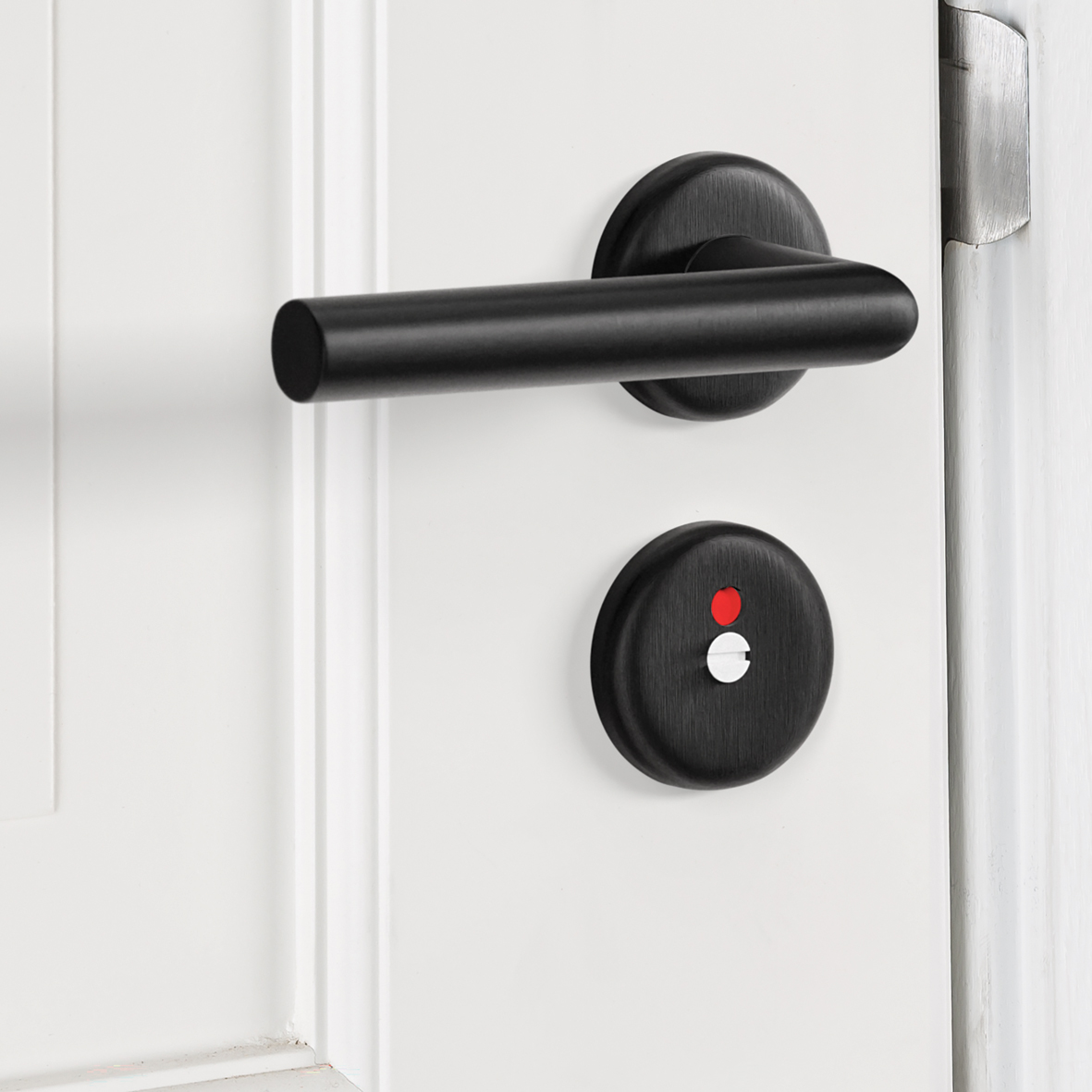

Interior door fitting Klik rosettes round+toilet handle Milan

6226-40-18/E
arrow_selector

Stylish interior door fitting, no visible attachment points, finely polished and less sensitive to scratching.

  • stylish appearance, finely polished, less sensitive to scratches
  • no visible attachment points, because the rosette is clicked over a plastic base plate
  • integrated plastic handle bearings
  • can be excellently combined with the AXA Security fittings for exterior doors

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 8 pieces
- M6 x 6 mm grub screw: 2 pieces
Commercial information
expand_more
Type Klik rosettes round+toilet handle Milan
Use for interior doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Thickness 9 mm
Shape round
Suitable for door thickness 38 - 40 mm
Handle type Milan
Handle length 136 mm
Handle depth 57 mm
Diameter handle 20 mm
Handle assembly grub screw fix
Diameter rosette 52 mm
Material Aluminum
Finish Polished anodised F8, black
Assembly information
expand_more
Including Mounting Material True
Assembly time 10 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 8 pieces
- M6 x 6 mm grub screw: 2 pieces
Logistic information
expand_more
Product Weight 487 gr
Pieces per small package 1 piece
EAN small package 8713249338187
Dimensions small package 160 x 130 x 25 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249338194
Dimensions bulk package 290 x 200 x 120 mm

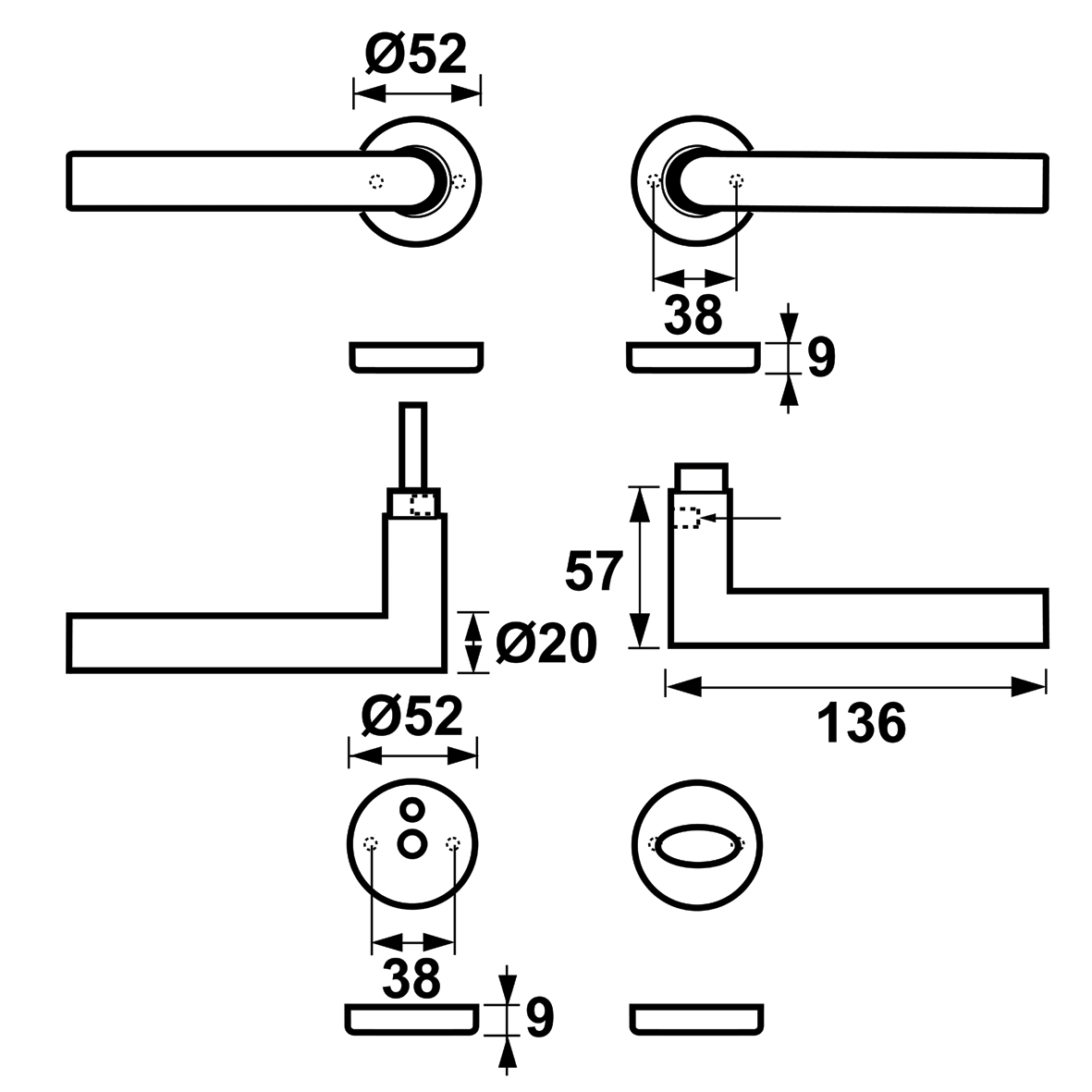

Technical drawings

Interior door fitting Klik rosettes round+toilet handle Milan
62264018E
