Interior door fitting Klik rosettes round+toilet handle Curve

6228-40-18/E

+

6
arrow_selector

Stylish interior door fitting, no visible attachment points, finely polished and less sensitive to scratching.

  • stylish appearance, finely polished, less sensitive to scratches
  • no visible attachment points, because the rosette is clicked over a plastic base plate
  • integrated plastic handle bearings
  • can be excellently combined with the AXA Security fittings for exterior doors

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 8 pieces
- M6 x 6 mm grub screw: 2 pieces
Commercial information
expand_more
Type Klik rosettes round+toilet handle Curve
Use for interior doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Thickness 9 mm
Shape round
Suitable for door thickness 38 - 40 mm
Handle type Curve
Handle length 116 mm
Handle depth 53 mm
Handle assembly grub screw fix
Diameter rosette 52 mm
Material Aluminum
Finish Polished anodised F8, black
Assembly information
expand_more
Including Mounting Material True
Assembly time 10 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 8 pieces
- M6 x 6 mm grub screw: 2 pieces
Logistic information
expand_more
Product Weight 306 gr
Pieces per small package 1 piece
EAN small package 8713249318295
Weight small package 0.36 kg
Dimensions small package 150 x 120 x 45 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249318301
Weight bulk package 3.08 kg
Dimensions bulk package 290 x 200 x 120 mm

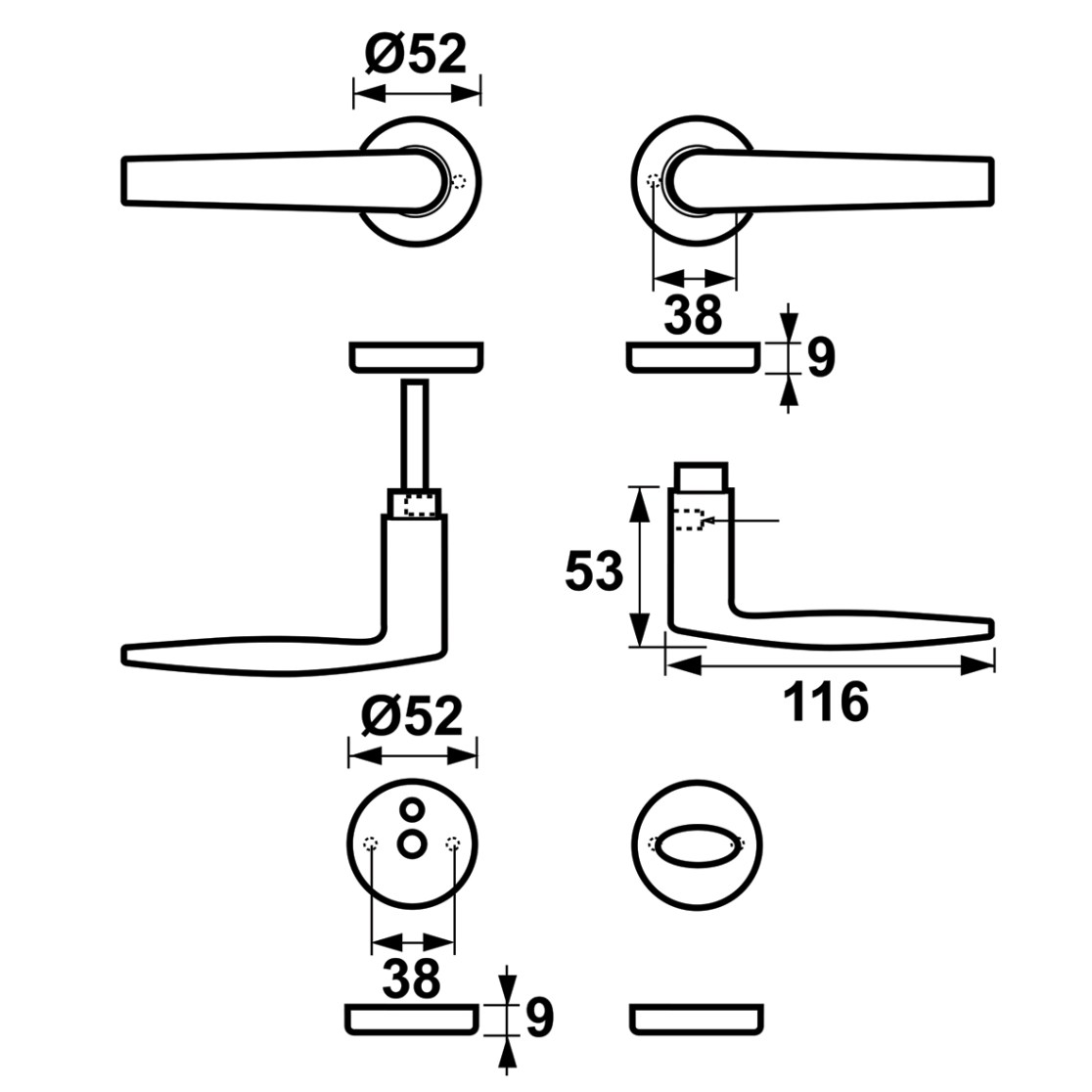

Technical drawings

Interior door fitting Klik rosettes round+toilet handle Curve
62284018E
