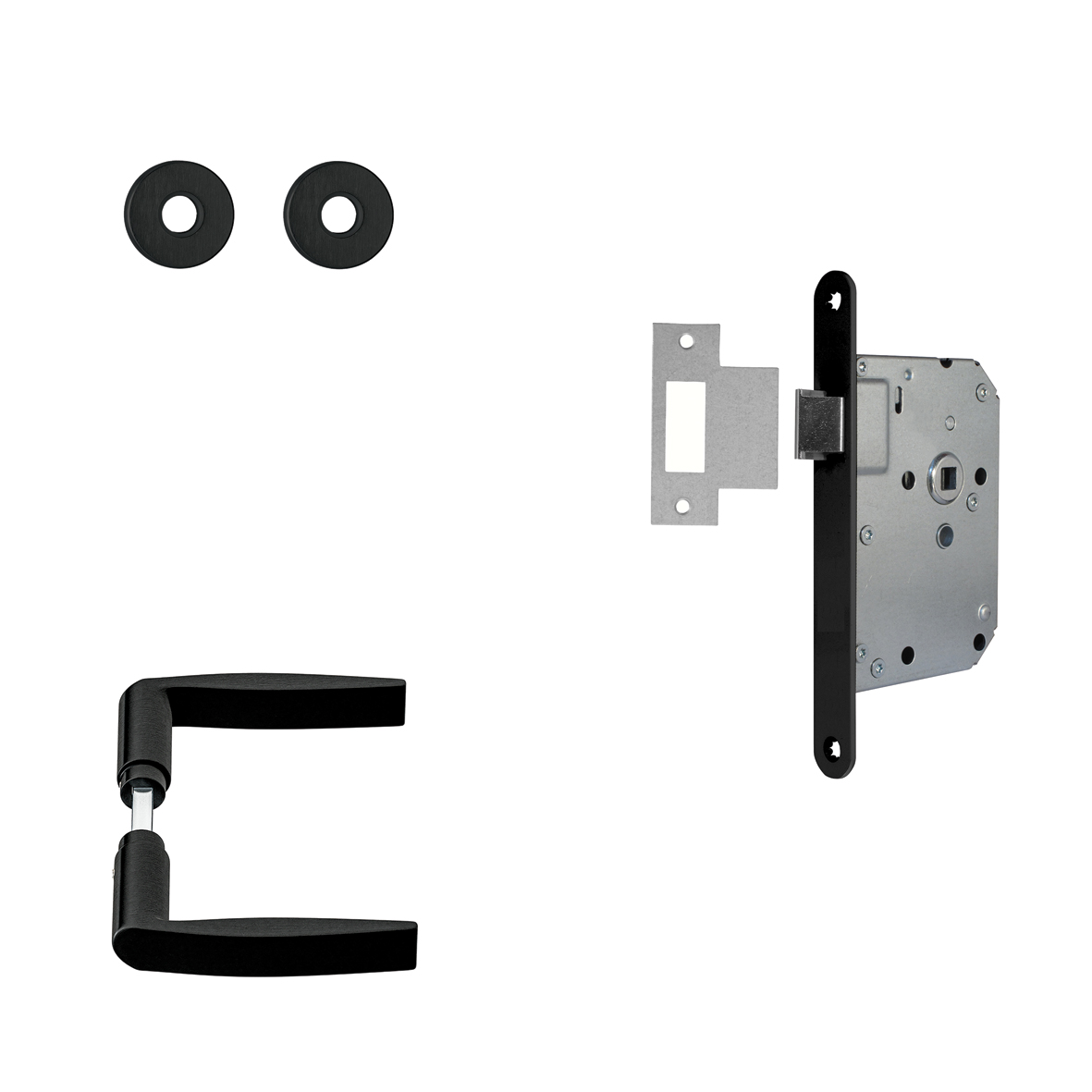

Interior door fitting Klik rosettes round handle Curve+lock

7155-99-56/E
arrow_selector

Stylish interior door fitting with matching lock, no visible attachment points, finely polished and less sensitive to scratching.

  • with black faceplate
  • quick reversible nickel-plated brass latch
  • sturdy spindle mechanism
  • matching interior door fitting
  • stylish appearance, finely polished, less sensitive to scratches
  • no visible attachment points, because the rosette is clicked over a plastic base plate
  • integrated plastic handle bearings
  • can be excellently combined with the Security fittings for exterior doors
  • inclusive striking plate and fastening materials

Specifications

Recommended Mounting Materials
- 4.0 x 20 mm screw: 6 pieces
- 3.0 x 20 mm screw: 2 pieces
Commercial information
expand_more
Type Klik rosettes round handle Curve+lock
Use for interior doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 2 174 mm
Product Width 2 20 mm
Thickness 9 mm
Thickness 2 3 mm
Mounting depth 80 mm
Corner shape round corner
Shape round
Suitable for door thickness 38 - 40 mm
Handle type Curve
Handle length 116 mm
Handle depth 53 mm
Handle assembly grub screw fix
Diameter rosette 52 mm
Backset 50 mm
Material Aluminum
Finish Polished anodised F8, black
Material 2 Steel
Finish 2 Black lacquered
Assembly information
expand_more
Including Mounting Material True
Assembly time 45 min
Recommended Mounting Materials
- 4.0 x 20 mm screw: 6 pieces
- 3.0 x 20 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 619 gr
Pieces per small package 1 piece
EAN small package 8713249306148
Pieces per bulk package 8 piece
EAN bulk package 8713249306155
Weight bulk package 5.17 kg
Dimensions bulk package 290 x 200 x 120 mm

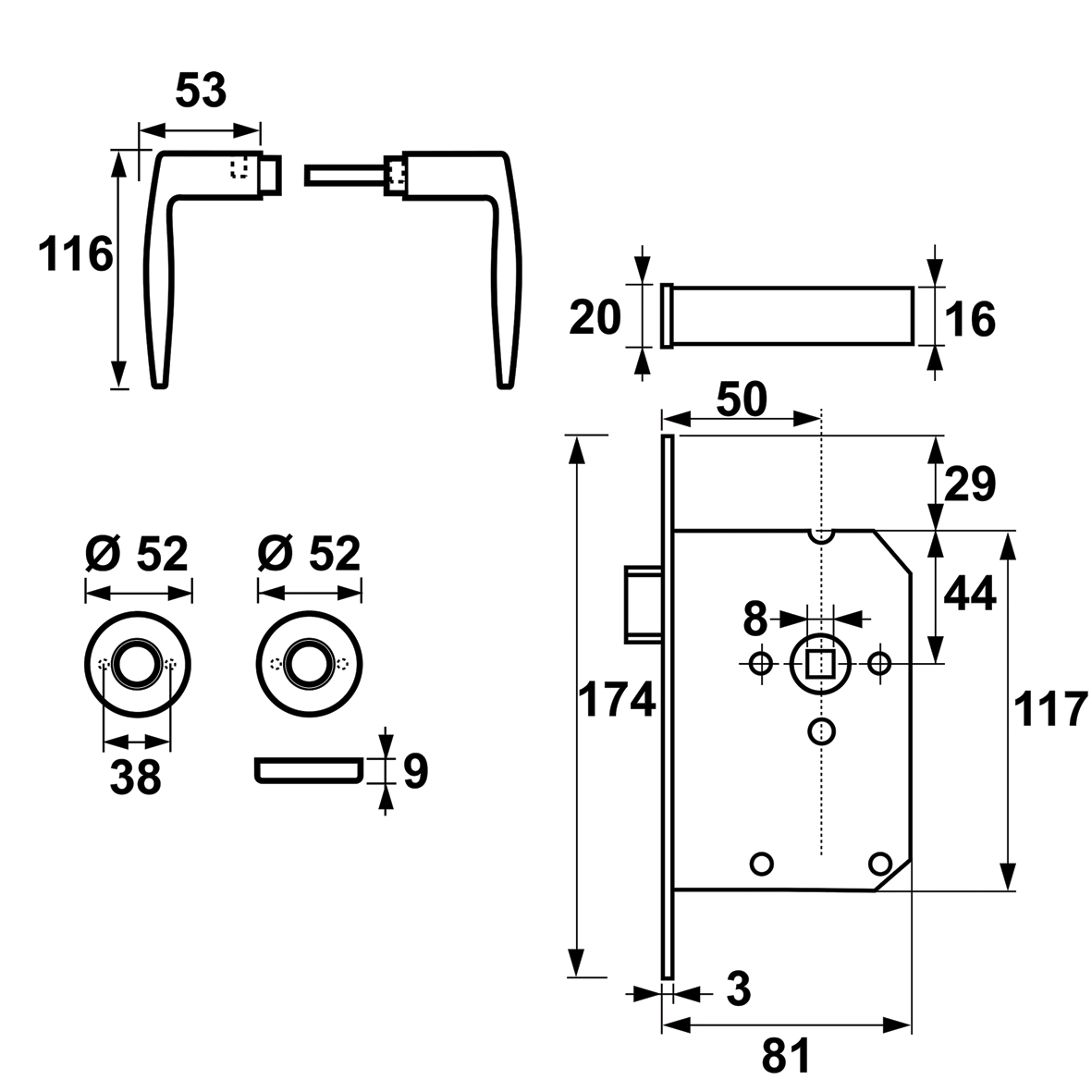

Technical drawings

Alternative products

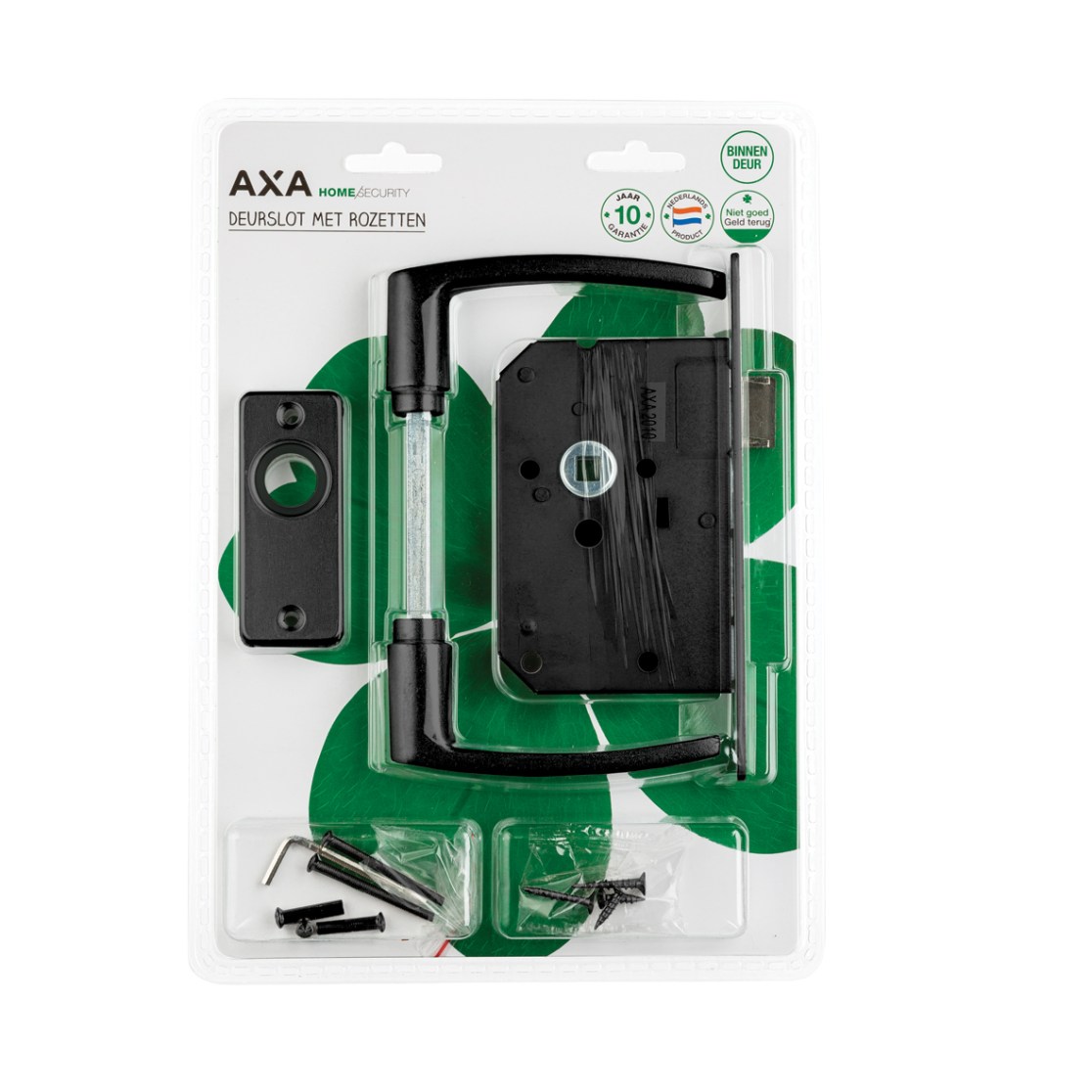

Interior door fitting Edge rosettes handle Blok+lock
