Interior door fitting Edge handle Blok toilet 63-8+lock

7165-90-54/63BL

Stylish door fittings for interior doors with lock.

universally usable on doors with a thickness of 38 to 42 mm
with matching lock
complete with attachment materials
simple assembly
can be excellently combined with the AXA Security fittings for exterior doors

Stylish door fittings for interior doors with lock.

universally usable on doors with a thickness of 38 to 42 mm
with matching lock
complete with attachment materials
simple assembly
can be excellently combined with the AXA Security fittings for exterior doors

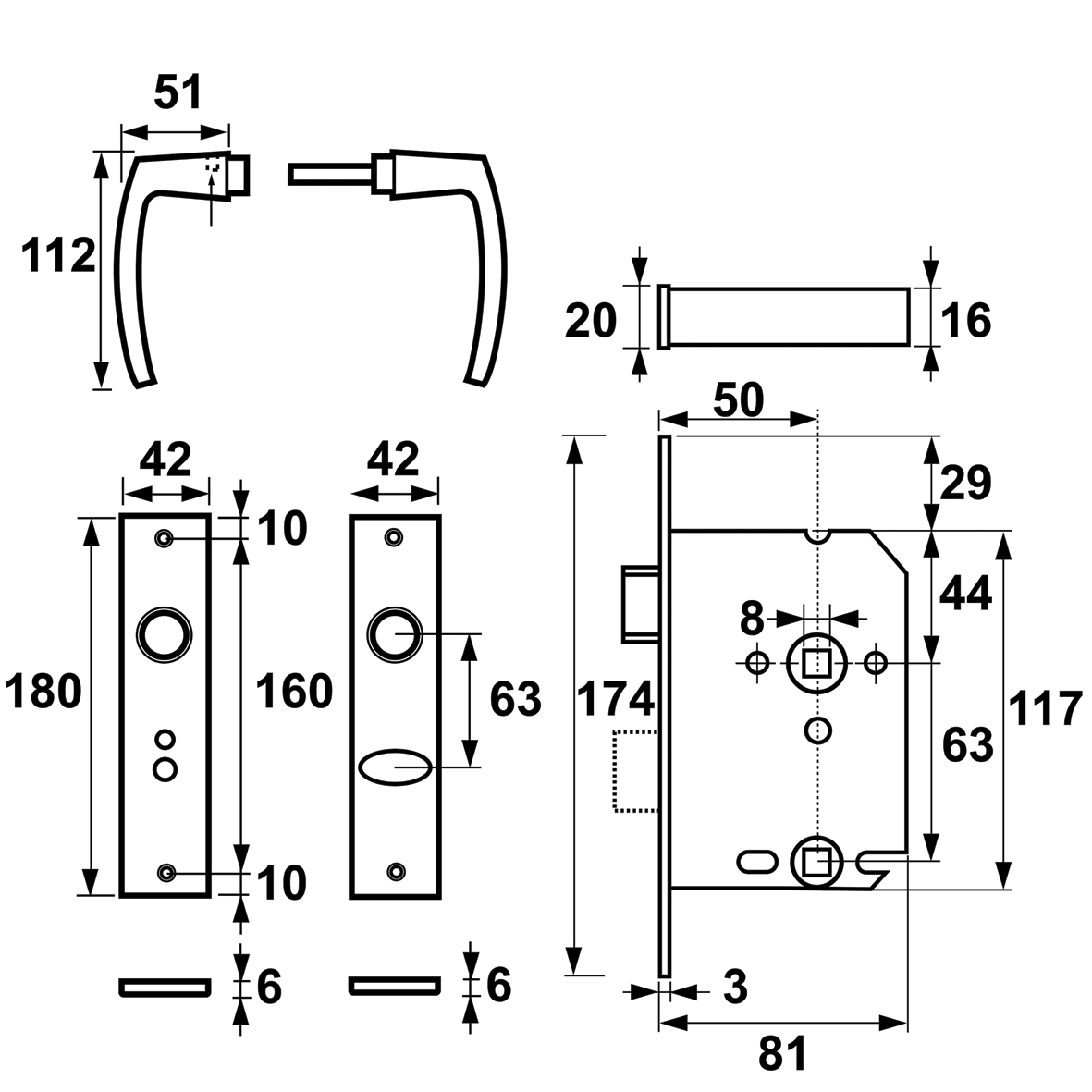

Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 25 mm screw: 2 pieces
- 3.5 x 16 mm screw: 2 pieces
- M4 x 42 mm patent bolt: 2 pieces
- M4 x 20 mm bush: 2 pieces
- M6 x 9 mm grub screw: 1 piece

Commercial information

expand_more

Type Edge handle Blok toilet 63-8+lock

Use for interior doors

Safety information

expand_more

Burglarproof False

SKG No

Police Hallmark False

CE Applicable False

Technical information

expand_more

Product Length 180 mm

Product Length 2 174 mm

Product Width 42 mm

Product Width 2 20 mm

Thickness 6 mm

Thickness 2 3 mm

Mounting depth 80 mm

Corner shape round corner

Bolt type dead bolt

Bolt catcher striking plate

Suitable for door thickness 38 - 42 mm

Handle type Block

Handle length 112 mm

Handle depth 51 mm

Handle assembly grub screw fix

Heart to heart size type handle hole - toilet operating hole (TL)

Backset 50 mm

Material Aluminum

Finish Anodised F1, natural

Material 2 Steel

Finish 2 White lacquered

Assembly information

expand_more

Including Mounting Material True

Assembly time 45 min

Recommended Mounting Materials
- 4.0 x 25 mm screw: 2 pieces
- 3.5 x 16 mm screw: 2 pieces
- M4 x 42 mm patent bolt: 2 pieces
- M4 x 20 mm bush: 2 pieces
- M6 x 9 mm grub screw: 1 piece
