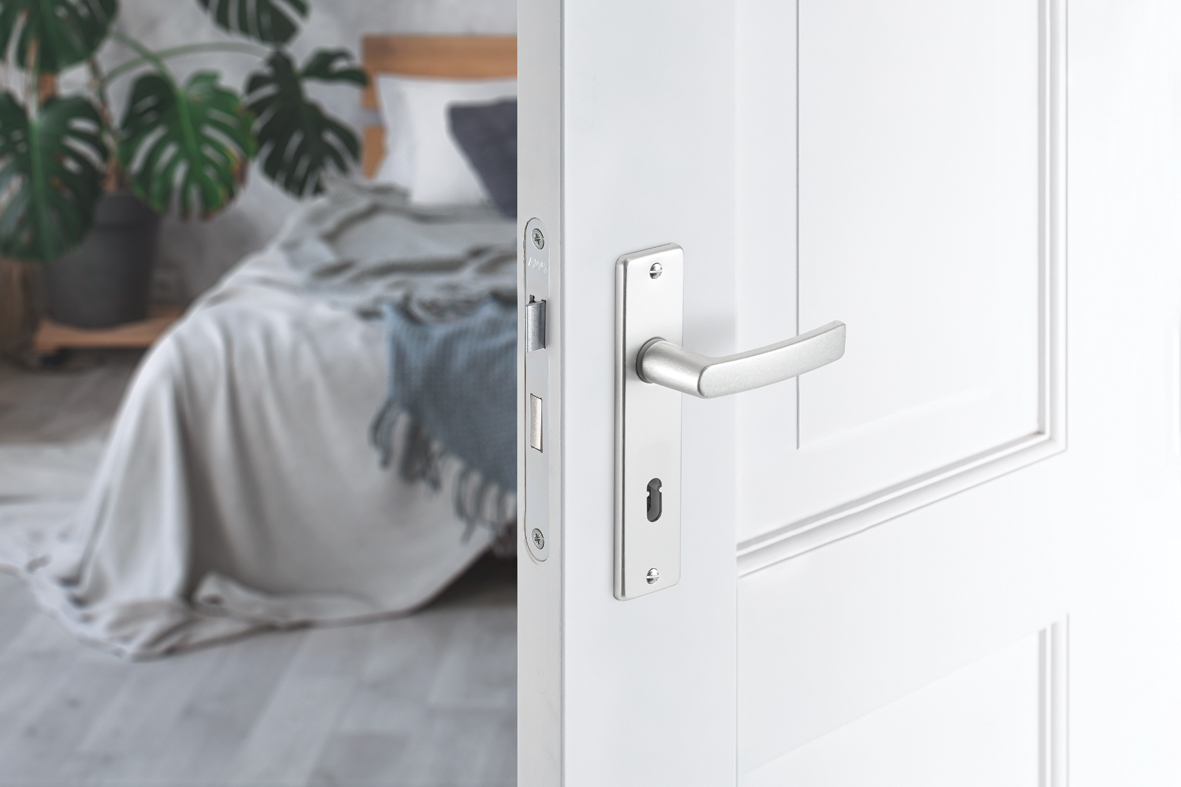

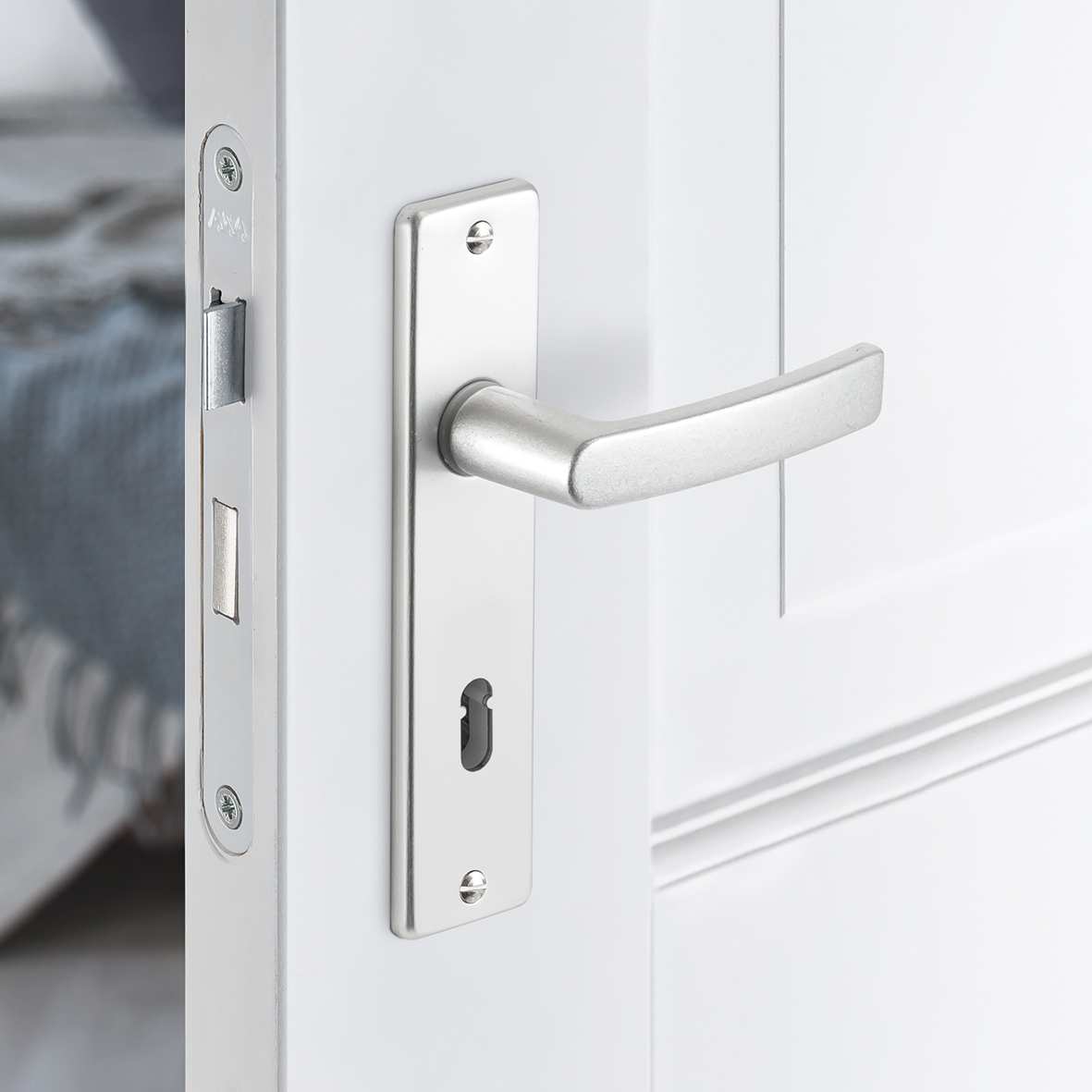

Interior door fitting Edge Basic handle Blok SL55
6349-30-91/56EStandard interior door fittings in Edge model.
- universally usable on doors with a thickness of 38 to 42 mm
- complete with attachment materials
- simple assembly
- can be excellently combined with the AXA Security fittings for exterior doors



Standard interior door fittings in Edge model.
- universally usable on doors with a thickness of 38 to 42 mm
- complete with attachment materials
- simple assembly
- can be excellently combined with the AXA Security fittings for exterior doors
Specifications
Recommended Mounting Materials
- M4 x 42 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- M6 x 9 mm grub screw: 1 piece
- M4 x 42 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- M6 x 9 mm grub screw: 1 piece
Commercial information
Type Edge Basic handle Blok SL55
Use for interior doors
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information

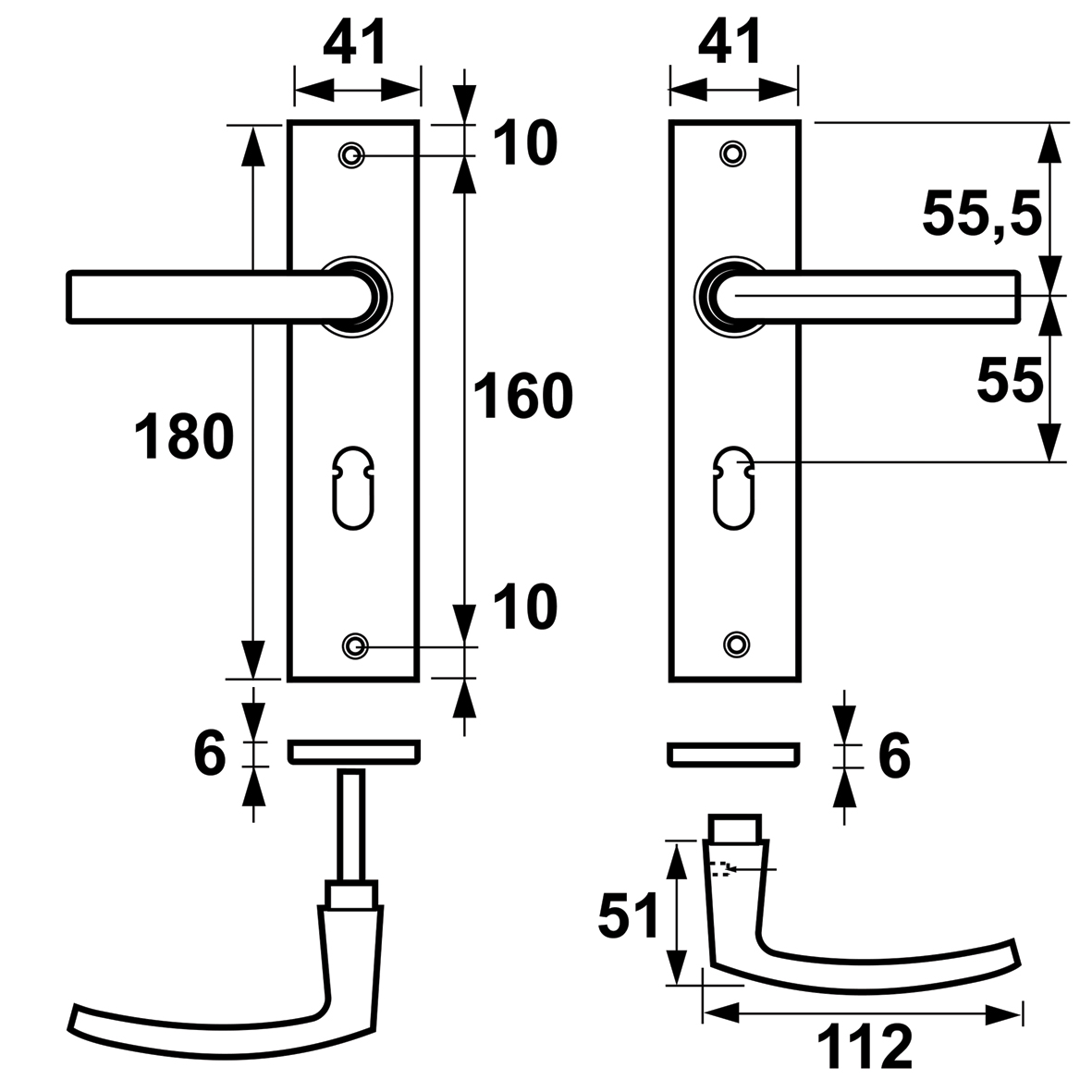

Product Length 180 mm
Product Width 41 mm
Thickness 6 mm
Shape recht
Suitable for door thickness 38 - 42 mm
Handle type Block
Handle length 112 mm
Handle depth 51 mm
Handle assembly grub screw fix
Heart to heart size type handle hole - lever key (SL)
Material Aluminum
Finish Anodised F1, natural
Assembly information
Including Mounting Material True
Assembly time 10 min
Recommended Mounting Materials
- M4 x 42 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- M6 x 9 mm grub screw: 1 piece
- M4 x 42 mm patent bolt: 2 pieces
- M4 x 20 mm bus: 2 pieces
- M6 x 9 mm grub screw: 1 piece
Logistic information
Pieces per small package 1 piece
EAN small package 8713249331782
Pieces per bulk package 10 piece
EAN bulk package 8713249333335
Dimensions bulk package 290 x 200 x 120 mm
Downloads
Main Image Installation Manual Environmental Product Declaration (EPD)Technical drawings
