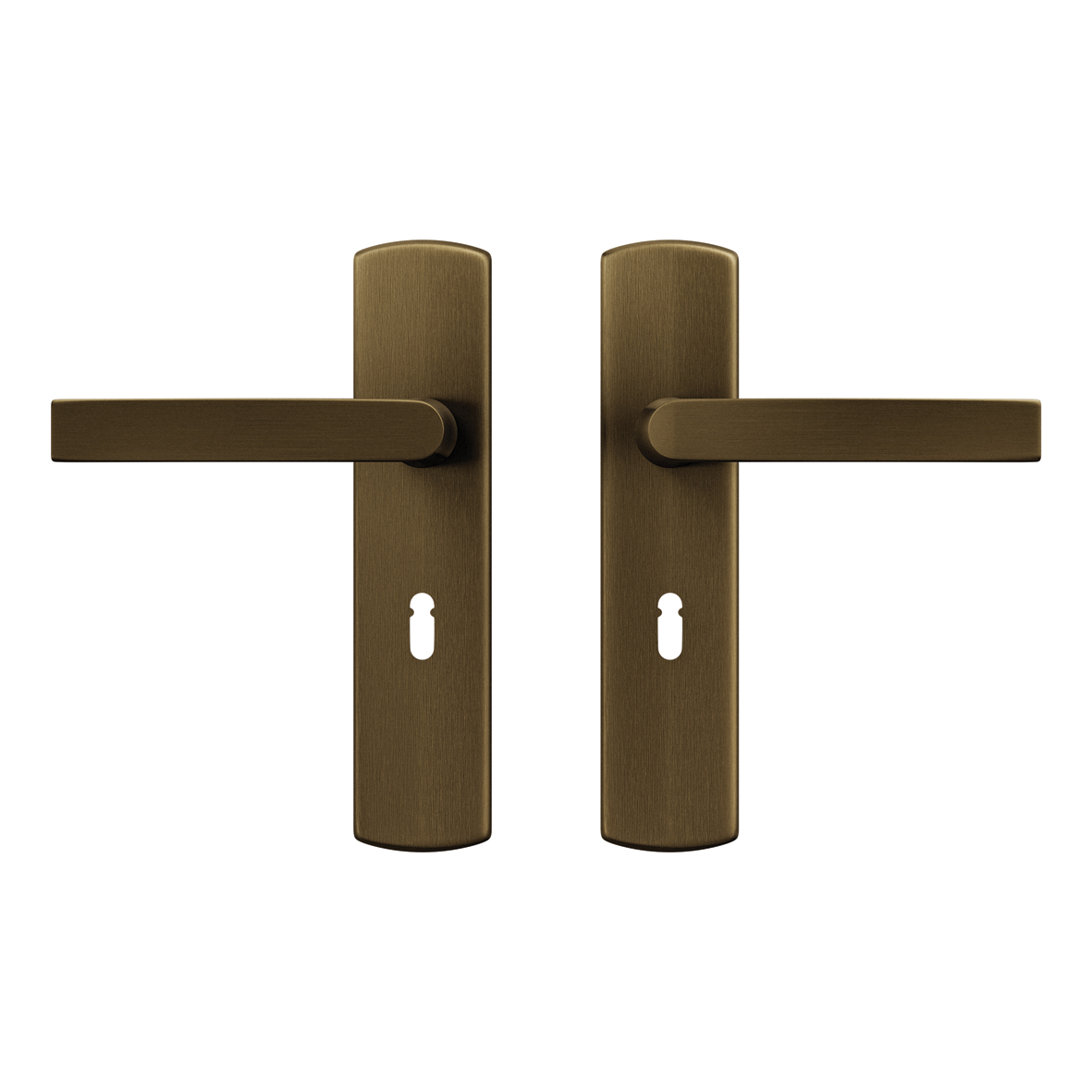

Interior door fitting Curve Klik handle Blok SL55
6219-30-14/55EStylish, no visible attachment points, finely polished and less sensitive to scratching.
- stylish appearance, finely polished, less sensitive to scratches
- no visible attachment points, because the back plate is clicked over a plastic base plate
- integrated plastic handle bearings
- universally usable on doors with a thickness of 38 to 42 mm
- complete with attachment materials
- simple assembly
- can be excellently combined with the AXA Security fittings for exterior doors
Stylish, no visible attachment points, finely polished and less sensitive to scratching.
- stylish appearance, finely polished, less sensitive to scratches
- no visible attachment points, because the back plate is clicked over a plastic base plate
- integrated plastic handle bearings
- universally usable on doors with a thickness of 38 to 42 mm
- complete with attachment materials
- simple assembly
- can be excellently combined with the AXA Security fittings for exterior doors
Specifications
Recommended Mounting Materials
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bus: 2 pieces
- M6 x 6 mm grub screw: 2 pieces
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bus: 2 pieces
- M6 x 6 mm grub screw: 2 pieces
Commercial information
Type Curve Klik handle Blok SL55
Use for interior doors
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
Product Length 200 mm
Product Width 45 mm
Thickness 8 mm
Shape curved
Suitable for door thickness 38 - 42 mm
Handle type Block
Handle length 125 mm
Handle depth 60 mm
Handle assembly grub screw fix
Heart to heart size type handle hole - lever key (SL)
Material Aluminum
Finish Polished anodised F4, bronze
Assembly information
Including Mounting Material True
Assembly time 15 min
Recommended Mounting Materials
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bus: 2 pieces
- M6 x 6 mm grub screw: 2 pieces
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bus: 2 pieces
- M6 x 6 mm grub screw: 2 pieces
Logistic information
Product Weight 458 gr
Pieces per small package 1 piece
EAN small package 8713249338866
Weight small package 0.458 kg
Dimensions small package 200 x 125 x 45 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249338873
Weight bulk package 3.85 kg
Dimensions bulk package 290 x 200 x 120 mm
Downloads

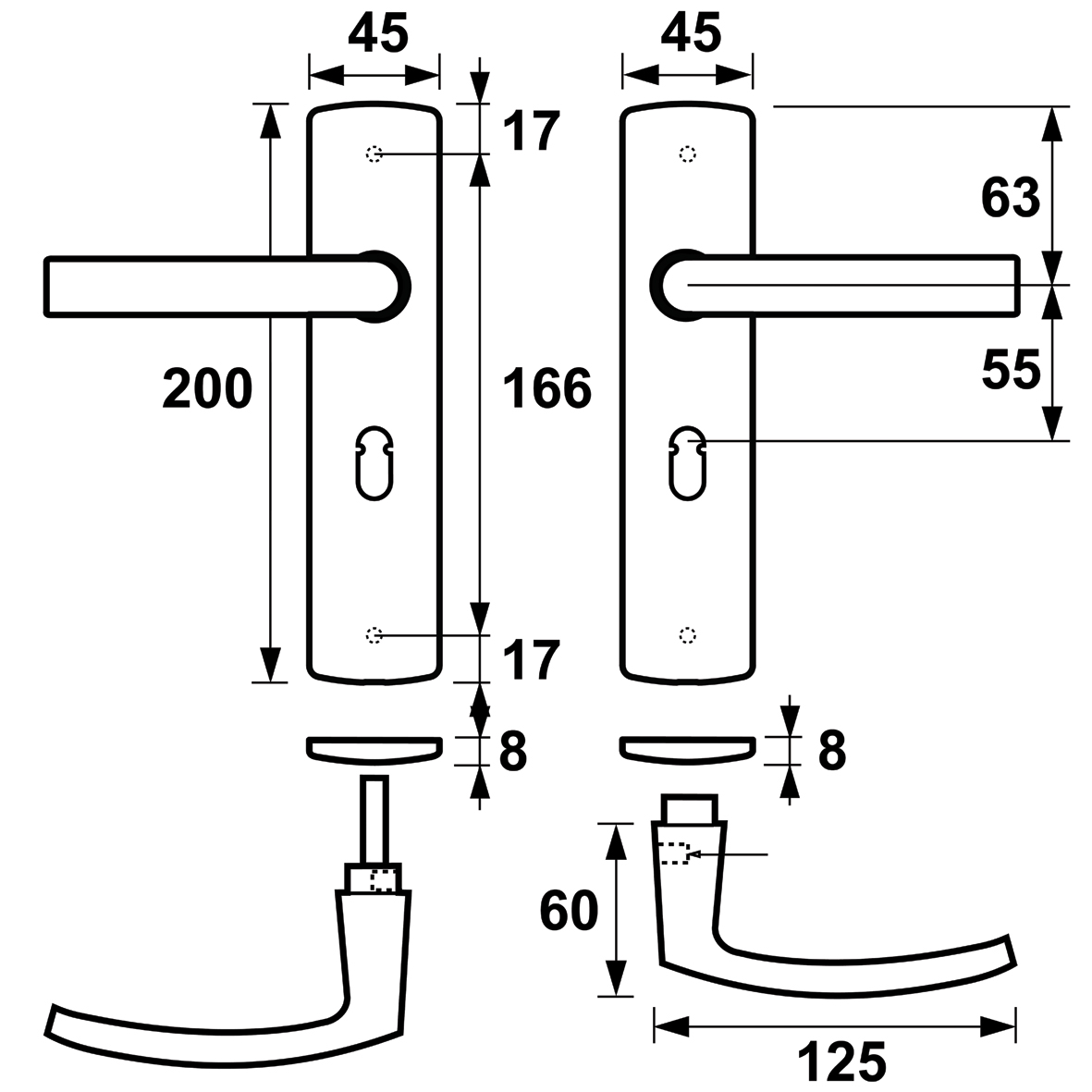

Main Image Environmental Product Declaration (EPD)Technical drawings
