Interior door backplates Premium project Fast Click toilet 63-8
6430-48-11/63ESturdy project interior door backplates for intensive use.
- stylish appearance, finely polished, less sensitive to scratches
- ensures very fast installation thanks to the patented Fast-Click system and flat backsite
- due to the Fast-Click combination with the AXA Premium project door handles, a fixed and rotatable fitting is created, so that the handle continues to function without any problems
- specially made for intensive use
- spring-supported handle, prevents dropping handles

Sturdy project interior door backplates for intensive use.
- stylish appearance, finely polished, less sensitive to scratches
- ensures very fast installation thanks to the patented Fast-Click system and flat backsite
- due to the Fast-Click combination with the AXA Premium project door handles, a fixed and rotatable fitting is created, so that the handle continues to function without any problems
- specially made for intensive use
- spring-supported handle, prevents dropping handles
Specifications
Recommended Mounting Materials
- M5 x 50 mm bolt: 2 pieces
- M5 x 20 bush: 2 pieces
- spindle: 1 piece
- M5 x 50 mm bolt: 2 pieces
- M5 x 20 bush: 2 pieces
- spindle: 1 piece
Commercial information
Type Premium project Fast Click toilet 63-8
Use for interior doors
Safety information
SKG No
Police Hallmark False
CE Applicable False

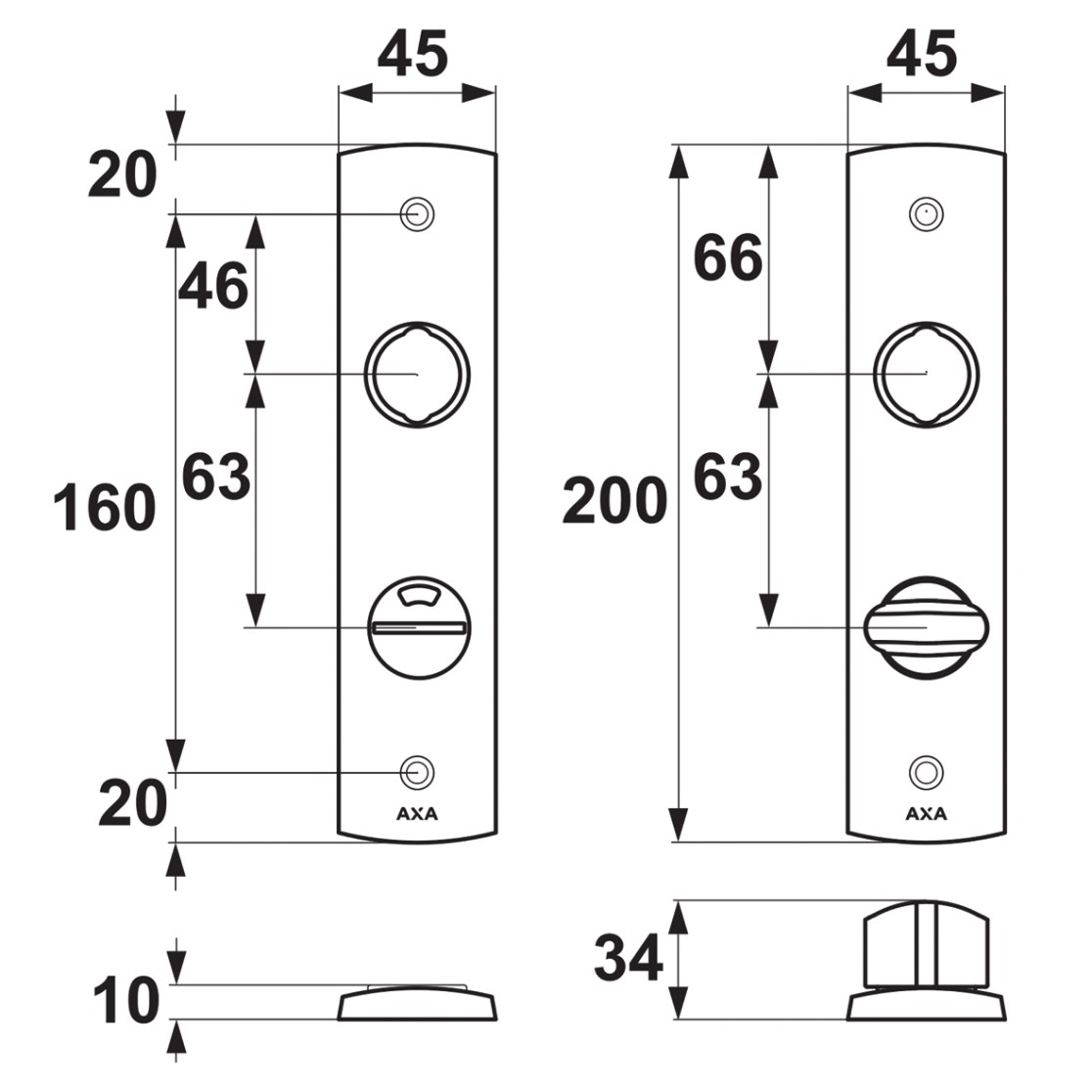

Technical information
Product Length 200 mm
Product Width 45 mm
Thickness 9 mm
Shape curved
Handle assembly handle integrated in backplate/rosettes
Spring supported handle True
Heart to heart size type handle hole - toilet operating hole (TL)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- M5 x 50 mm bolt: 2 pieces
- M5 x 20 bush: 2 pieces
- spindle: 1 piece
- M5 x 50 mm bolt: 2 pieces
- M5 x 20 bush: 2 pieces
- spindle: 1 piece
Logistic information
Product Weight 427 gr
Pieces per small package 4 piece
EAN small package 8713249262642
Weight small package 1.79 kg
Dimensions small package 259 x 99 x 85 mm
Pieces per bulk package 24 piece
EAN bulk package 8713249262659
Weight bulk package 7.47 kg
Dimensions bulk package 330 x 280 x 205 mm
