Interior door backplates Edge TL63-8

6342-48-91/63E
arrow_selector
close

Standard interior door backplates in Edge model.

can be excellently combined with the AXA Security fittings for exterior doors
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bush: 2 pieces
Commercial information
expand_more
Type Edge TL63-8
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 185 mm
Product Width 42 mm
Thickness 7 mm
Shape right
Heart to heart size type handle hole - toilet operating hole (TL)
Material Aluminum
Finish Anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 10 min
Recommended Mounting Materials
- M4 x 38 mm patent bolt: 2 pieces
- M4 x 22 mm bush: 2 pieces
Logistic information
expand_more
Product Weight 120 gr
Pieces per small package 10 piece
EAN small package 8713249341132
Weight small package 1.3 kg
Dimensions small package 280 x 200 x 50 mm
Pieces per bulk package 50 piece
EAN bulk package 8713249341149

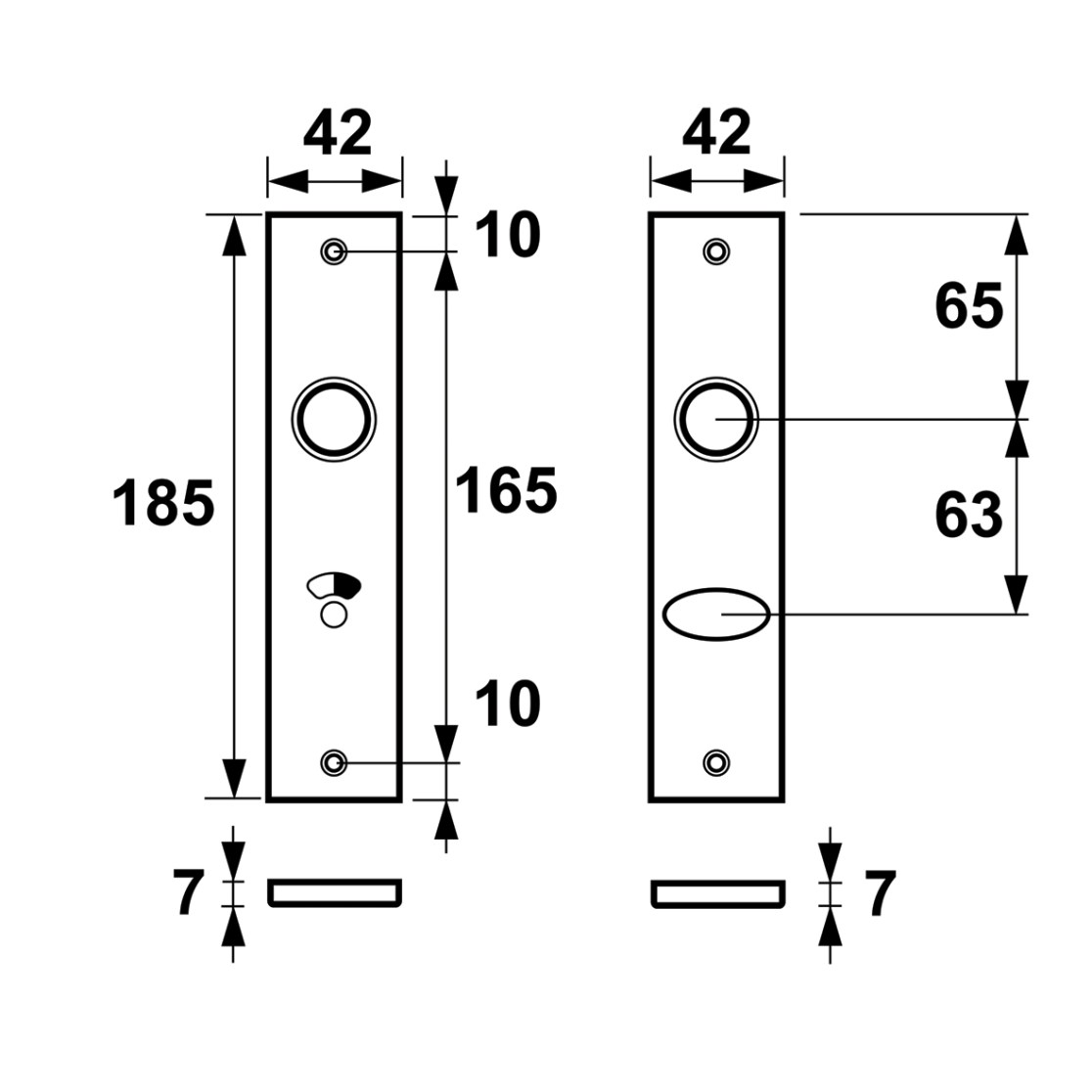

Technical drawings

Alternative products

Interior door backplates Premium project Fast Click toilet 63-8

6430-48-11/63E

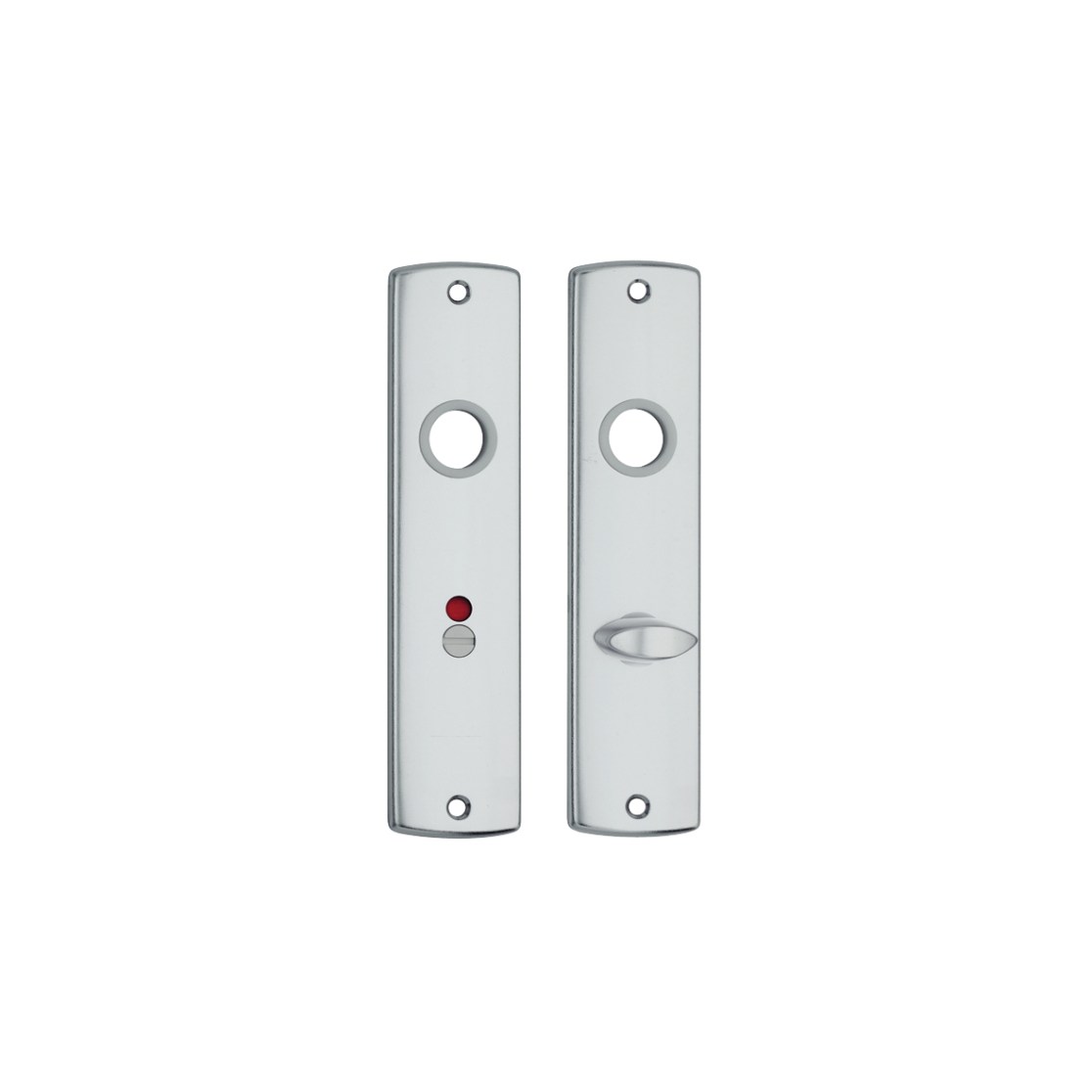

Interior door backplates Curve toilet 63-8

6350-48-92/63E

Interior door backplates Curve toilet 63-8

6350-48-91/BL63

Interior door backplates Curve toilet 63-8

6350-48-91/63E

door Interior backplates Curve toilet 63-8

6350-48-38/63E

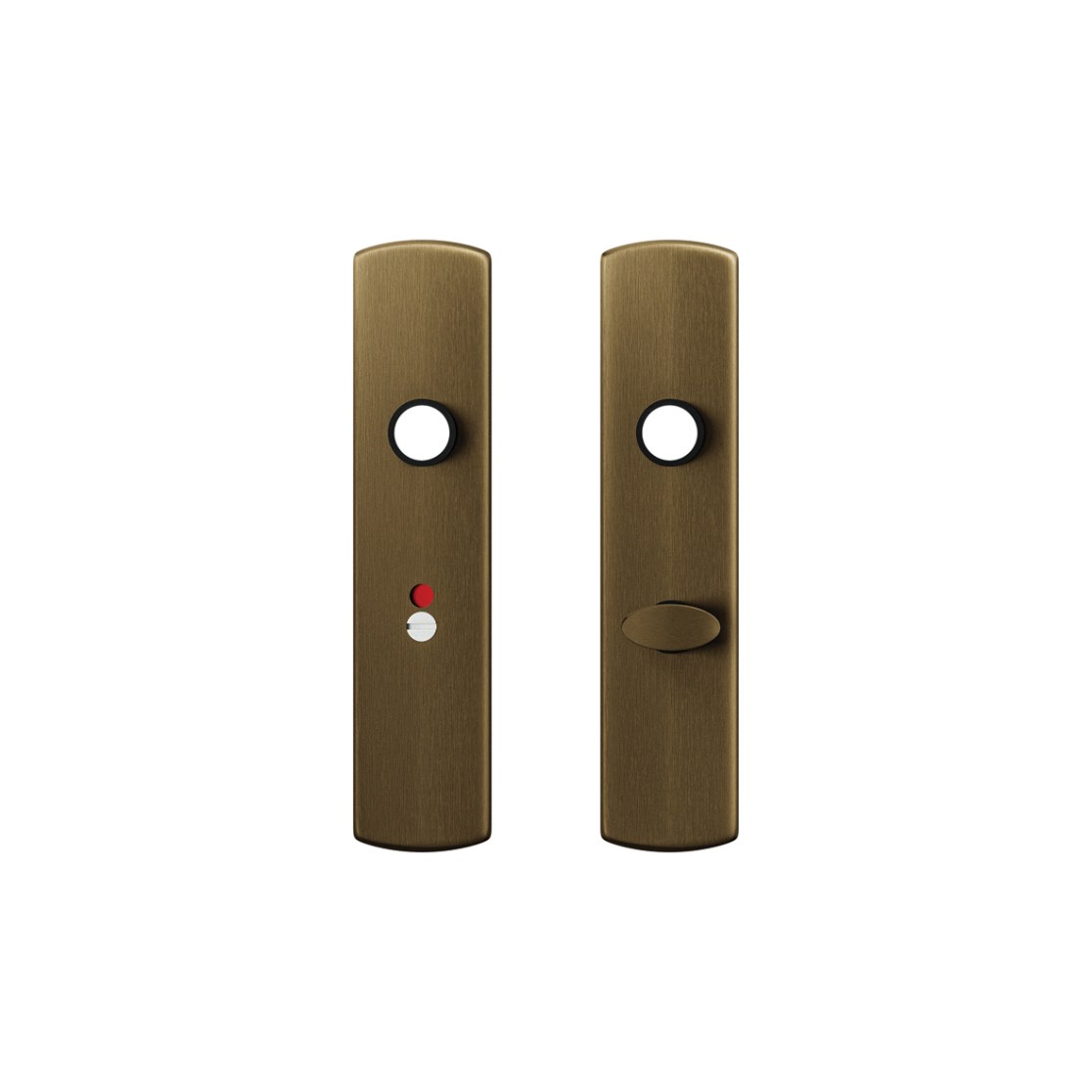

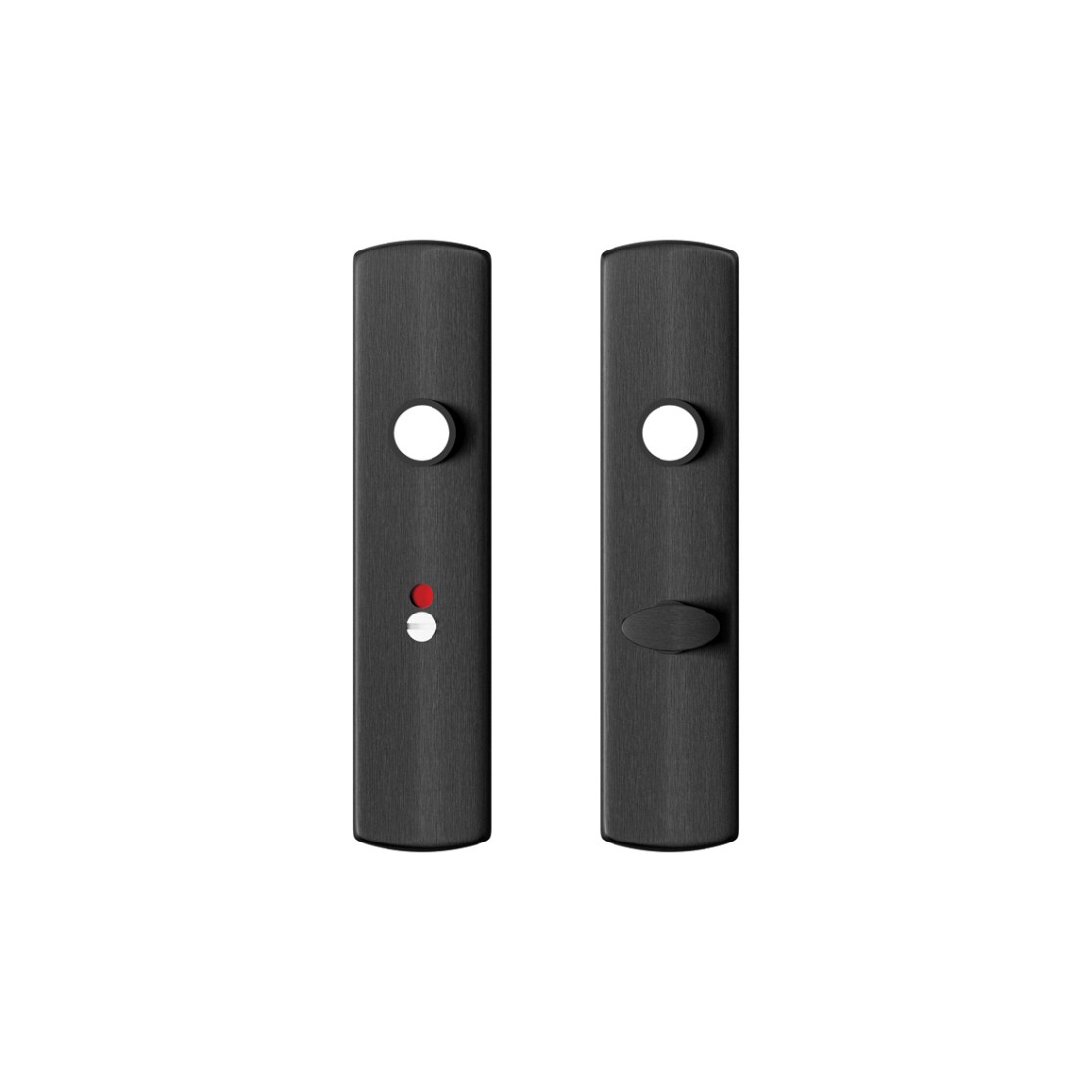

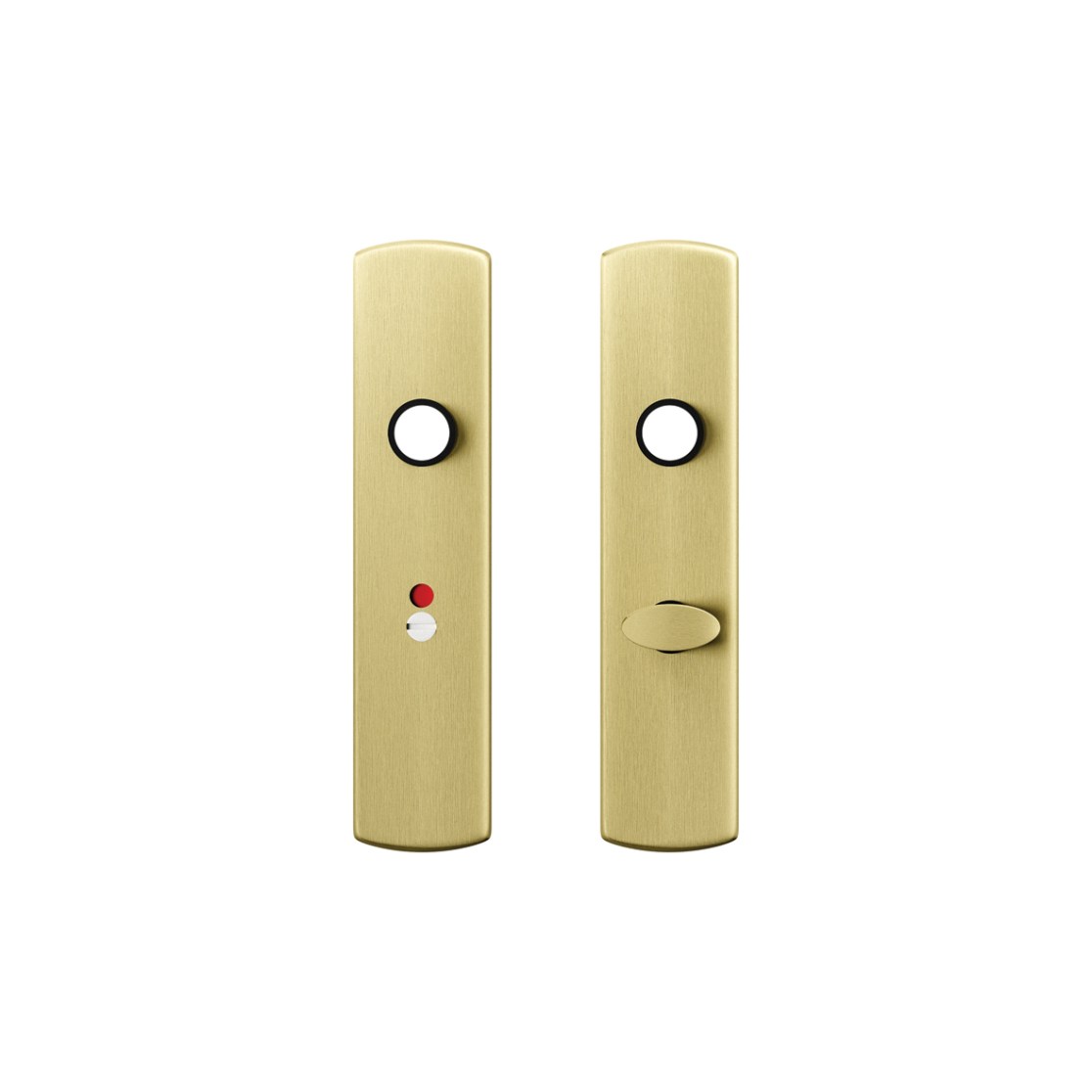

Interior door backplates Curve Klik toilet TL63-8
