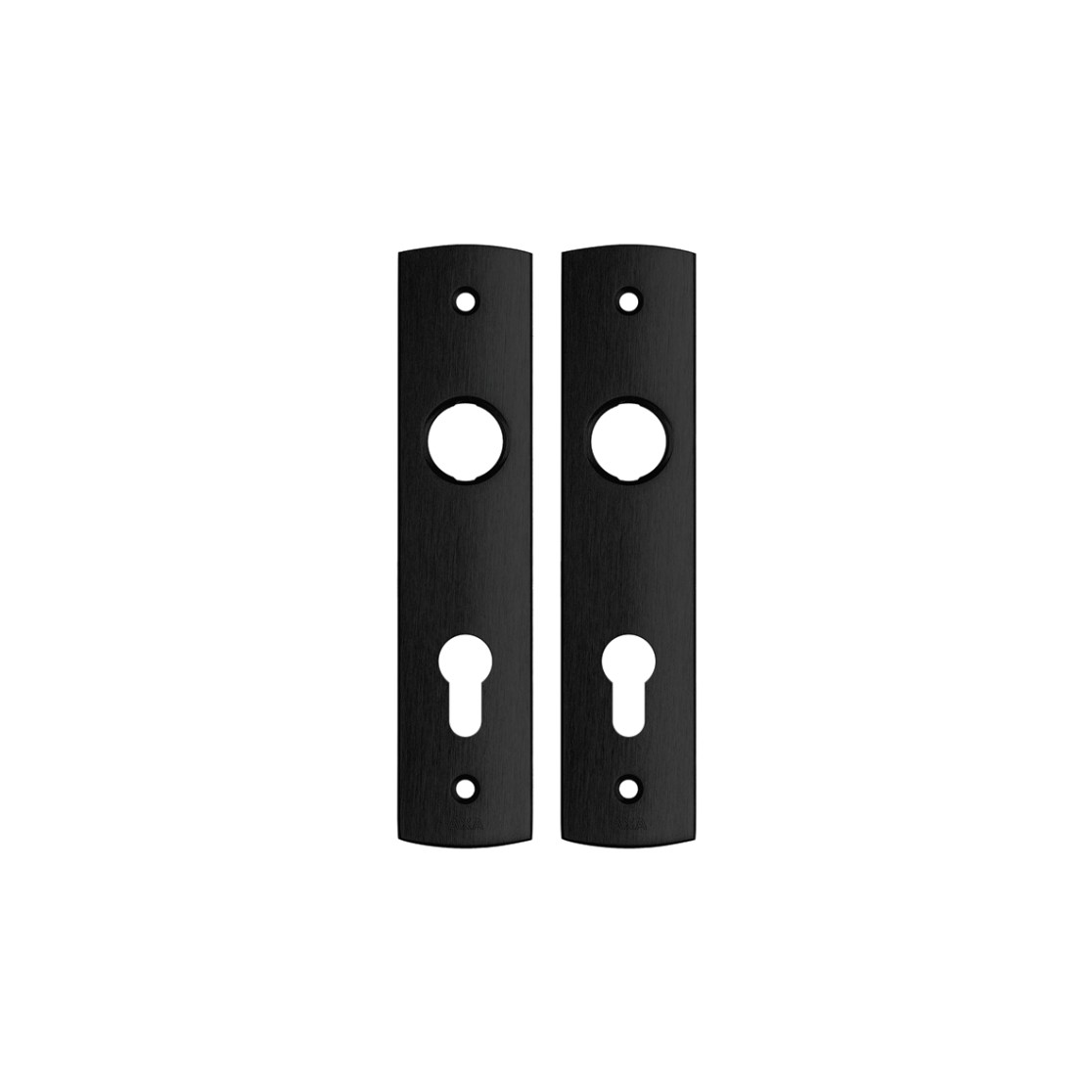

Interior door backplate Premium project Fast Click PC72
6430-25-11/72ESturdy project interior door backplates for intensive use.
- stylish appearance, finely polished, less sensitive to scratches
- ensures very fast installation thanks to the patented Fast-Click system and flat backsite
- due to the Fast-Click combination with the AXA Premium project door handles, a fixed and rotatable fitting is created, so that the handle continues to function without any problems
- specially made for intensive use
- spring-supported handle, prevents dropping handles
Sturdy project interior door backplates for intensive use.
- stylish appearance, finely polished, less sensitive to scratches
- ensures very fast installation thanks to the patented Fast-Click system and flat backsite
- due to the Fast-Click combination with the AXA Premium project door handles, a fixed and rotatable fitting is created, so that the handle continues to function without any problems
- specially made for intensive use
- spring-supported handle, prevents dropping handles
Specifications
Recommended Mounting Materials
- M5 x 50 mm bolt: 2 pieces
- M5 x 20 bush: 2 pieces
- M5 x 50 mm bolt: 2 pieces
- M5 x 20 bush: 2 pieces
Commercial information
Type Premium project Fast Click PC72
Use for interior doors
Safety information
SKG No
Police Hallmark False
CE Applicable False

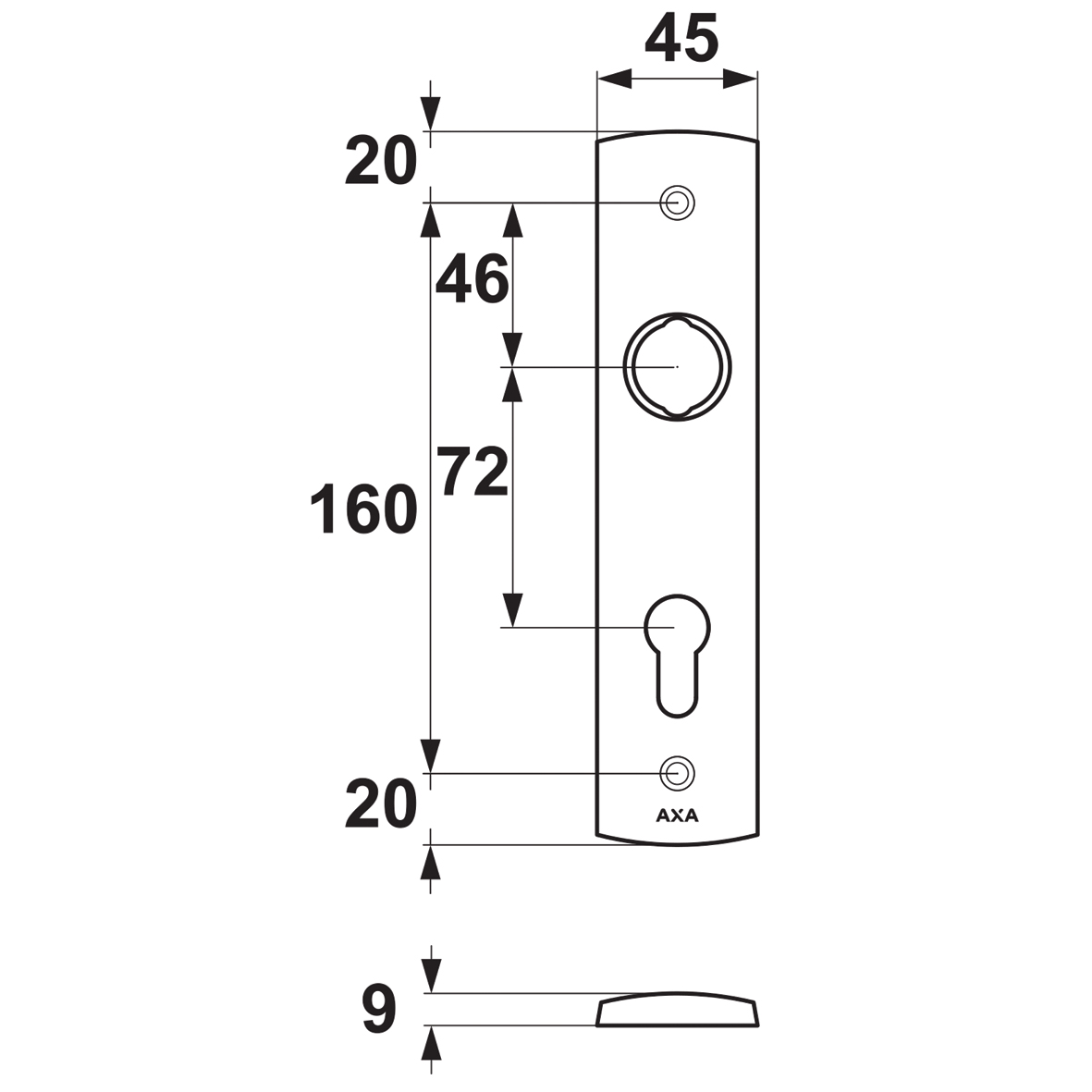

Technical information
Product Length 200 mm
Product Width 45 mm
Thickness 9 mm
Shape curved
Handle assembly handle integrated in backplate/rosettes
Spring supported handle True
Heart to heart size type handle hole - Euro profile hole (PC)
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
Including Mounting Material False
Assembly time 5 min
Recommended Mounting Materials
- M5 x 50 mm bolt: 2 pieces
- M5 x 20 bush: 2 pieces
- M5 x 50 mm bolt: 2 pieces
- M5 x 20 bush: 2 pieces
Logistic information
Product Weight 171 gr
Pieces per small package 16 piece
EAN small package 8713249262918
Weight small package 2.83 kg
Dimensions small package 259 x 99 x 85 mm
Pieces per bulk package 96 piece
EAN bulk package 8713249262925
Weight bulk package 17.28 kg
Dimensions bulk package 330 x 280 x 205 mm
