Installation set narrow timber frame AXA Remote 2.0 hopper window

2902-30-54
arrow_selector
close

Special installation set for mounting the AXA Remote 2.0â„¢ window opener on an awning or top-hung windows with narrow timber frames.

Especially for awning windows with a frame depth of 23 mm or more
Specifications Downloads Technical drawings Associated products

Specifications

Recommended Mounting Materials
- M4 x 6 mm bolt: 1 piece
- M4 x 10 mm bolt: 3 pieces
- M4 x 12 mm bolt: 2 pieces
Commercial information
expand_more
Type AXA Remote 2.0 hopper window
Use for hopper - and top-hung windows
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 308 mm
Product Width 34 mm
Thickness 4 mm
Material Steel
Finish White lacquered
Assembly information
expand_more
Including Mounting Material True
Mounting length 310 mm
Required depth wood frame 23 mm
Window/door mounting width requirement 40 mm
Assembly time 10 min
Recommended Mounting Materials
- M4 x 6 mm bolt: 1 piece
- M4 x 10 mm bolt: 3 pieces
- M4 x 12 mm bolt: 2 pieces
Logistic information
expand_more
Product Weight 342 gr
Pieces per small package 10 piece
EAN small package 8713249216300
Weight small package 3.52 kg
Dimensions small package 318 x 105 x 63 mm
Pieces per bulk package 40 piece
EAN bulk package 8713249216317
Weight bulk package 14.3 kg
Dimensions bulk package 328 x 134 x 214 mm

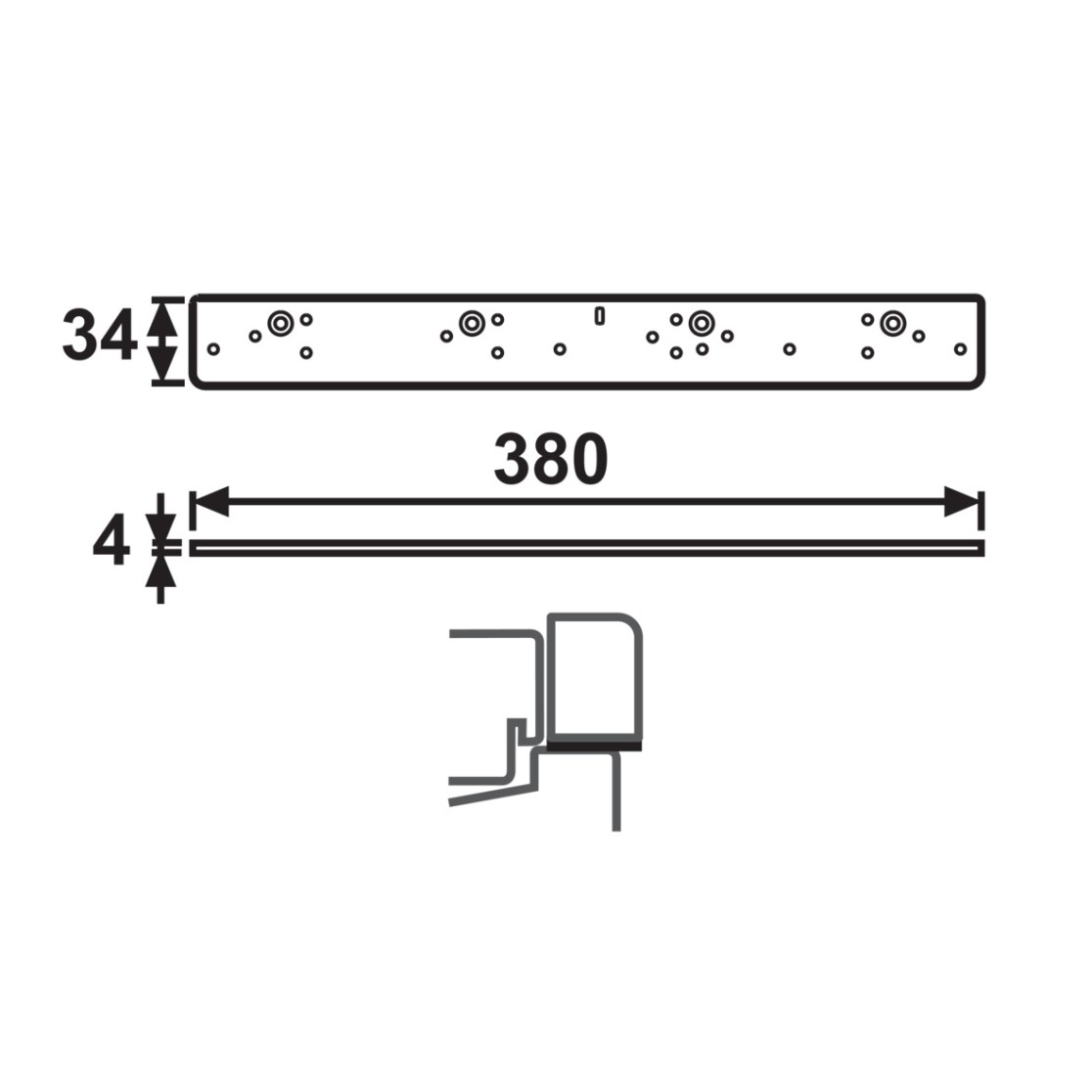

Technical drawings
