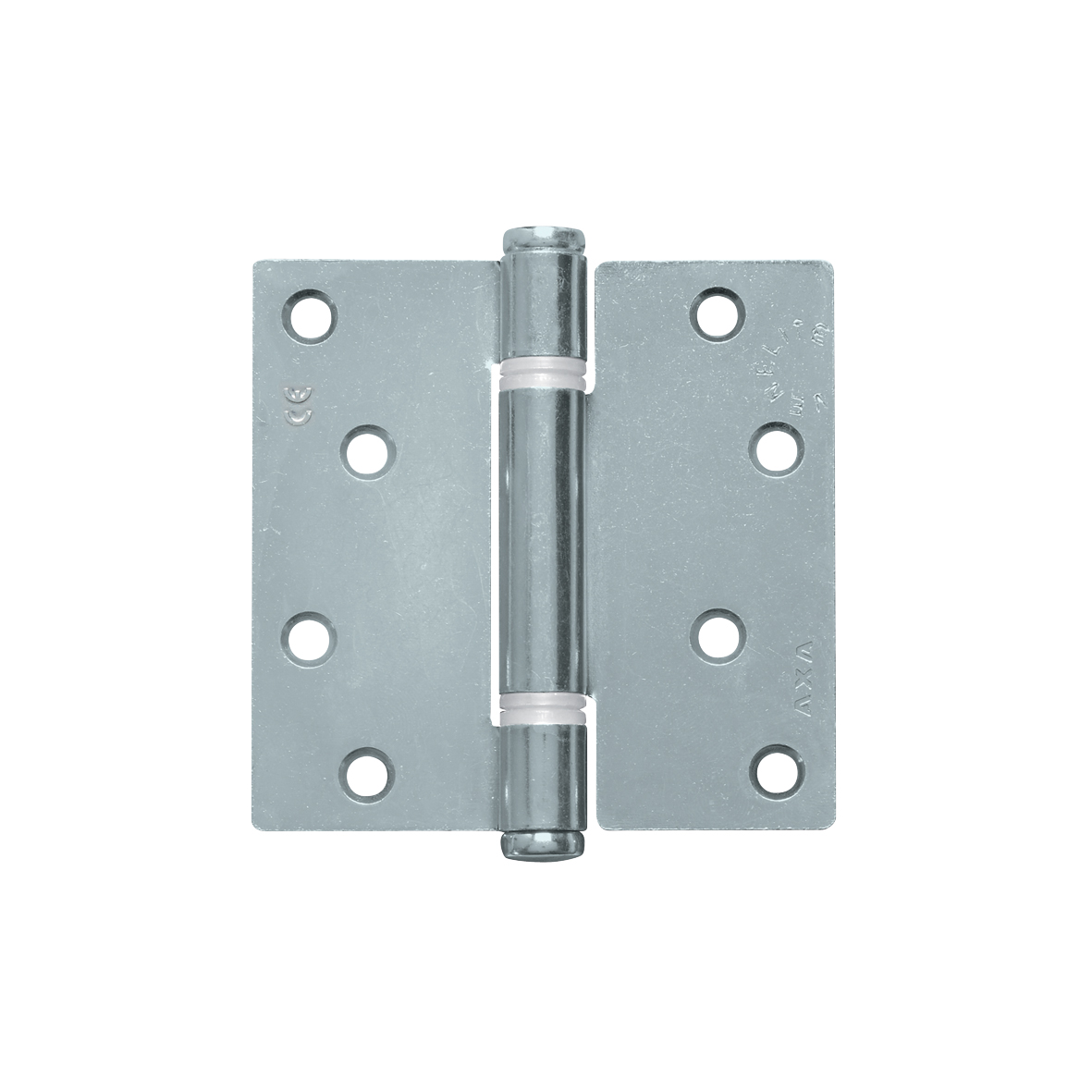

Hinge Venelite

1137-25-23/E
arrow_selector
close

The AXA Venelite bearing hinge is smooth-running and silent.

  • with plastic Venelite bearings
  • smooth-running
  • silent
Specifications Downloads Technical drawings Alternative products
Commercial information
expand_more
Type Venelite
Use for windows
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 89 mm
Product Height 89 mm
Thickness 2.4 mm
Diameter knuckle 13.1 mm
Corner shape right angle
Bearing synthetic Venelite bearing
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 25 kg
Load bearing capacity 3 hinges 35 kg
Load bearing capacity 4 hinges 50 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
Logistic information
expand_more
Product Weight 205 gr
Pieces per small package 6 piece
EAN small package 8713249109404
Weight small package 1.26 kg
Dimensions small package 116 x 68 x 62 mm
Pieces per bulk package 36 piece
EAN bulk package 8713249109411
Weight bulk package 7.69 kg
Dimensions bulk package 200 x 150 x 120 mm

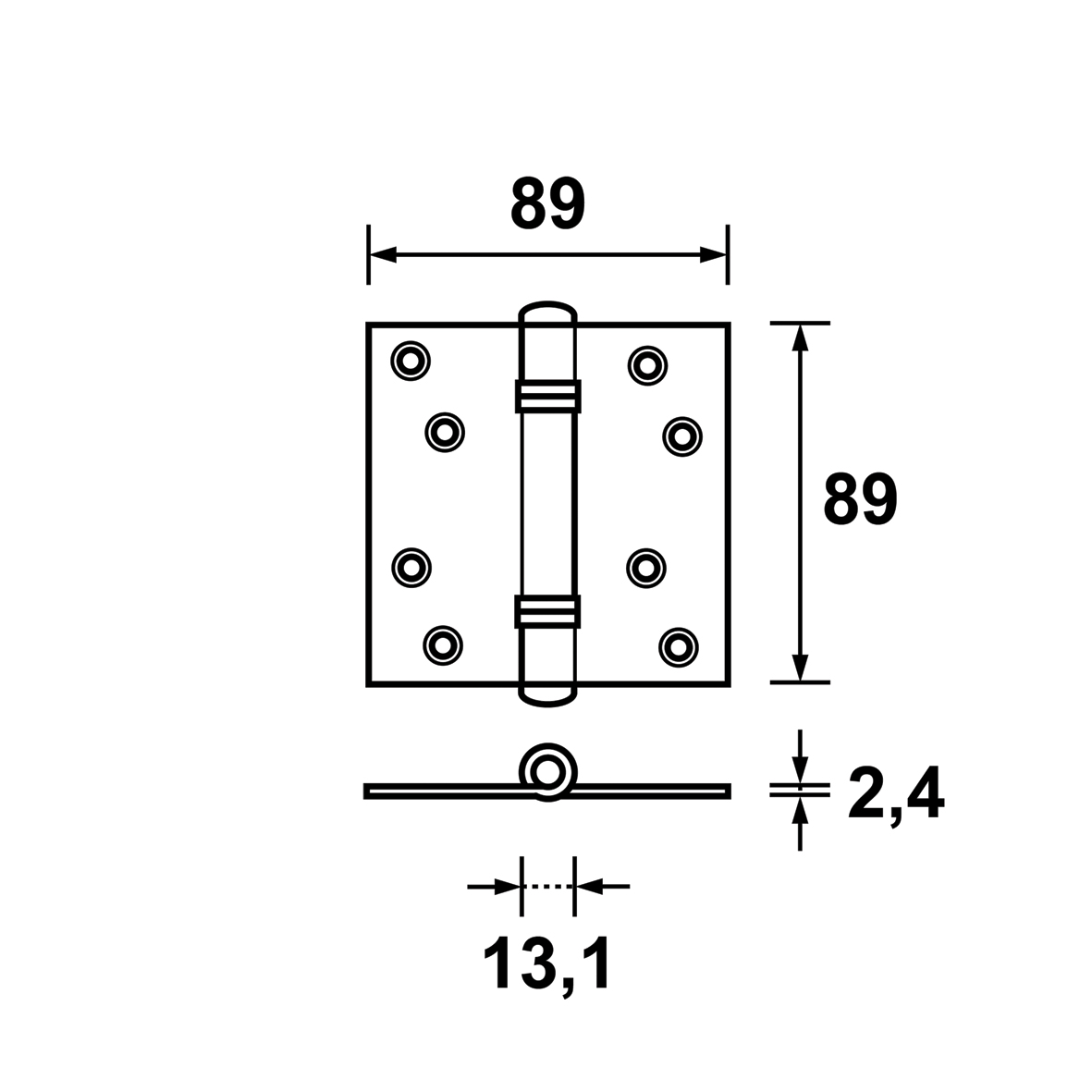

Technical drawings
Hinge Venelite
11372523E
