Hinge Titan
1701-09-23/EThe AXA Titan® hinge is a smooth-running hinge with a high bearing capacity.
- high bearing capacity thanks to special unique double rolling
- 180 kg with 3 hinges instead of 4 hinges
- excellent to combine with door control and en doorstops, door extreme high side strength
- very smooth-running, silent, hard-wearing and self-lubricating
- the special star-shaped screw holes reduce the chance of screw breakage

The AXA Titan® hinge is a smooth-running hinge with a high bearing capacity.
- high bearing capacity thanks to special unique double rolling
- 180 kg with 3 hinges instead of 4 hinges
- excellent to combine with door control and en doorstops, door extreme high side strength
- very smooth-running, silent, hard-wearing and self-lubricating
- the special star-shaped screw holes reduce the chance of screw breakage
Specifications
Recommended Mounting Materials
- 4.5 x 45 mm screw: 8 pieces
- 4.5 x 45 mm screw: 8 pieces
Commercial information
Type Titan
Use for windows and doors
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True

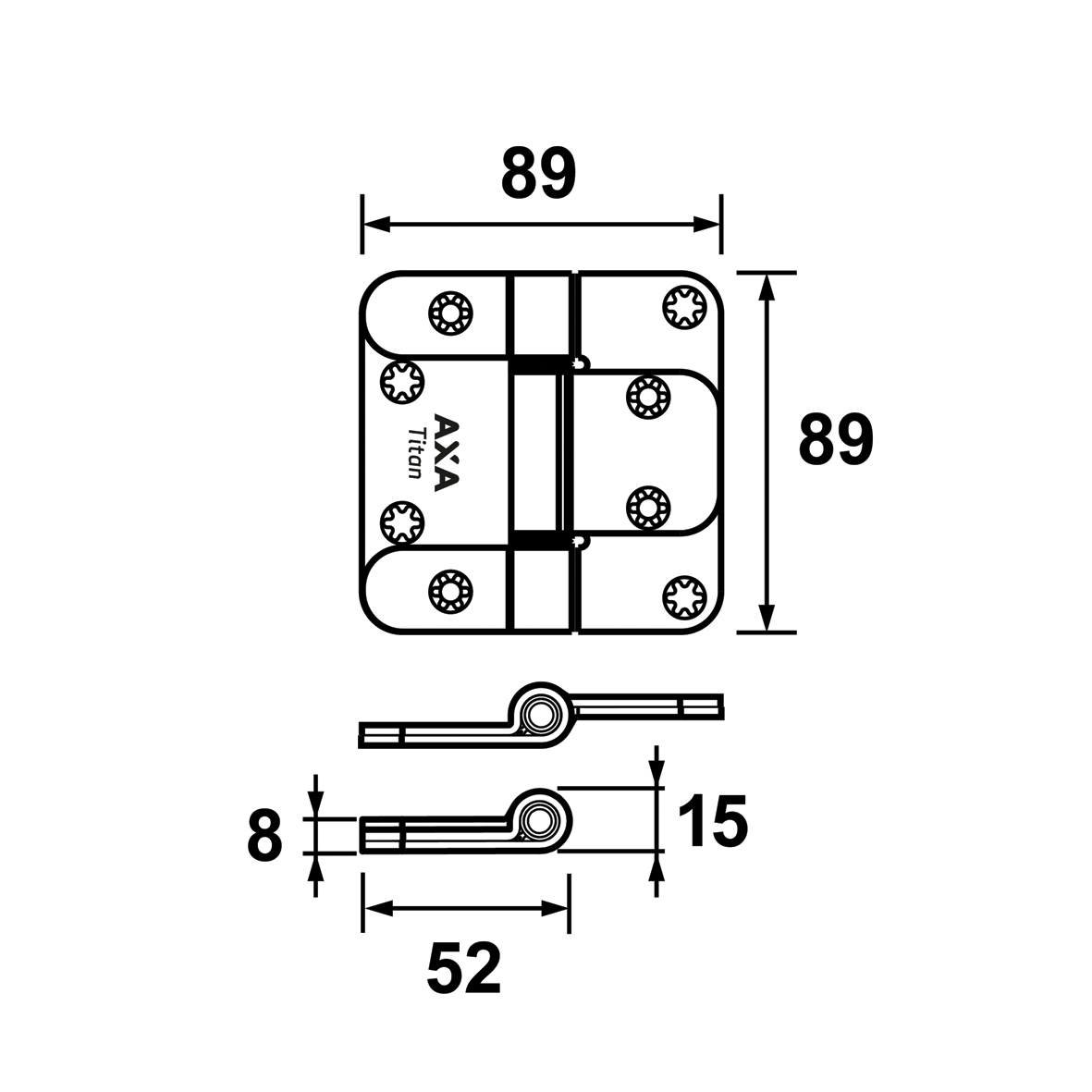

Technical information
Product Width 89 mm
Product Height 89 mm
Thickness 2.5 mm
Diameter knuckle 15 mm
Corner shape round corner
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 120 kg
Load bearing capacity 3 hinges 180 kg
Material Steel
Finish Topcoat galvanized
Assembly information
Including Mounting Material False
Recommended Mounting Materials
- 4.5 x 45 mm screw: 8 pieces
- 4.5 x 45 mm screw: 8 pieces
Logistic information
Product Weight 278 gr
Pieces per small package 6 piece
EAN small package 8713249272627
Weight small package 1.69 kg
Dimensions small package 94 x 68 x 57 mm
Pieces per bulk package 48 piece
EAN bulk package 8713249272634
Weight bulk package 13.68 kg
Dimensions bulk package 200 x 150 x 120 mm
