Hinge Smart Easyfix

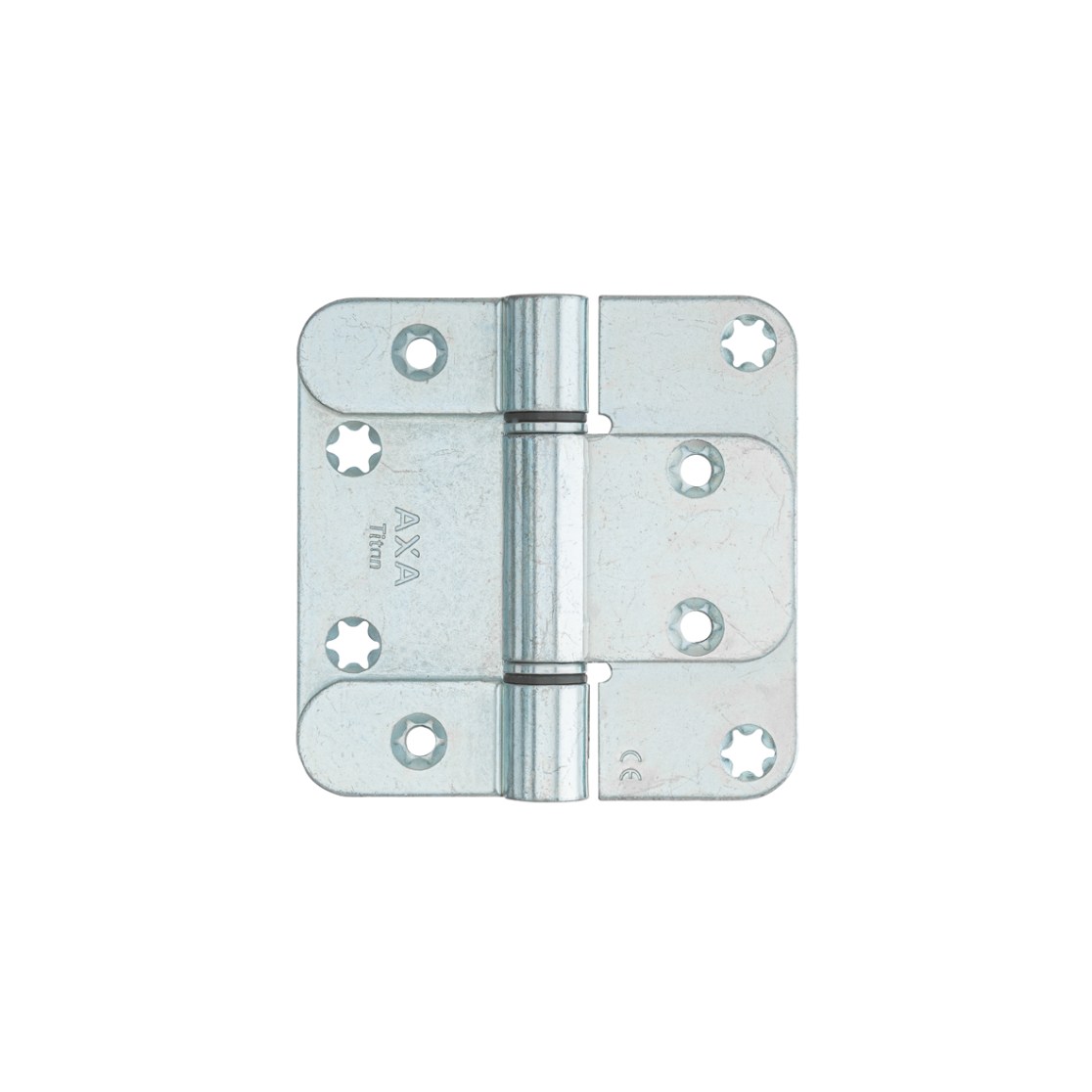

1677-09-23/7The AXA Smart Easyfixยฎ hinge is a smooth-running hinge with a high bearing capacity.
- very smooth-running, silent, hard-wearing and self-lubricating, making black marks on the paintwork a thing of the past
- high bearing capacity thanks to pressure distribution over two points
- with gap limiter
- with special, chamfered, self-aligning AXA-POM bearings. These bearings have a fixation collar that stops them from falling out of the hinge
- the special star-shaped screw holes reduce the chance of screw breakage
The AXA Smart Easyfixยฎ hinge is a smooth-running hinge with a high bearing capacity.
- very smooth-running, silent, hard-wearing and self-lubricating, making black marks on the paintwork a thing of the past
- high bearing capacity thanks to pressure distribution over two points
- with gap limiter
- with special, chamfered, self-aligning AXA-POM bearings. These bearings have a fixation collar that stops them from falling out of the hinge
- the special star-shaped screw holes reduce the chance of screw breakage
Specifications
Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Commercial information
Type Smart Easyfix
Use for windows and doors
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
Product Width 89 mm
Product Height 89 mm
Thickness 3 mm
Diameter knuckle 15 mm
Corner shape round corner
Bearing AXApom synthetic bearing
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 85 kg
Load bearing capacity 3 hinges 125 kg
Load bearing capacity 4 hinges 145 kg
Material Steel
Finish Topcoat galvanized
Assembly information
Including Mounting Material False
Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Logistic information
Product Weight 246 gr
Pieces per bulk package 50 piece
EAN bulk package 8713249165998
Weight bulk package 12.53 kg
Dimensions bulk package 390 x 200 x 120 mm
