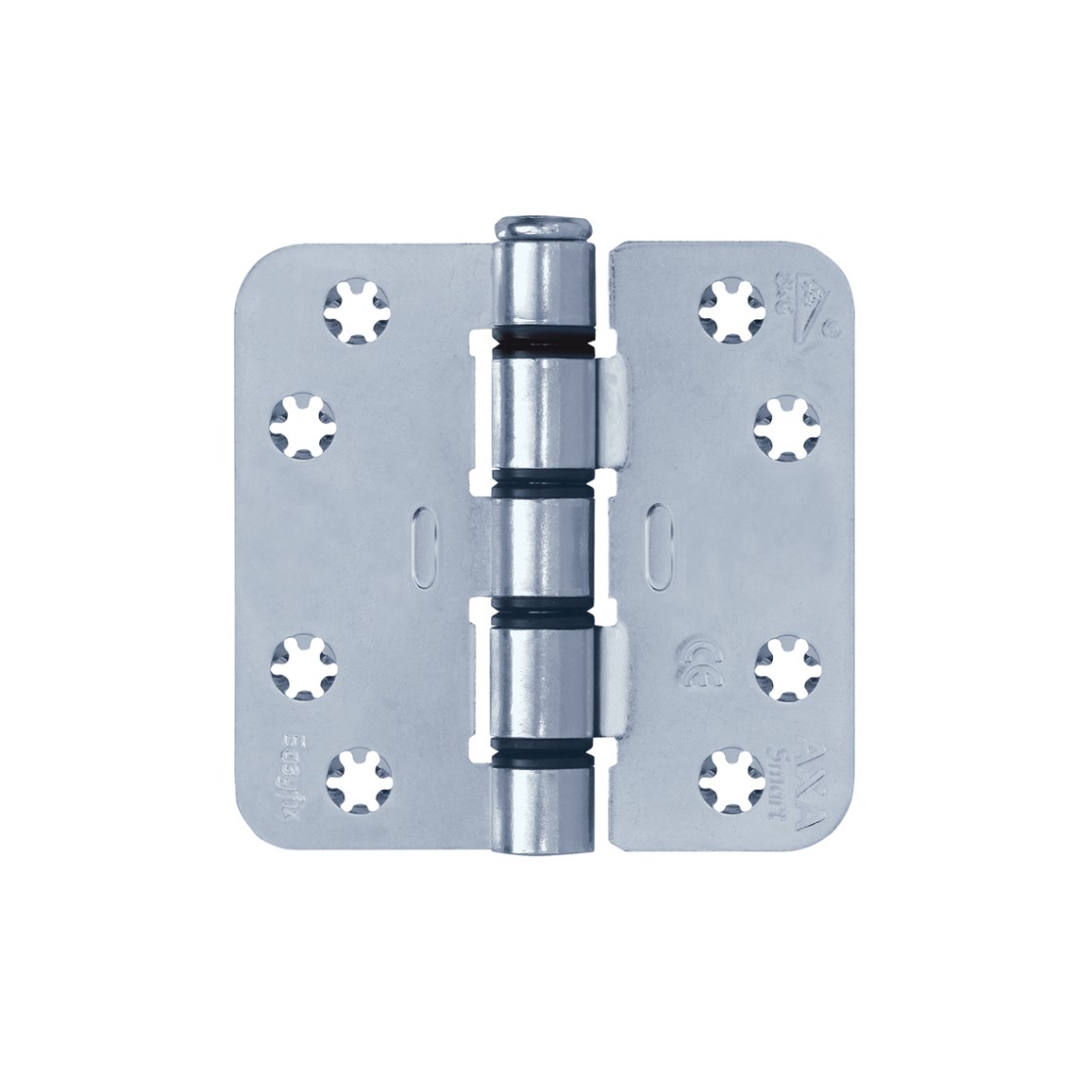

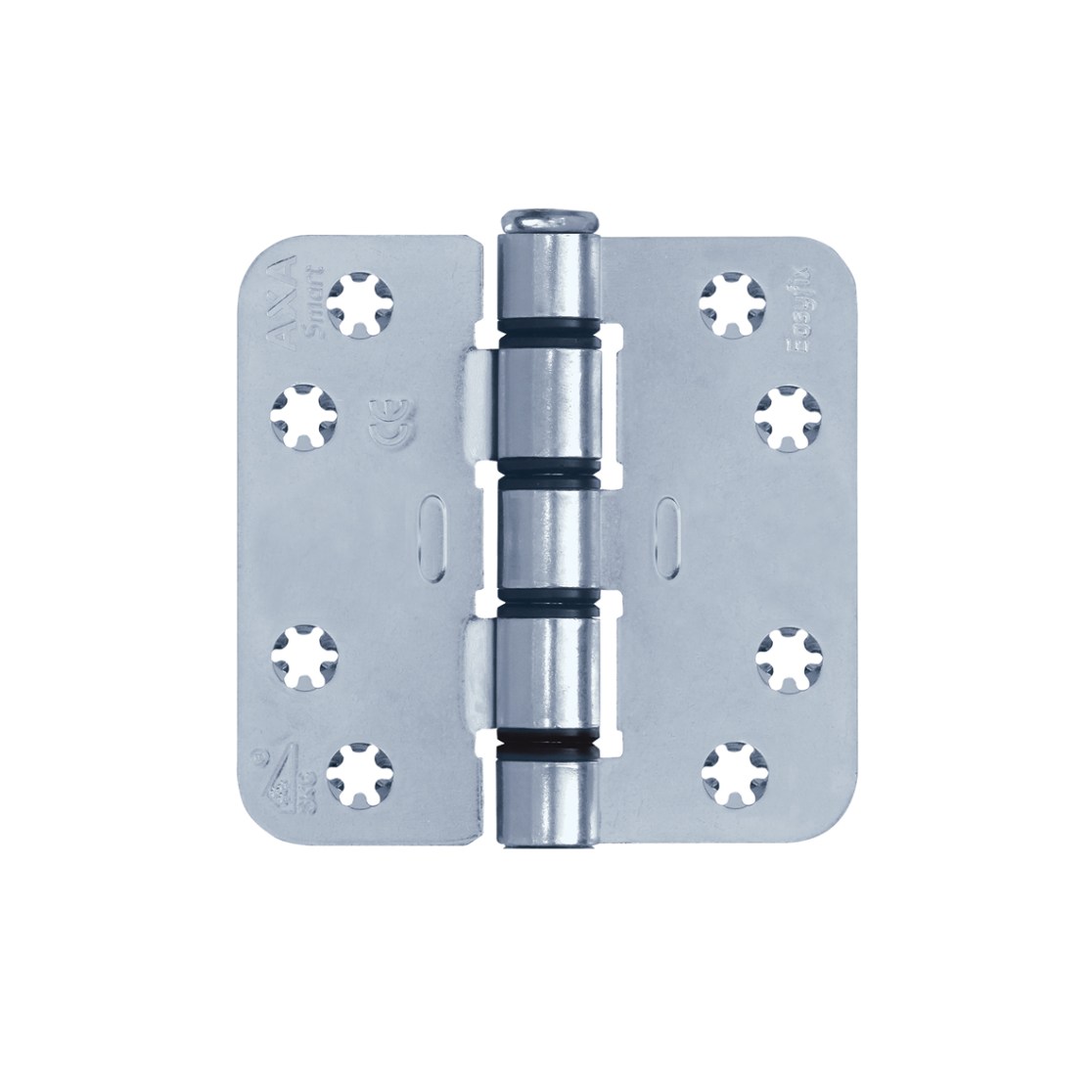

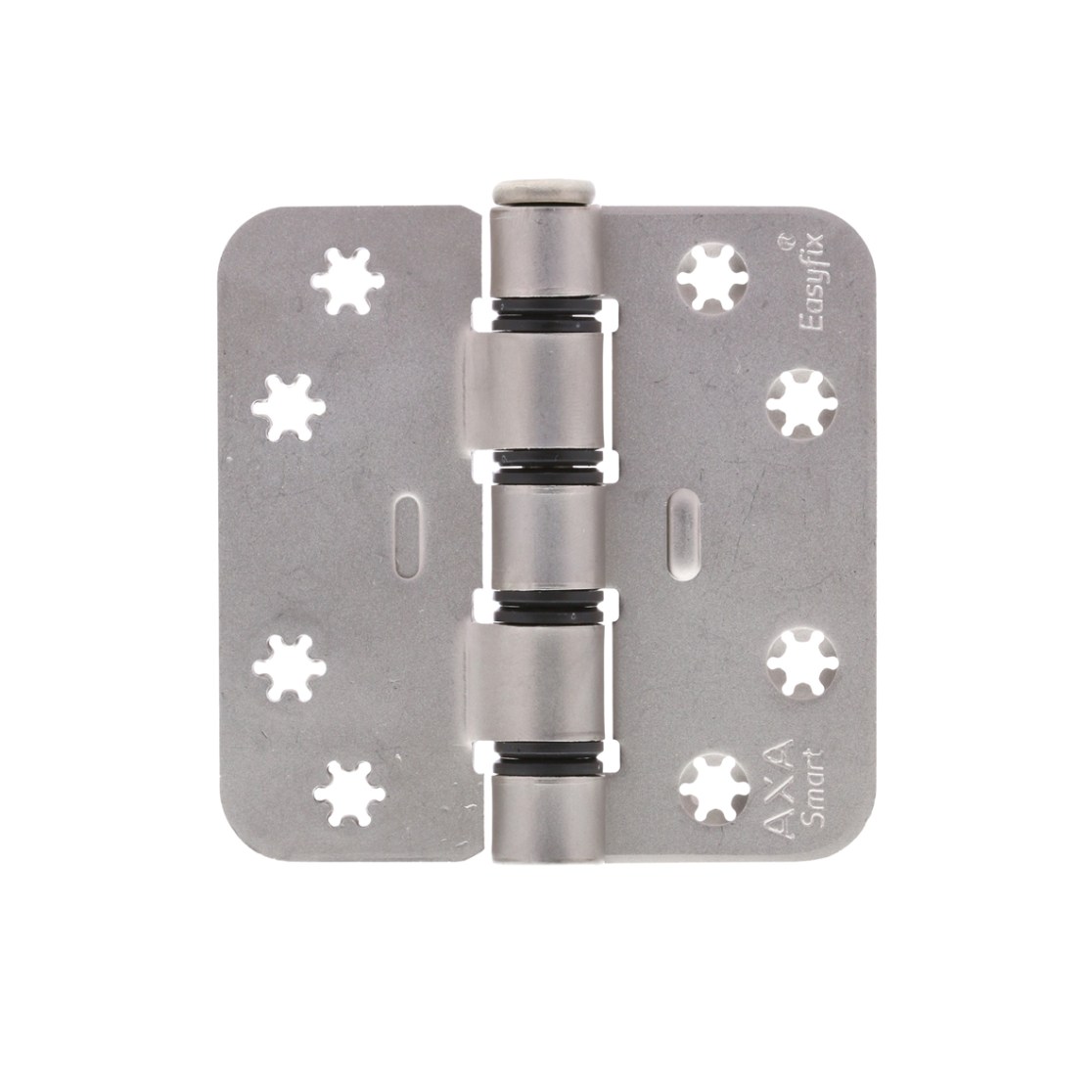

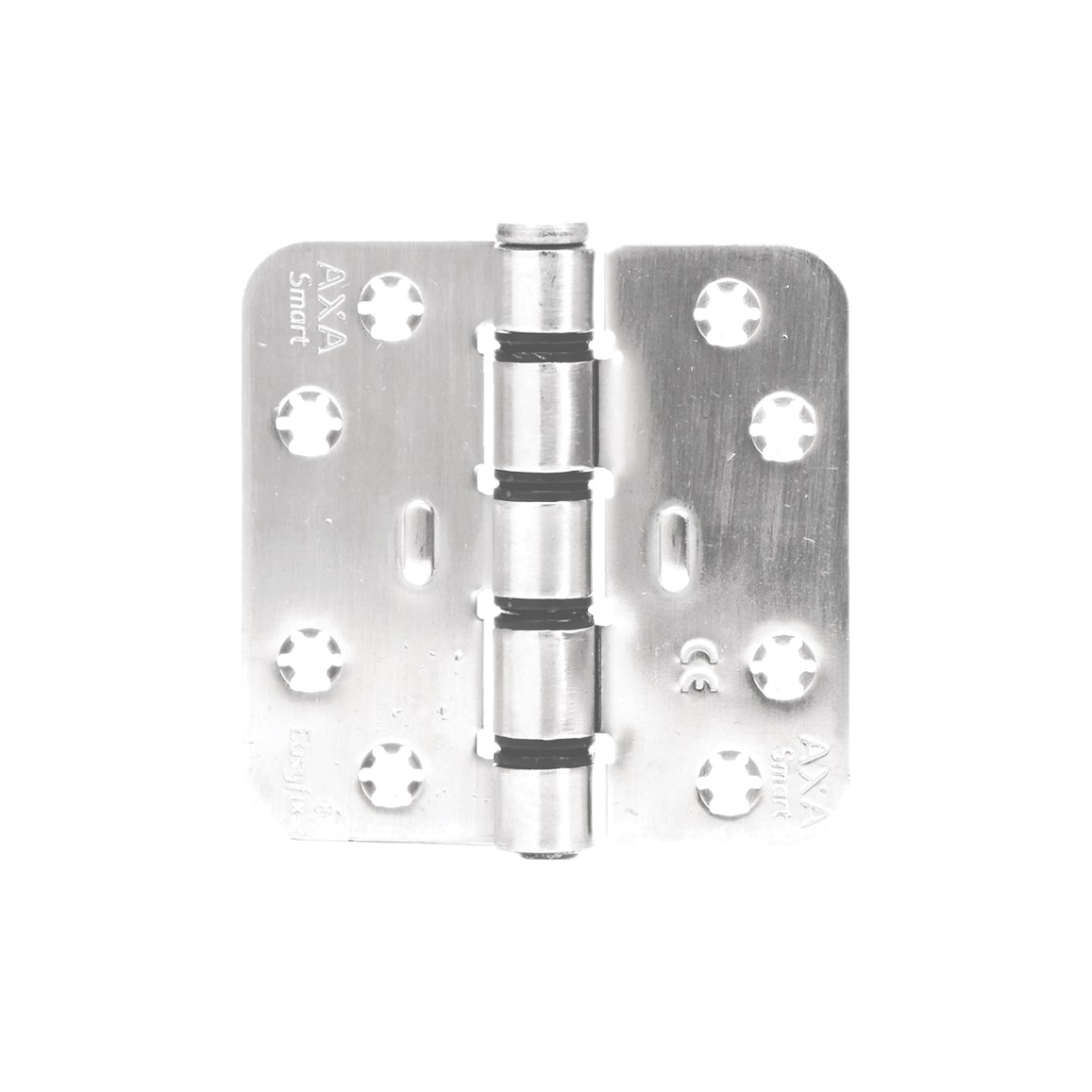

Hinge Smart Easyfix

1677-09-23/E
arrow_selector
close
  • very smooth-running, silent, hard-wearing and self-lubricating, making black marks on the paintwork a thing of the past
  • high bearing capacity thanks to pressure distribution over two points
  • with gap limiter
  • with special, chamfered, self-aligning AXA-POM bearings. These bearings have a fixation collar that stops them from falling out of the hinge
  • the special star-shaped screw holes reduce the chance of screw breakage
Specifications Downloads Technical drawings Associated products Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.5 x 40 mm screw: 8 pieces
- 4.5 x 30 mm screw: 8 pieces
Commercial information
expand_more
Type Smart Easyfix
Use for windows and doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 89 mm
Product Height 89 mm
Thickness 3 mm
Diameter knuckle 15 mm
Corner shape round corner
Bearing AXApom synthetic bearing
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 85 kg
Load bearing capacity 3 hinges 125 kg
Load bearing capacity 4 hinges 145 kg
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Logistic information
expand_more
Product Weight 246 gr
Pieces per small package 6 piece
EAN small package 8713249187303
Weight small package 1.52 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 48 piece
EAN bulk package 8713249187310
Weight bulk package 12.34 kg
Dimensions bulk package 290 x 200 x 120 mm

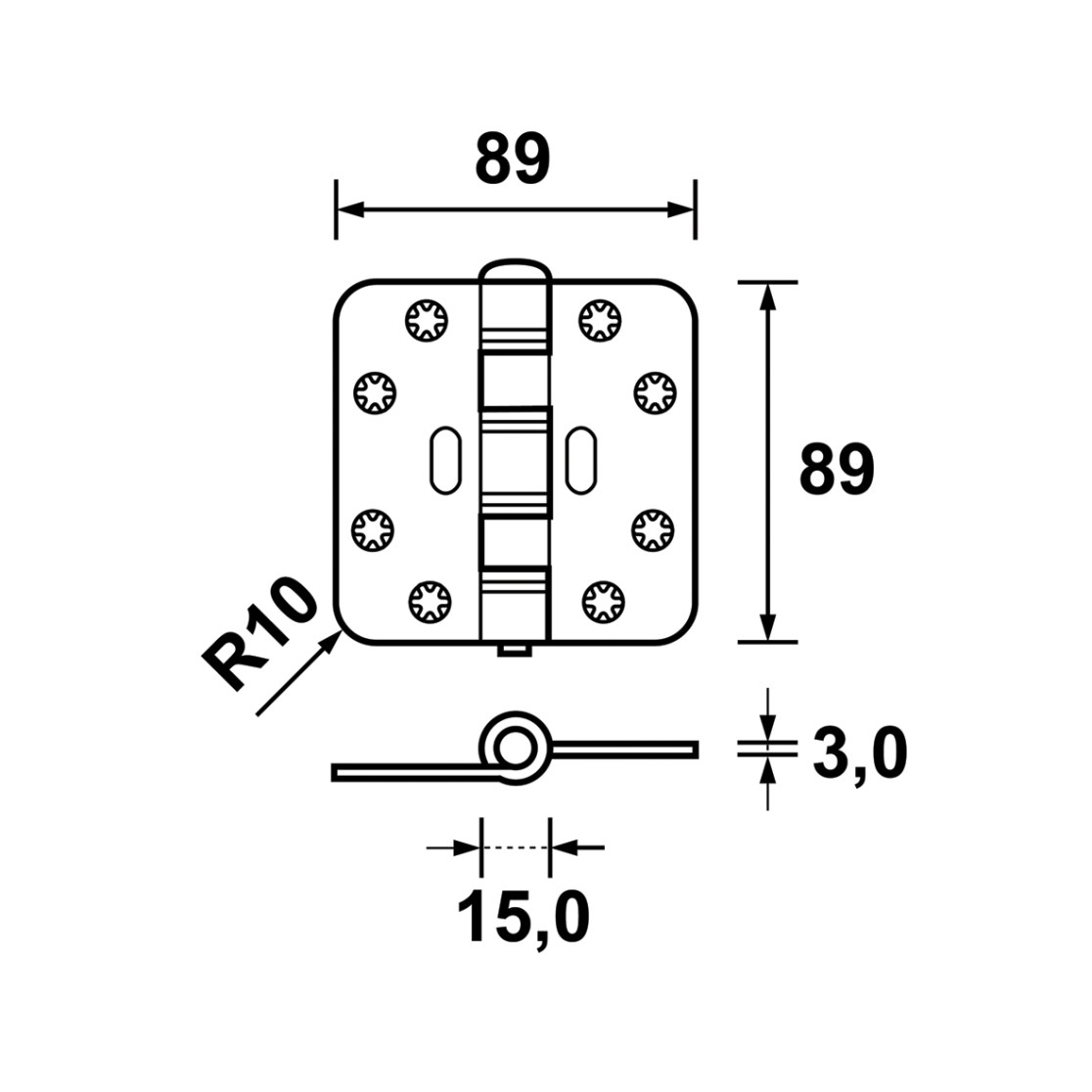

Technical drawings
