Hinge bearing-free
1105-24-23/7KThe AXA bearing-free hinge is ideal for hopper windows
- high bearing capacity
- smooth-running
The AXA bearing-free hinge is ideal for hopper windows
- high bearing capacity
- smooth-running
Specifications
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
- 4.0 x 40 mm screw: 6 pieces
Commercial information
Type bearing-free
Use for windows
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
Product Width 76 mm
Product Height 76 mm
Thickness 2 mm
Diameter knuckle 10 mm
Corner shape round corner
Bearing bearing-free
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 20 kg
Load bearing capacity 3 hinges 30 kg
Load bearing capacity 4 hinges 40 kg
Material Steel
Finish Topcoat galvanized
Assembly information
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 6 pieces
- 4.0 x 40 mm screw: 6 pieces
Logistic information
Product Weight 117 gr
Pieces per bulk package 100 piece
EAN bulk package 8713249105536
Weight bulk package 11.94 kg
Dimensions bulk package 390 x 200 x 120 mm
Downloads

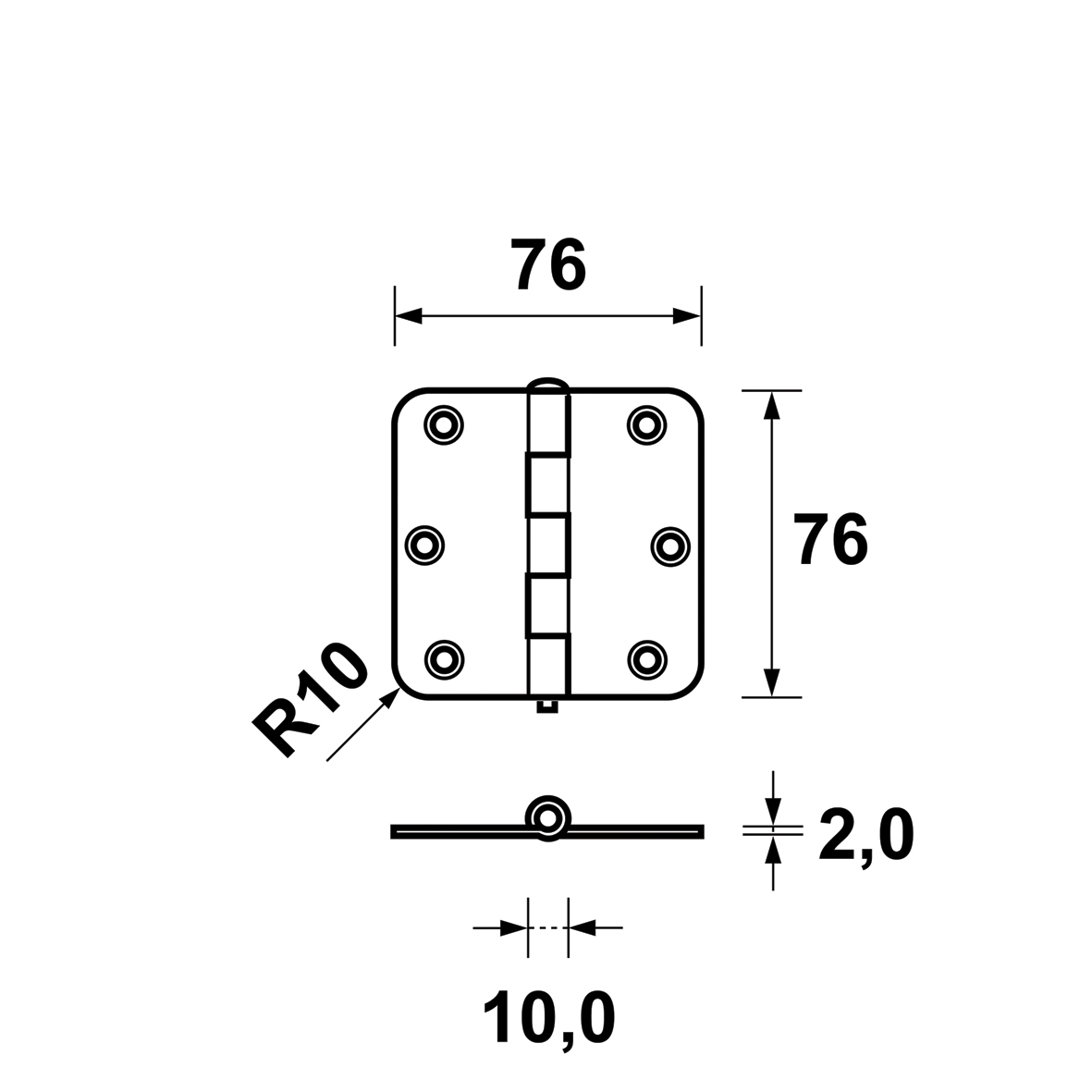

Main Image Environmental Product Declaration (EPD)Technical drawings
