Hinge bearing-free
1103-25-23/EThe AXA bearing-free hinge is ideal for hopper windows and interior doors
- high bearing capacity
- smooth-running
The AXA bearing-free hinge is ideal for hopper windows and interior doors
- high bearing capacity
- smooth-running
Specifications
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 40 mm screw: 8 pieces
Commercial information
Type bearing-free
Use for windows and doors
Safety information
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
Product Width 89 mm
Product Height 89 mm
Thickness 2 mm
Diameter knuckle 12 mm
Corner shape right angle
Bearing bearing-free
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 40 kg
Load bearing capacity 3 hinges 50 kg
Load bearing capacity 4 hinges 70 kg
Material Steel
Finish Topcoat galvanized
Assembly information
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
- 4.0 x 40 mm screw: 8 pieces
Logistic information
Product Weight 205 gr
Pieces per small package 6 piece
EAN small package 8713249109084
Weight small package 1.26 kg
Dimensions small package 116 x 68 x 62 mm
Pieces per bulk package 36 piece
EAN bulk package 8713249109091
Weight bulk package 7.71 kg
Dimensions bulk package 200 x 150 x 120 mm
Downloads

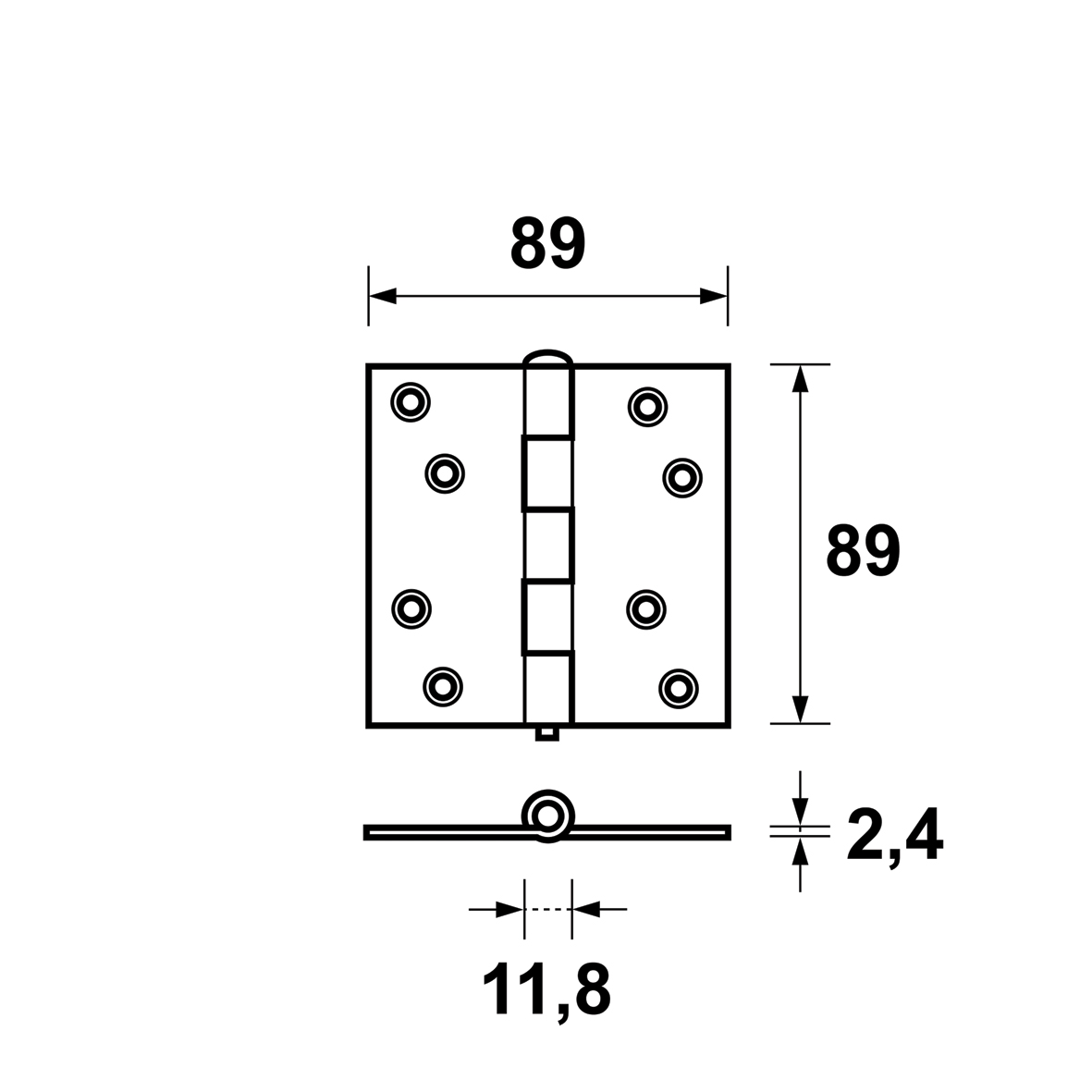

Main Image Environmental Product Declaration (EPD)Technical drawings
