Hinge ball bearing

1531-25-81/E
arrow_selector
close

The AXA ball bearing hinge is a smooth-running hinge with a high bearing capacity.

  • with ball bearings
  • smooth-running
  • high bearing capacity
  • stainless steel
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
Commercial information
expand_more
Type ball bearing
Use for windows and doors
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Width 89 mm
Product Height 89 mm
Thickness 2.4 mm
Diameter knuckle 12 mm
Corner shape right angle
Bearing ball-bearing
Direction of rotation outward and inward-opening
Load bearing capacity 2 hinges 50 kg
Load bearing capacity 3 hinges 65 kg
Load bearing capacity 4 hinges 80 kg
Material Stainless steel
Finish Brushed
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 40 mm screw: 8 pieces
Logistic information
expand_more
Product Weight 199 gr
Pieces per small package 6 piece
EAN small package 8713249191126
Weight small package 1.23 kg
Dimensions small package 116 x 68 x 62 mm
Pieces per bulk package 72 piece
EAN bulk package 8713249191133
Weight bulk package 14.93 kg
Dimensions bulk package 290 x 200 x 120 mm

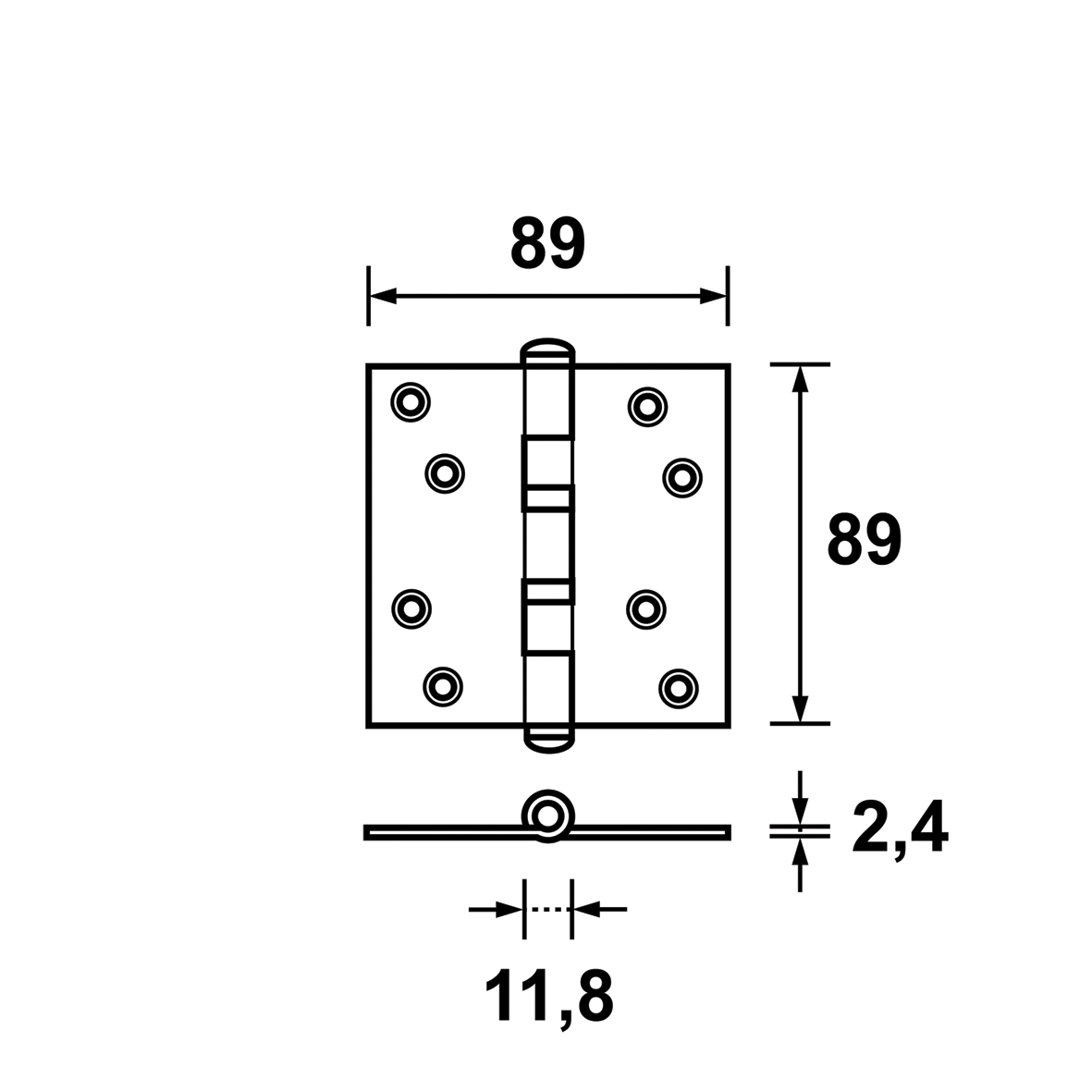

Technical drawings
Hinge ball bearing
15312581E
