Floor spring 2824

7BR-2824-SS
arrow_selector
close

Floor spring for single or double action doors.

  • closing force: 3
  • for single or double action doors
  • tempered steel shaft
  • adjustable closing speed
  • adjustable latch action
  • low cement trough
  • Stainless steel trim plate
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Commercial information
expand_more
Type 2824
Use for single or double action doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Length 307 mm
Product Width 108 mm
Angles adjustable closing speed 130 - 15 º
(adjustable) closing power floor max 4
(adjustable) closing power floor min 4
Material Cast iron
Finish Black lacquered
Material 2 Stainless steel
Finish 2 Brushed
Assembly information
expand_more
Including Mounting Material False
Mounting position floor
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 5050640034922
Weight small package 0 kg
Dimensions small package 330 x 135 x 88 mm

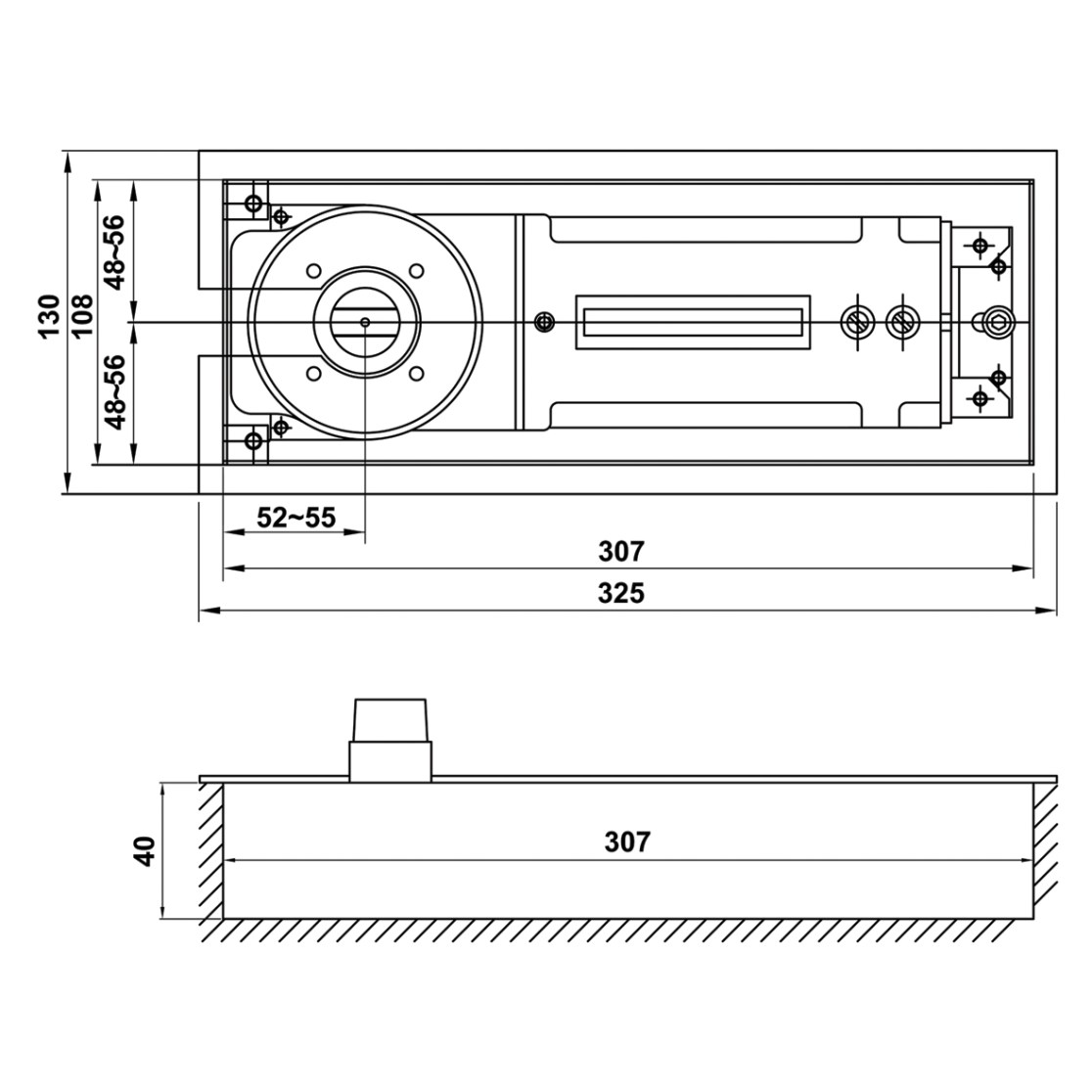

Technical drawings

Associated products

Alternative products
