Floor spring 2823

7BR-2823-SS
arrow_selector
close

Floor spring for single or double action doors.

  • closing force: 3
  • for single or double action doors
  • tempered steel shaft
  • adjustable closing speed
  • adjustable latch action
  • low cement trough
  • Stainless steel trim plate
Specifications Downloads Technical drawings Associated products Alternative products

Specifications

Commercial information
expand_more
Type 2823
Use for single or double action doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Length 307 mm
Product Width 108 mm
Angles adjustable closing speed 130 - 15 º
(adjustable) closing power floor max 3
(adjustable) closing power floor min 3
Material Cast iron
Finish Black lacquered
Material 2 Stainless steel
Finish 2 Brushed
Assembly information
expand_more
Including Mounting Material False
Mounting position floor
Logistic information
expand_more
Product Weight 4968 gr
Pieces per small package 1 piece
EAN small package 5050640034939
Weight small package 5.25 kg
Dimensions small package 330 x 135 x 88 mm

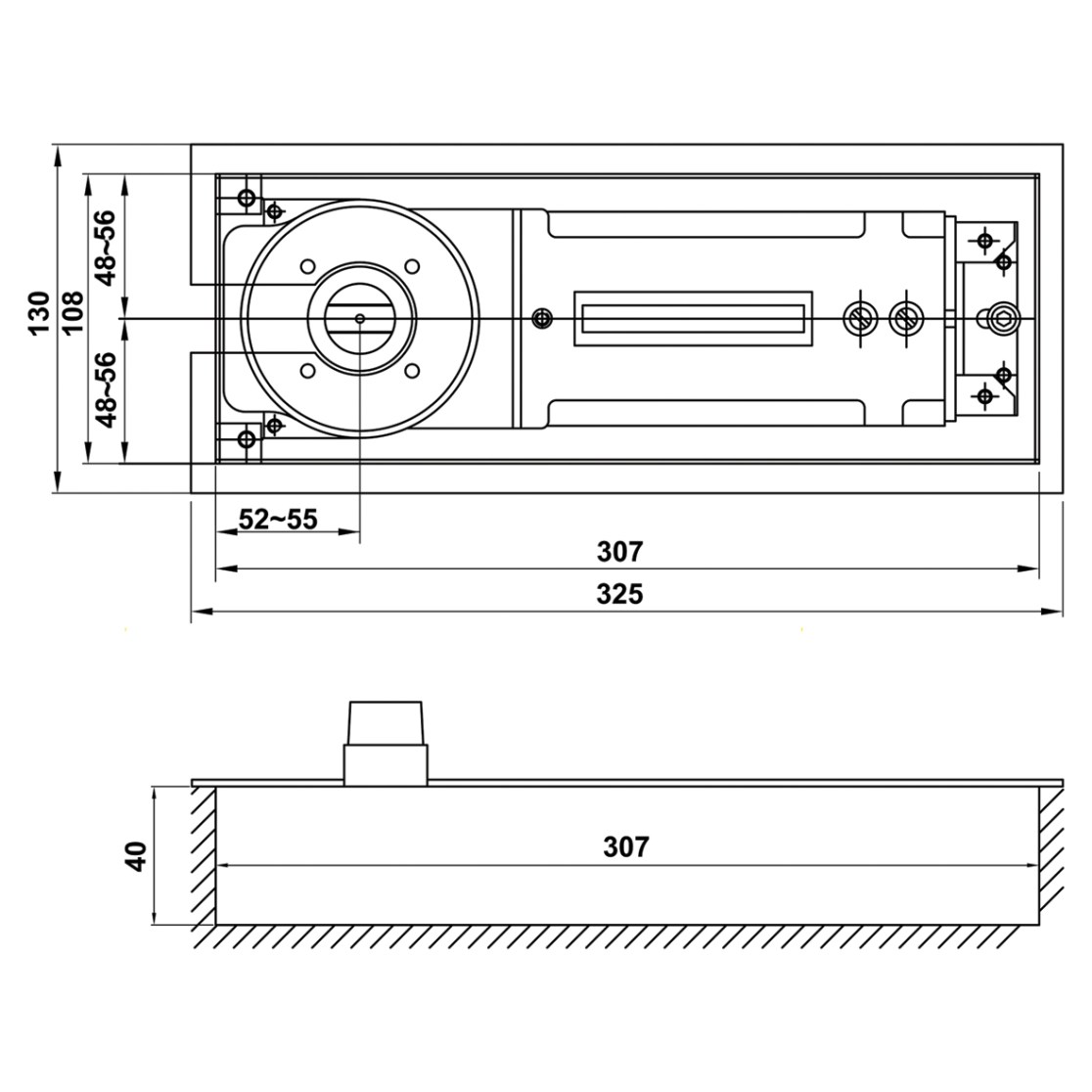

Technical drawings
