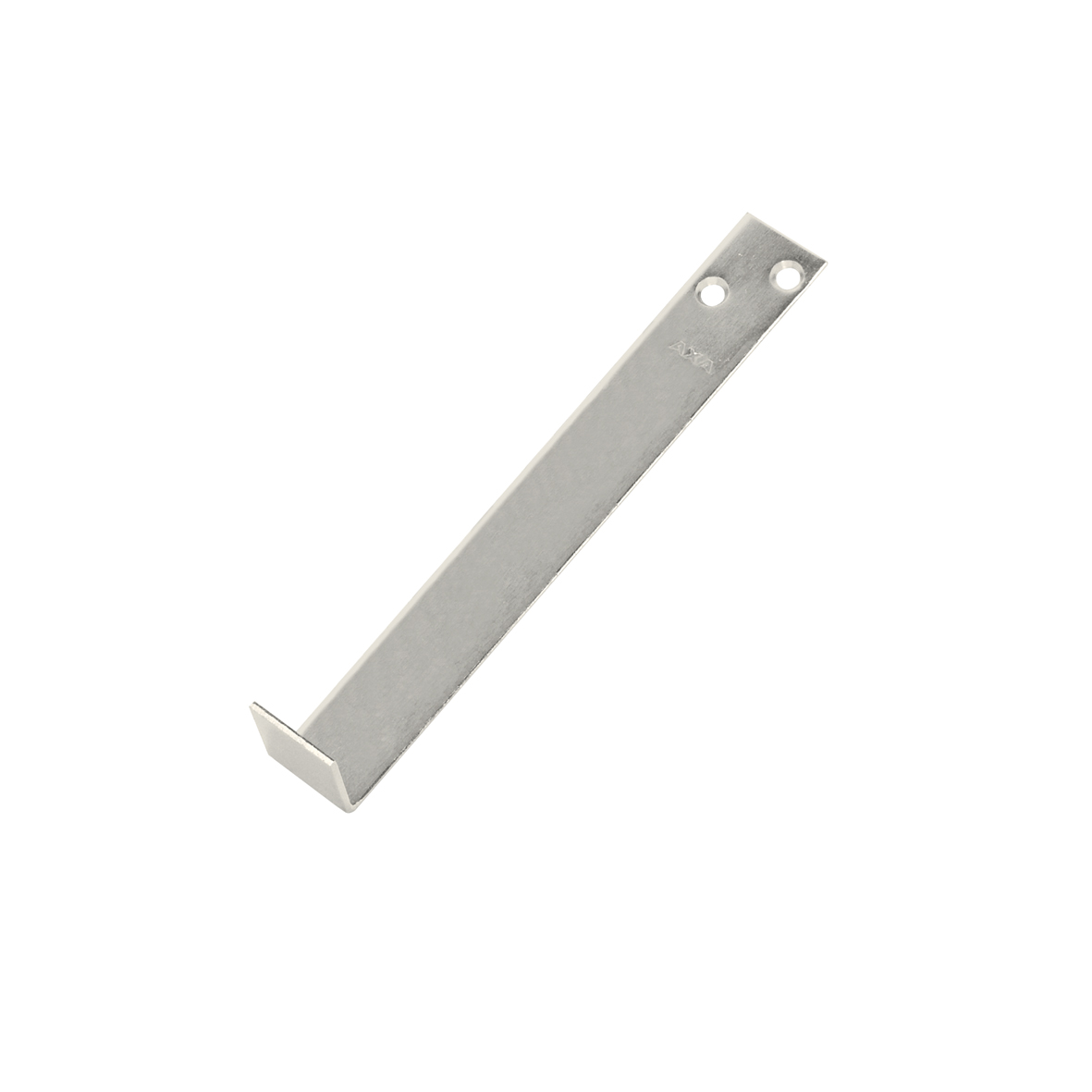

Fanlight holder 3385

3385-18-23
arrow_selector
close

The AXA fanlight holder is used in combination with a fanlight catch.

simple assembly
Specifications Downloads Technical drawings Alternative products
Commercial information
expand_more
Type 3385
Use for inward-opening bottom-hung windows, like toiletwindows
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 180 mm
Product Width 24 mm
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 4.0 x 25 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 81 gr
Pieces per small package 20 piece
EAN small package 8713249126845
Weight small package 1.62 kg
Dimensions small package 350 x 35 mm
Pieces per bulk package 100 piece
EAN bulk package 8713249126852
Weight bulk package 8.23 kg
Dimensions bulk package 200 x 150 x 120 mm

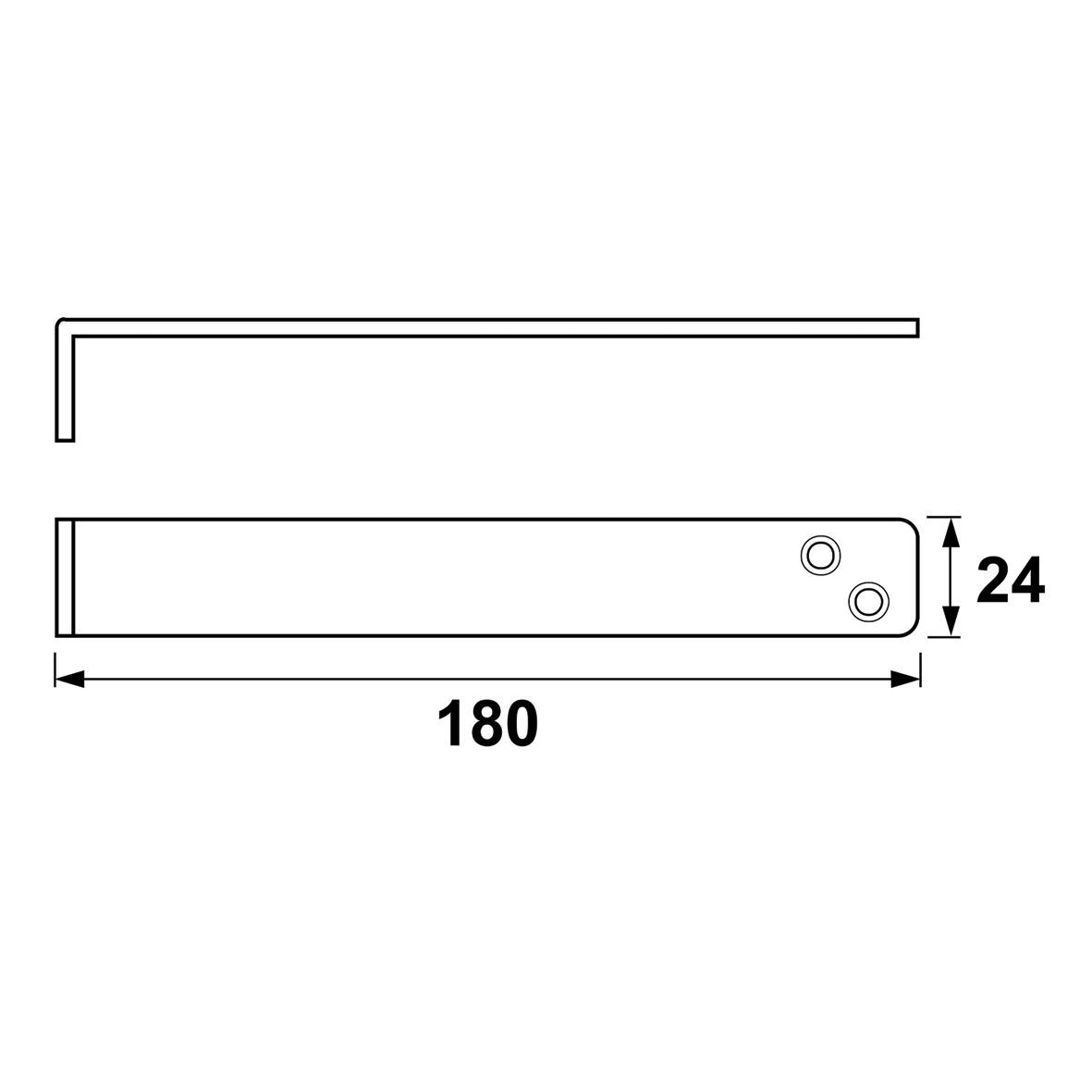

Technical drawings
Fanlight holder 3385
33851823
