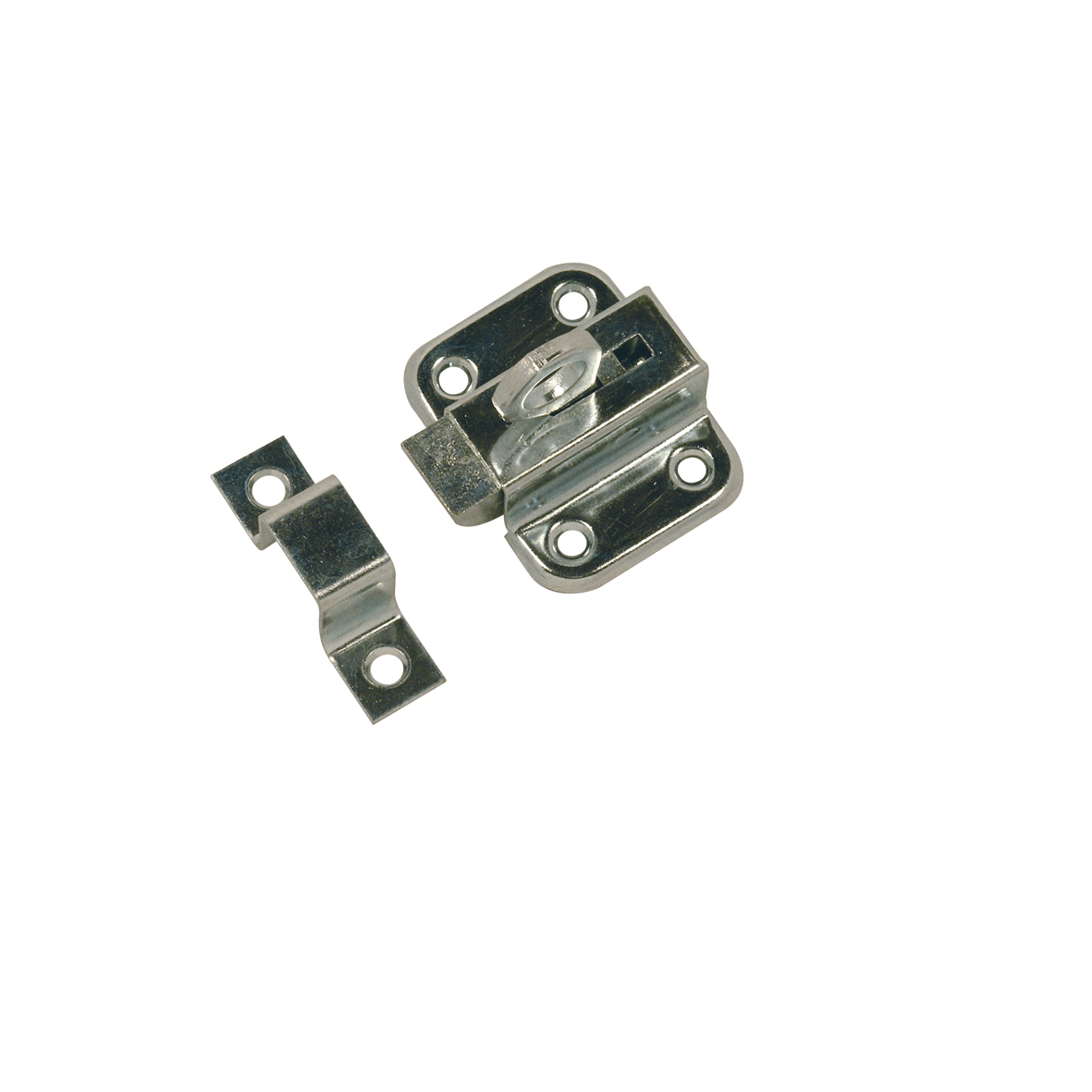

Fanlight catch with loop

3380-11-23
arrow_selector
close

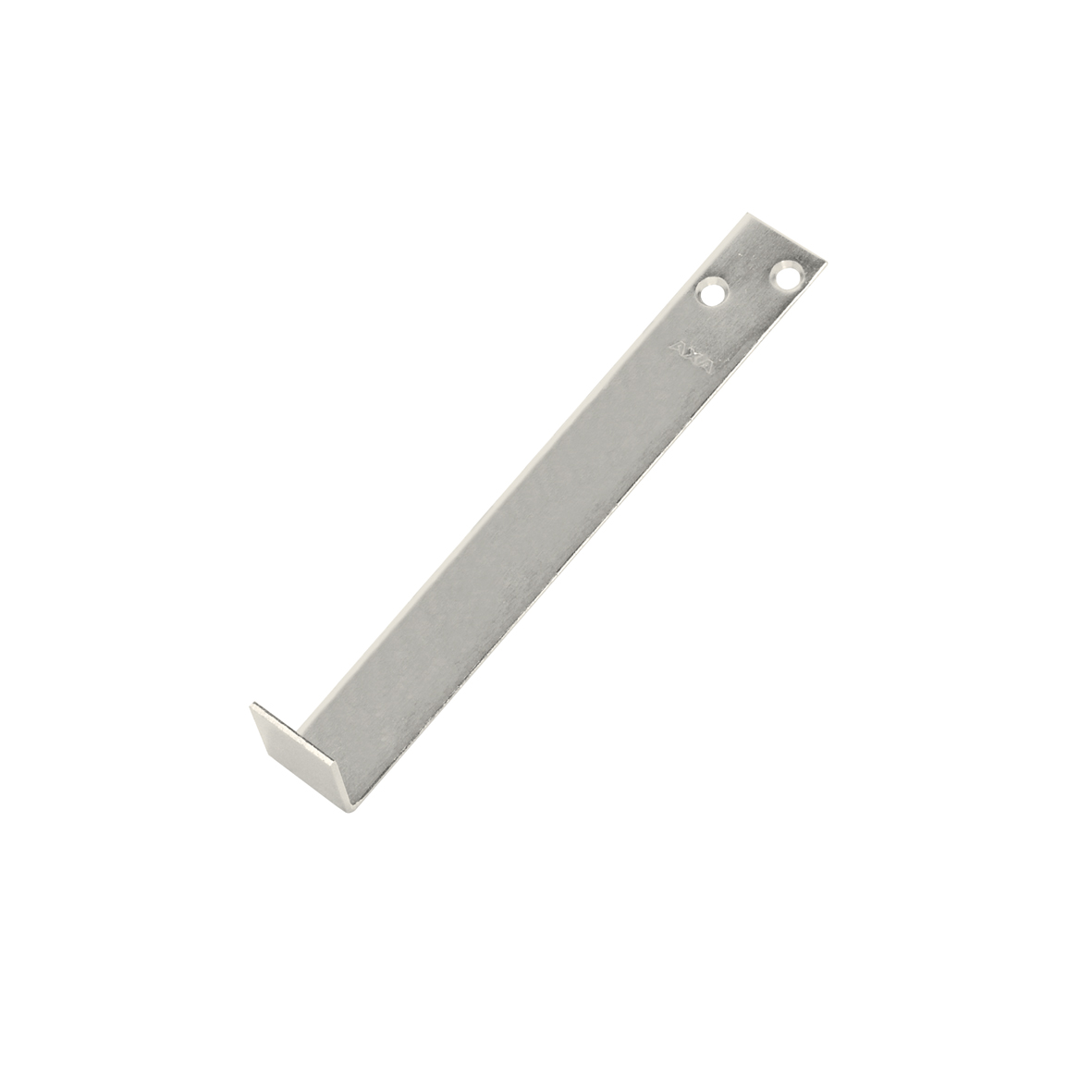

The AXA fanlight catch is used in combination with a fanlight holder.

simple assembly
Specifications Downloads Technical drawings Associated products

Specifications

Recommended Mounting Materials
- 3.0 x 20 mm screw: 6 pieces
Commercial information
expand_more
Type with loop
Use for inward-opening bottom-hung windows, like toiletwindows
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 52 mm
Product Width 41 mm
Thickness 17 mm
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Recommended Mounting Materials
- 3.0 x 20 mm screw: 6 pieces
Logistic information
expand_more
Product Weight 75 gr
Pieces per bulk package 40 piece
EAN bulk package 8713249126821
Weight bulk package 3.13 kg
Dimensions bulk package 200 x 150 x 120 mm

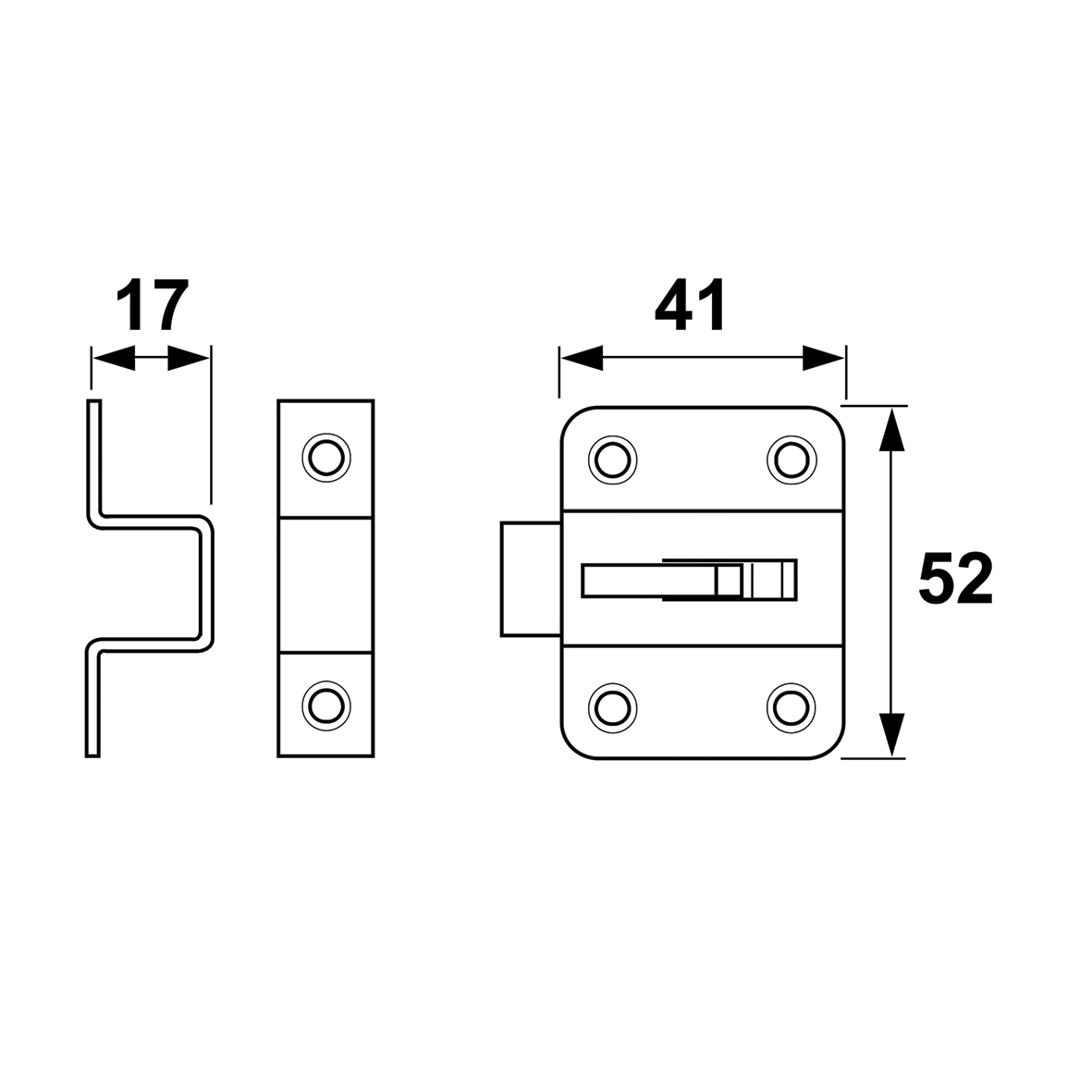

Technical drawings
Fanlight catch with loop
33801123
