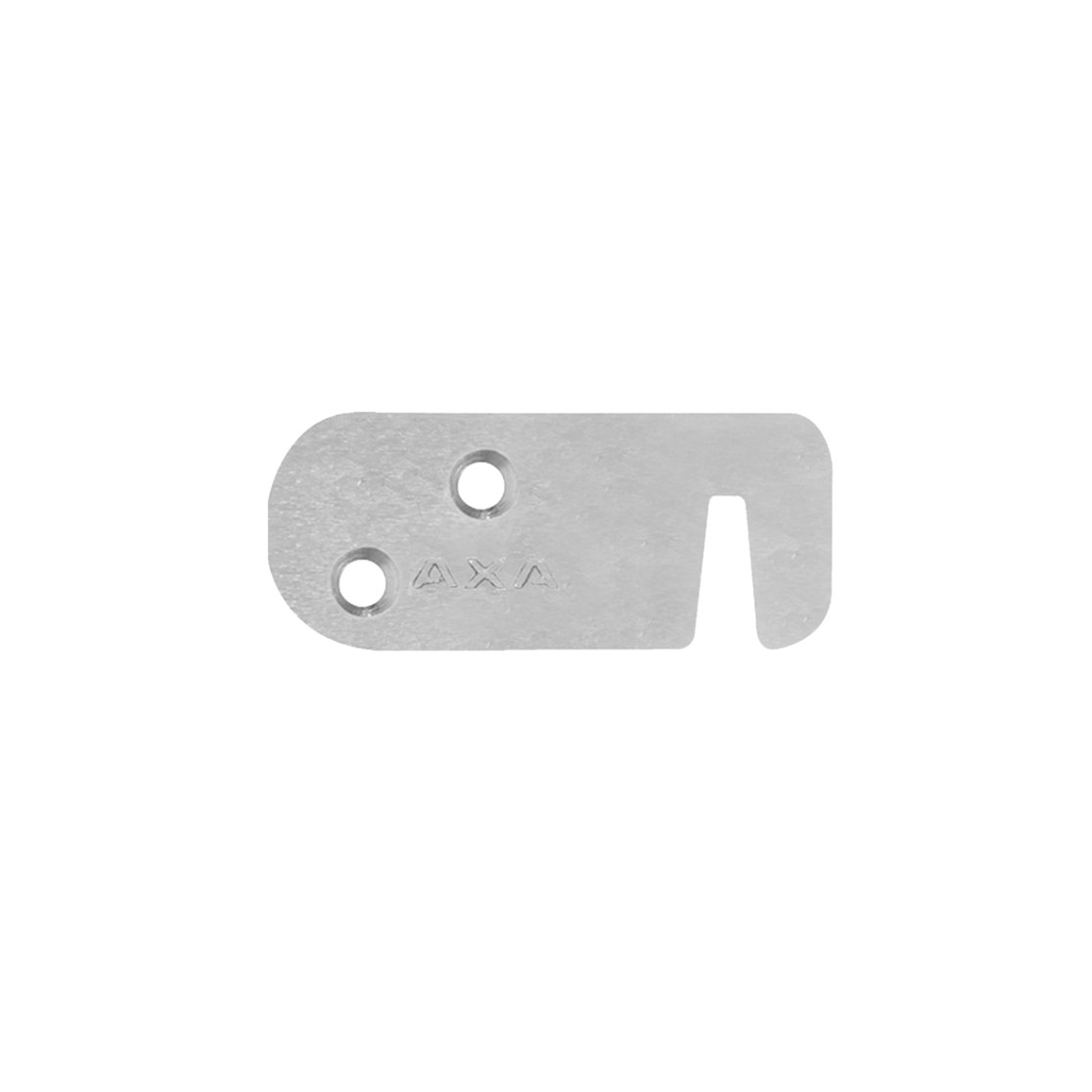

End hook 3303

3303-92-23/BL
arrow_selector
close

SH end hook for window fasteners 3309, 3308 and 3302 for sturdy fastening.

without ventilation position
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 3.5 x 20 mm screw: 2 pieces
Commercial information
expand_more
Type 3303
Use in combination with casement fastener 3309, 3308 and 3302
Safety information
expand_more
Burglarproof False
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 56 mm
Product Width 24 mm
Thickness 2 mm
Direction of rotation inward-opening
Bolt type standard bolt
Material Steel
Finish Topcoat galvanized
Assembly information
expand_more
Including Mounting Material False
Assembly time 5 min
Recommended Mounting Materials
- 3.5 x 20 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 42 gr
Pieces per small package 1 piece
EAN small package 8713249223377
Weight small package 0.04 kg
Dimensions small package 155 x 95 x 37 mm
Pieces per bulk package 12 piece
EAN bulk package 8713249223384
Weight bulk package 0.7 kg
Dimensions bulk package 290 x 200 x 120 mm
