Drilled split hinge 1177 Polynorm Z (2x)

1177-40-56/0TE
arrow_selector
close

The AXA drilled split hinge is suitable for rebated interior doors in Polynorm-Z frames.

  • smooth-running
  • silent
  • for Polynorm Z frames
  • excellent configuration possibilities
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Commercial information
expand_more
Type 1177 Polynorm Z (2x)
Use for lipped mode interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Width 92 mm
Product Height 75 mm
Diameter knuckle 14 mm
Load bearing capacity 2 hinges 20 kg
Load bearing capacity 3 hinges 30 kg
Material Steel
Finish Black
Logistic information
expand_more
Product Weight 220 gr
Pieces per small package 5 piece
EAN small package 8713249338682
Weight small package 0.216 kg
Dimensions small package 140 x 94 x 57 mm
Pieces per bulk package 20 piece
EAN bulk package 8713249338699
Weight bulk package 1 kg
Dimensions bulk package 200 x 150 x 120 mm

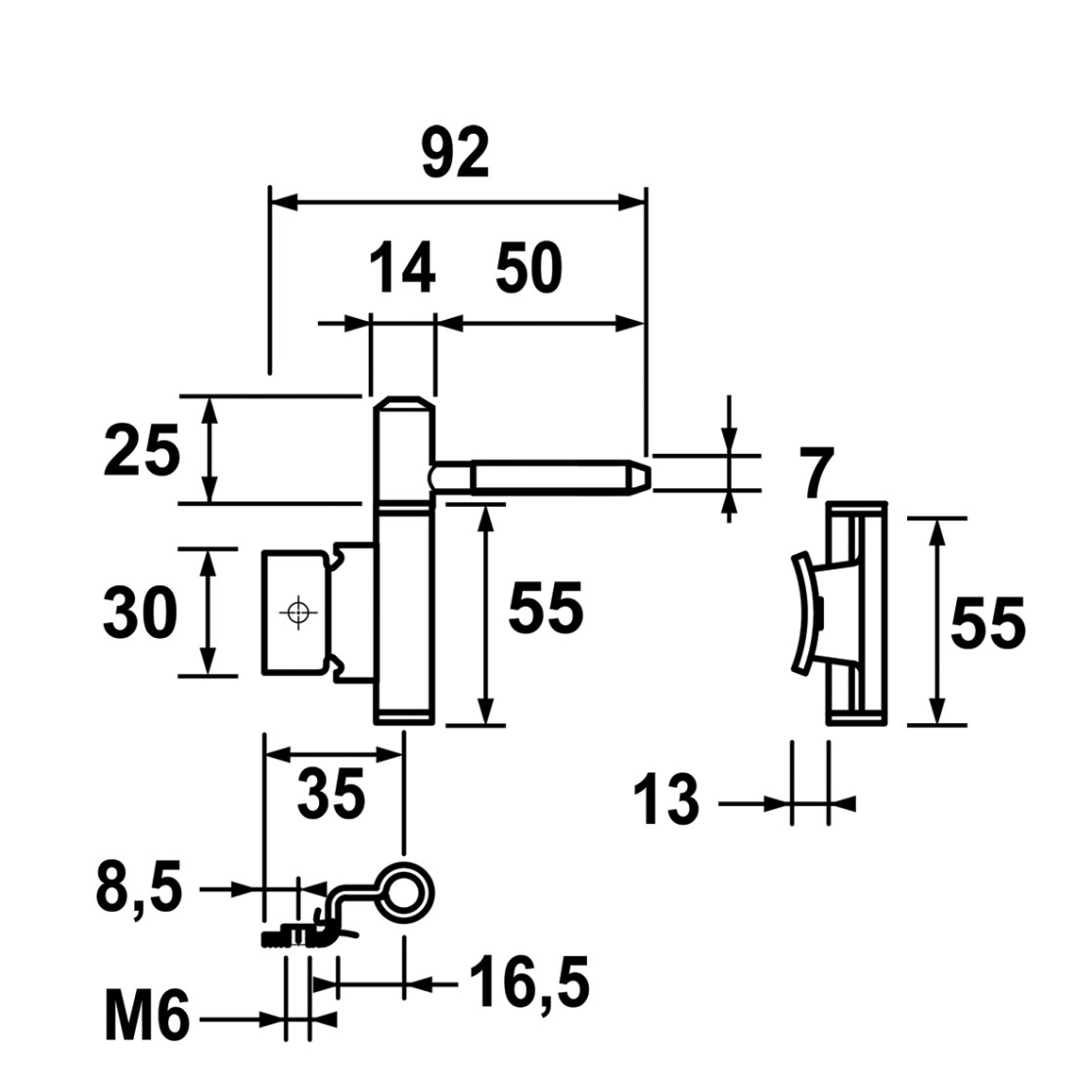

Technical drawings
Drilled split hinge 1177 Polynorm Z (2x)
117740560TE
