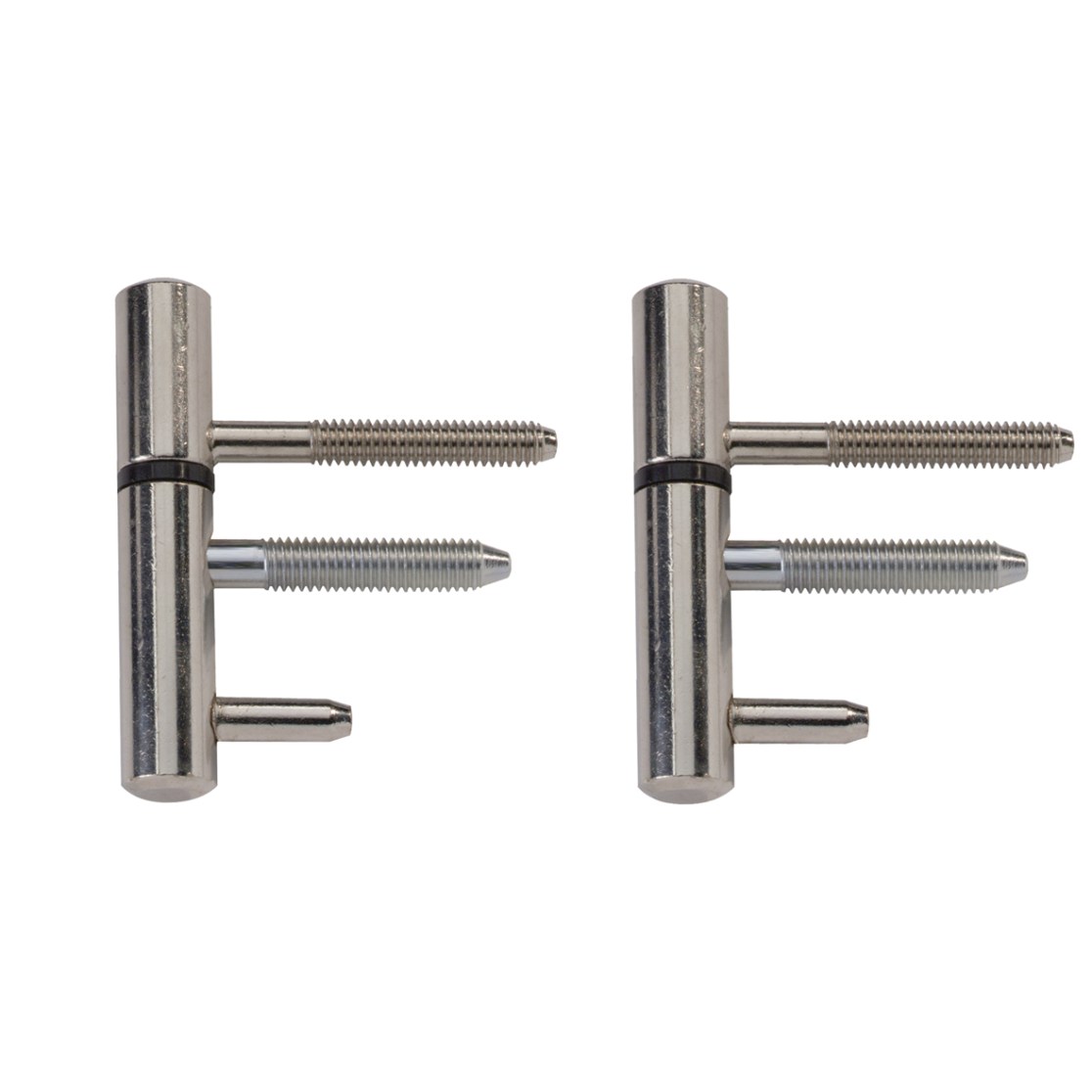

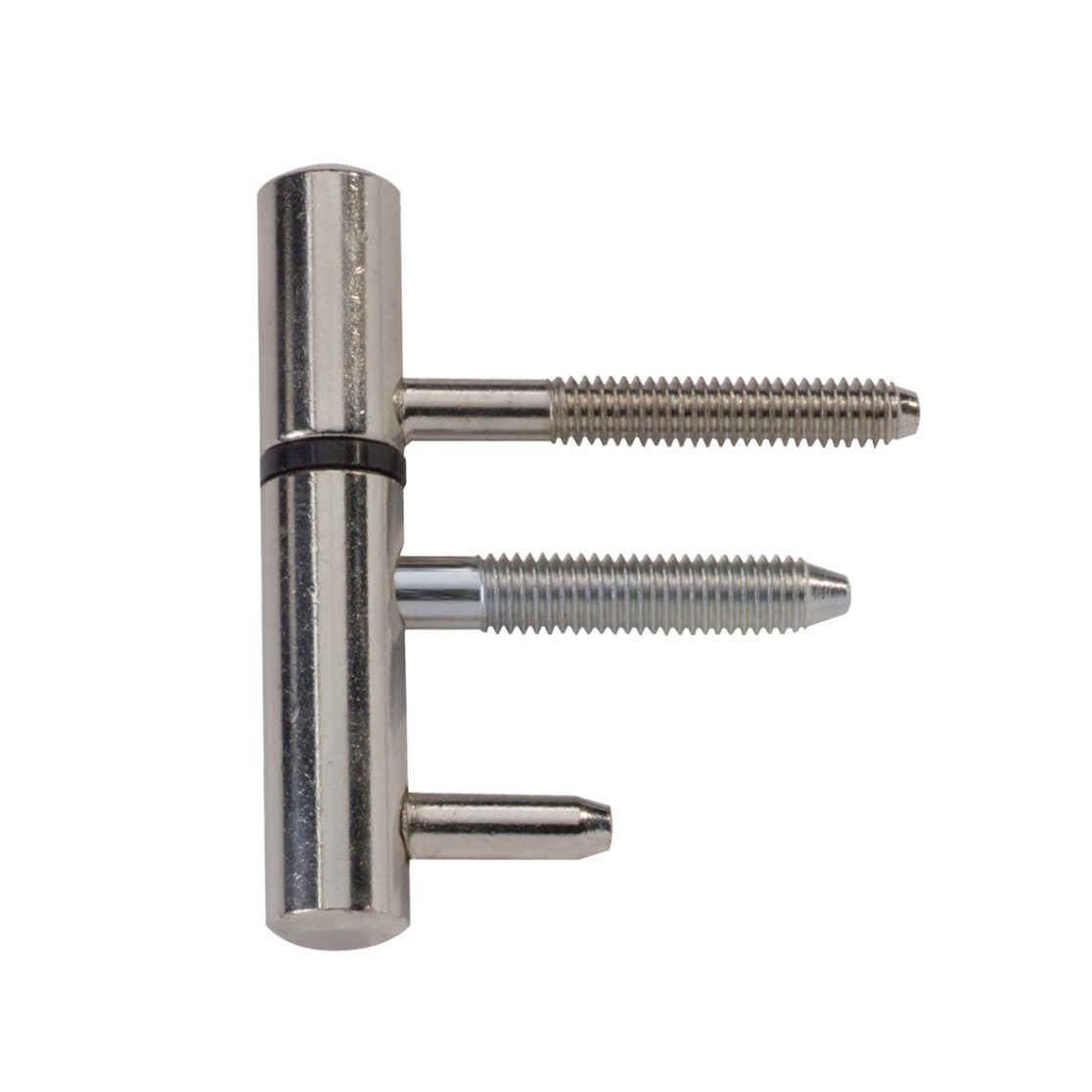

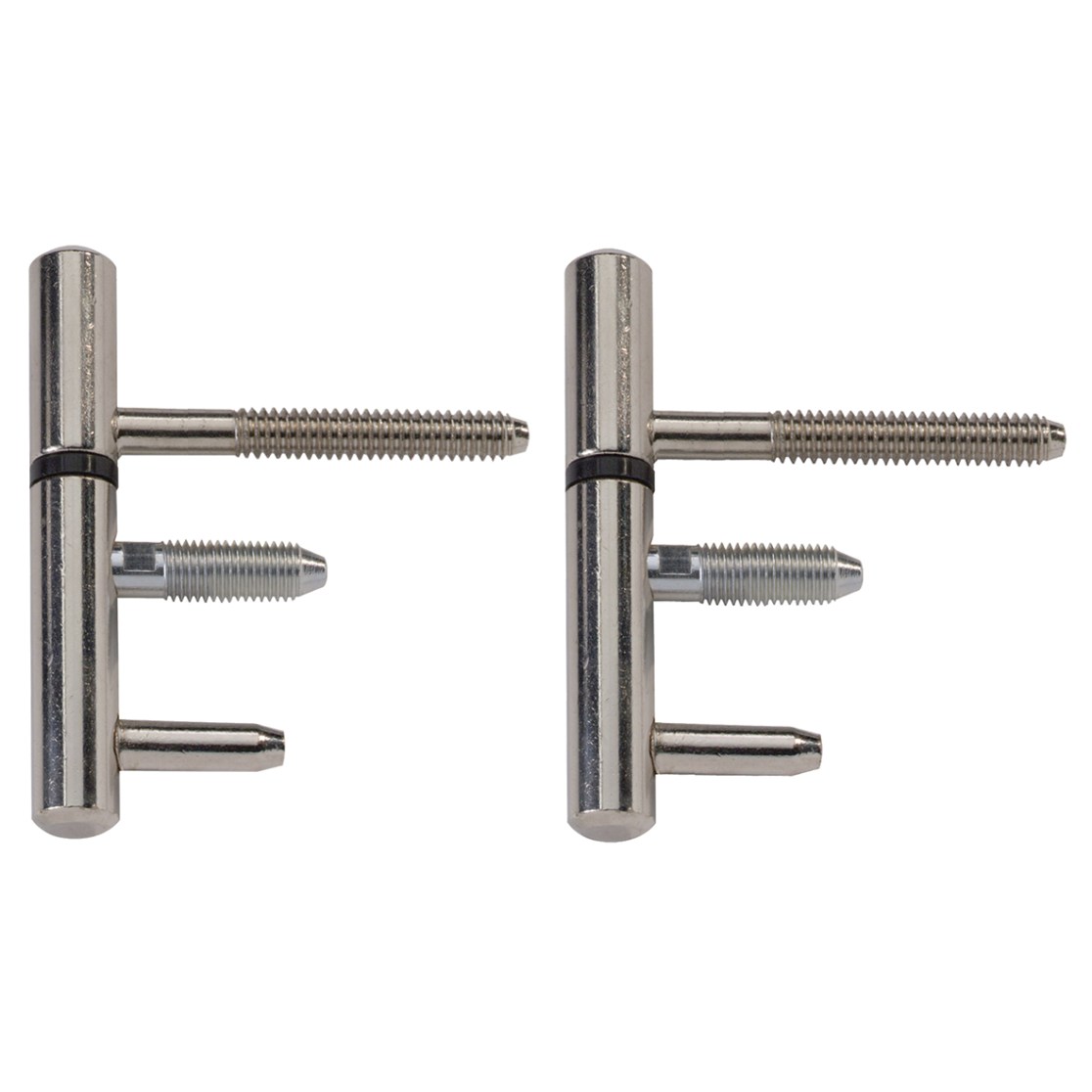

Drilled split hinge 1177 (2x)

1177-10-37/BL
arrow_selector
close

The AXA drilled split hinge is suitable for rebated interior doors in wooden frames.

  • smooth-running
  • silent
  • for wooden frames
Specifications Downloads Technical drawings Similar products

Specifications

Commercial information
expand_more
Type 1177 (2x)
Use for lipped mode interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Width 107 mm
Product Height 75 mm
Diameter knuckle 14 mm
Load bearing capacity 2 hinges 20 kg
Load bearing capacity 3 hinges 30 kg
Material Steel
Finish Nickel-plated
Logistic information
expand_more
Product Weight 242 gr

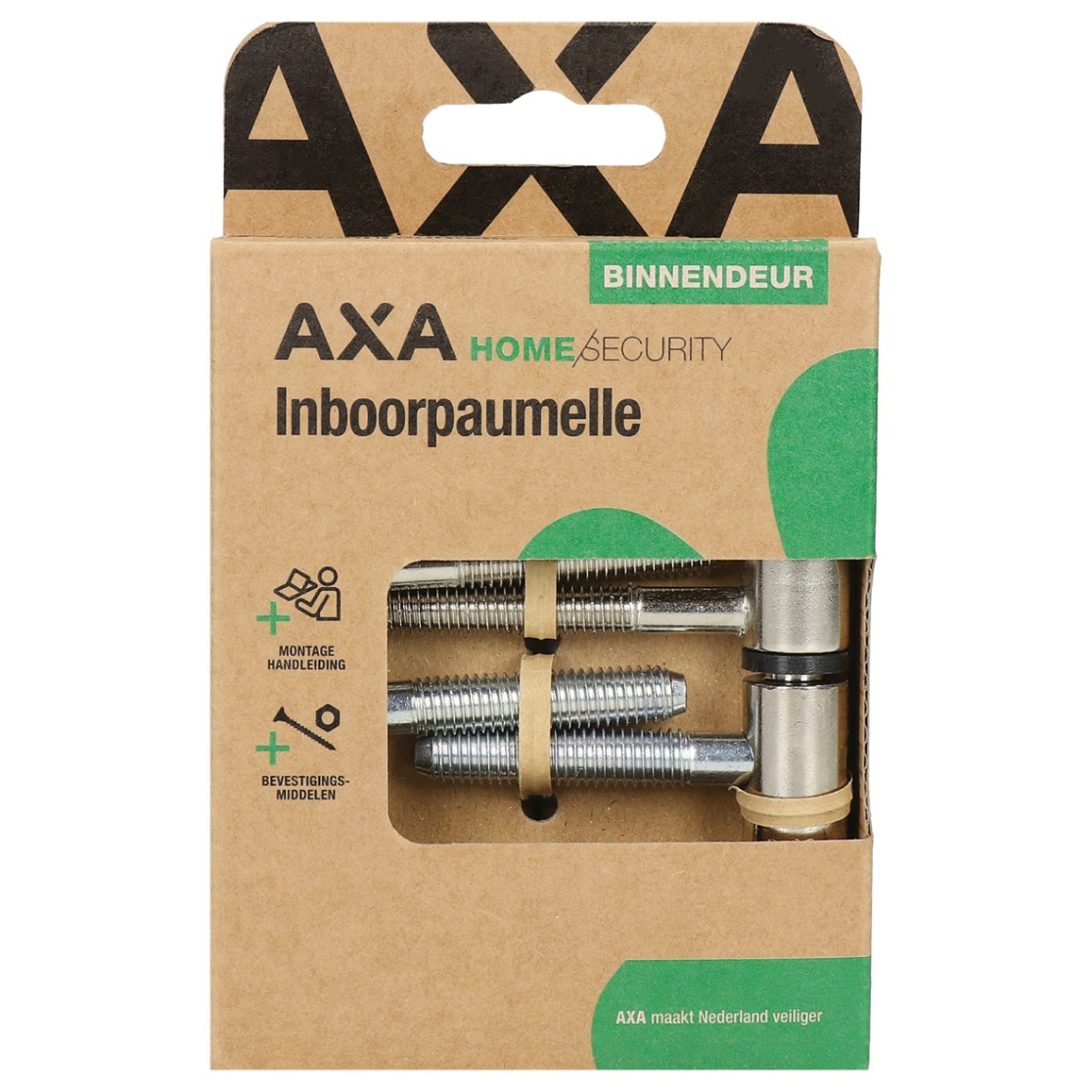

Pieces per small package 1 piece
EAN small package 8713249236452
Weight small package 0.242 kg
Dimensions small package 215 x 95 x 47 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249236469
Weight bulk package 2.13 kg
Dimensions bulk package 290 x 200 x 120 mm

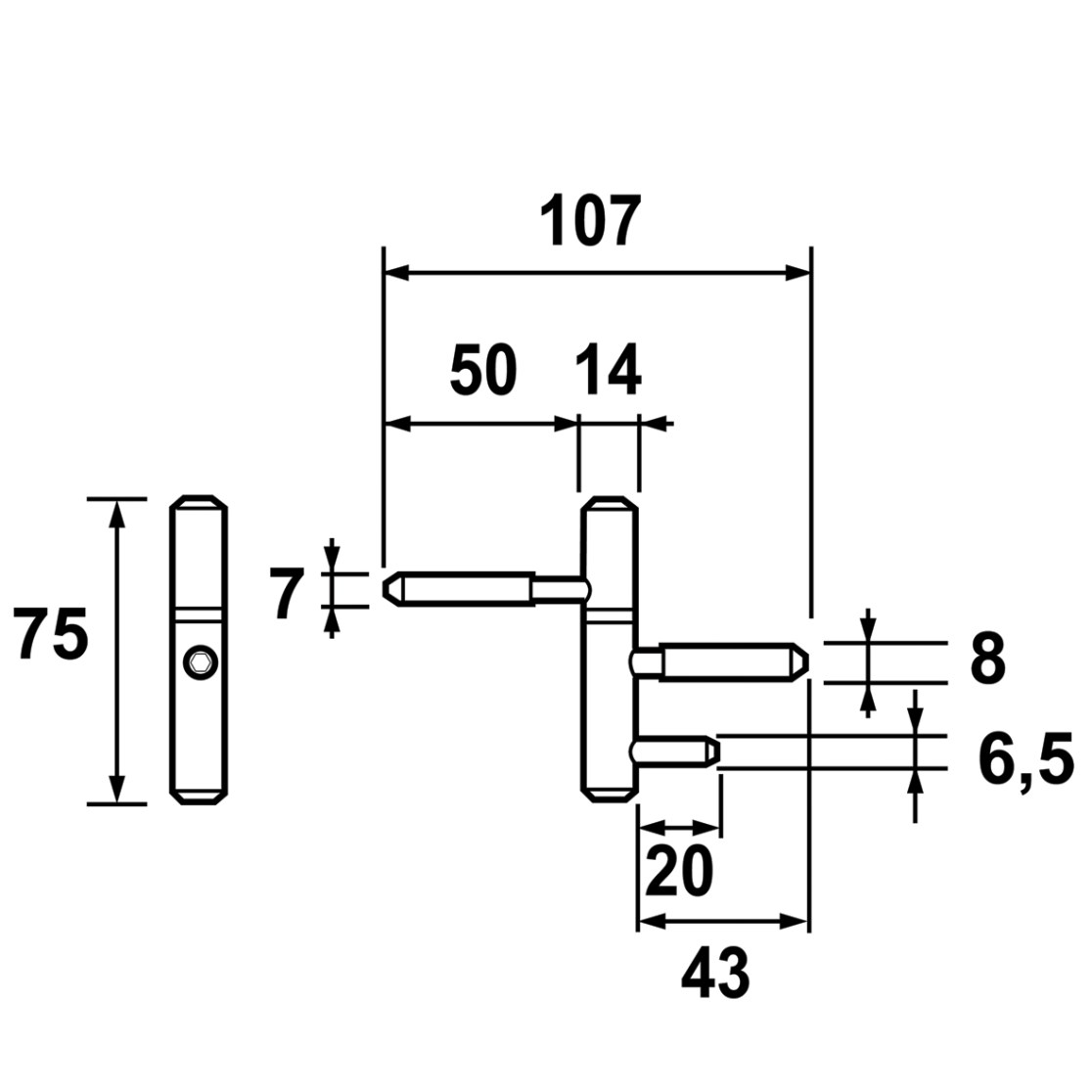

Technical drawings
Drilled split hinge 1177 (2x)
11771037BL

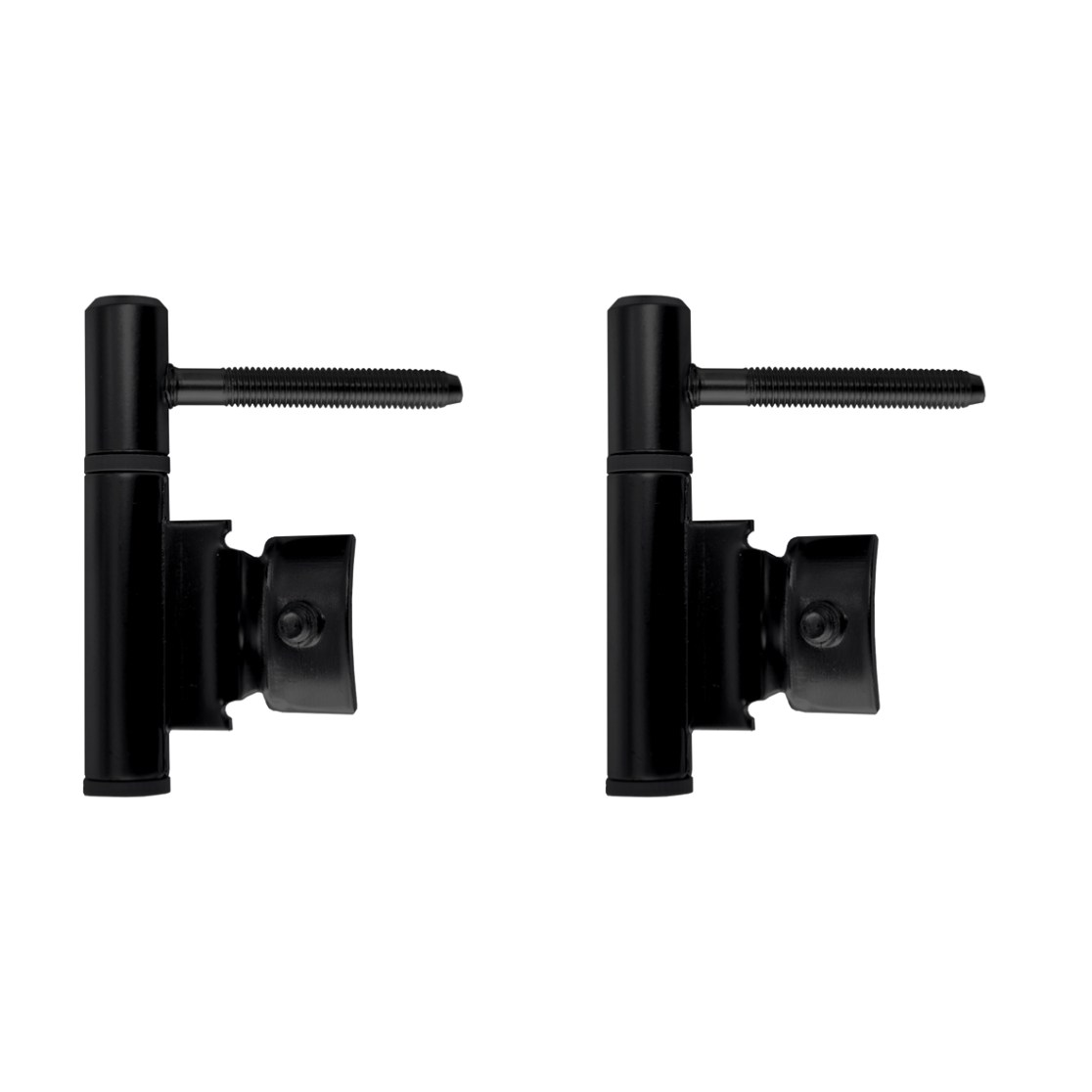

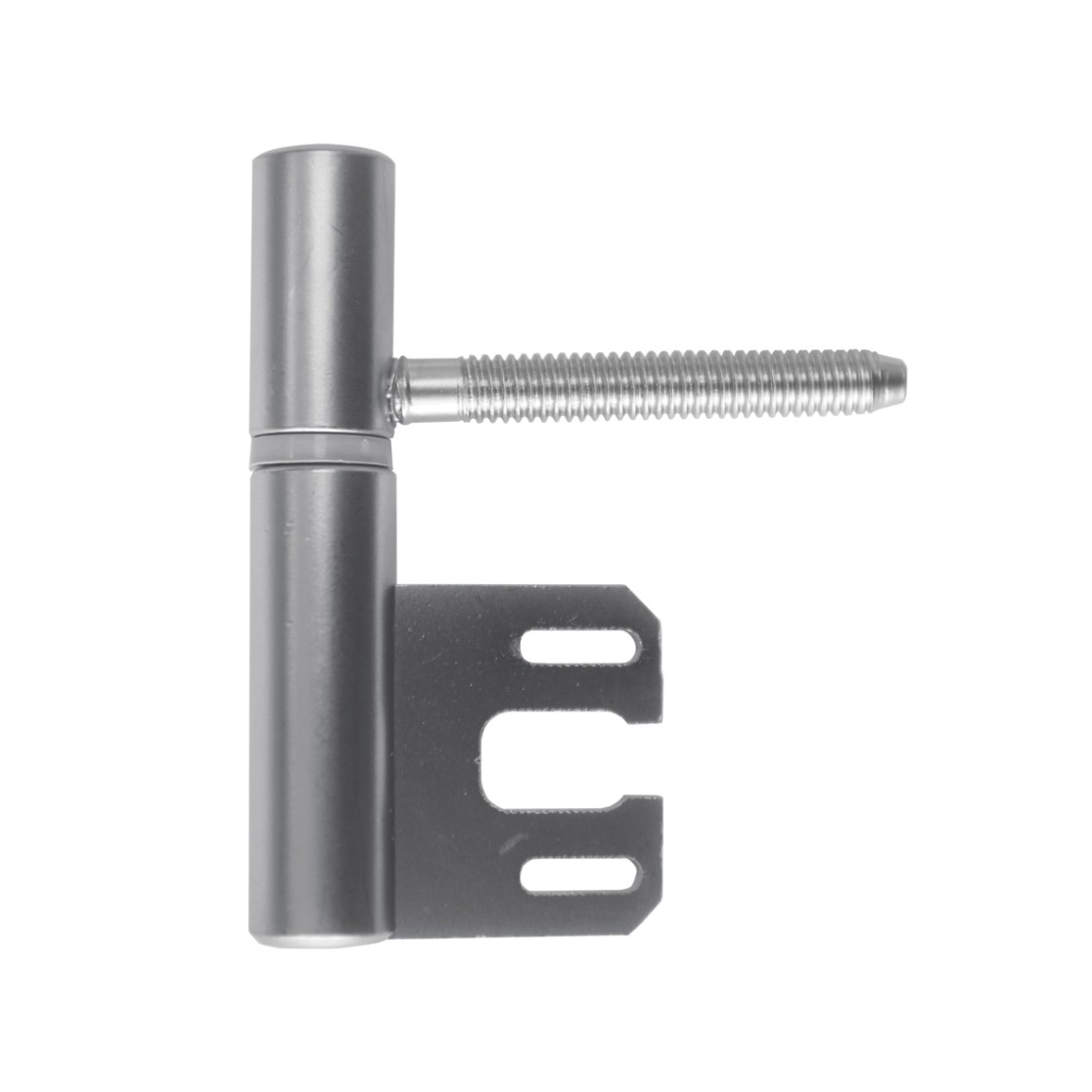

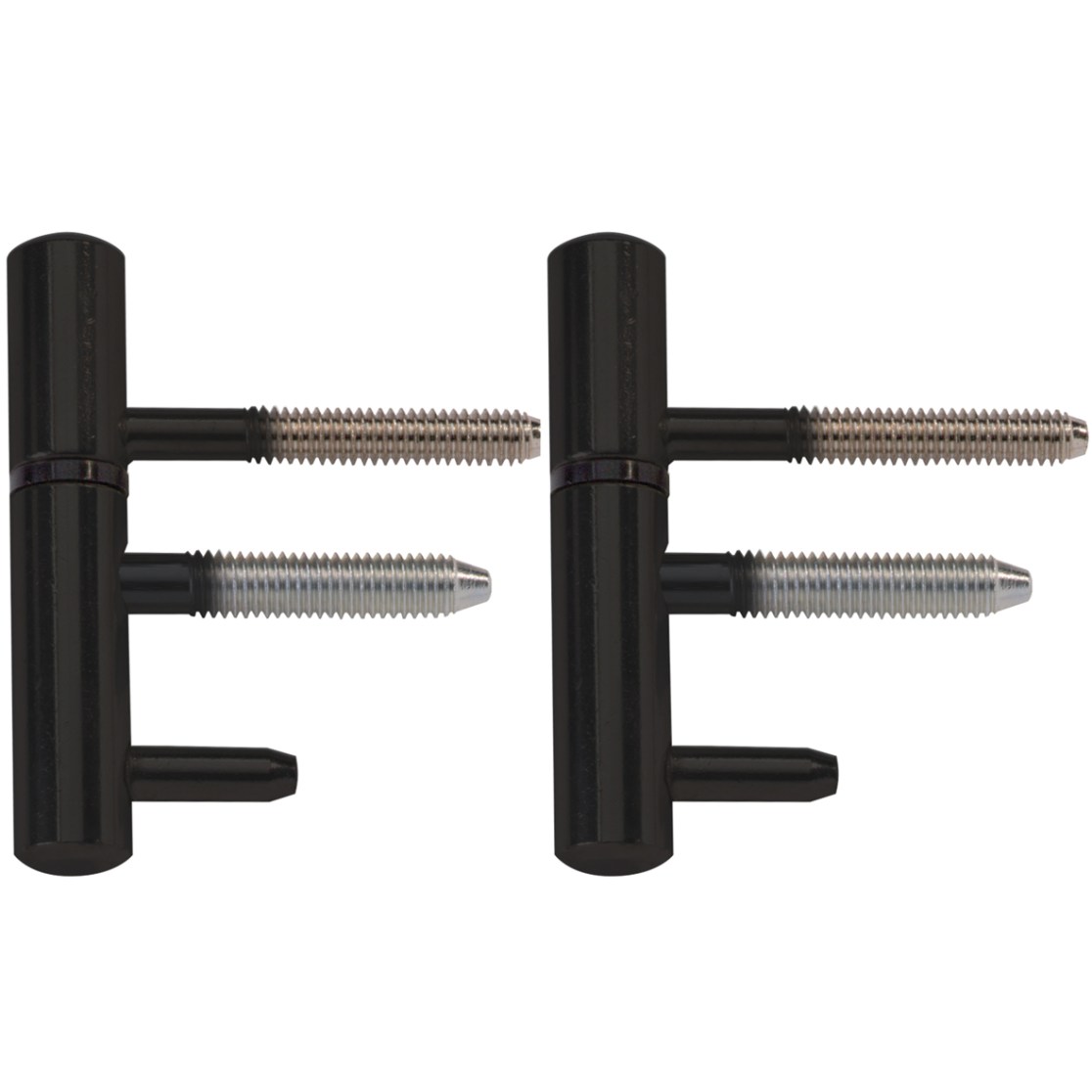

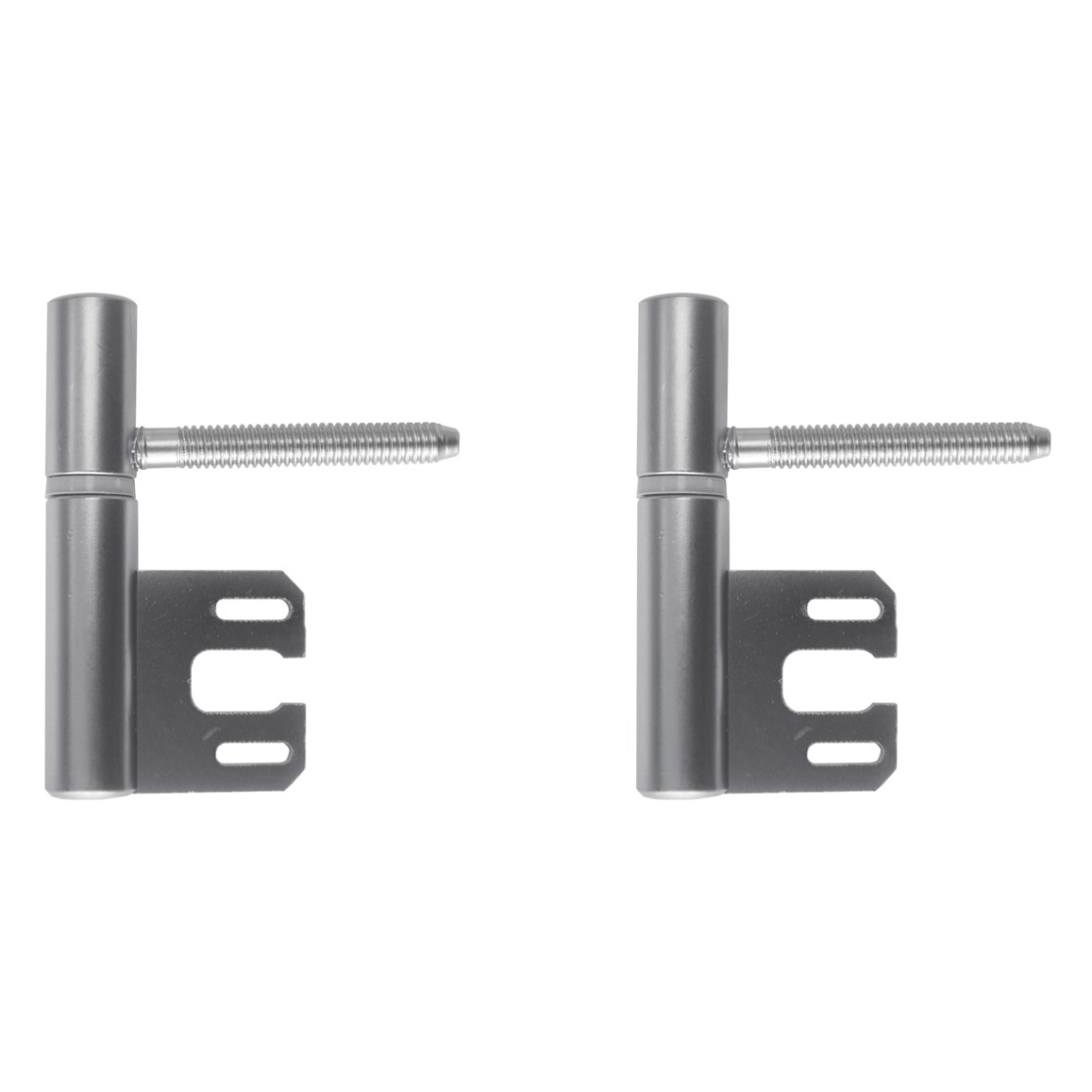

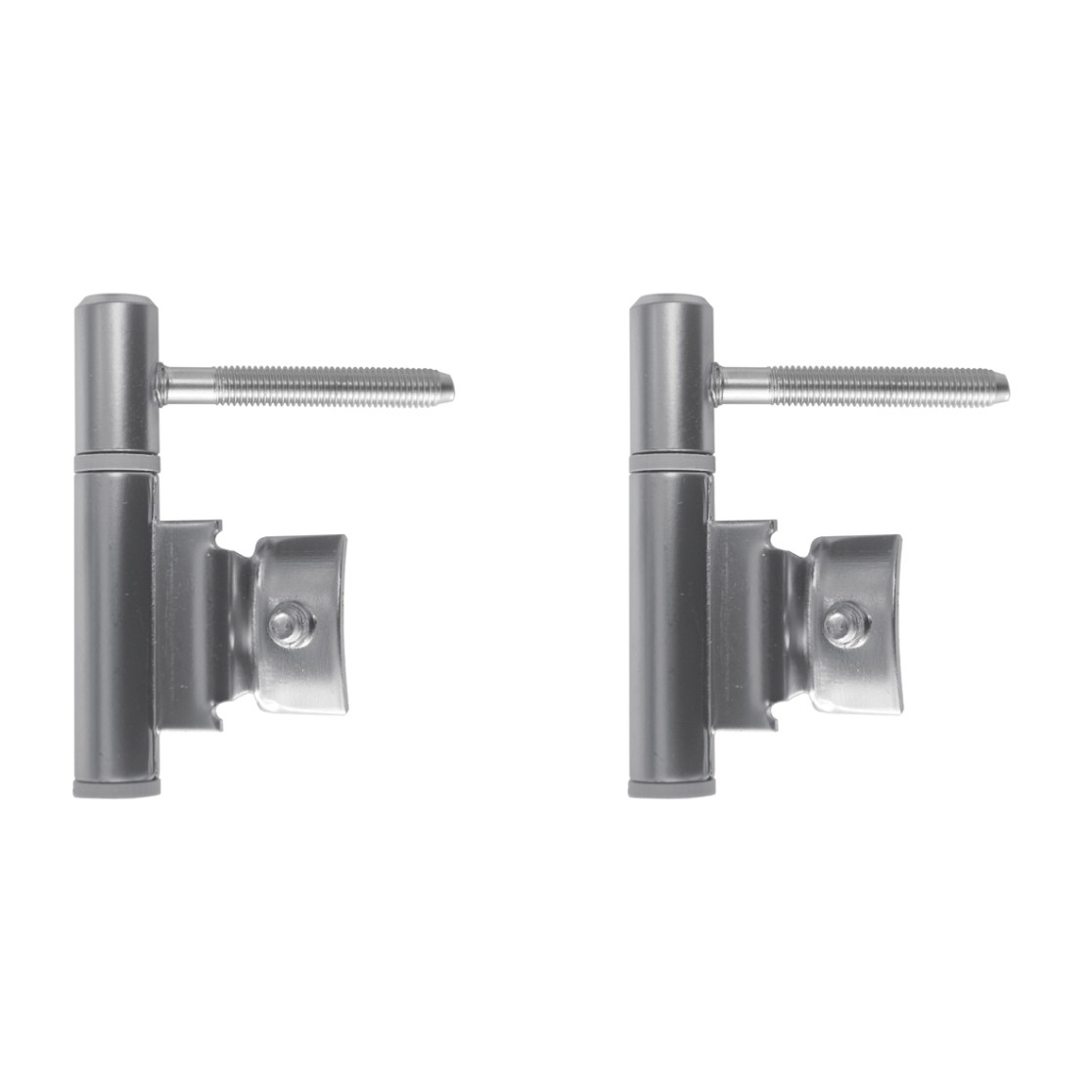

Similar products
