Double securitycylinder Xtreme Security extended 45-50

7261-34-08
arrow_selector
close

SKG 3

Police Hallmark

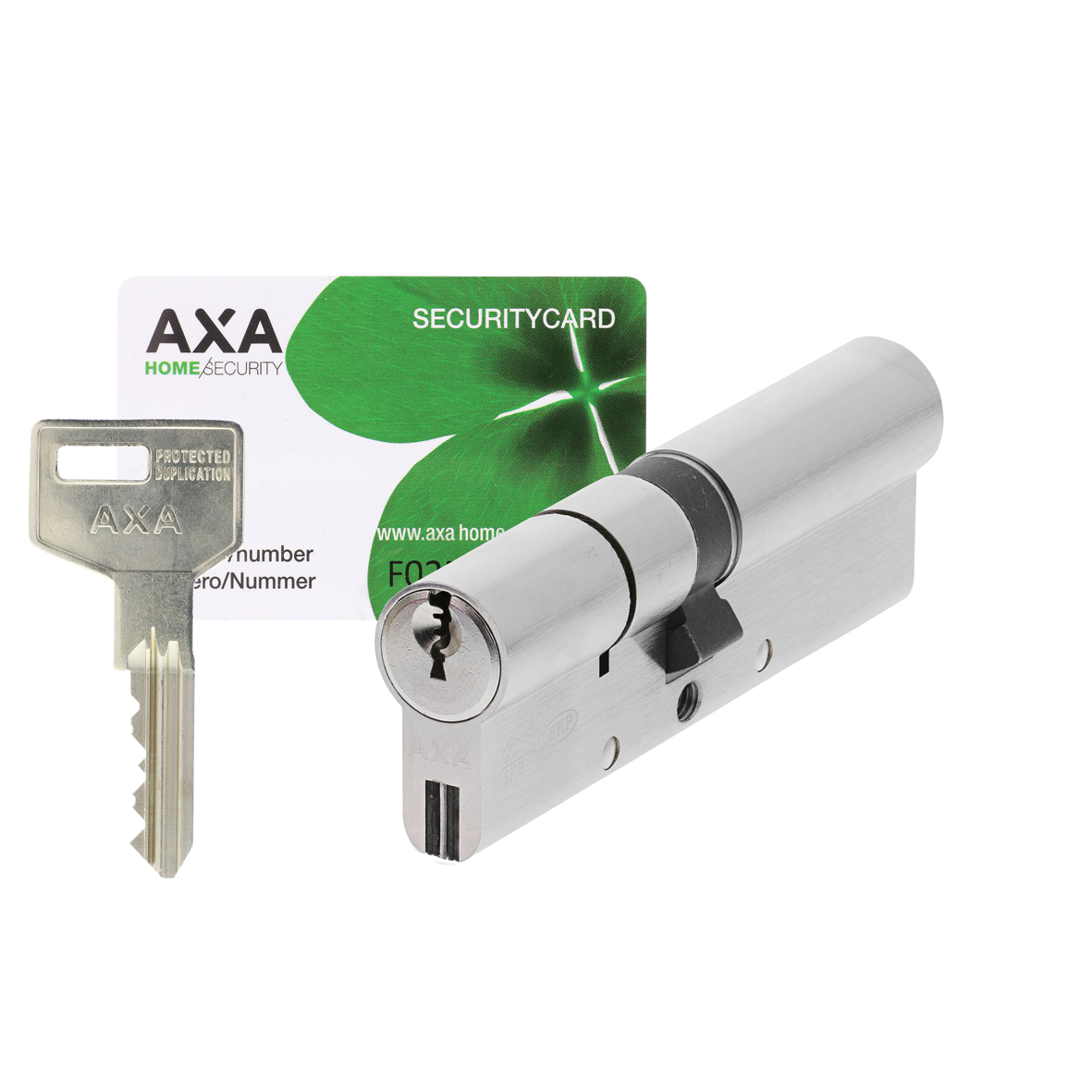

Reliable Xtreme Security security cylinders for the entire home.

  • extended double brass nickel-plated cylinder
  • patented profile with Security Card, prevents illegal duplication
  • with cylinder core protection
  • with hazard function, can also be opened when the key is in the lock on the inside
  • with anti-pick protection
  • with anti-drilling protection provided by hard-metal spindles
  • with lock-bumping protection
  • more than 240,000 different key combinations
  • asymmetrical key head, for extra ease of use
  • with 3 ‘new silver’, wear-resistant keys per cilinder,
  • complies with (PKVW) Police Hallmark for Safe Living and SKG3 (Façade Quality Institution hallmark)
  • complete with attachment materials
Specifications Downloads Technical drawings
Commercial information
expand_more
Type Xtreme Security extended 45-50
Use for exterior doors
Safety information
expand_more
Burglarproof True
SKG SKG 3
Police Hallmark True
CE certificate of conformity False
Technical information
expand_more
Product Length 95 mm
Product Width 17 mm
Product Height 33 mm
Number of Keys 3
Keyed alike False
Cylinder length outside (double cylinder) 45 mm
Cylinder length inside (double cylinder) 50 mm
Material Brass
Finish Nickel-plated
Assembly information
expand_more
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- M5 x 70 mm bolt: 1 piece
Logistic information
expand_more
Product Weight 315 gr
Pieces per small package 1 piece
EAN small package 8713249318646
Weight small package 0.349 kg
Dimensions small package 115 x 55 x 30 mm
Pieces per bulk package 12 piece
EAN bulk package 8713249318653
Weight bulk package 4.32 kg
Dimensions bulk package 200 x 150 x 120 mm

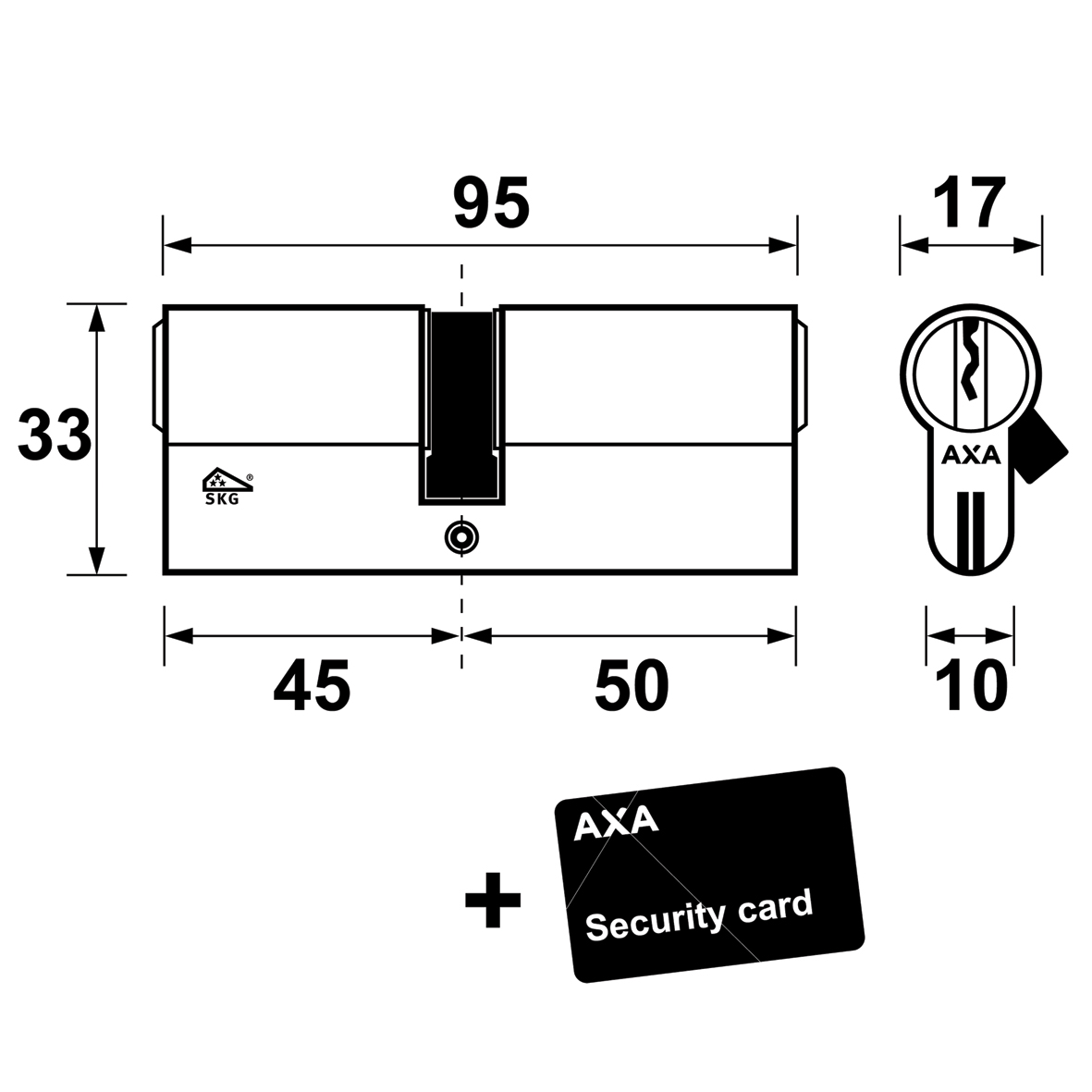

Technical drawings
Double securitycylinder Xtreme Security extended 45-50
72613408
