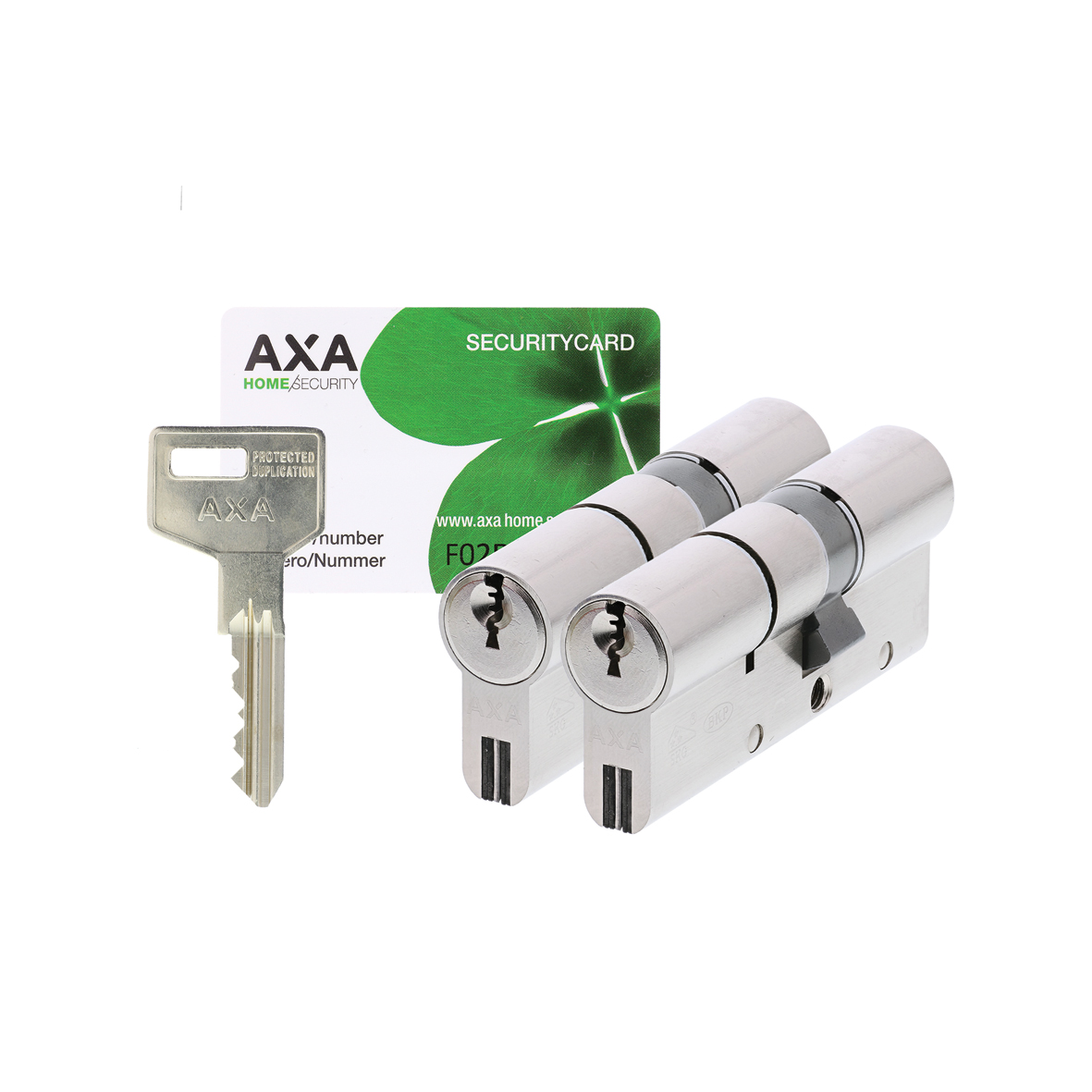

Double securitycylinder Xtreme Security extended 30-45 (2x)
7261-03-08/BL2
Reliable Xtreme Security security cylinders for the entire home.
- extended double brass nickel-plated cylinder
- patented profile with Security Card, prevents illegal duplication
- with cylinder core protection
- with hazard function, can also be opened when the key is in the lock on the inside
- with anti-pick protection
- with anti-drilling protection provided by hard-metal spindles
- with lock-bumping protection
- more than 240,000 different key combinations
- asymmetrical key head, for extra ease of use
- with 3 โnew silverโ, wear-resistant keys per cilinder,
- complies with (PKVW) Police Hallmark for Safe Living and SKG3 (Faรงade Quality Institution hallmark)
- complete with attachment materials
+
2
Reliable Xtreme Security security cylinders for the entire home.
- extended double brass nickel-plated cylinder
- patented profile with Security Card, prevents illegal duplication
- with cylinder core protection
- with hazard function, can also be opened when the key is in the lock on the inside
- with anti-pick protection
- with anti-drilling protection provided by hard-metal spindles
- with lock-bumping protection
- more than 240,000 different key combinations
- asymmetrical key head, for extra ease of use
- with 3 โnew silverโ, wear-resistant keys per cilinder,
- complies with (PKVW) Police Hallmark for Safe Living and SKG3 (Faรงade Quality Institution hallmark)
- complete with attachment materials
Specifications
Recommended Mounting Materials
- M5 x 70 mm bolt: 2 pieces
- M5 x 70 mm bolt: 2 pieces
Commercial information
Type Xtreme Security extended 30-45 (2x)
Use for exterior doors
Safety information
Burglarproof True
SKG SKG 3
Police Hallmark True
CE Applicable False

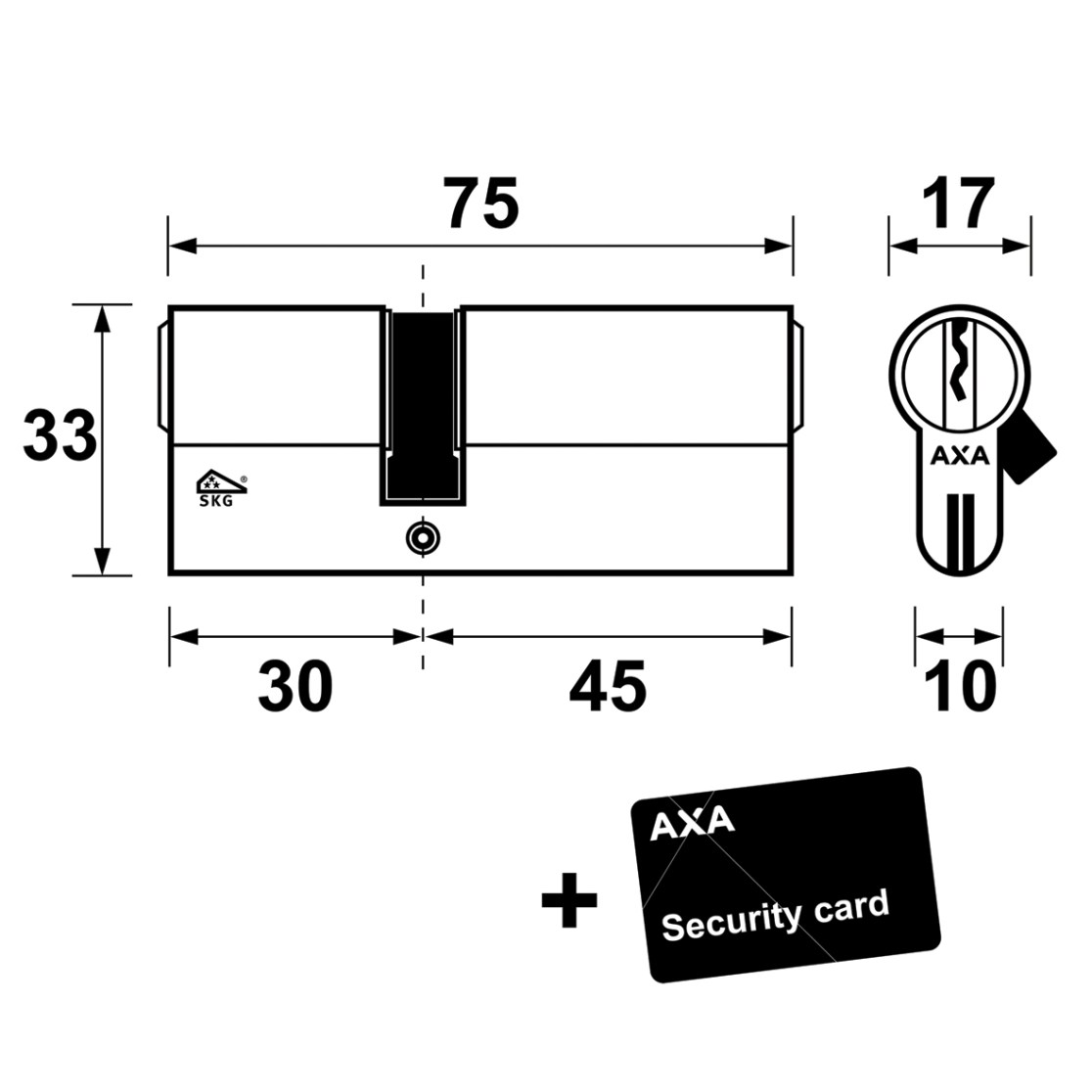

Technical information
Product Length 75 mm
Product Width 17 mm
Product Height 33 mm
Number of Keys 6
Keyed alike True
Cylinder length outside (double cylinder) 30 mm
Cylinder length inside (double cylinder) 45 mm
Material Brass
Finish Nickel-plated
Assembly information
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- M5 x 70 mm bolt: 2 pieces
- M5 x 70 mm bolt: 2 pieces
Logistic information
Product Weight 530 gr
Pieces per small package 1 piece
EAN small package 8713249260518
Weight small package 0.53 kg
Dimensions small package 215 x 95 x 23 mm
Pieces per bulk package 8 piece
EAN bulk package 8713249260525
Weight bulk package 4.43 kg
Dimensions bulk package 290 x 200 x 120 mm
