Door security strip M3-EX 20-25

7607-20-91/BL
arrow_selector
close

SKG 1 + SKG V

Police Hallmark

The door security strip increases the burglary-resistance of doors.

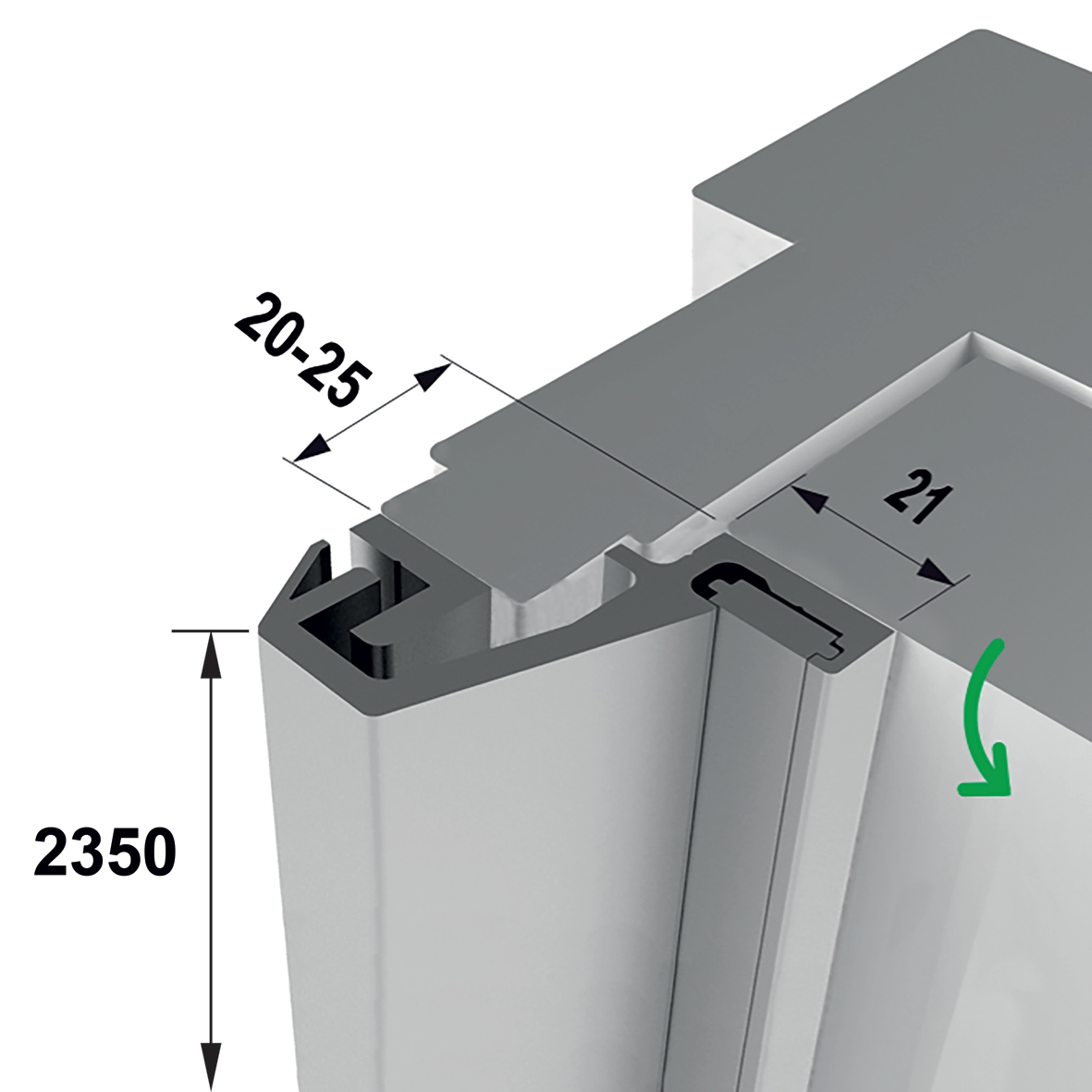

  • for situations where the frame between 20 and 25 mm, extending forward with respect to the door (20 to 25 mm back position of the door)
  • screws always covered
  • easily cut to size
  • complies with Police Hallmark for Safe Living and SKG1 (Façade Quality Institution hallmark)
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 4.0 x 40 mm screw: 36 pieces
Commercial information
expand_more
Type M3-EX 20-25
Use for back doors
Safety information
expand_more
Burglarproof True
SKG SKG 1 + SKG V
Police Hallmark True
CE Applicable False
Technical information
expand_more
Product Length 2350 mm
Direction of rotation outward-opening
Material Aluminum
Finish Anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Required height/width wood frame 15 mm
Window/door mounting width requirement 21 mm
Assembly time 20 min
Recommended Mounting Materials
- 4.0 x 40 mm screw: 36 pieces
Logistic information
expand_more
Product Weight 3640 gr
Pieces per small package 1 piece
EAN small package 8713249238203
Weight small package 3.64 kg
Dimensions small package 2375 x 45 x 45 mm
Pieces per bulk package 6 piece
EAN bulk package 8713249238210
Weight bulk package 22.6 kg

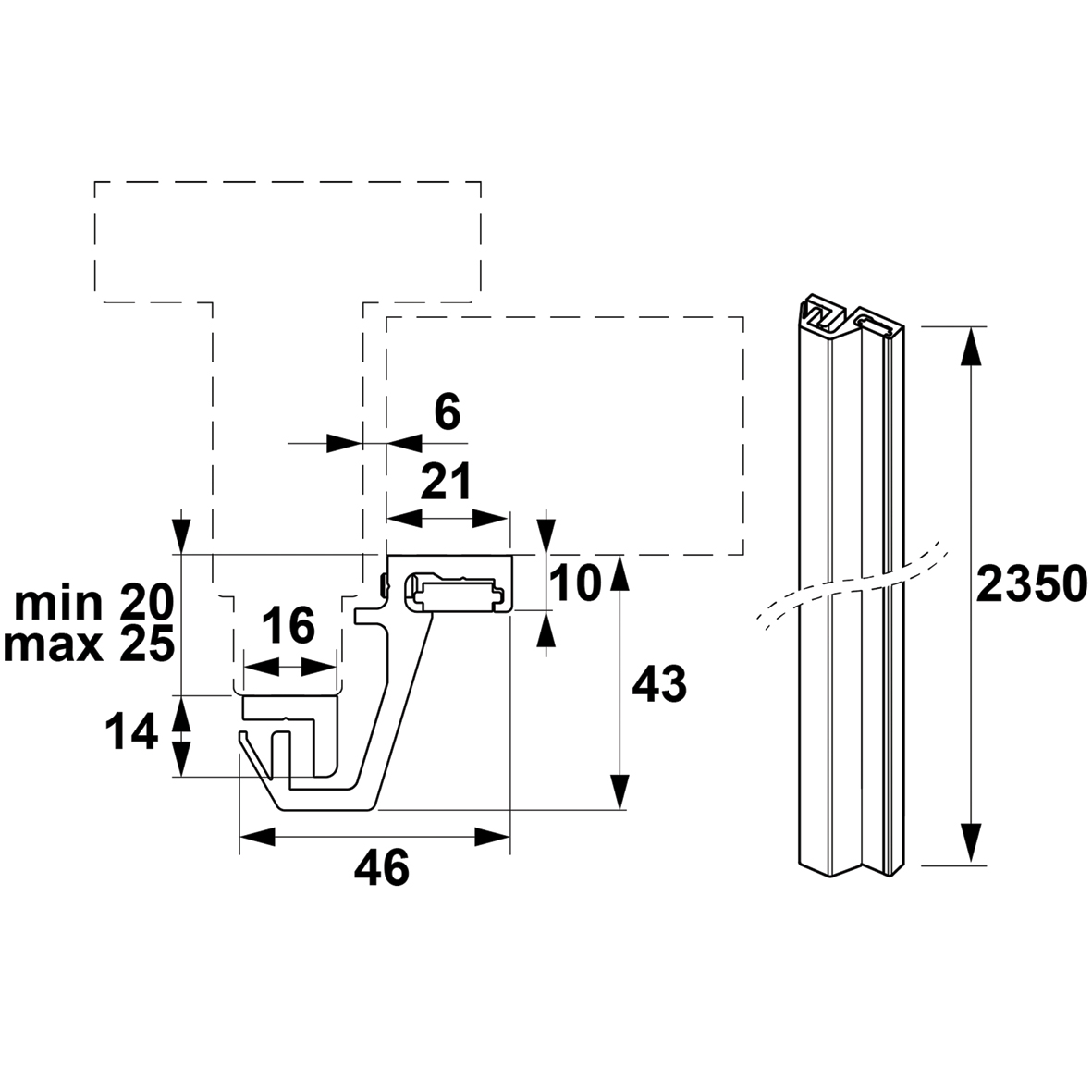

Technical drawings

Alternative products

Similar products
