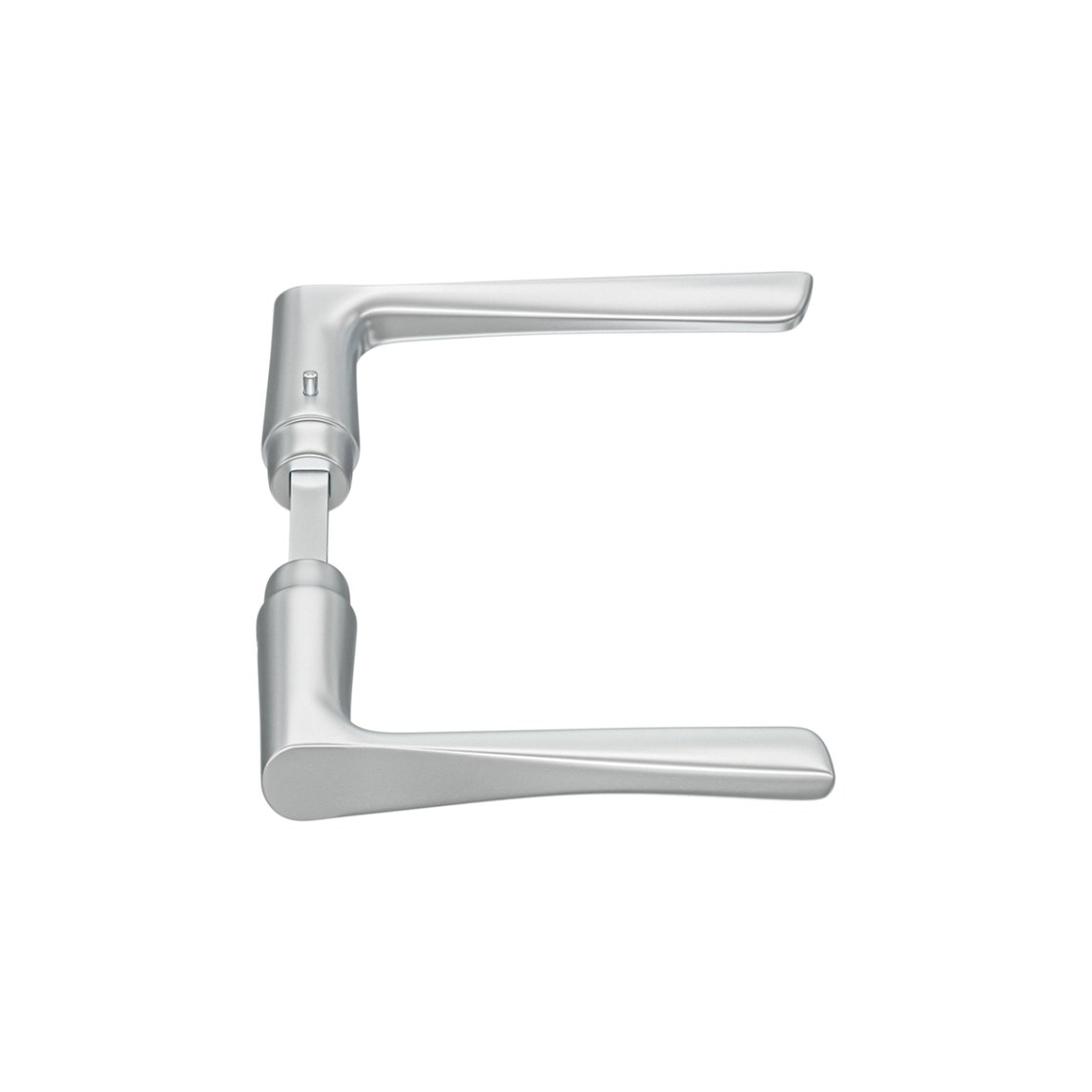

Door handle Vlinder

6155-07-91/E
arrow_selector
close

Ergonomically designed door handle.

  • universally usable on doors with a thickness of 38 to 40 mm
  • complete with attachment materials
  • simple assembly
Specifications Downloads Technical drawings Alternative products Similar products

Specifications

Recommended Mounting Materials
- 3 x 24 mm spindle pin: 1 piece
- M5 x 25 mm bolt: 1 pieces
Commercial information
expand_more
Type Vlinder
Use for interior doors, 38 to 40 mm thick
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 115 mm
Handle length 115 mm
Handle depth 60 mm
Handle assembly pin fix
Material Aluminum
Finish Anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- 3 x 24 mm spindle pin: 1 piece
- M5 x 25 mm bolt: 1 pieces
Logistic information
expand_more
Product Weight 197 gr
Pieces per small package 10 piece
EAN small package 8713249085104
Weight small package 2.05 kg
Dimensions small package 164 x 116 x 153 mm
Pieces per bulk package 60 piece
EAN bulk package 8713249085111
Weight bulk package 12.7 kg
Dimensions bulk package 390 x 320 x 180 mm

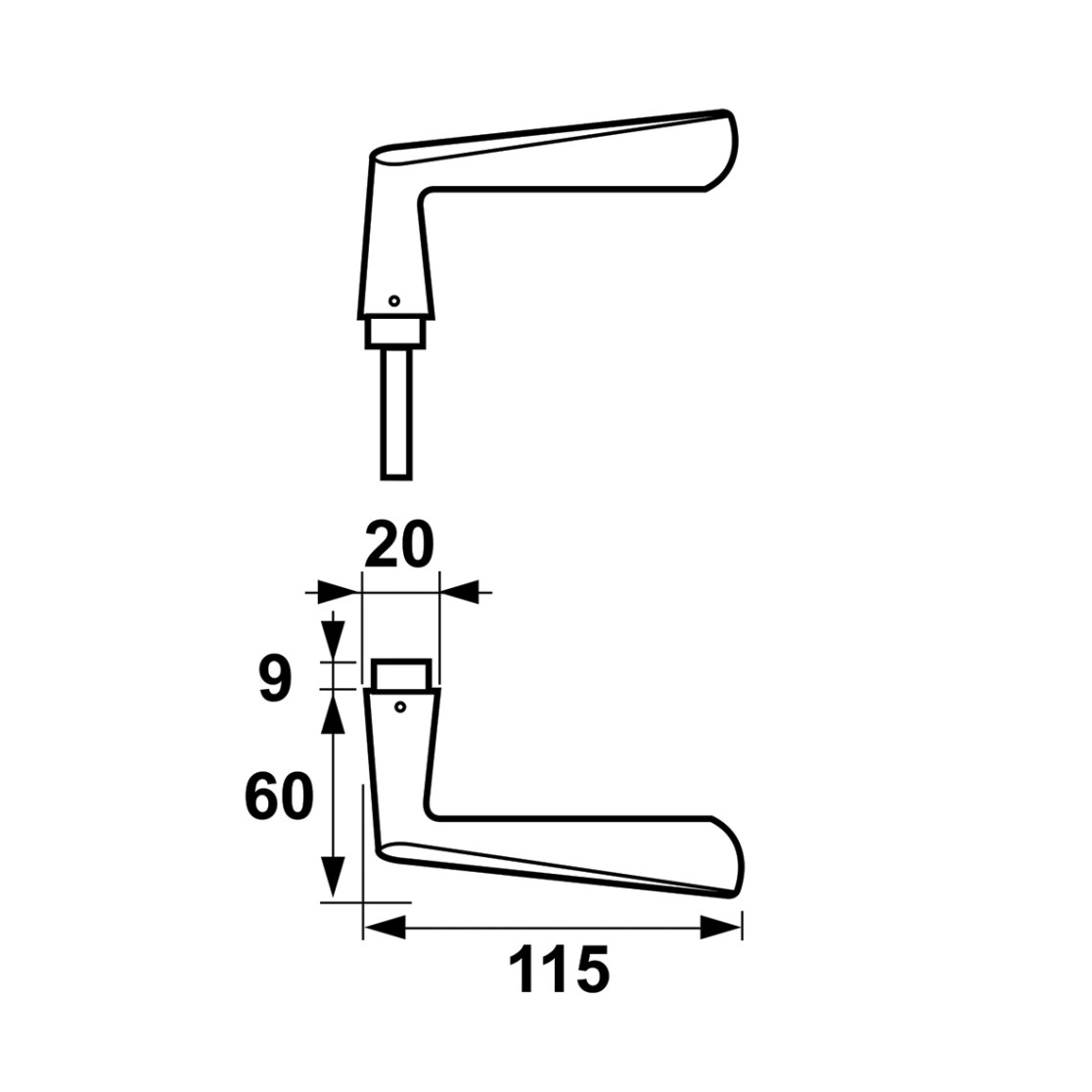

Technical drawings
Door handle Vlinder
61550791E
