Door handle Sabel
6171-71-11/E
Ergonomically designed door handle.
- universally usable on doors with a thickness of 38 to 54 mm
- complete with attachment materials
- simple assembly
Ergonomically designed door handle.
- universally usable on doors with a thickness of 38 to 54 mm
- complete with attachment materials
- simple assembly
Specifications
Recommended Mounting Materials
- M6 x 6 mm grub screw: 2 pieces
- M6 x 6 mm grub screw: 2 pieces
Commercial information
Type Sabel
Use for exterior and interior doors, 38 to 54 mm thick
Safety information
SKG No
Police Hallmark False
CE Applicable False
Cradle to Cradle certification bronze
Technical information
Product Length 122 mm
Handle length 130 mm
Handle depth 56 mm
Handle assembly grub screw fix
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- M6 x 6 mm grub screw: 2 pieces
- M6 x 6 mm grub screw: 2 pieces
Logistic information
Product Weight 245 gr
Pieces per small package 6 piece
EAN small package 8713249290270
Weight small package 1.56 kg
Dimensions small package 169 x 127 x 195 mm
Pieces per bulk package 36 piece
EAN bulk package 8713249290287
Weight bulk package 9.75 kg
Dimensions bulk package 390 x 320 x 180 mm
Downloads

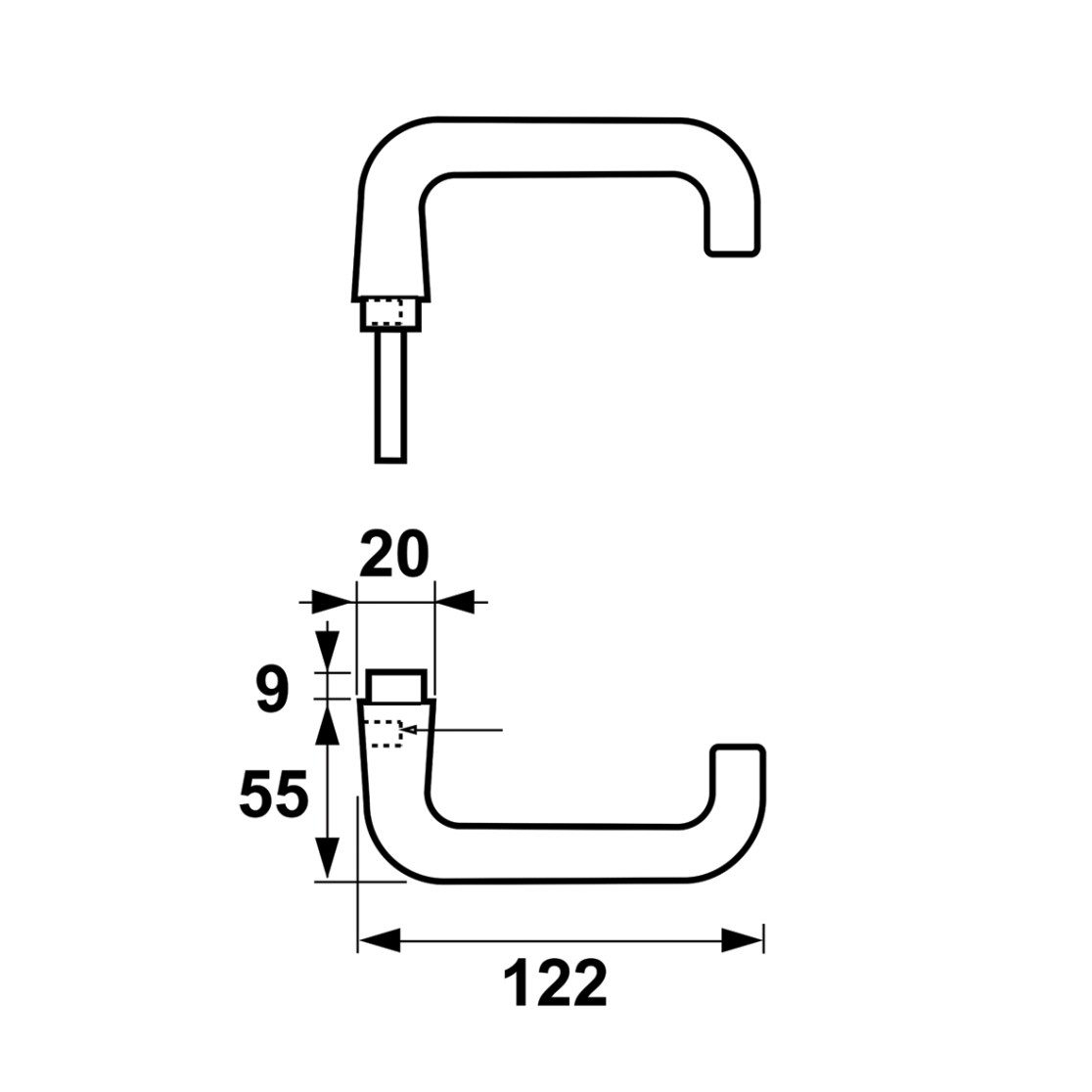

Main Image Environmental Product Declaration (EPD)Technical drawings
Door handle Sabel

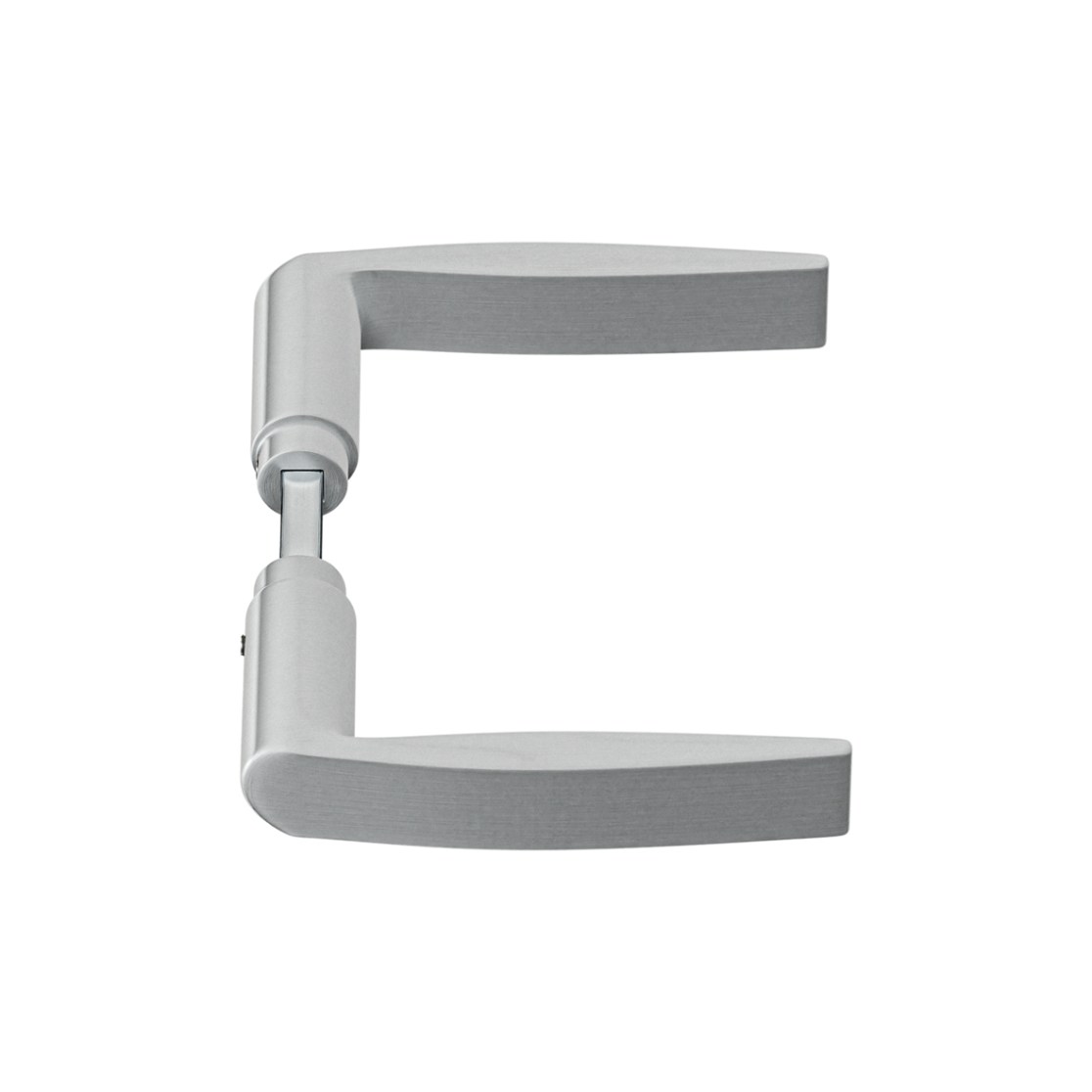

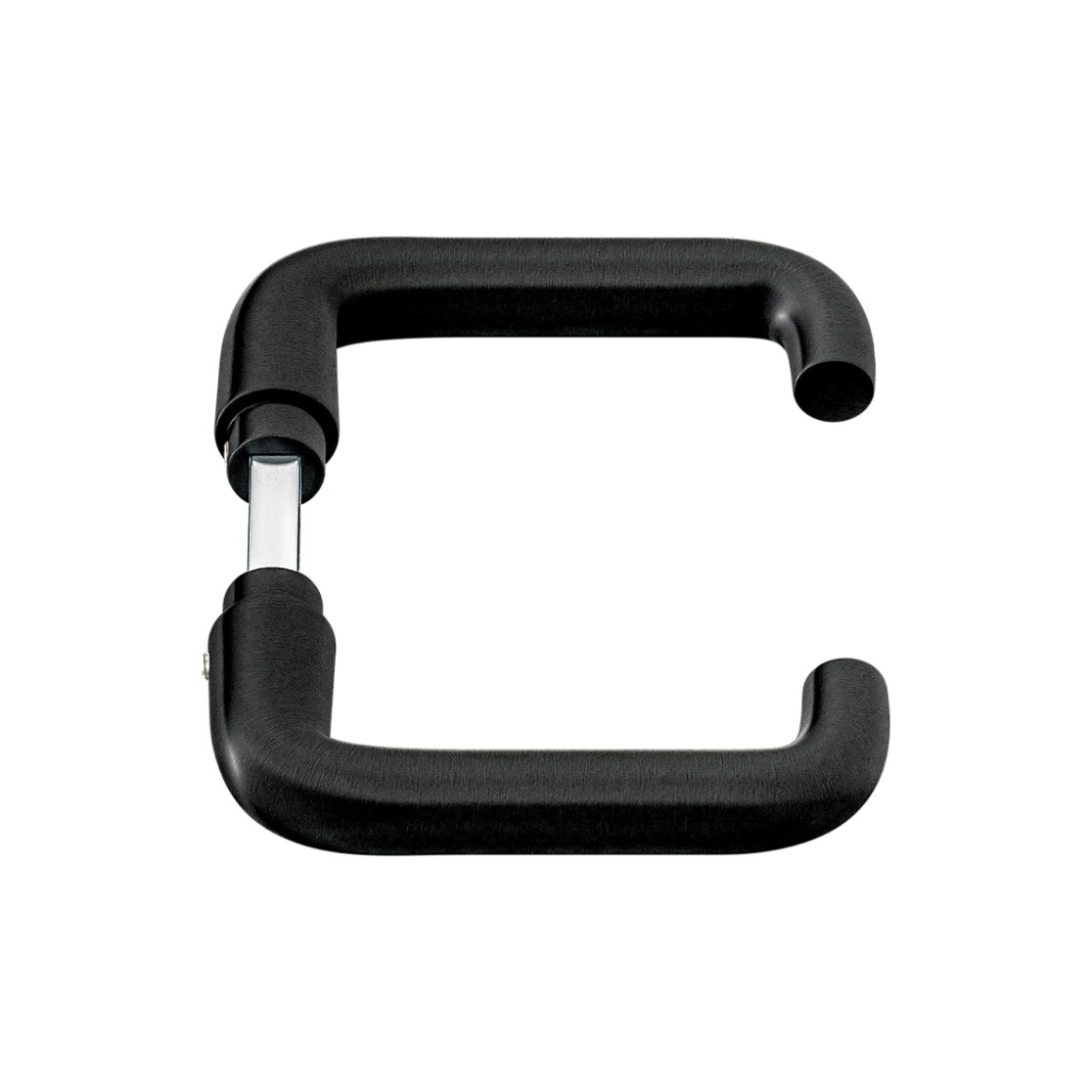

61717111EAlternative products
