Door handle Premium project Fast Click U

6435-70-11/E
arrow_selector
close

bronze

Ergonomically designed door handle.

by combining with the AXA Premium project Fast Click door backplates, a fixed fitting is created: stylish appearance, finely polished, less sensitive to scratches: simple Fast-Click assembly
Specifications Downloads Technical drawings Alternative products
Commercial information
expand_more
Type Premium project Fast Click U
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Cradle to Cradle certification bronze
Technical information
expand_more
Handle length 145 mm
Handle depth 55 mm
Diameter handle 20 mm
Handle assembly handle integrated in backplate/rosettes
Spring supported handle True
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- spindle: 1 piece
Logistic information
expand_more
Product Weight 448 gr
Pieces per small package 4 piece
EAN small package 8713249262468
Weight small package 1.87 kg
Dimensions small package 164 x 116 x 153 mm
Pieces per bulk package 16 piece
EAN bulk package 8713249262475
Weight bulk package 7.86 kg
Dimensions bulk package 390 x 320 x 180 mm

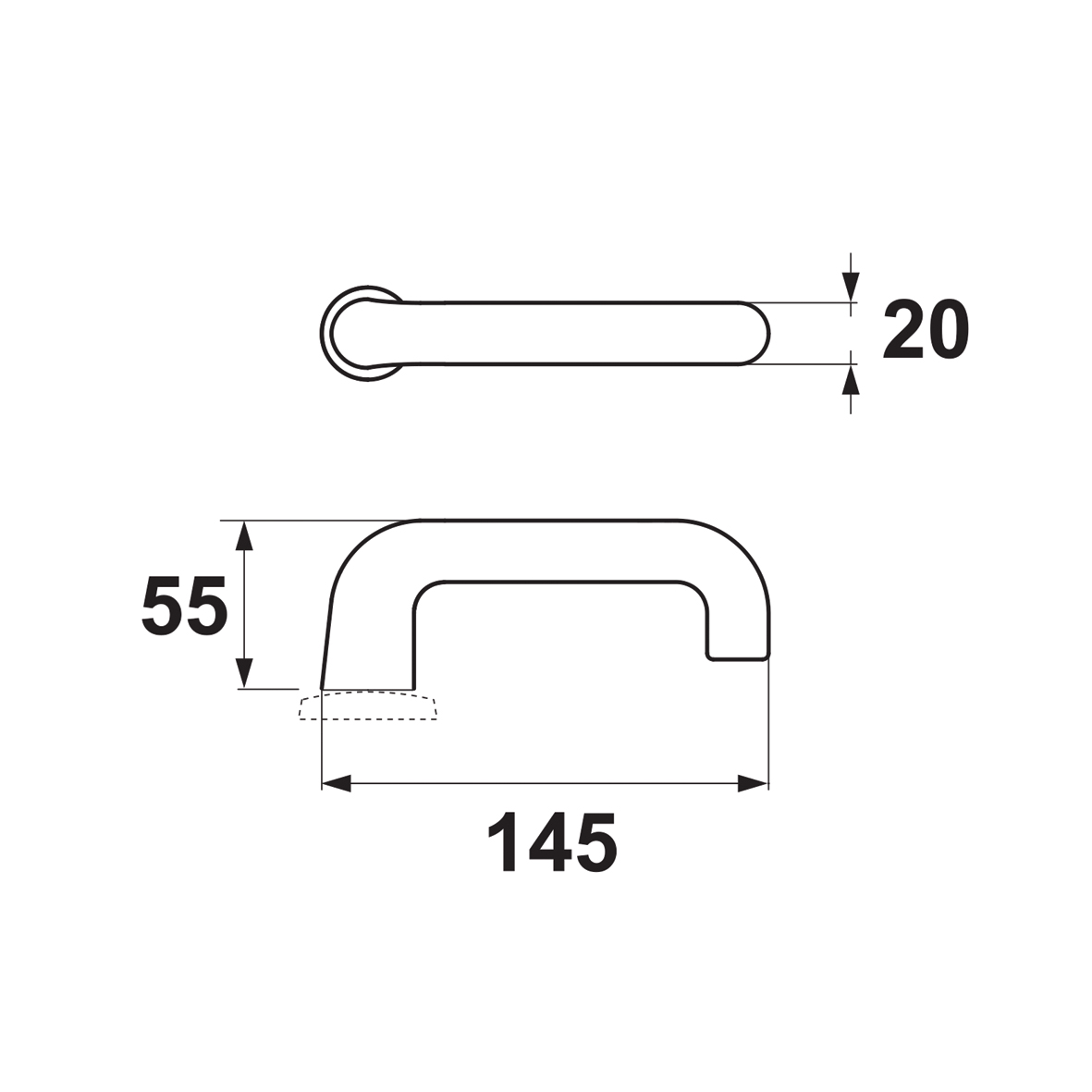

Technical drawings
Door handle Premium project Fast Click U
64357011E
