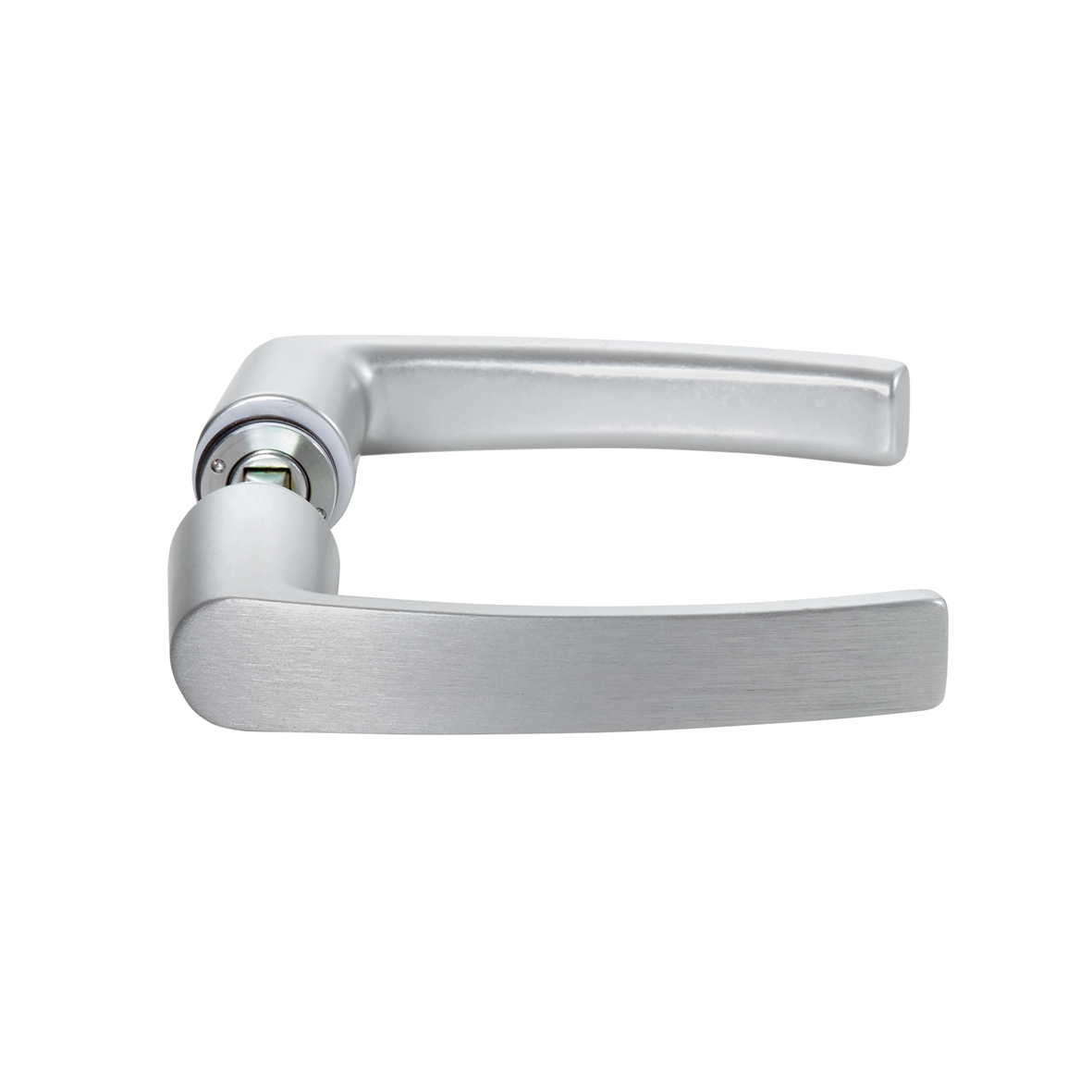

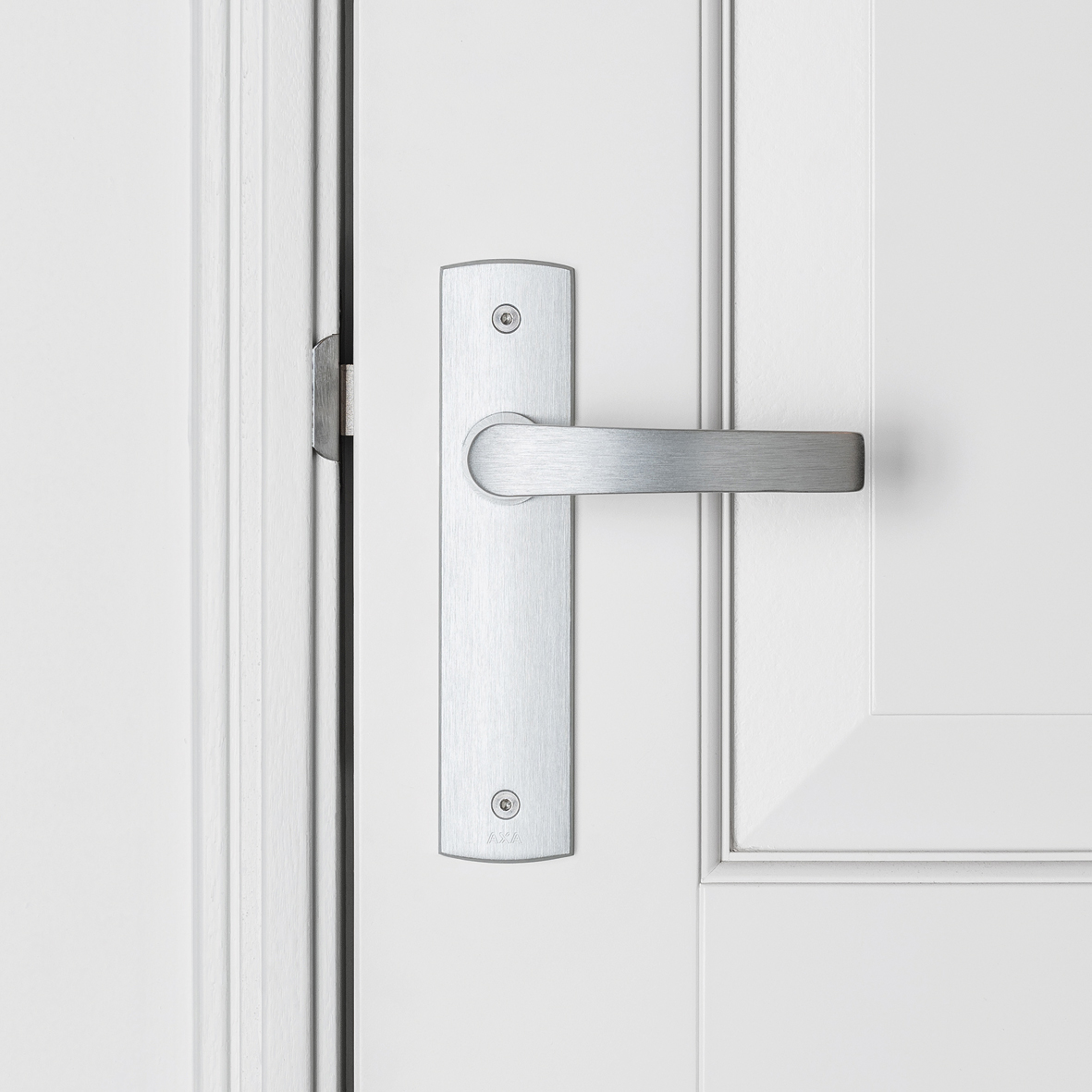

Door handle Premium project Fast Click Blok

6433-70-11/E
arrow_selector
close

bronze

Ergonomically designed door handle.

  • stylish appearance, finely polished, less sensitive to scratches
  • must be combined with the AXA Premium Click door escutcheon plates: universally usable on doors with a thickness of 38 to 45 mm: simple assembly
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- spindle: 1 piece
Commercial information
expand_more
Type Premium project Fast Click Blok
Use for interior doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Cradle to Cradle certification bronze
Technical information
expand_more
Handle length 132 mm
Handle depth 56 mm
Handle assembly handle integrated in backplate/rosettes
Spring supported handle True
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- spindle: 1 piece
Logistic information
expand_more
Product Weight 340 gr
Pieces per small package 4 piece
EAN small package 8713249262406
Weight small package 1.44 kg
Dimensions small package 164 x 116 x 153 mm
Pieces per bulk package 16 piece
EAN bulk package 8713249262413
Weight bulk package 6.13 kg
Dimensions bulk package 390 x 320 x 180 mm

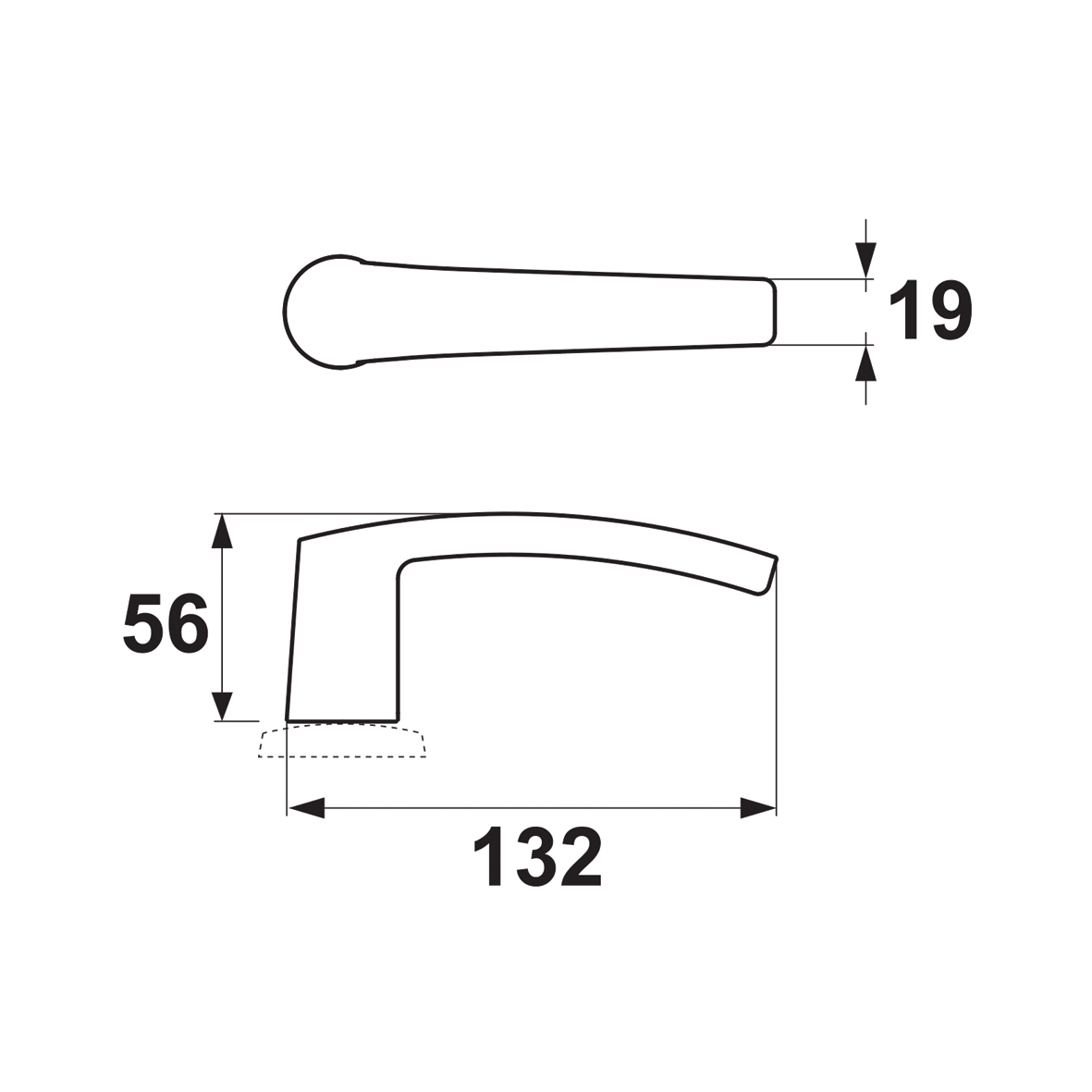

Technical drawings

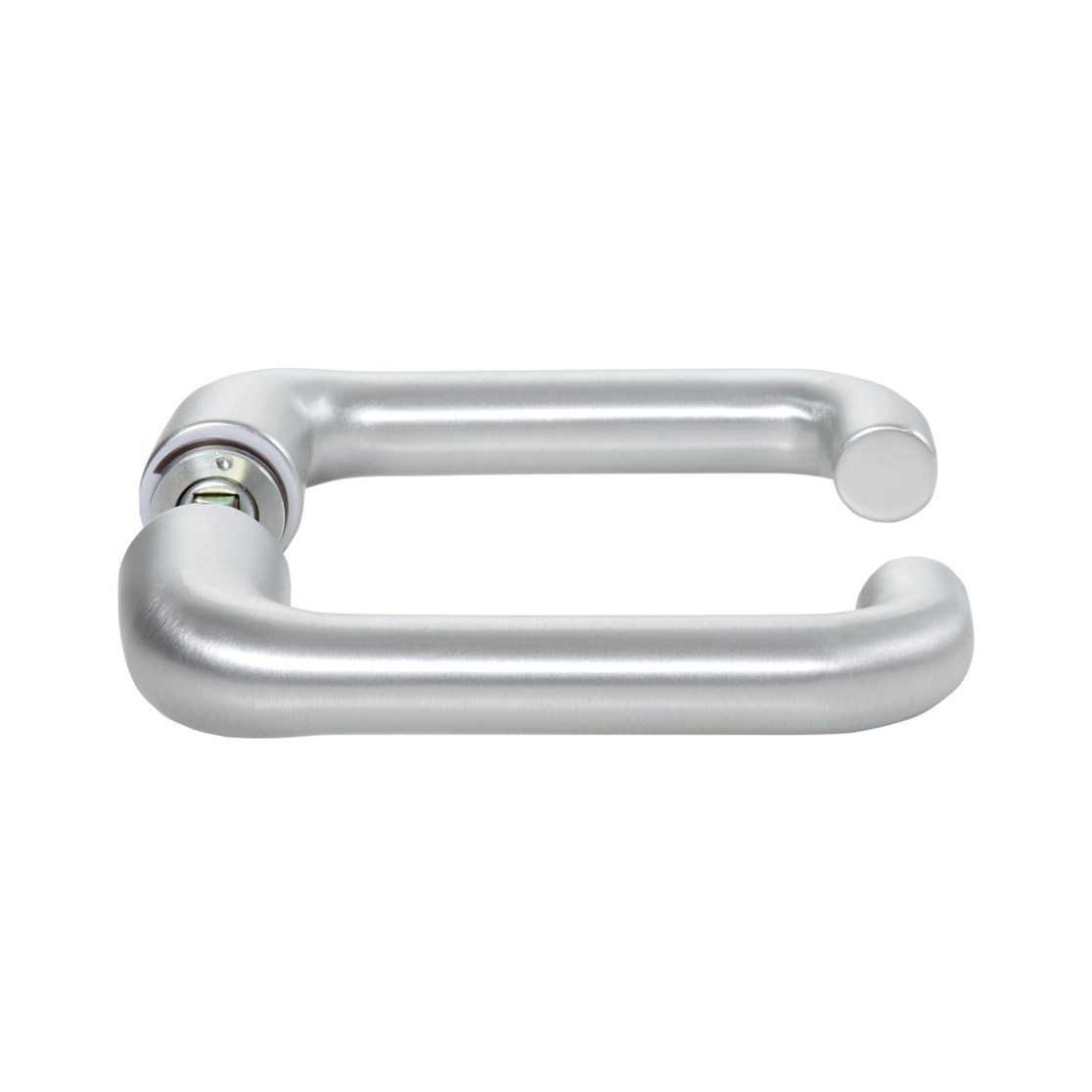

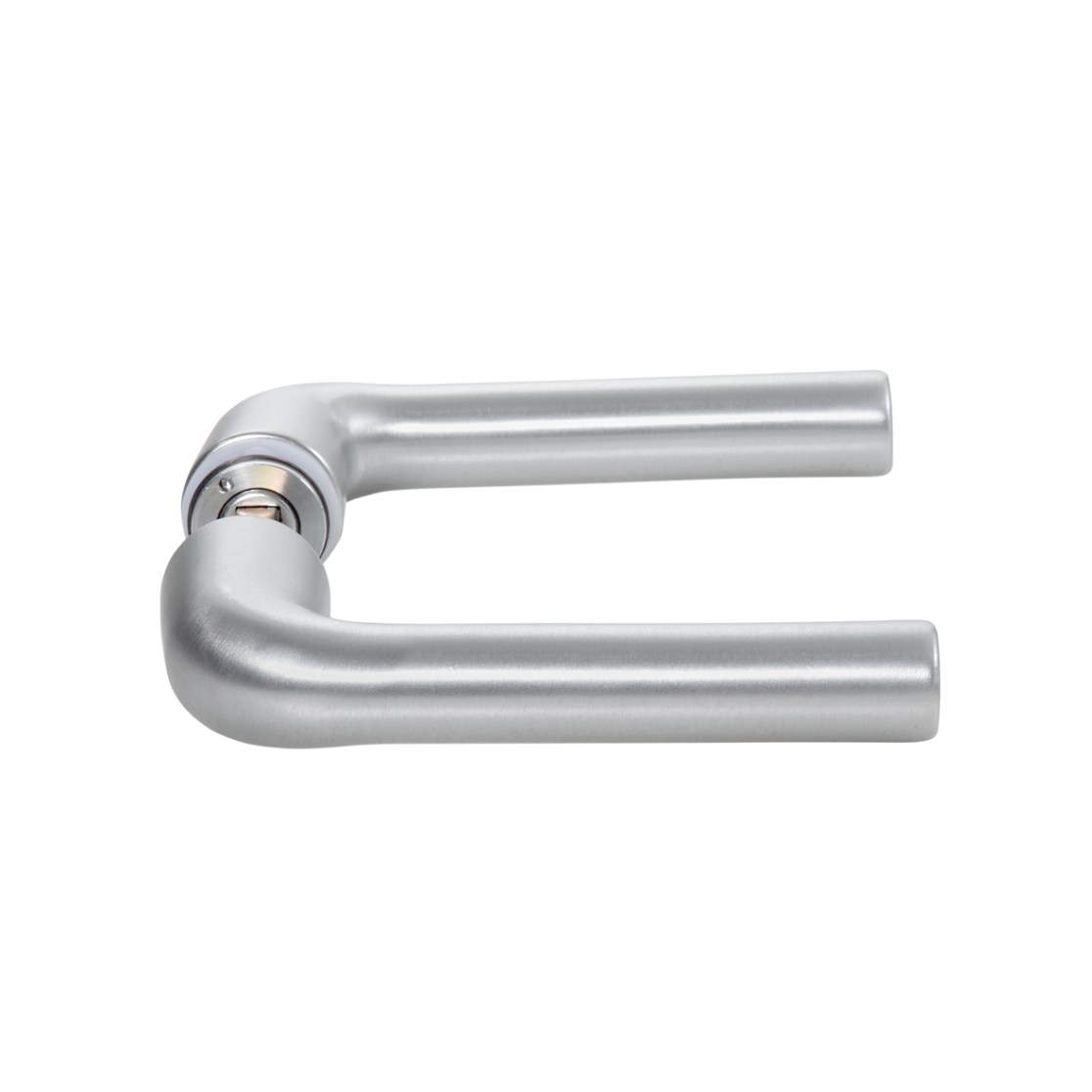

Alternative products

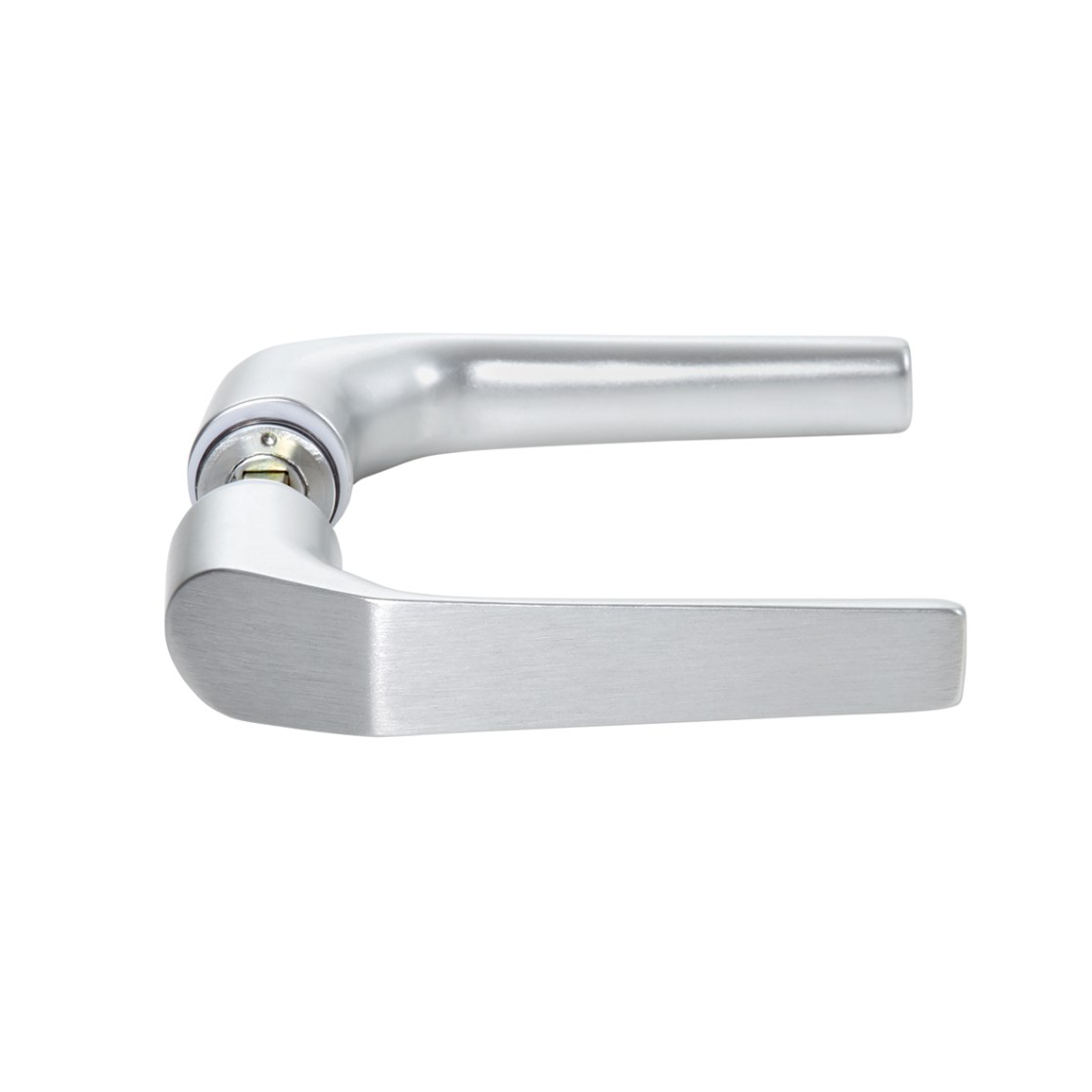

Door handle Premium project Fast Click Arrow

6432-70-11/E
