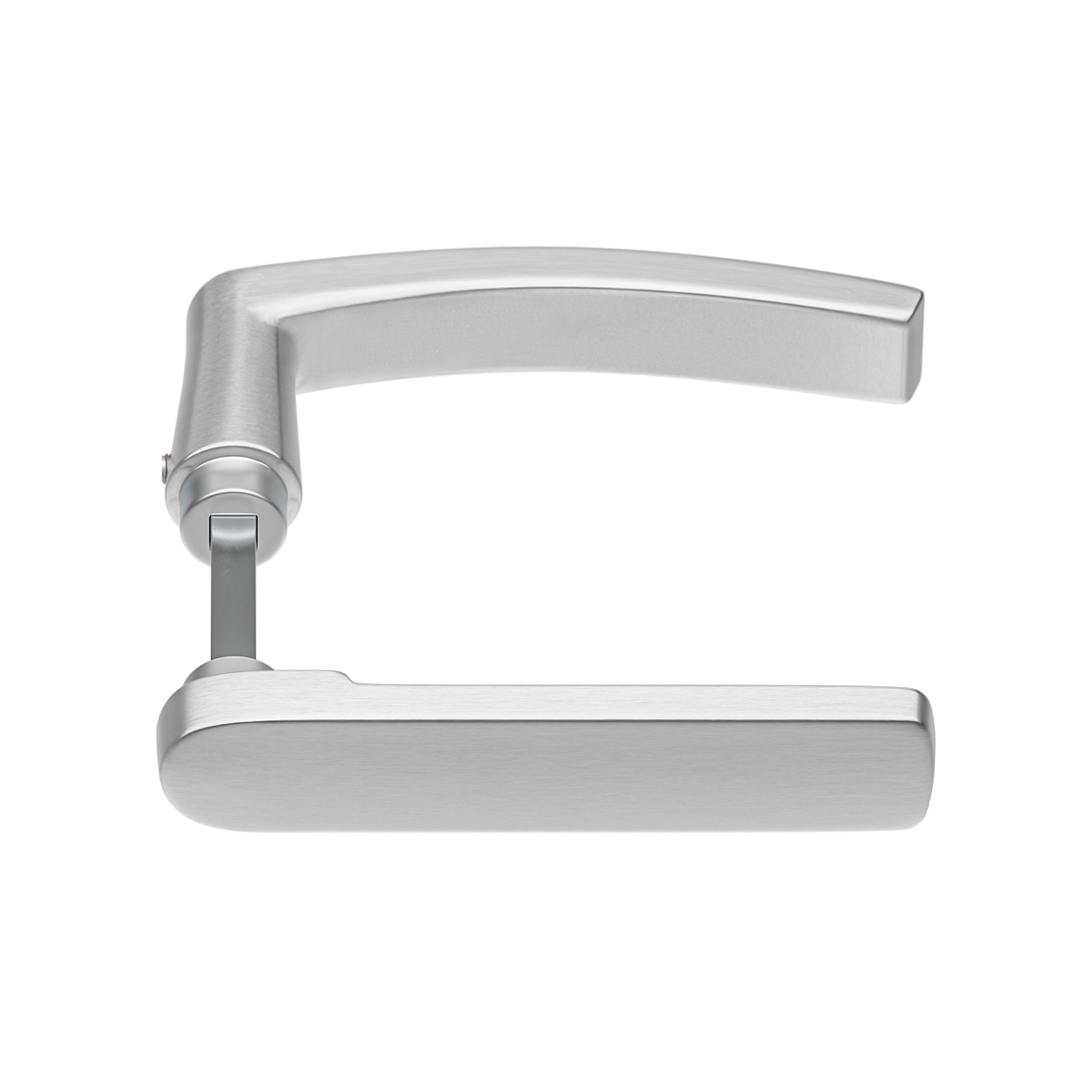

Door handle Flat-Blok

6165-70-11/E
arrow_selector
close

bronze

Stylish door handle for exterior doors with roller shutters.

  • thanks to the very flat design, can be perfectly combined with roller shutters
  • stylish appearance, finely polished, less sensitive to scratches
  • universally usable on doors with a thickness of 38 to 54 mm
  • complete with attachment materials
  • simple assembly
Specifications Downloads Technical drawings Similar products

Specifications

Recommended Mounting Materials
- M6 x 6 mm grub screw: 2 pieces
Commercial information
expand_more
Type Flat-Blok
Use for exterior doors, 38 to 54 mm thick
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Cradle to Cradle certification bronze
Technical information
expand_more
Product Length 128 mm
Handle length 128 mm
Handle depth 14 mm
Handle assembly grub screw fix
Material Aluminum
Finish Polished anodised F1, natural
Assembly information
expand_more
Including Mounting Material True
Assembly time 5 min
Recommended Mounting Materials
- M6 x 6 mm grub screw: 2 pieces
Logistic information
expand_more
Product Weight 258 gr
Pieces per small package 6 piece
EAN small package 8713249331225
Weight small package 1.67 kg
Dimensions small package 169 x 127 x 195 mm
Pieces per bulk package 36 piece
EAN bulk package 8713249331232
Weight bulk package 10.45 kg
Dimensions bulk package 390 x 320 x 180 mm

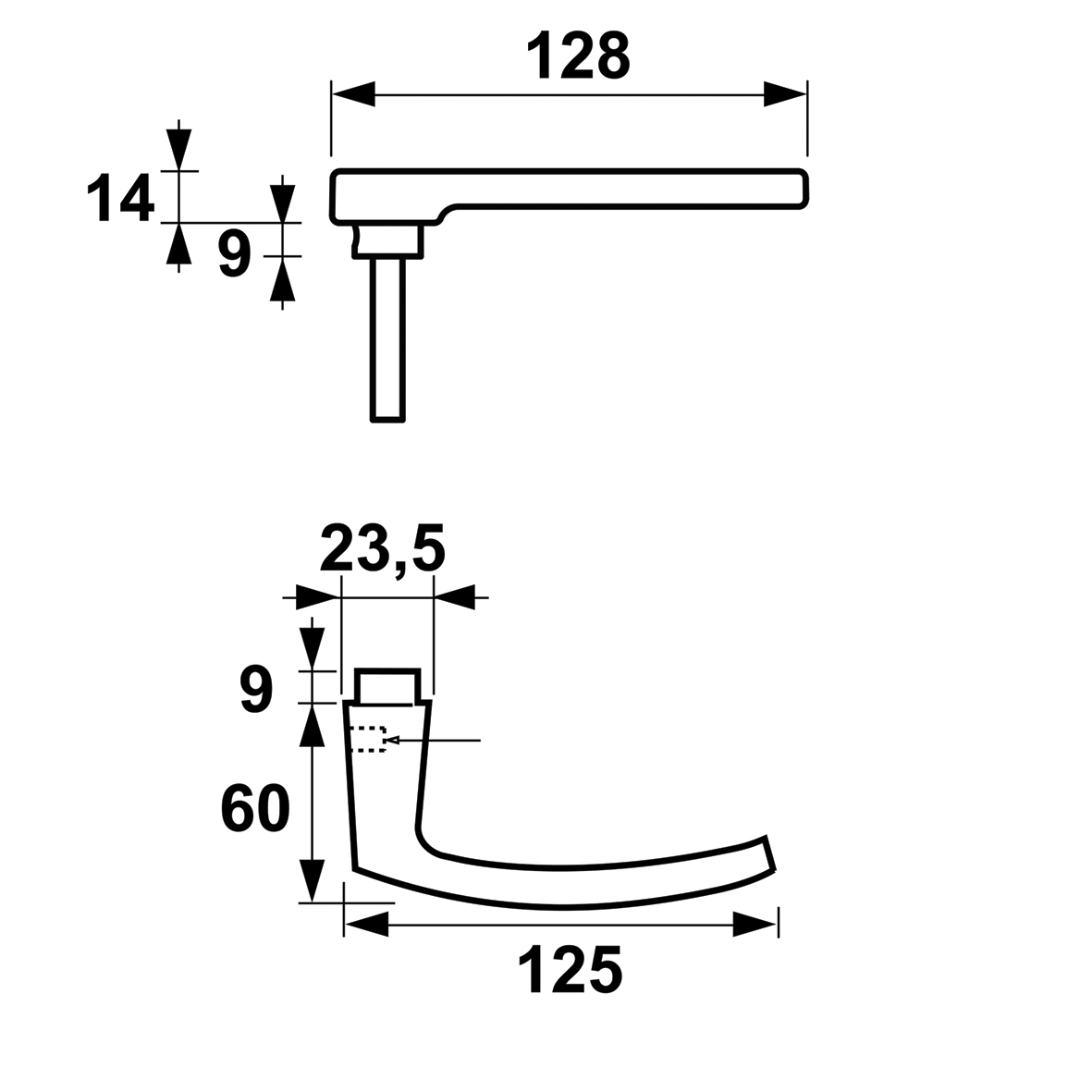

Technical drawings
Door handle Flat-Blok
61657011E
