Door control 996

7BR-9964-01SES
arrow_selector
close

Electromagnetic door control with hold-open or swing-free for fire doors especially

  • with projecting arm
  • closing force: 4
  • adjustable closing speed
  • adjustable latch action
  • electromagnetic hold-open
  • swing-free
Specifications Downloads Technical drawings Alternative products

Specifications

Commercial information
expand_more
Type 996
Use (fire) doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Length 305 mm
Product Width 92 mm
Product Height 58 mm
Maximum door width 1100 mm
Maximum door weight 80 kg
Type of arm scissor arm
Axle technique rack and pinion mechanism
(adjustable) closing power door assembly (pull side) max 4
(adjustable) closing power door assembly (pull side) min 4
(adjustable) closing power door assembly (push side) max 4
(adjustable) closing power door assembly (push side) min 4
Free swing operation True
Material Aluminum
Finish Grey lacquered
Material 2 Steel
Finish 2 Grey lacquered
Assembly information
expand_more
Including Mounting Material True
Mounting position scissor arm pull side regular
Mounting position track-arm push side regular
Assembly time 30 min
Logistic information
expand_more
Pieces per small package 1 piece
EAN small package 5027968901014
Weight small package 3.766 kg
Dimensions small package 407 x 125 x 98 mm
Pieces per bulk package 5 piece
Weight bulk package 19.5 kg
Dimensions bulk package 537 x 437 x 142 mm

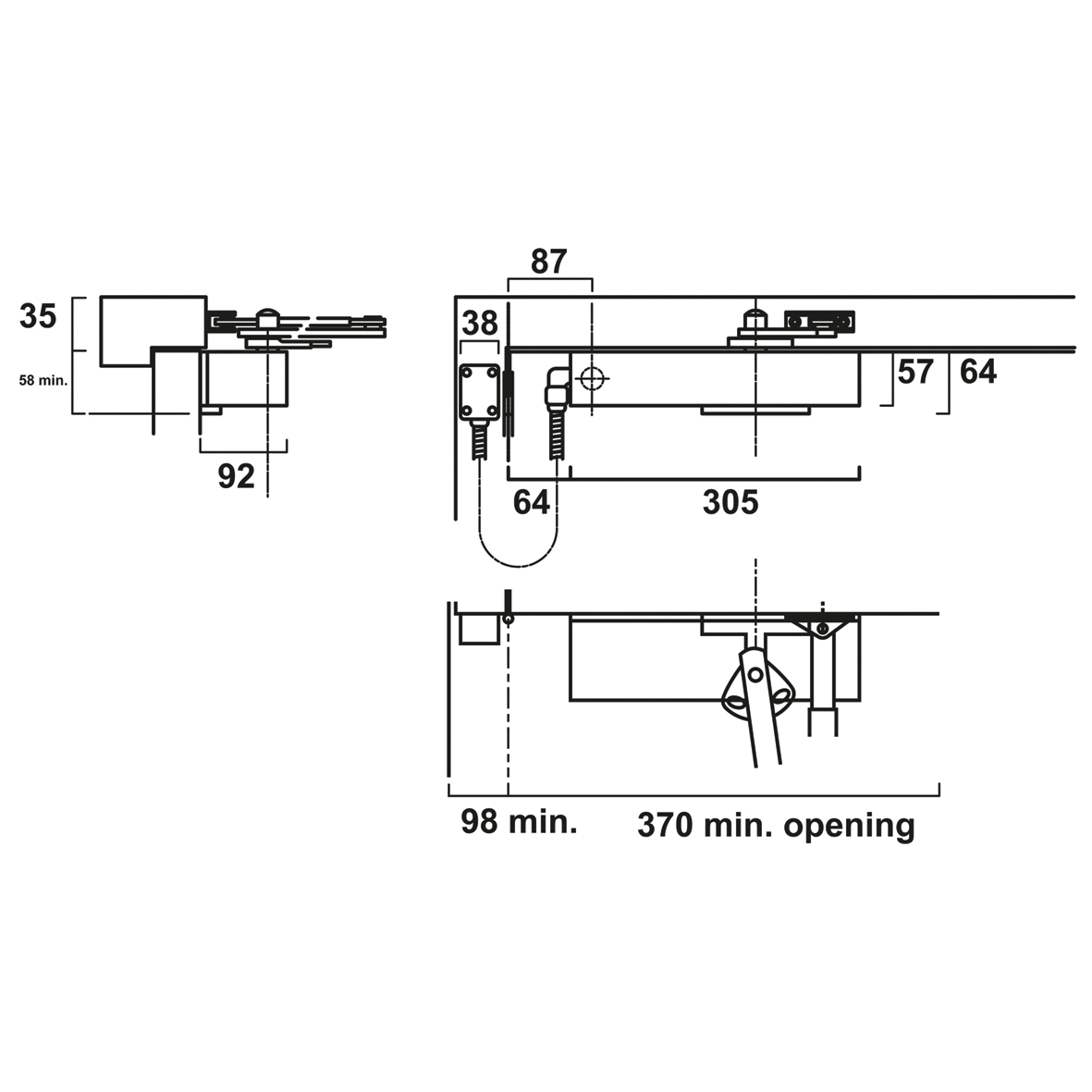

Technical drawings
Door control 996
7BR996401SES
