Door control 2321BT

7BR-2321-BTSES
arrow_selector
close

Power door control with cam action technology and adjustable closing speed, opening damping and latch action.

  • with slide track
  • with cam action technology for smooth opening and reliable closing
  • adjustable closing force: 2-4
  • adjustable closing speed
  • adjustable latch action
  • adjustable opening damping
  • grey trim plate
Specifications Downloads Technical drawings Alternative products

Specifications

Commercial information
expand_more
Type 2321BT
Use doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable True
Technical information
expand_more
Product Length 240 mm
Product Width 49 mm
Product Height 56 mm
Maximum door width 1100 mm
Maximum door weight 80 kg
Type of arm track arm
Axle technique cam action mechanism
Angles adjustable closing speed 180 - 10 º
Angles adjustable latch action 10 º
Angles adjustable backcheck 70 - 180 º
(adjustable) closing power door assembly (push side) max 4
(adjustable) closing power door assembly (push side) min 2
(adjustable) closing power frame assembly (pull side) max 4
(adjustable) closing power frame assembly (pull side) min 2
User intensity medium
Material Aluminum
Finish Anodised F1, natural
Material 2 Steel
Finish 2 Grey lacquered
Assembly information
expand_more
Including Mounting Material True
Mounting position track-arm pull side transom
Mounting position track-arm push side regular
Assembly time 30 min
Logistic information
expand_more
Product Weight 2197 gr
Pieces per small package 1 piece
EAN small package 5050640035127
Weight small package 3.24 kg
Dimensions small package 458 x 104 x 55 mm
Pieces per bulk package 4 piece
Weight bulk package 13.45 kg
Dimensions bulk package 481 x 240 x 147 mm

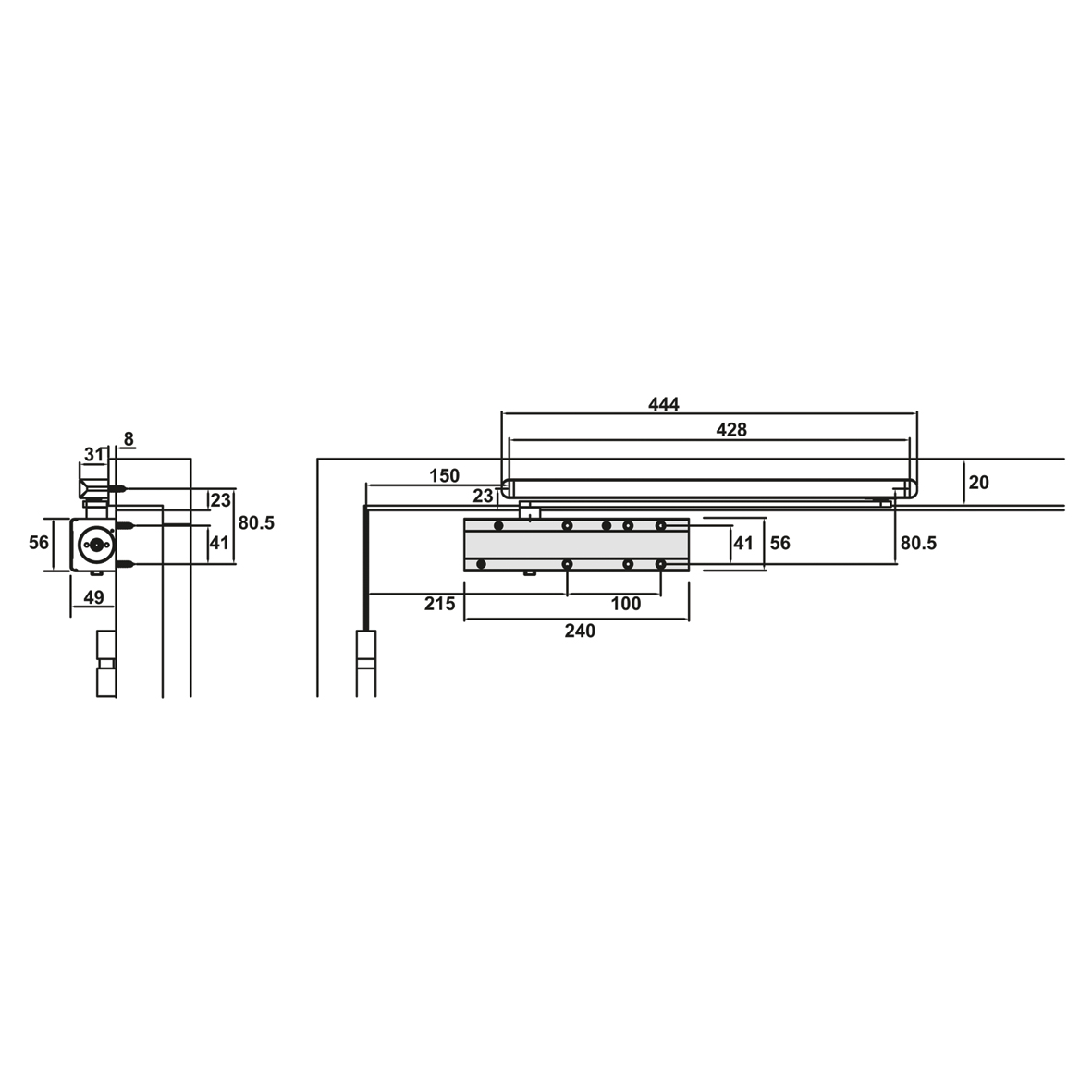

Technical drawings
Door control 2321BT
7BR2321BTSES
