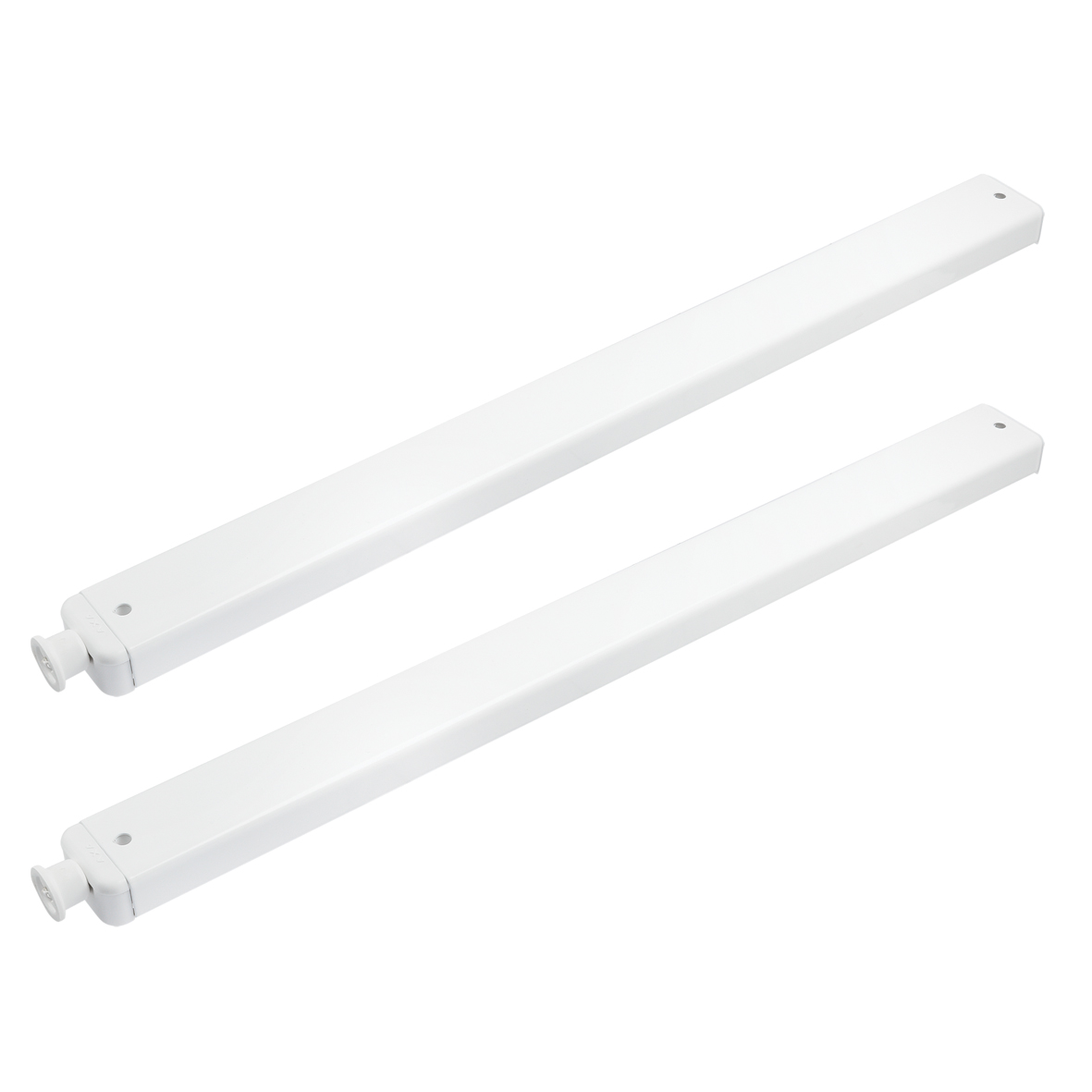

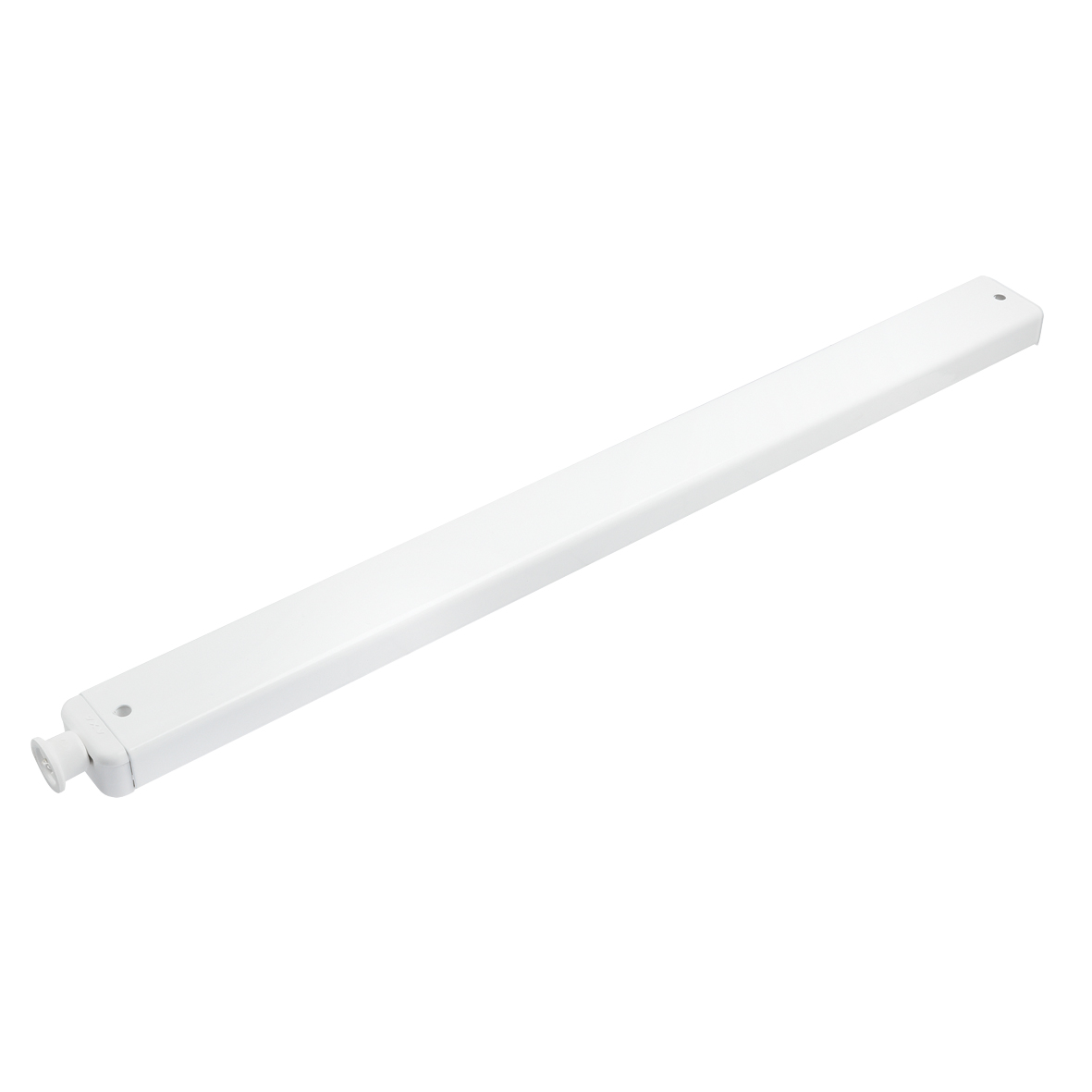

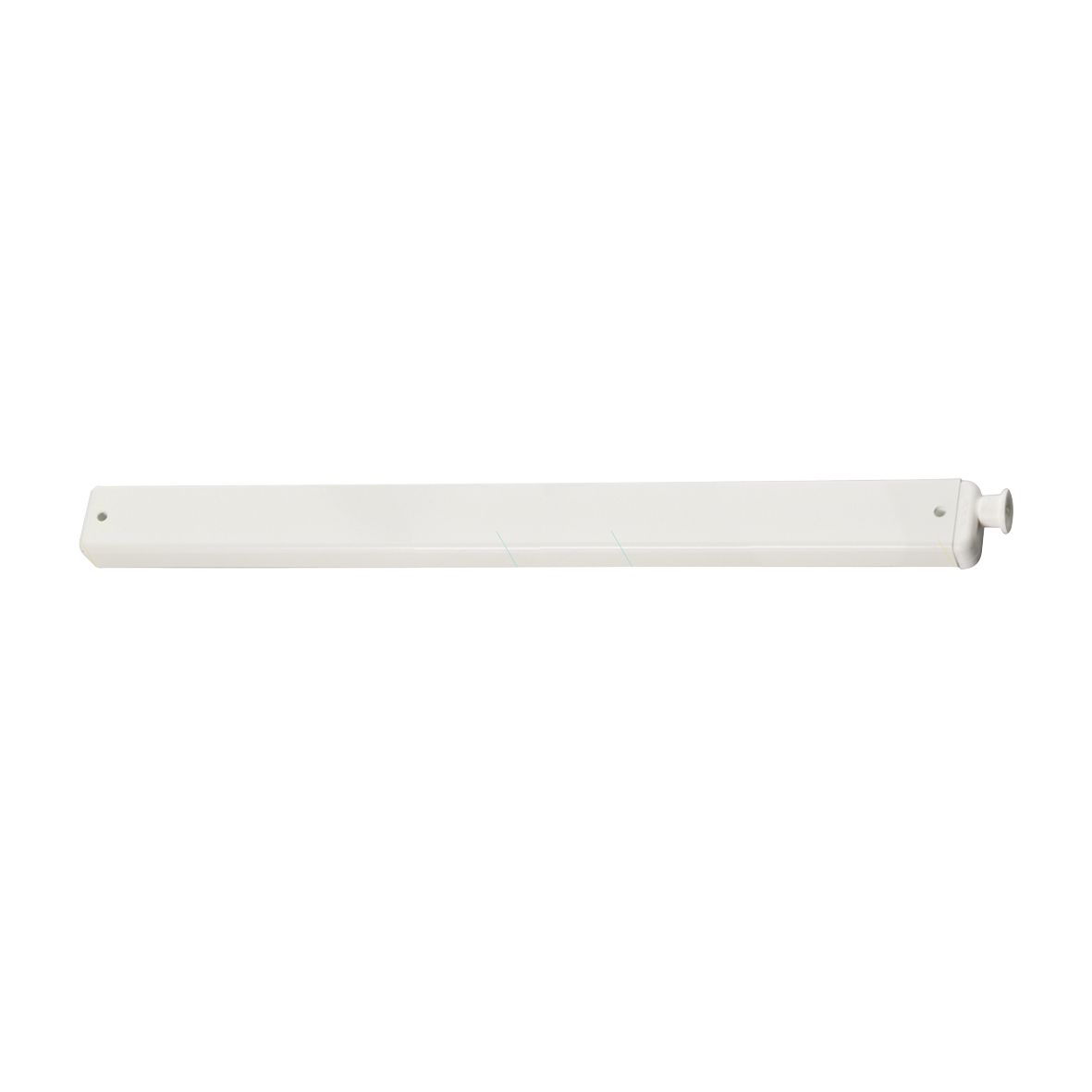

Door closer 3900

3900-40-54/BL
arrow_selector
close

This handy door closer closes the door automatically behind you and is energy-saving.

  • energy-saving
  • tensile force adjustable
  • can be disconnected quickly in the summer
  • simple assembly
Specifications Downloads Technical drawings Alternative products

Specifications

Recommended Mounting Materials
- 4.0 x 30 mm screw: 2 pieces
- 3.0 x 12 mm screw: 2 pieces
Commercial information
expand_more
Type 3900
Use for interior and fly-screen doors
Safety information
expand_more
SKG No
Police Hallmark False
CE Applicable False
Technical information
expand_more
Product Length 400 mm
Product Width 32 mm
Product Height 20 mm
Material Steel
Finish White lacquered
Assembly information
expand_more
Including Mounting Material True
Assembly time 15 min
Recommended Mounting Materials
- 4.0 x 30 mm screw: 2 pieces
- 3.0 x 12 mm screw: 2 pieces
Logistic information
expand_more
Product Weight 317 gr

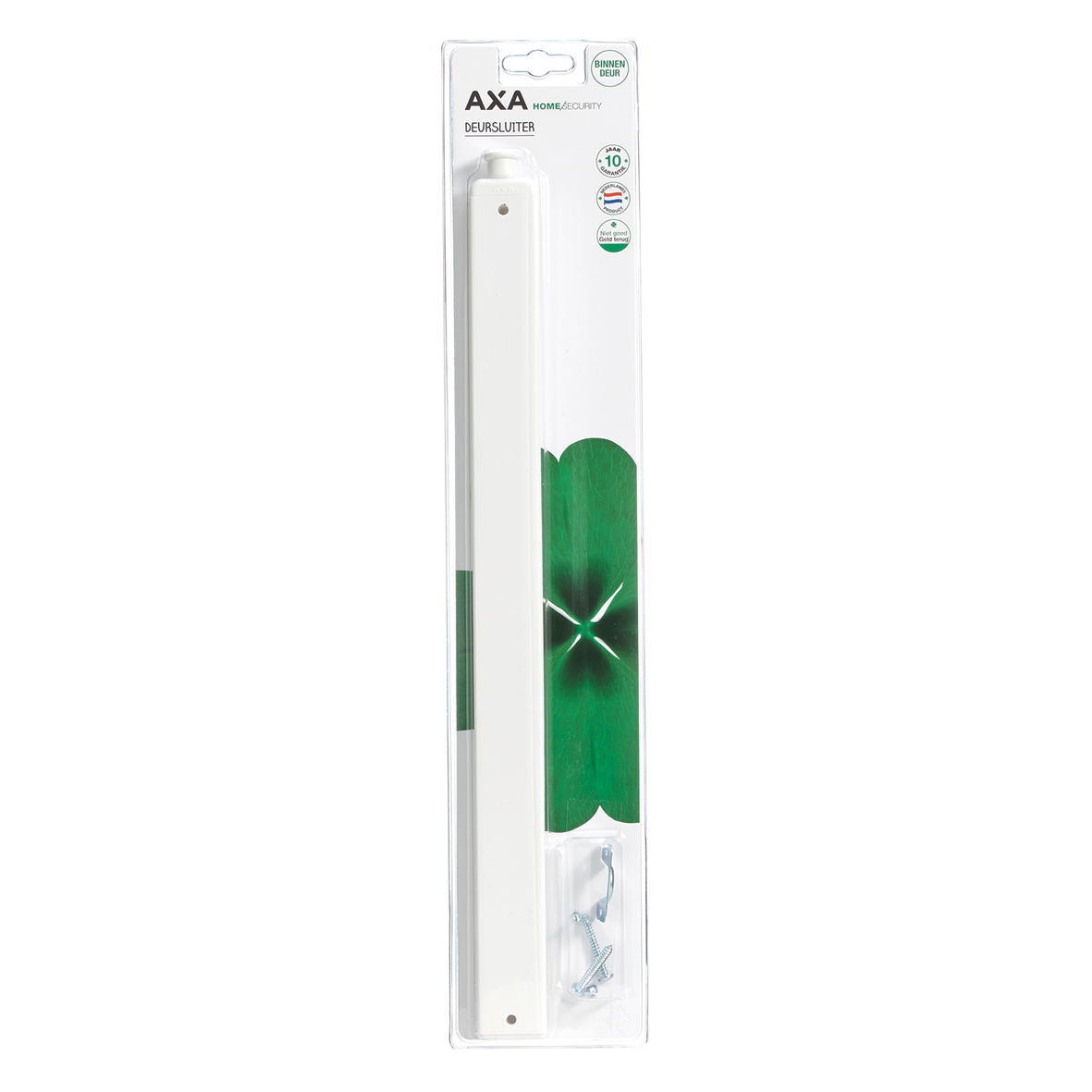

Pieces per small package 1 piece
EAN small package 8713249233284
Weight small package 0.317 kg
Dimensions small package 480 x 95 x 26 mm
Pieces per bulk package 25 piece
EAN bulk package 8713249238722
Weight bulk package 8.45 kg
Dimensions bulk package 530 x 320 x 171 mm

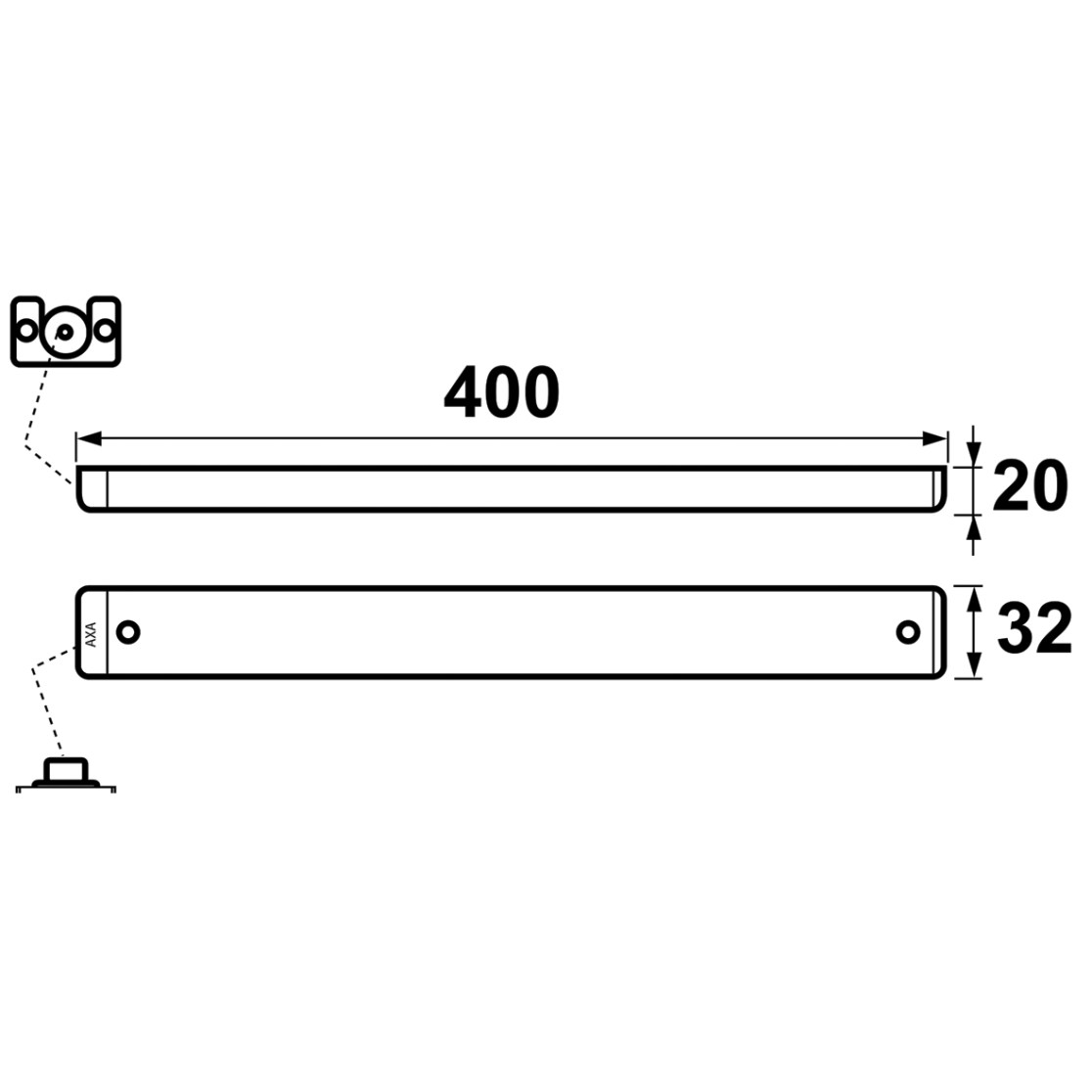

Technical drawings

Alternative products
